220 В Вибрационный двигатель для машины
US $22.00-$45.00
SCB1030L-28F цены по прейскуранту завода-изготовителя матовый монета тактильная вибрации DC 3V 10 мм микро-моторы для Носимых
- Категории: Вибрационный Мотор >>>
- Поставщик: Guangdong,Saibow,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
SCB1030L-28F Factory Price Brushed Coin Vibration DC 3V 10mm Micro Motors for Wearable Device
Product Description
SCB1030L-28F coin vibration motor is a popular 3 V leaded design. If requested, we can supply it with a variety of connectors mounted to its wire leads. If you require a different connector to be used, please send us the data sheet and we will advise you if we can connect it. Custom wire lengths are also possible. This coin vibrator motor is supplied with a self adhesive double stick pad which may be used to permanently mount the motor to the PCB or to the wall of your devices housing.
Electrical Date
Show Me All Products (Shown below are only five models of them: SCB1030F-23F; SCB1030L-28F; SCB1034F-25L; SCB1034L-18F; SCB1020L-95F. If you want to know about other models, please email us.)
SAIBOW P/N | Tech. Type | Motor Size | Voltage | Current | Response Time | Rated speed (rpm) | Vibe Force (G) | ||||
Dia (mm) | Thickness (mm) | Operating | Rated (ma) MAX | Rise Time (ms) | Fall Time (ms) | ||||||
SCB1030F-23F | BRUSH | 10 | 3 | 2.5~3.5 Vdc | 85 | 90 | 50 | 13,500 | 0.9 | ||
SCB1030L-28F | BRUSH | 10 | 3 | 2.7~3.3 Vdc | 85 | 90 | 50 | 13,500 | 1.3 | ||
SCB1034F-25L | BRUSH | 10 | 3.4 | 1.2~1.8 Vdc | 40 | 90 | 50 | 9,000 | 0.5 | ||
SCB1034L-18F | BRUSH | 10 | 3.4 | 2.7~3.3 Vdc | 85 | 90 | 50 | 13,500 | 1.5 | ||
SCB1020L-95F | BRUSH | 12 | 3 | 2.7~3.3 Vdc | 90 | 90 | 50 | 9,000 | 1.1 | ||
The “typical current” is the average current from 20 motors selected at random from a given production lot. Copies of the test report showing the data collected for all 20 motors are available upon request.
Mechanical Tear Down Of Coin Vibration Motor

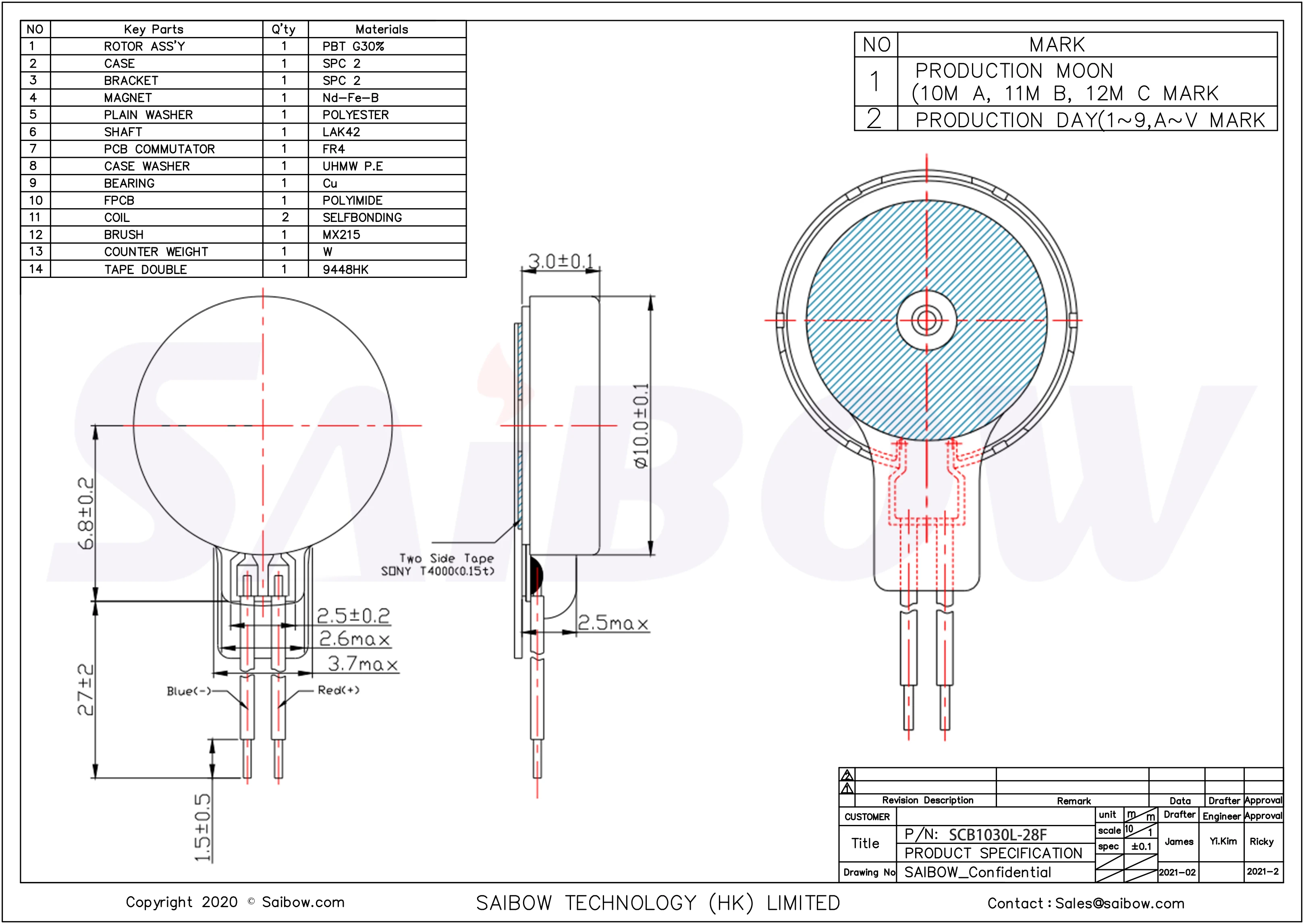

Product Drawing:
The adhesive sponge or adhesive tape could be removed. Connectors could be added to the lead wires. Please negotiate before making samples for any specific requirements.
APPLICATIONS:
You could find the right haptic solution with our below various vibrators:
7-10mm diameter coin type brushed vibration motors.
3-4mm height reflow solderable SMD type vibration motors
4-7mm diameter cylinder type brushed vibration motors.
5-9 diameter coin type brushless vibration motors.
7-10mm diameter coin type brushed vibration motors.
3-4mm height reflow solderable SMD type vibration motors
4-7mm diameter cylinder type brushed vibration motors.
5-9 diameter coin type brushless vibration motors.
Company Profile
SAIBOW is based on Hong Kong and other emerging industrial markets in the Pearl River Delta, specializing in high-end automotive electronic products, communications mech-
anical and electrical parts of technical research and development, production and sales, international trade as one of the multinational enterprises, consumer comm-unications smart wearable electronic products, to provide domestic and foreign customers with high quality and cheap micro motors, Micro Camera modules, car speakers and smart audio, smart wearable watch (Smart Watches).
"pioneering and innovative, positive and enterprising, teamwork, professional and pragmatic", SAIBOW is willing to establish a friendly and honest partnership with all customers, and sincerely welcome new and old customers to work hand in hand to strive for win-win, and seek sustainable development of the cause.
Production Workshop
Certificate
FAQ：
1. Can you make the gearbox with custom specifications?
YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
2.Do you provide the samples?
YES. Our company can provide the samples to you.
3. Do you have the item in stock?
I am sorry we donot have the item in stock, All products are made with orders.
4. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
5.How to ship to us?
We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.
6.How to pay the money?
We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.
YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
2.Do you provide the samples?
YES. Our company can provide the samples to you.
3. Do you have the item in stock?
I am sorry we donot have the item in stock, All products are made with orders.
4. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
5.How to ship to us?
We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.
6.How to pay the money?
We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.
Payment & Shipping
● Trade Assurance: The first order, we suggest you to use Trade Assurance.
● T/T: If stocks, 100% payment before shipping; if customized order, 30% deposit deposit before production and balance 70% should be paid before delivery.
● Western Union, Money Gram, Paypal, all available.
● L/C: for large order.
● In general, we use international express, DHL, UPS, FEDEX, EMS, TNT, etc.
● Large order: by air or sea, you could choose it.
● If you have your own forwarder, please tell us the detailed information.
MOTOR TRANSPORT
OCEAN SHIPPING
AIR TRANSPORT
