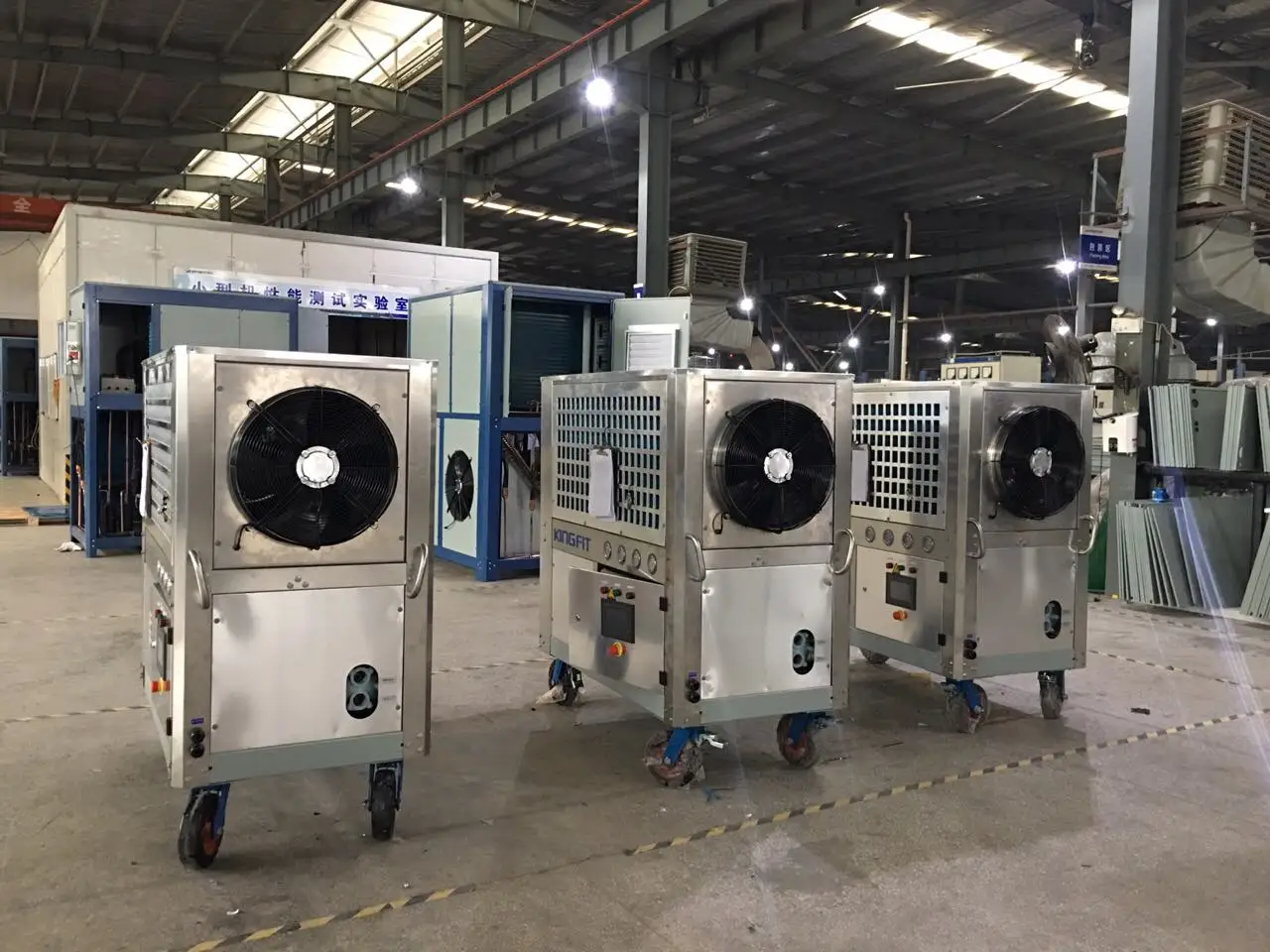

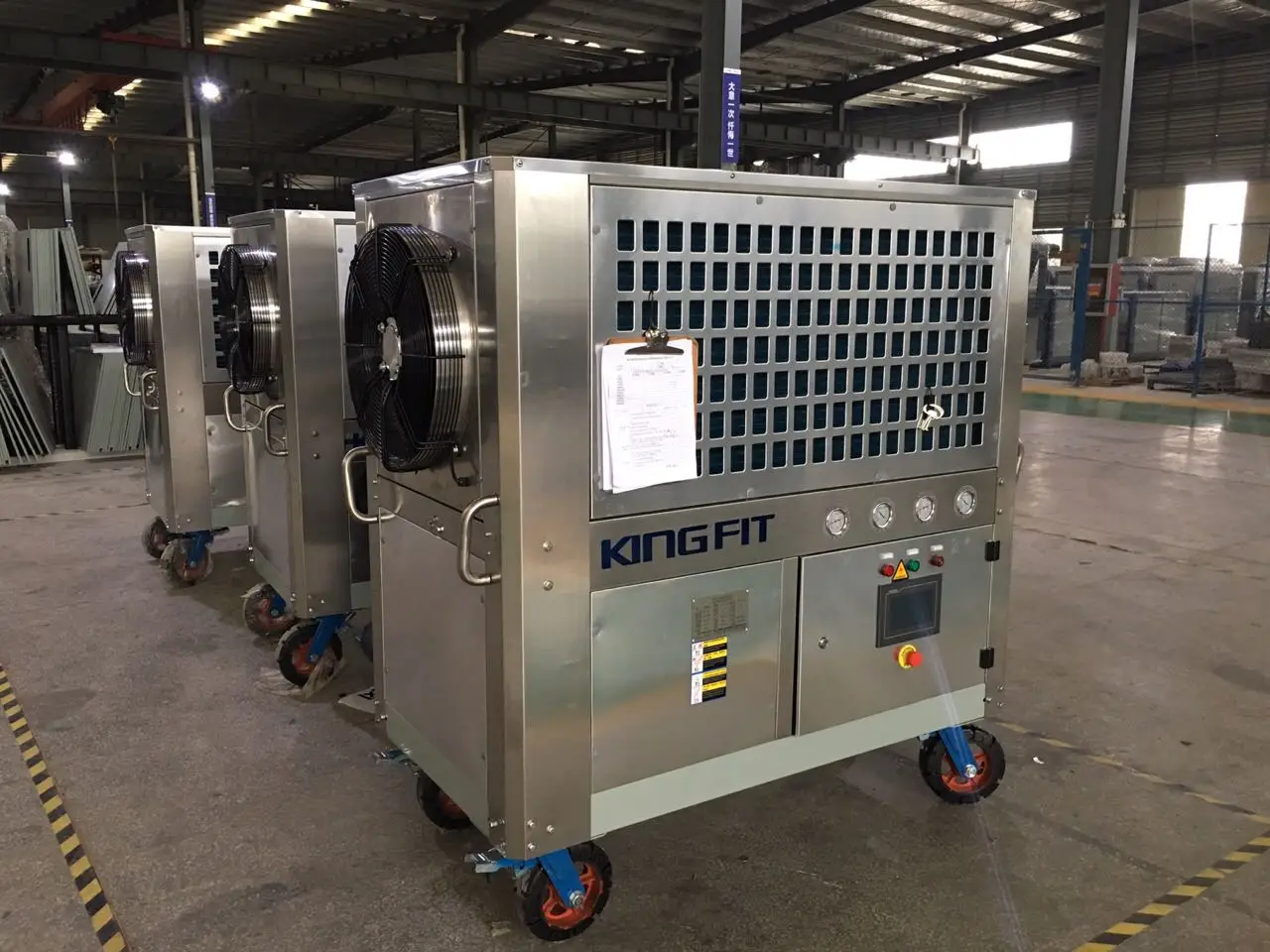

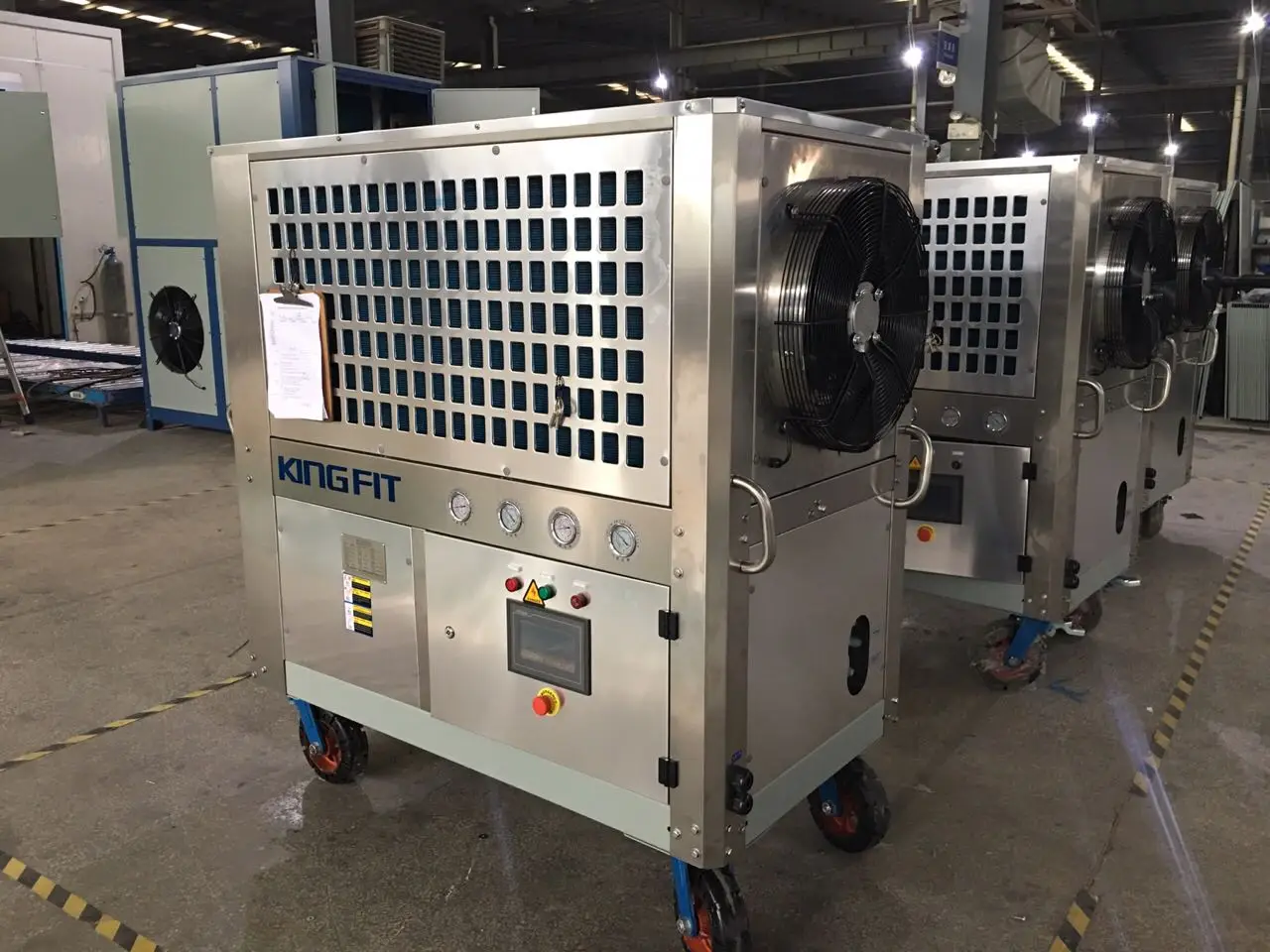

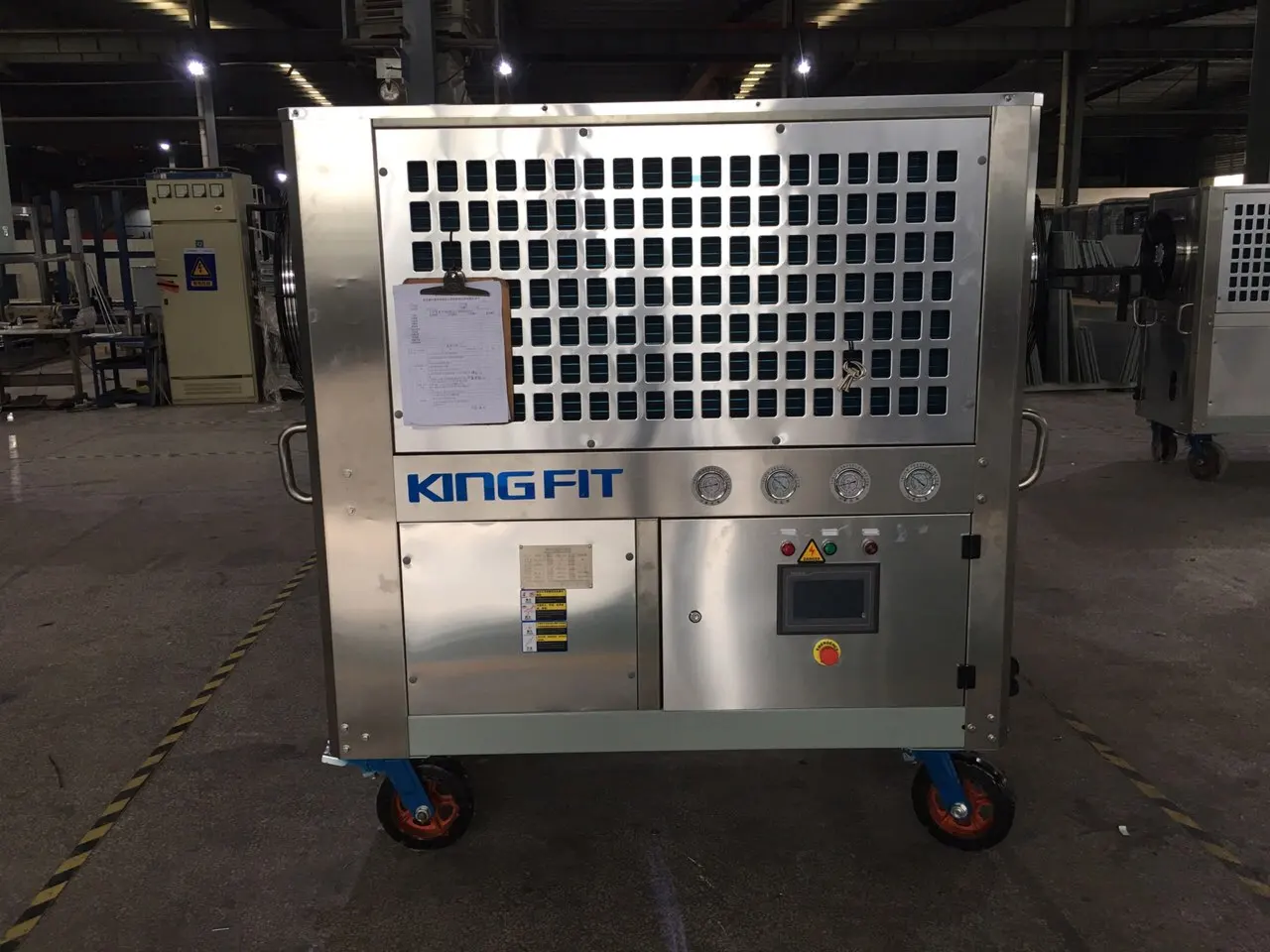

Охлаждающая машина мобильного типа KINGFIT для выращивания

Model

QSP21SZ

Cooling Capacity

30.5KW

COP

3.80

Power

3PH:380±10%;50HZ±2%

Compressor

Mode

Full-hermetic scroll style compressor

Quantity

SET

2 (5HP+5HP)

Input power

KW

6.3

Max current

A

21A

Matching wire

mm²

6

Total Input power

Kw

6.78

Way to unload

%

0 , 50%,100%

Refrigerant

R410A

Condenser

Mode

High efficient external screwed shell and tube

Cooling water flow rate

M3/h

6.4

Cooling water temperature

Inlet water temperature 30deg.c,

outlet water temperature 35deg.c

Evaporator

Mode

High efficient in side screw tube shinizu fin style

Air volume

M³/h

9500

Normal static press

KPa

30

Evaporating temperature

℃

5

Throttle methods

External balance expansion valve

Control function

Room temperature

Safety protection

Electric leakage protection,overload protection,overpressure and anti-phase protection,refrigerant abnormality protection,compressor over temperature protection,lack of water protection,and automatic fault detection,etc

Overall Size

L

mm

1590

W

mm

1030

H

mm

1690

Weight

KG
