WEGO JERICOM стоматологический имплантат хирургическая самонарезающая форма зубной костный
- Категории: Implants & Interventional Materials >>>
- Поставщик: Weihai,Wego,Jericom,Biomaterials,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Recommend Products
Product Description
Excellent shape
Comparing with cylinder and single thread profile, it has a good primary stability.An obvious superiority can be seen when it used
for low density sclerotin.Meanwhile micro taper and irregular trapezoid thread could spread out the stress from the implant and
the jawbone in order to keep a physiological balance.It won't be fractured due to the overload of the jawbone and implant fatigue and gives it a less stress so that the jawbone
shrinks and increase bone resorption.
for low density sclerotin.Meanwhile micro taper and irregular trapezoid thread could spread out the stress from the implant and
the jawbone in order to keep a physiological balance.It won't be fractured due to the overload of the jawbone and implant fatigue and gives it a less stress so that the jawbone
shrinks and increase bone resorption.

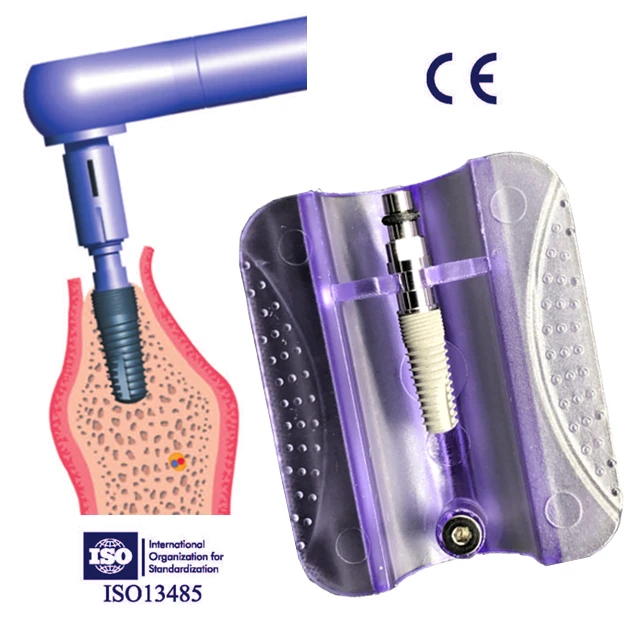

Perfect connection
WEGO Dental Implant System adopted the advanced design of platform switching, Morse's connection and cross key anti-rotation.The implant and abutment are tightened by central screw. The structure reflects the connection of airtight, power of dispersion and anti-rotation between the implant and abutment.
Surface roughness
Surface roughness:Ra 1.5-2.5 μm,which greatly increases the bonding area between the tissue and the implant surface.
Rapid OsseointegrationBetter Primmary Stability Function
This surface contacts with bone and enhance the osseointegration.The function of bone induction is remarkable.It engourages more
rapid osseointegration on the initial healing stage.WEGO implant system gains a better stability perperty compared with the other
implant models.
rapid osseointegration on the initial healing stage.WEGO implant system gains a better stability perperty compared with the other
implant models.
WEGO dental implant SLA surface VS
Straumann dental implant SLA surface
Hard tissue biopsy research (2 weeks)
2 weeks after implantation , hard tissue biopsy shows that new born bone was formed directly on the surface of the implant,showing obvious contact osteogenesis.(The white section is new born bone tissue. Black section is implant . Red section is old bone tissue.)
Hard tissue biopsy research (4 weeks)
4 weeks after the operation, hard tissue biopsy showed the interface of implant and bone have good osseointegration.

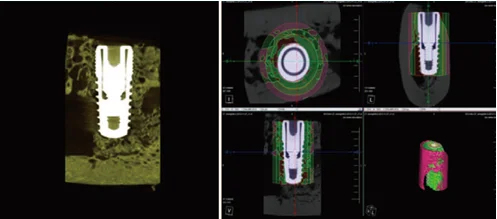

Micro CT research
4 weeks after operation, the micro CT showed a large amount of new bone tissue grows attached to the implant ,and the osseointegration is good ,indicating that the implant has an obvious role in guiding the formation of new bone tissue.

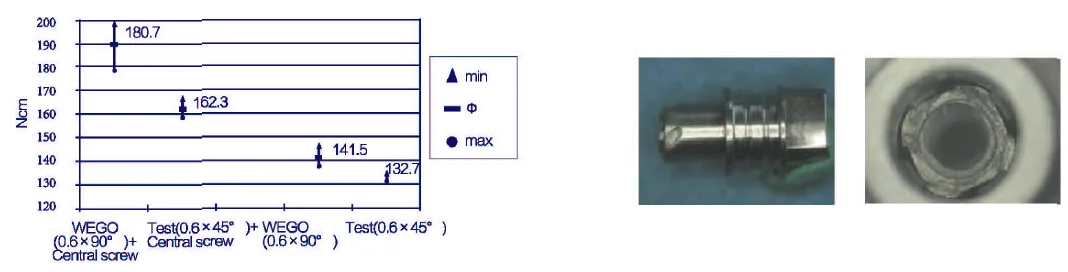

Torque test
Torque test shows that WEGO dental implant's anti-rotation locking of the cross key can transmit up to 180.7N.cm torque.-------Source of Data: Investigation report R&D,KST 51107.Komet Laboratory,Germany.

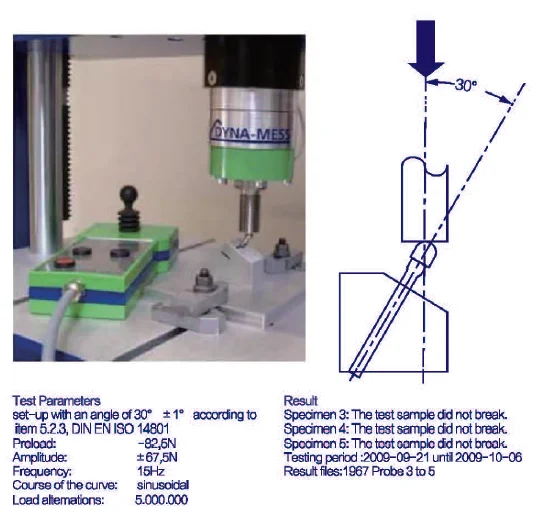

Fatigue test
WEGO dental implant straightly follwed the ISO-14801 《Dynamic fatigue test of dental implants in the bones of dentistry》demands to test , and passed 5 million times of fatigue test.-------Source of Data: Investigation report R7D,KST 51107 .Komet Laboratory,Germany.

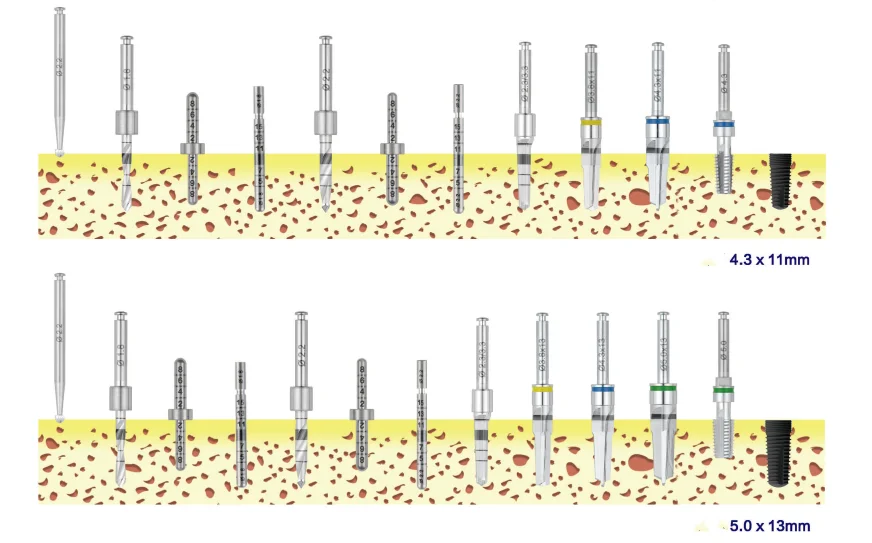

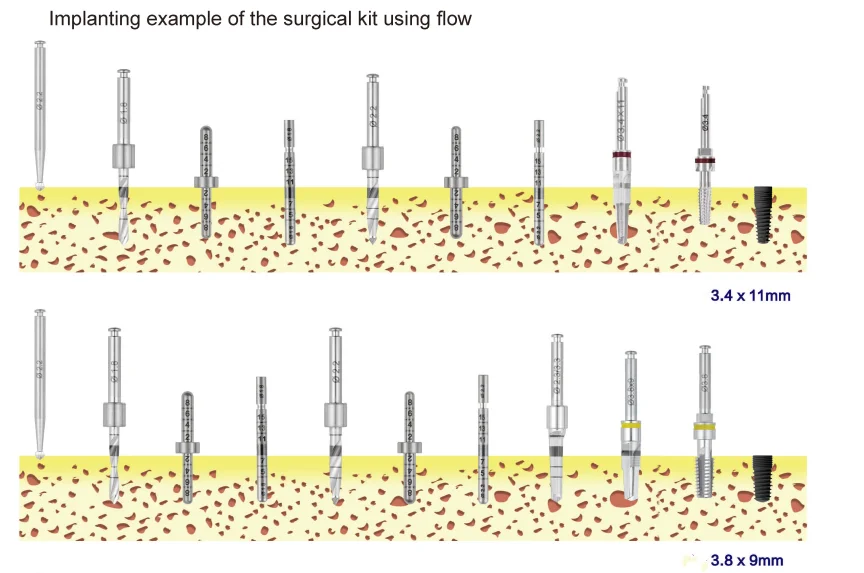

WEGO Dental Implant System surgical flow
WEGO dental implant surgical kit is made in Swiss ,which assure of the high quality and precision of surgery .
Specification
Serial No | Size |
111-016 | Ø3.4x L9mm |
111-017 | Ø3.4x L11mm |
111-018 | Ø3.4x L13mm |
111-019 | Ø3.4x L15mm |
111-001 | Ø3.8x L9mm |
111-002 | Ø3.8 x L11mm |
111-003 | Ø3.8x L13mm |
111-004 | Ø3.8 x L15mm |
111-005 | Ø4.3 x L9mm |
111-006 | Ø4.3 x L11mm |
111-007 | Ø4.3 x L13mm |
111-008 | Ø4.3 x L15mm |
111-009 | Ø5.0 x L9mm |
111-010 | Ø5.0 x L11mm |
111-011 | Ø5.0 x L13mm |
111-012 | Ø5.0 x L15mm |
Our Advantages
Raw material
Raw materials from Germany Zapp ,which is same as Straumann to assure of high level standard from the very beginning.
Precise Manufacture
Precise manufacture CNC centre from Switerland and Japanese process production Line to assure of high level precision products.
Clean workshop
Clean workshop 10 thousand level which is higher than regular level.
100% full inspection & Quality control
Wego inspection includes first piece inspection, process inspection, full inspection, and both of implant surface roughness and internal diameter, our inspection devices are Germany and Japanese devices.
WEGO dental implant center
WEGO dental implant center provides with WEGO dental implant system training and education .
Company Profile
About Us
WEGO JERICOM BIOMATERIALS Co., Ltd was founded in 2010 and located in Weihai, China. It is a professional company engaged in theR&D, manufacture, sales and training of dental medical device. Main products include dental implant systems，surgical instruments,personalized and digitalized restoration products, so as to provide one-stop dental implant solution for dentist and patients.
Dedicated to strict quality control and thoughtful customer service, we have precise machining, surface treatment, cleaning production line and inspection line, obtained CE and ISO 13485 certification based on WEGO group’s over 30 years’ experience in the manufacturing of orthopedic and intracardiac products.
Adhering to the principle of precise, creative, mutual benefits, we cooperate closely with well-known medical institutions of stomatology and dental experts, to improve our design, technical support and training service. WEGO dental implant system has passed functional and fatigue tests by the European lab, and been popularly implanted in China and European universities, Till now WEGO dental implants have got steady clinical performance of 100% reservation rate and 99.1% success rate since launched to the market in 2011.
Beside current products in our catalogue, we’d like also provide engineering assistance for your application, and offer lifetime warranty service, to satisfy and surpass your maximum demand.Your smile ,we care!
Dedicated to strict quality control and thoughtful customer service, we have precise machining, surface treatment, cleaning production line and inspection line, obtained CE and ISO 13485 certification based on WEGO group’s over 30 years’ experience in the manufacturing of orthopedic and intracardiac products.
Adhering to the principle of precise, creative, mutual benefits, we cooperate closely with well-known medical institutions of stomatology and dental experts, to improve our design, technical support and training service. WEGO dental implant system has passed functional and fatigue tests by the European lab, and been popularly implanted in China and European universities, Till now WEGO dental implants have got steady clinical performance of 100% reservation rate and 99.1% success rate since launched to the market in 2011.
Beside current products in our catalogue, we’d like also provide engineering assistance for your application, and offer lifetime warranty service, to satisfy and surpass your maximum demand.Your smile ,we care!
Certifications
