Дробеструйная машина для очистки системы строительных лесов cuплок например ledger base jack U-образной головки рамы и других мелких
- Категории: Abrator >>>
- Поставщик: Qingdao,Puhua,Heavy,Industrial,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Shot blasting and painting line machine for industrial workpiece surface cleaning
Q69 Steel Profiles shot blasting machines are used to remove scale and rust from metal profiles and sheet metal components. It applies to surface rusting and painting art of shipping , car , motorcycle , bridge , machinery,etc.By combining a roller conveyor with the appropriate crossover conveyors, individual process steps such as blasting, conservation, sawing and drilling can be interlinked.
This ensures a flexible manufacturing process and high material output.
This ensures a flexible manufacturing process and high material output.
Professional customizable shot blasting machine manufacturer
Technical Parameter
Type | Q69(customizable) |
The effective cleaning width(mm) | 800-4000 |
The room feed-in size(mm) | 1000*400---4200*400 |
The length of cleaning workpiece(mm) | 1200-12000 |
The speed of wheel conveyer(m/min) | 0.5-4 |
The thicksness of cleaning steelsheet(mm) | 3-100---4.4-100 |
The section steel specification(mm) | 800*300---4000*300 |
The quantity of shot blasting(kg/min) | 4*180---8*360 |
The first enclosed quantity(kg) | 4000---11000 |
Roll brush adjusting height(mm) | 200---900 |
Airness capacity(m³/h) | 22000---38000 |
Exterior size(mm) | 25014*4500*9015 |
Total power(except for dust cleaning)(kw) | 90---293.6 |
Product Application
Before shot blasting After shot blasting
Product Features

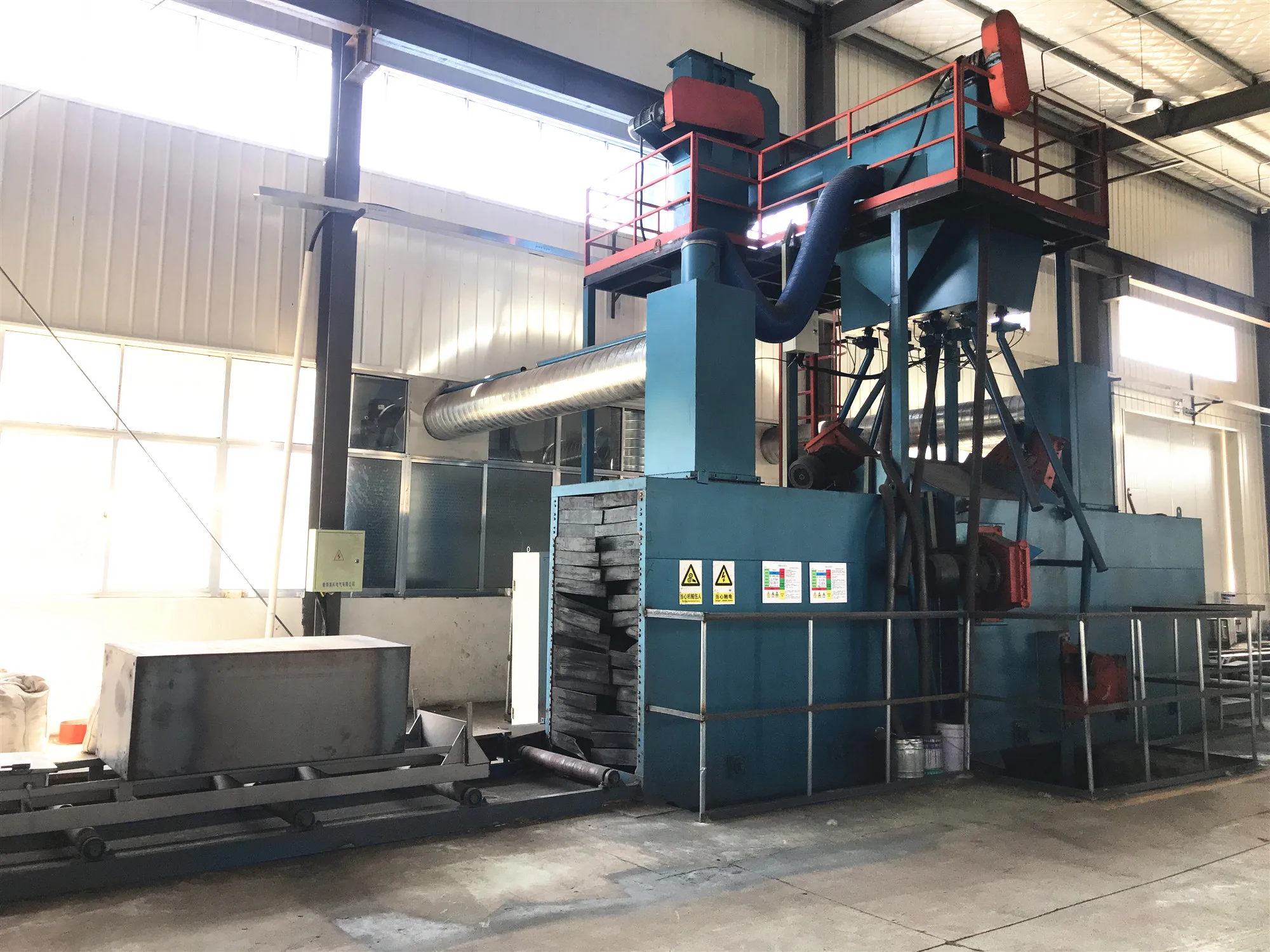

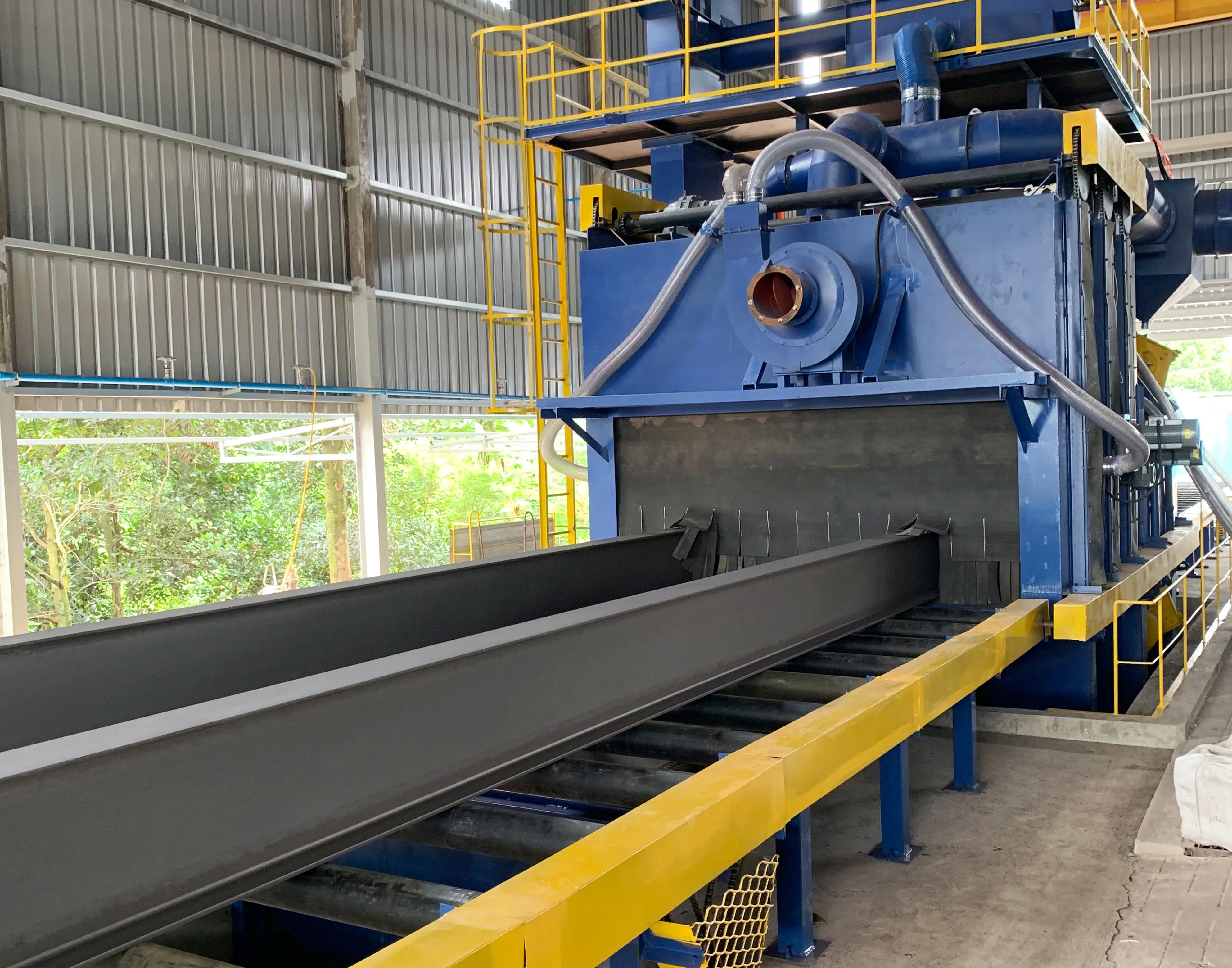

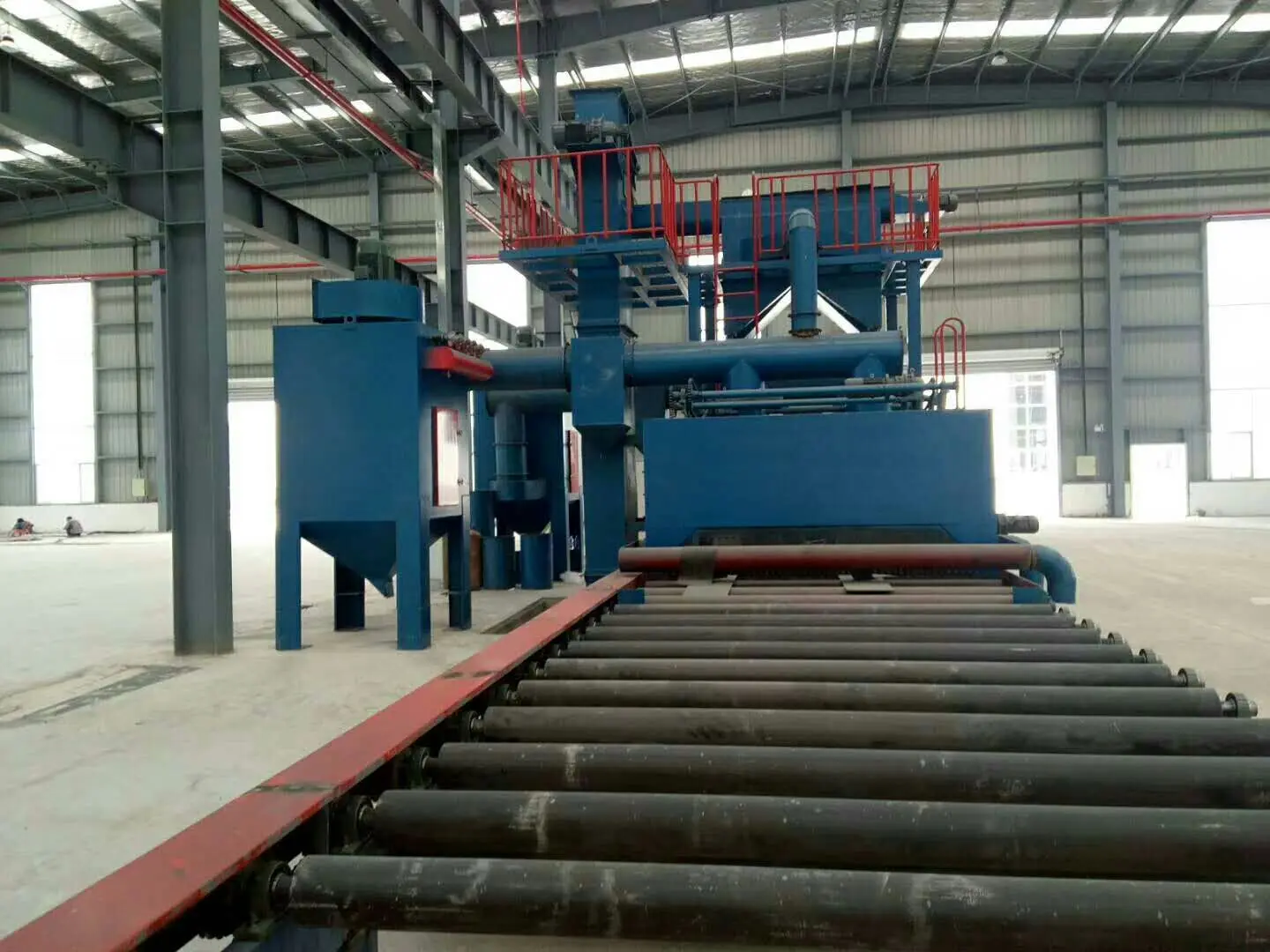

Roller Conveyor Systems
Composition: Feeding rollers, middle rollers, out-feeding rollers.
Loading capacity: 2 tons per meter.
Rollers Distance: 1 m.
Rollers Speed: 0.5-4 m per min.
Drive: Variable speed reducer.
Rollers in the blasting cabinet are protected by special alloy jacket with lifetime over 4,000 hours.

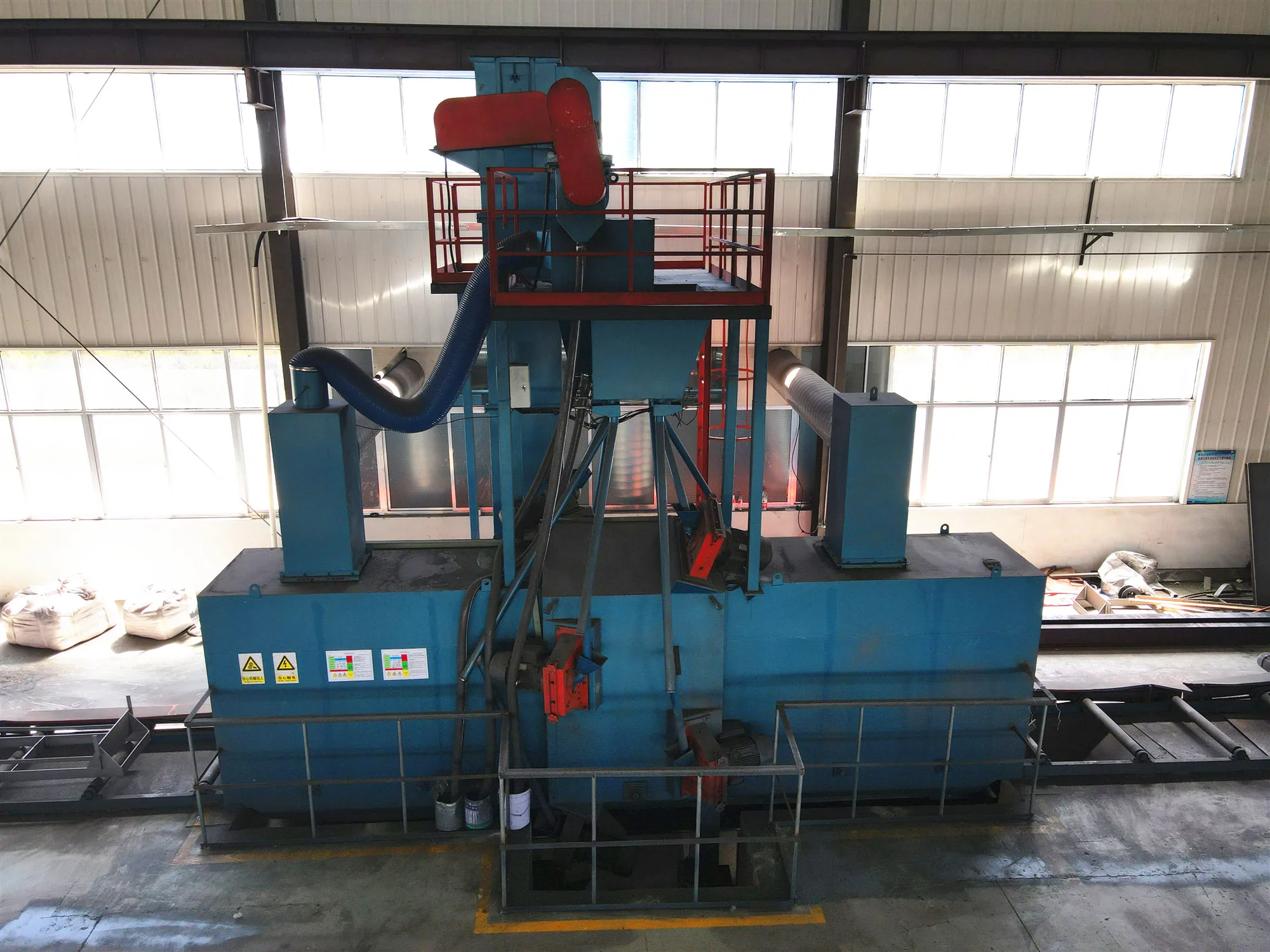

Blasting Chamber
Composition: Main blasting chamber, 2 auxiliary blasting chambers.
Auxiliary Blasting Chamber:Four layers rubber curtains
Main Blasting Chamber: blasting wheels are mounted on chamber in different angles
Divided & Modular Chambers: Designed accordingly
In the blasting chamber, the wall is protected by SPMn13 material liner and 65Mn protective liner, easy tear open outfit replacement.
Abrasive Recycling System
Longitude Screw: collect abrasive at the bottom.
Horizontal Screw: Delivery abrasive from longitude screw to bucket elevator.
Bucket Elevator:Lift abrasive to separator.
Separator:Separate & get qualified abrasive
Dust Collection System
Filtration Rate: 99.9%, dustless
Cyclone Dust Collector: first sate dust collection.
Dust Collector: Cartridge or bag type
Fan Extractor:Extract dusts from piping to dust collector.
Ventilation Piping:Collect dusts from shot blasting chambers &separators.
Cyclone Dust Collector: first sate dust collection.
Dust Collector: Cartridge or bag type
Fan Extractor:Extract dusts from piping to dust collector.
Ventilation Piping:Collect dusts from shot blasting chambers &separators.
High dust removal effect low pollution
The dust removal system consists of ducting system and filter cartridge dust collector. The emission standard can be lower 80 g/m3. The fan power is 30 kw, ventilation quantity is 26000 m3/h.
Electric Control System
Model:Automatic or manual type
Control Unit: PLC .
P L C: Siemens, Omron or famous reliable brand in China for your choice.
Emergency Stop: on main control panel and rollers conveyors.
Power Indicator: available on control panel .
Advantages of roller conveyor type shot blasting machine:
1. Wide application, Easy to install and use.
3. Good stability, Low failure rate (technical maturity, technical precipitation, skilled workers).
2. Customized, Meet your needs.
4. Exquisite appearance (mature craft).
7. Factory direct selling with competitive price.
5. Large factories, Prompt delivery.
6. Strict quality inspection department.
10. Mainly electrical control system adoptsinternational brand.
8. Over 13years' production experience.
9. Professional design team to serve you.
11.CE certificate assure you our quality.

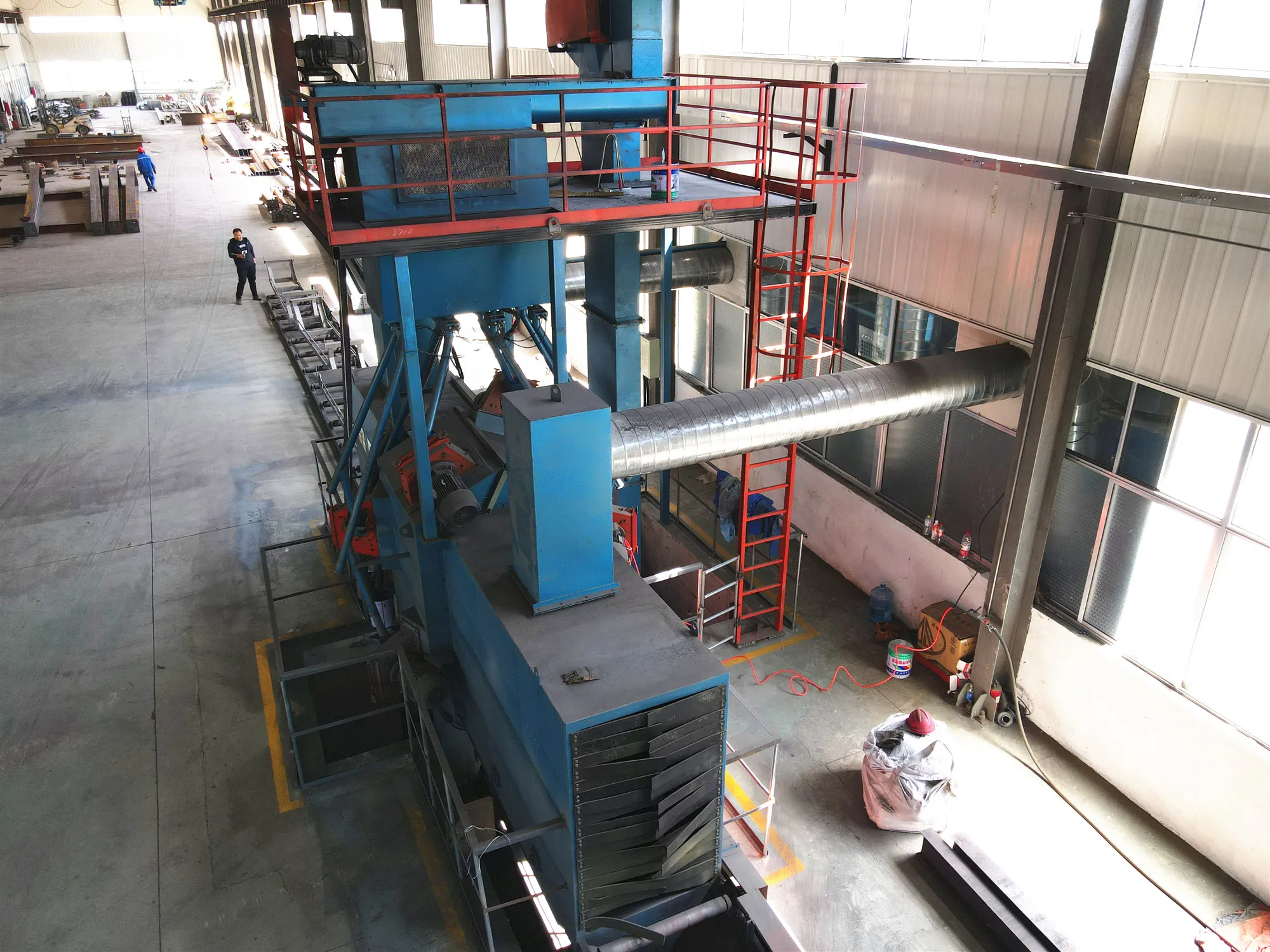

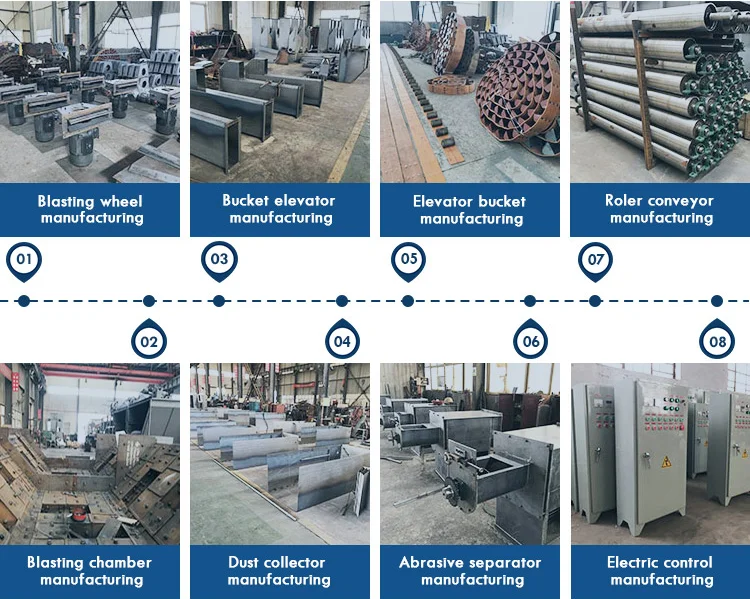

Workshop
Qingdao Puhua Heavy Industrial Group was established in 2006. It focus on design, research, development, manufacturing and export of CNC punching machine, sand blasting booths, sand processing equipment, environmental protection equipment, a variety of shot blasting machine, including roller conveyor type, overhead chain type, hook type, tumble belt type, wire mesh type, road surface type etc. All products are professionally designed by our highly-experienced engineers with Auto CAD.
Product Packaging
FAQ
1. What is the delivery time?
20-40 working day, based on factory’s production order conditions.
2. How to installation machine?
We supply overseas service, engineer can go to your place guide installation and debugging.
3. What size machine suit for us?
We design machine following your request, usually based on your workpiece size, weight and efficiency.
4. How to control the quality?
One year warranty,and 10 teams QC to check every part from drawing to machine finished.
Our service:
1.Machine guarantee one year except damage by human wrong operation caused.
2.Provide installation drawings, pit design drawings, operation manuals, electrical manuals, maintenance manuals, electrical wiring diagrams, certificates and packing lists...
3.We can go to your factory to guiding installation and train your stuff.
20-40 working day, based on factory’s production order conditions.
2. How to installation machine?
We supply overseas service, engineer can go to your place guide installation and debugging.
3. What size machine suit for us?
We design machine following your request, usually based on your workpiece size, weight and efficiency.
4. How to control the quality?
One year warranty,and 10 teams QC to check every part from drawing to machine finished.
5. What work part can clean by this machine?
Steel sheet, U bar, bridge professions, different structural parts and so on.
6. What type abrasive used?
0.8-1.2 mm size wire cast steel shot
7. How it control for whole work?
PLC control, setup safety interlock device between system
◆If the examining door is open, the impeller heads won’t start.
◆If the cover of impeller head is open, the impeller head won’t start.
◆If the impeller heads doesn’t work, the shots valves won’t work.
◆If the separator won’t work, the elevator won’t work.
◆If the elevator won’t work, the screw conveyor won’t work.
◆If the screw conveyor won’t work, the shots valve won’t work.
◆Error warning system on abrasive circle system, any error come, all the above work will stop automatic.
8. What is the clean speed:
Can be customized,usually 0.5-1.5 m/min
9. What clean grade?
Sa2.5 metal luster
Steel sheet, U bar, bridge professions, different structural parts and so on.
6. What type abrasive used?
0.8-1.2 mm size wire cast steel shot
7. How it control for whole work?
PLC control, setup safety interlock device between system
◆If the examining door is open, the impeller heads won’t start.
◆If the cover of impeller head is open, the impeller head won’t start.
◆If the impeller heads doesn’t work, the shots valves won’t work.
◆If the separator won’t work, the elevator won’t work.
◆If the elevator won’t work, the screw conveyor won’t work.
◆If the screw conveyor won’t work, the shots valve won’t work.
◆Error warning system on abrasive circle system, any error come, all the above work will stop automatic.
8. What is the clean speed:
Can be customized,usually 0.5-1.5 m/min
9. What clean grade?
Sa2.5 metal luster
Our service:
1.Machine guarantee one year except damage by human wrong operation caused.
2.Provide installation drawings, pit design drawings, operation manuals, electrical manuals, maintenance manuals, electrical wiring diagrams, certificates and packing lists...
3.We can go to your factory to guiding installation and train your stuff.
