Product Overview
Trolley Type Shot Blasting Machine
The trolley type shot blasting machine is a special equipment designed to meet the specific requirements of users.
It is suitable for surface cleaning and strengthening of steel structural parts and castings, and more suitable for surface rust removal and surface oxide scale cleaning of thick steel billets. It is widely used in casting, forging, machinery, and iron and steel industries.
The finalized products of the trolley-type shot blasting machine produced by our company include:
Q36 series trolley type shot blasting machine
Q76 series rotary type blasting cleaning room (load 50T)
Q77 series trolley type blasting cleaning room (load 100T)
Q76 series shot blasting trolley cleaning machine
It is suitable for surface cleaning and strengthening of steel structural parts and castings, and more suitable for surface rust removal and surface oxide scale cleaning of thick steel billets. It is widely used in casting, forging, machinery, and iron and steel industries.
The finalized products of the trolley-type shot blasting machine produced by our company include:
Q36 series trolley type shot blasting machine
Q76 series rotary type blasting cleaning room (load 50T)
Q77 series trolley type blasting cleaning room (load 100T)
Q76 series shot blasting trolley cleaning machine
FEATURES AT A GLANCE
Q36 series
It is used to clean the outer wall of large and medium-sized steel structures and castings.
Q76 series
The trolley can carry the workpiece to rotate to clean them(even complex structures) comprehensively and effectively.
Q76 series
The trolley can carry the workpiece to rotate to clean them(even complex structures) comprehensively and effectively.
It is used for surface cleaning and strengthening of steel structural parts and castings. It is more suitable for surface derusting and oxide cleaning of thick steel billets. It is widely used in casting, forging, machinery and steel industries. .
PRODUCT SPECIFICATIONS
No | Item | unit | Q365C | Q3610 | Q3620 |
1 | the cleaning workpiece size | mm | 2500*1300 | 2500*1500*280 | 4000*3000*700 |
2 | carrying capacity of the trolley | kg | 5000 | 10000 | 20000 |
3 | blasting quantity | kg/min | 260*2 | 250*4 | 250*5 |
4 | elevating capacity of the elevator | t/h | 40 | 60 | 75 |
5 | separating capacity | t/h | 40 | 60 | 75 |
6 | dedusting volume | m3/h | 13200 | 24000 | 21000 |
7 | total power | kw | 39.2 | 188.45 | 185.25 |
NO | Item | unit | Q765C | Q7610 | Q7620 | Q7630 | Q7640 | Q7650 | Q7610 | ||||||
1 | cleaning workpiece size | mm | ø2000*730 | ø2500*860 | ø2500*1100 | ø3700*980 | ø4000*1120 | ø4850*1280 | ø5000*1280 | ||||||
2 | carrying capacity of the trolley | kg | 5000 | 10000 | 20000 | 30000 | 40000 | 50000 | 60000 | ||||||
3 | blasting quantity | kg/min | 250*2 | 250*3 | 250*4 | 250*5 | 250*6 | 250*6 | 250*7 | ||||||
4 | Shot blasting air pressure | MPa | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | ||||||
5 | Compressed air consumption | M3/min | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | ||||||
6 | elevating capacity | t/h | 30 | 45 | 60 | 75 | 90 | 90 | 105 | ||||||
7 | separating capacity | t/h | 30 | 45 | 60 | 75 | 90 | 90 | 105 | ||||||
8 | dedusting volume | m3/h | 16000 | 20000 | 25000 | 30000 | 35000 | 35000 | 40000 | ||||||
9 | total power | kw | 54 | 72 | 91 | 115 | 148 | 162 | 188 | ||||||
10 | outsize dimention | mm | 9000*5200*9290 14900*55000*8100 16900*6540*100028 9168*7680*10874 15000*8200*11000 15800*8600*11960 16800*8670*11800 | ||||||||||||
Recommend Products
Roller Conveyor shot blast machine
steel plates, profiles and small components, and can be integrated into the steel pretreatment line.
1. a) Steel plates, sections and components below 3500mm
2. b) Number of impeller head : 4-8
1. a) Steel plates, sections and components below 3500mm
2. b) Number of impeller head : 4-8
Steel Pipe Shot Blast Machine
outer wall of steel pipes of different pipe diameters. 1. a) Number of impeller head: 2 with power 55kw
2. b) Adjustable diameter of cleaning steel pipe
2. b) Adjustable diameter of cleaning steel pipe
Steel strip Coil shot blast machine
it has been successfully applied to the mechanical cleaning of hot-rolled stainless steel strips (chromium-nickel-titanium alloysteel strips) and silicon steel strips. It has been effectively combined in the production lines of annealing, cooling, mechanical cleaning and treatment.
Wire rods Coil shot blast machine
mainly used for shot blasting of coils of carbon steel, stainless steel and other alloy materials, to remove oxide scale and dirt on the surface of the wire

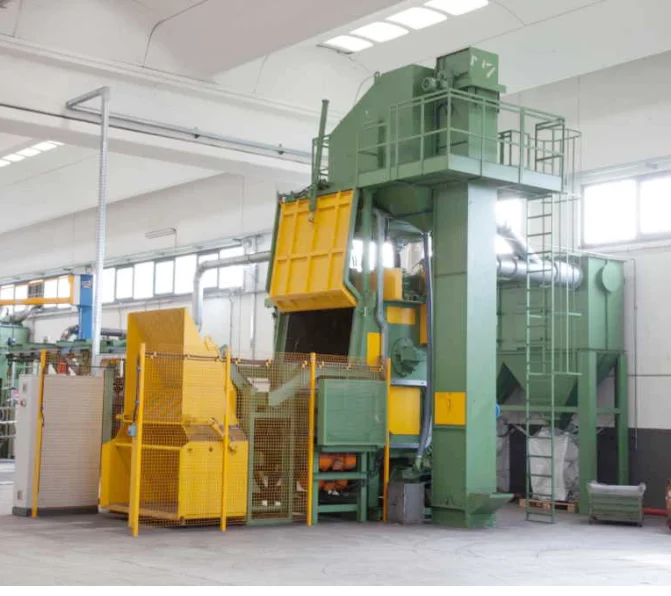

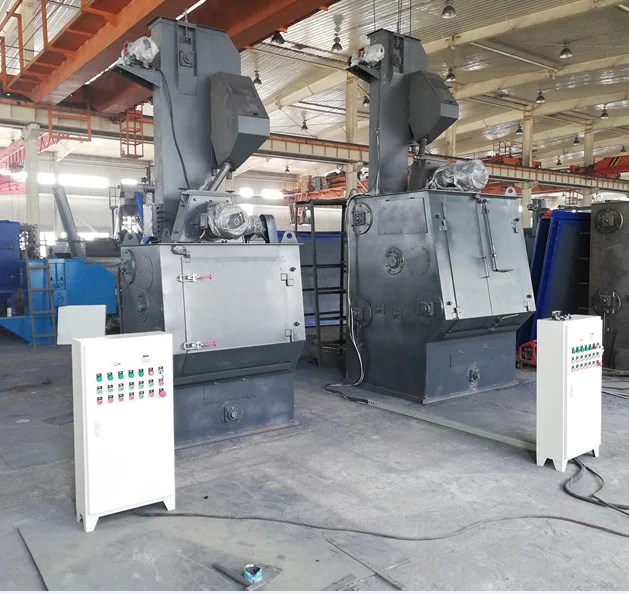

Tumblast Belt shot blast machine
i t used high-speed rotating impeller to throw projectiles onto the continuously overturned work piece in the drum to achieve the purpose of cleaning. It is suitable for shot blasting, descaling and surface strengthening of small castings, forgings and stampings in various industries.
It is especially suitable for surface cleaning and strengthening of parts that are not afraid of collisions.
It is especially suitable for surface cleaning and strengthening of parts that are not afraid of collisions.

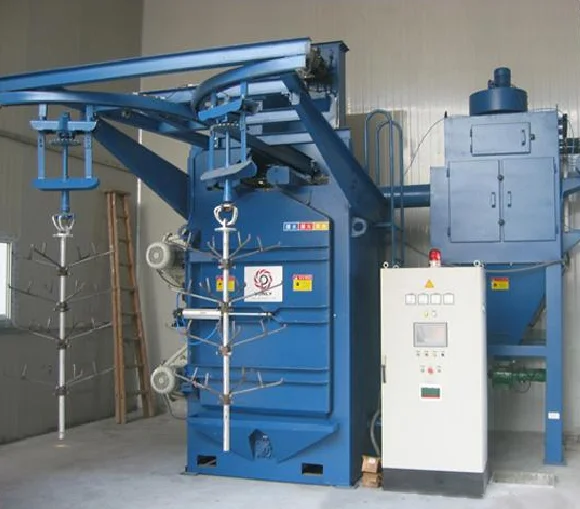

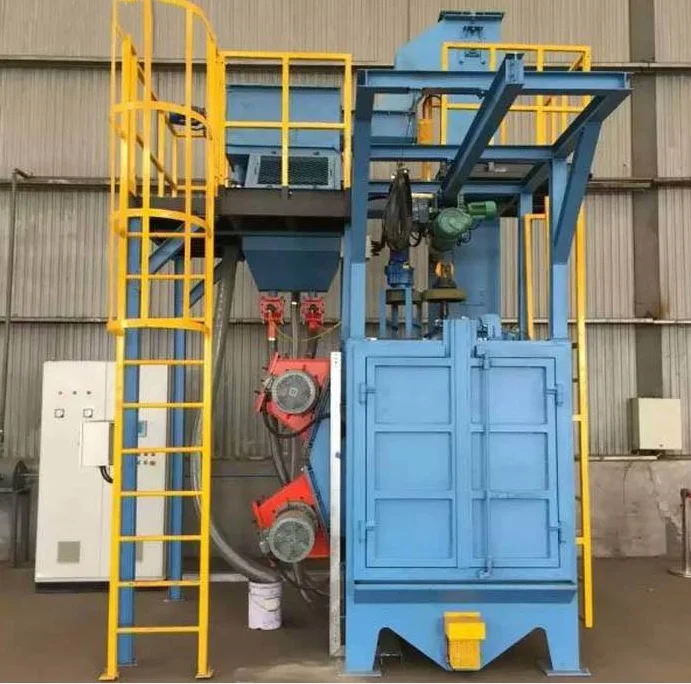

Hook type shot blast machine
is used in the machinery manufacturing industry (including light industrial machinery, construction machinery, engineer
machinery, mining machinery, etc.), pressure vessels, automobiles, ships, construction, chemicals, motors, machine tools and other industries
After shot blasting, the machining surface of the casting is convenient for the following processing procedures, which not only saves processing time, but also protects the machine tool and cutting tools from damage
machinery, mining machinery, etc.), pressure vessels, automobiles, ships, construction, chemicals, motors, machine tools and other industries
After shot blasting, the machining surface of the casting is convenient for the following processing procedures, which not only saves processing time, but also protects the machine tool and cutting tools from damage
COMPANY ACHIEVEMENTS
1) STAINLESS STEEL COIL SHOT BLAST MACHINE/STEEL STRIP STEEL BAND SHOT BLAST MACHINE | ||||||||
DOMESTIC | Fujian Dingxin Technology Co., Ltd.--（1250mm) 5 lines Henan Anyang Iron and Steel Co., Ltd.--1310mm 1line Shandong Shengyang Metal Technology Co., Ltd. 1700mm 1 LINEJiu Steel Group --1700mm 1 line | |||||||
FOREIGN | Qingshan Iron and Steel Indonesian company --1250mm 2 lines lQingshan Iron and Steel Indonesian company --1550mm 2 lines | |||||||
STEEL PLATE PRETREATMENT LINES SHOT BLASTING AND PAINTING MACHINE ROLLER CONVEYOR PASS THROUGH TYPE STEEL PLATE/H BEAM SHOT BLAST MACHINE | ||||||||
DOMESTIC | SHANGHAI WAIGAOQIAO SHIPBUILDING CO., LTD BAOSTEEL GROUP CORPORTION ANSTEEL GROUP CORPORATION SHOUGANG GROUP AN GANG GROUP SHAN STEELGROUPNANJING NANGANG IRON& STEEL UNITED CO., LTD Xiangfan Rail Vehicle Wuchang Locomotive Tangshan Locomotive Harbin Locomotive Zhanjiang locomotive Wuhan Jiutong Vehicle Factory Changsha Yuanda Air Conditioning Qingdao Lingshan Shipbuilding Co., Ltd. Yellow Sea Shipyard (2 lines) Jiujiang Shipyard Zhoushan Shipyard (Tsuneishi) Xiangtan Motor Factory ... | |||||||
FOREIGN | INDONESIA KPAKATAUSTEEL SINGAPORE OLYMPIA CO., LTD BANGLADESH QXY2500 PERU Q6910 SAUDI ARABIA QL6930 TURKEY QXY3500 RUSSIA Q6925 RUSSIA HQ6910 UAE Q6912... | |||||||
HOOK TYPE CHIAN TYPE SHOT BLAST MACHINE | ||||||||
DOMESTIC | BEIJING HALLA CONSTRUCTION MACHINERY China FIRST TRACTOR CHINA FAW, CHINA SECOND AUTOMOBILE S | |||||||
FOREIGN | BANGLADESH Q3720 TAILAND Q3710 BRAZIL Q3705JAPAN Q 3720 | |||||||
TUMBLE BELT TYPE SHOT BLAST MACHINE | ||||||||
DOMESTIC | Tianjin AutomobileWuxi Little Swan Wazhou Group, Qingdao Textile Machinery Factory | |||||||
FOREIGN | VIETNAM Q376/Q326/Q3210 | |||||||
Construction machinery shot blasting machine Changlin Hyundai, Komatsu Shantui, Hefei Hitachi Excavators, Xugong, Zhenggong, Hefei Forklifts, etc. | ||||||||
Construction machinery shot blasting machine Beijing Construction Machinery, Shandong Construction Machinery, etc. | ||||||||
Carbon electrode shot blasting machine Jilin Carbon Co., Ltd., Kaifeng Carbon Factory. | ||||||||
Shot blasting machine Tianjin Locomotive and Rolling Stock Factory, Zhuji Spring Factory, Qinhuangdao Dicastal, etc. | ||||||||
Shot blasting machine for large castings and forgings Tianjin Forging Machine Tool, North China Machinery Factory, Sichuan Dongfeng Motor, Deyang Erzhong, etc. | ||||||||
Locomotive frame and bogie cleaning machine Qishuyan Locomotive, Liuzhou Locomotive, Shenyang Locomotive, Qiqihar Locomotive, Shijiazhuang Locomotive, Zhuzhou Electric Locomotive, Beijing Erqi Locomotive, Jiang'an Locomotive Depot, Chengdu Locomotive Depot, Tianjin Locomotive Depot, Lanzhou Locomotive Depot, etc. | ||||||||
Ship anchor chain shot blasting machine Qingdao Anchor Chain Factory, Jiangsu Jingjiang Anchor Chain Factory, etc. | ||||||||
H-beam special cleaning machine Guangdong Steel Structure, Lifeng Steel Structure, Dongyue Steel Structure, etc. | ||||||||

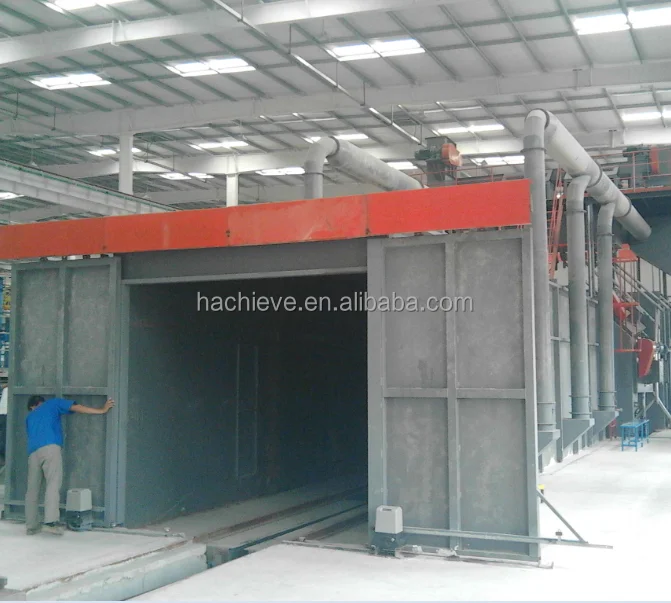

Large shot blasting (sand) room Shenyang Aircraft Manufacturing Company, Harbin Aircraft Manufacturing Company, Guangzhou Yilin, Jiangsu Lihong Heavy Industry, Dalian Hitachi Baoyuan, Changchun Locomotive Factory, etc. | ||||||||
Certifications
Company Profile
QINGDAO HACHIEVE MACHINERY EQUIPMENT CO.,LTD
1)15 YEARS OF INDUSTRIAL MACHINERY MANUFACTURING
2) 2 SUBSIDIARY CORPORATION
3)WITH CUSTOMERS ALL OVER THE WORLD
1)15 YEARS OF INDUSTRIAL MACHINERY MANUFACTURING
2) 2 SUBSIDIARY CORPORATION
3)WITH CUSTOMERS ALL OVER THE WORLD
