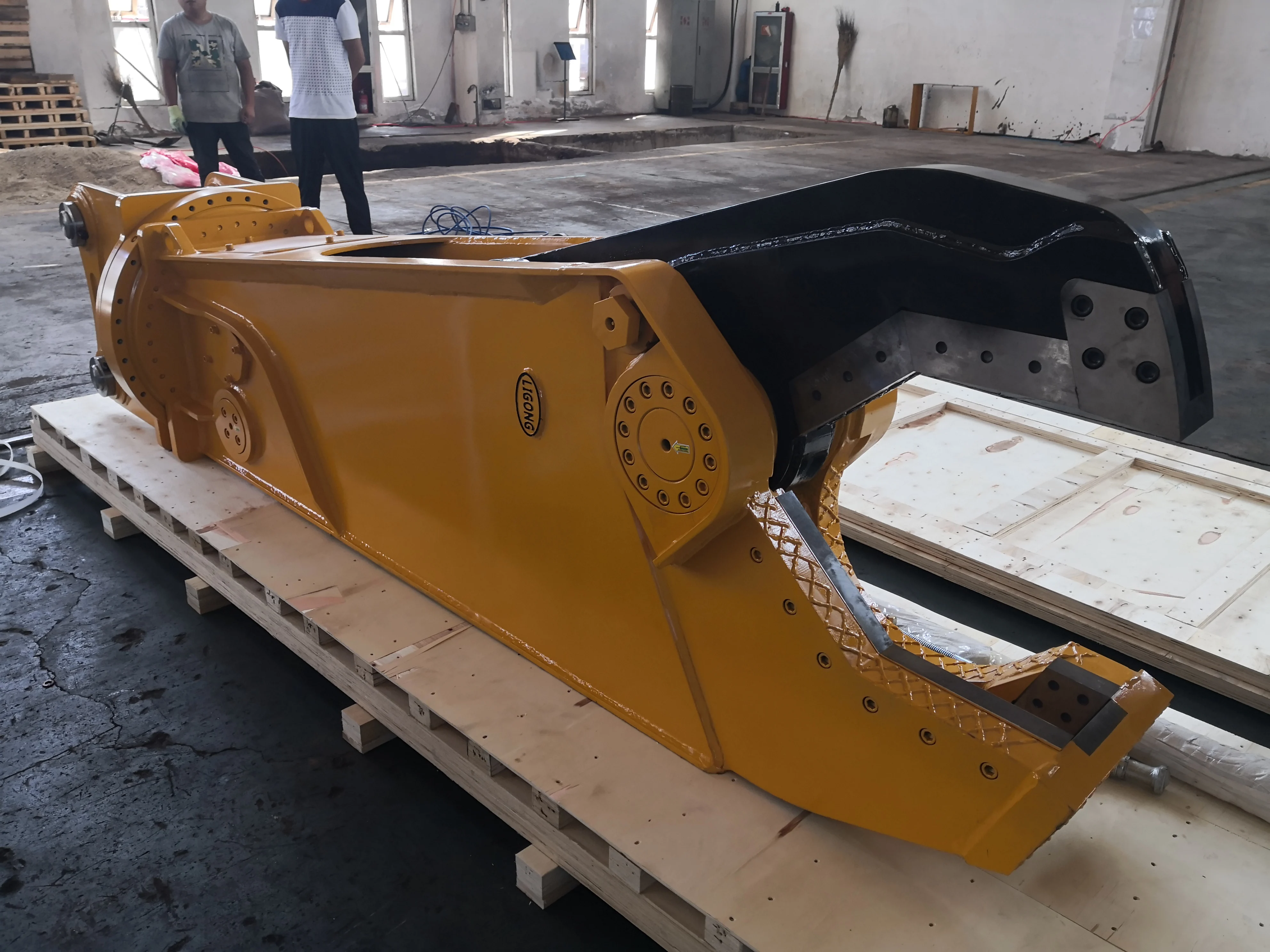

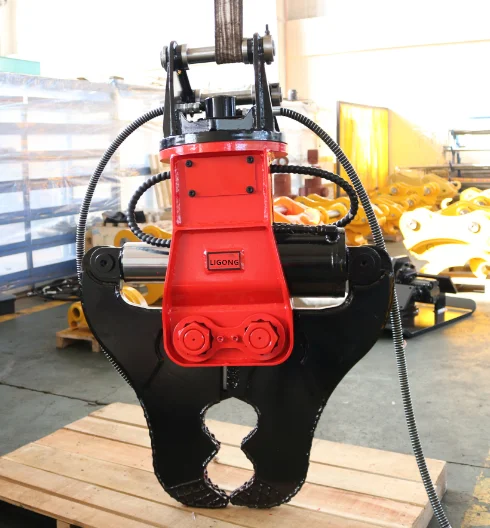

Using HARDOX400 as raw materials which enhances the strength of the machine.
Large shear force ,used for cutting 400*400H steel,tire and dismantling steel structure building.
The blade has a lasting life, if passivated, can be reused after grinding by the grinding machine.
360 degree rotation,flexible operation.
The hydraulic cylinder is made in Korea and hydraulic motor is made in Germany.





MODEL	Unit	LGONG04	LGONG06	LGONG08	LGONG10
Suitable Excavator	TONS	6-9	10-17	18-26	27-35
Weight	KG	1350	1650	2300	2950
Opening	MM	480	550	620	750
Blade length	MM	130*4/320*2	150*4/360*2	170*4/380*2	200*4/450*2
Height	MM	1750	2200	2450	2880
Width	MM	970	1030	1250	1600
Crushing Force	metric ton	30	40	50	65
Cutting Force	metric ton	50	65	80	124
Cycle time	Open	1.8	2.2	3	3.5
	close	1.7	2.3	2.7	4

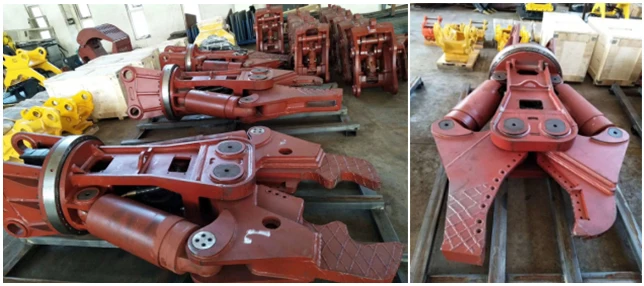

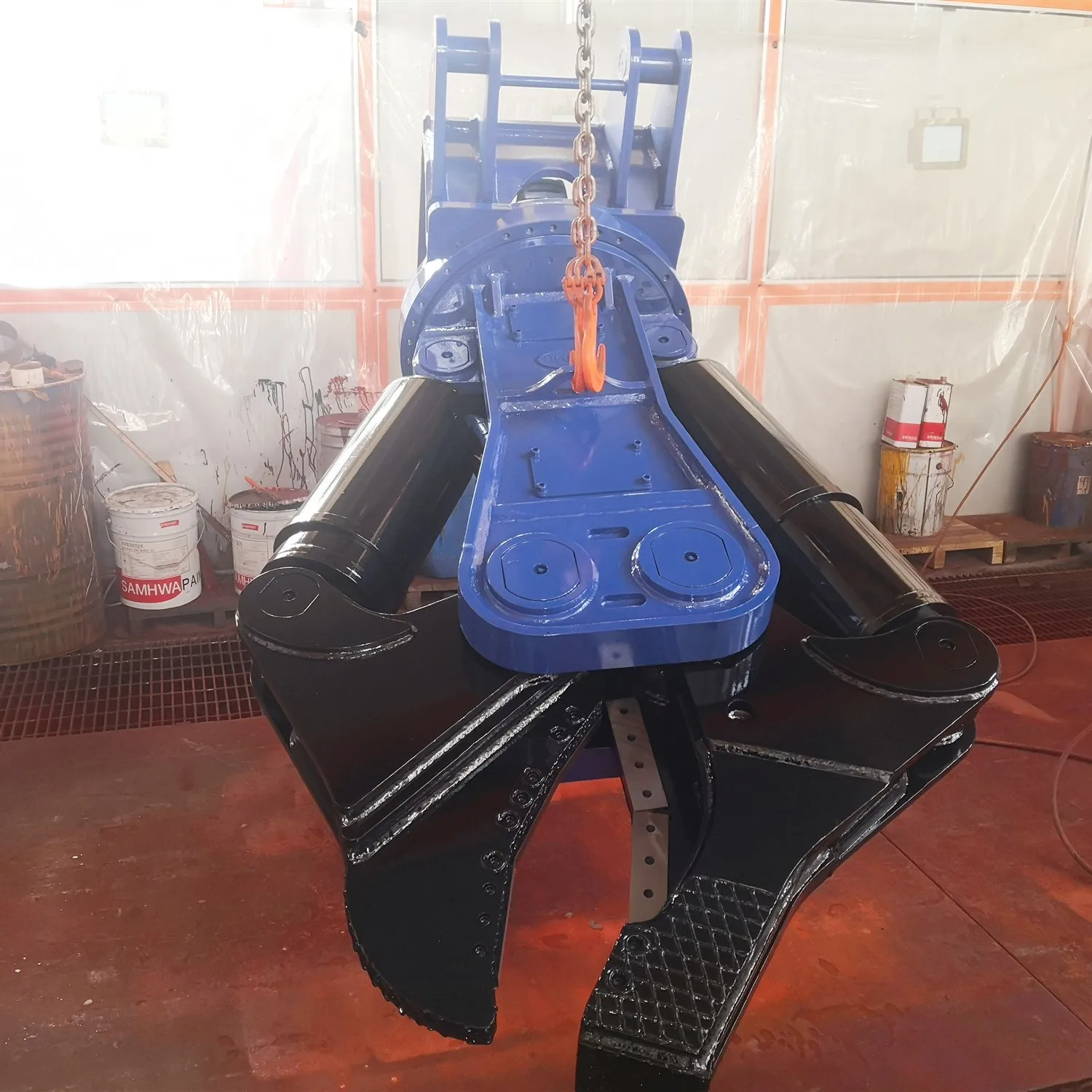

Hydraulic Concrete shearing B

Use HARDOX400 as raw materials which enhances the strength of the machine.
Large shear force, used for crushing concrete, steel bar, demolition work
The blade has a lasting life, if passivated, can be reused after grinding by the grinding machine.
360 degree rotation, flexible operation.
The hydraulic cylinder is made in Korea and hydraulic motor is made in Germany.

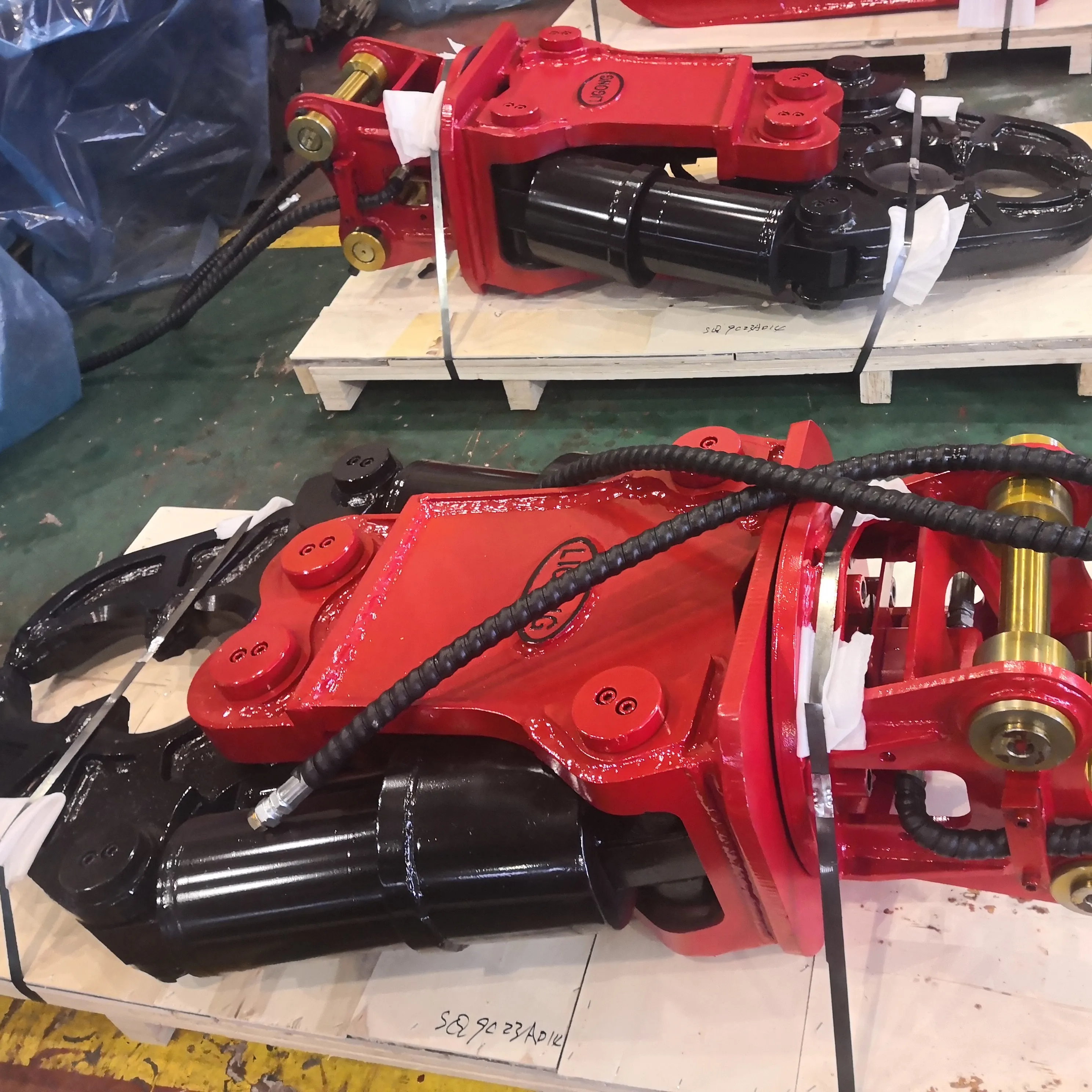

Great strength Hydraulic shear C

Using HARDOX400 as raw materials which enhances the strength of the machine.

Large shear force ,used for cutting 400*400H steel,tire and dismantling steel structure building.
The blade has a lasting life, if passivated, can be reused after grinding by the grinding machine.
360 degree rotation,flexible operation.
The hydraulic cylinder is made in Korea and hydraulic motor is made in Germany.

PRODUCT FEATURES

1 . Made of new type special high strength material with light weight , high wear resistance and high operating flexibility

2 . To choose from a variety of cut tooth , large opening design better shear force than other existing shear .

3 . Lightweight and flexible features was the first choice for the removal in narrow space or work in small construction

4 . Can be work for demolition concrete and steel structures removed through replace cutter , enlarge the scope of working and superior work efficiency
