5 т/ч Молотковая Дробилка гранита молотковая дробилка для добычи
- Категории: Crusher >>>
- Поставщик: Jiangxi,Hengcheng,Mining,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

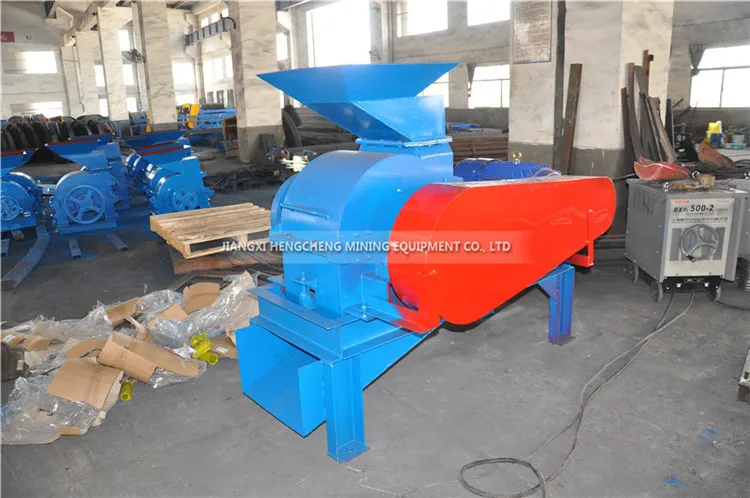

5 tph hammer mill granite hammer crusher for gold mining
Product Description
The small hammer crusher (hammer mill ) crushes by the collisions between high-speed hammer and materials ,and it is features are simple structure, high reduction ration ,high efficiency ,ect , the small hammer crusher (hammer mill)is devoloped for both dry and wet crushing of brittle,medium -hard materials for the mining ,cement ,coal . metallurgic,construction material, road building , and petroleum&chemical industries.
Technical Data:
| Model Size | Capacity (t/h) | Maxing feeding size mm | Discharging Size mm | Motor (kw) | Disel (hp) |
| 200×500 | 1-3 | ≤50 | ≥1.8 | 7.5 | 18 |
| 300×500 | 3-6 | ≤50 | ≥1.8 | 11 | 30 |
| 400×600 | 5-10 | ≤50 | ≥1.8 | 18.5 | 45 |
| 600×800 | 10-15 | ≤50 | ≥1.8 | 37 | 80 |
What's functions for this small hammer crusher
It can break up the ore below 50mm or the tailings in the incomplete minerals, and separate the useful metals from the ore. According to the requirements of the ore factory, the ore particles will be crushed in about 1-180 mesh, and then enter the shaking table for sorting. It is suitable for
small mines and can replace the ball mill to a certain extent
Machine components :
How the crusher works :
The motor drives the rotor rotate at a high speed through the belt, and on the rotor there are series hammers. When the materials feed into the working area of hammers, they are crushed by the rotating hammers in high speed, the minerals which are crushed into the required size can be discharged by the outlet, and become the final products; while the large size products are brought back to the crushed area by the hammers to be recrushed until they reached the required size.

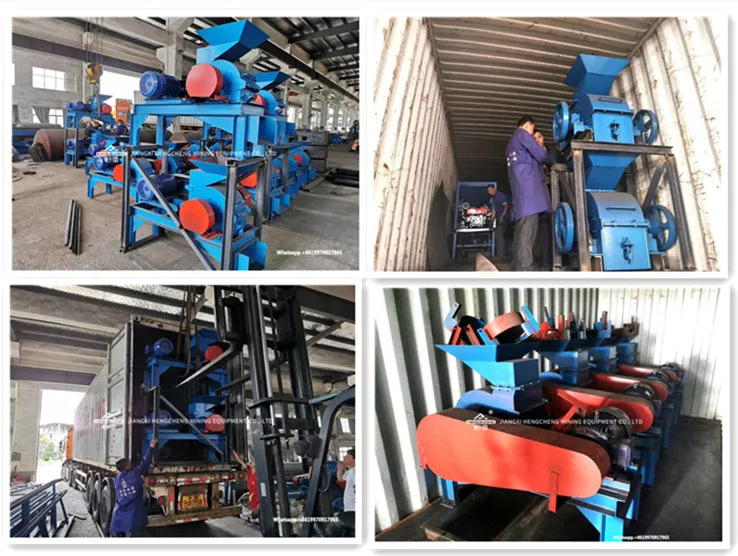

Packaging & Shipping
1. All the goods will be delivered in 10-20 days after receving payment.
2. The machine will be packed in export container.
3. Motors and small parts will be packed in new strong wooden cases that suitable for long distance ocean transportation.
4. We promise that your goods will be shipped to destination timely and safely.
Company Information
Jiangxi Hengcheng Mining Equipment Company is specialized in manufacturing various kinds of mining equipment. We have served the mineral processing industry as an excellent mineral processing equipment manufacturer for over 20 years.
Hengcheng company is dedicated to provide a complete line of equipment including shaking table, spiral chute, jig machine,trommel,rotary scrubber, flotation machine, magnetic separator,grinding mill, and so on. We are involved in the range of mineral beneficiation services including mineral testing, process flowchart design, installation and commissioning, technical consulting, as well as staff training,etc. Our proven technologies and experience permit us to provide every customer with the most effiicent & commercial beneficiation plant equipment.
Exhibition
Certifications
Contact Us
We’d like to recommend a suitable model for you and send you a best quotation. So please give us some more information about your requirement in your enquiry.
1) What's the capacity per hour would you want ?
2) What 's the raw materials do you want to process?
"Send" inquiry
Welcome to visit website to know more mining equipment
>>>>https://hengchengmachinery.en.alibaba.com
