DL85-2042 AC 80-300V 100A ЖК-дисплей Цифровой вольтметр переменного тока

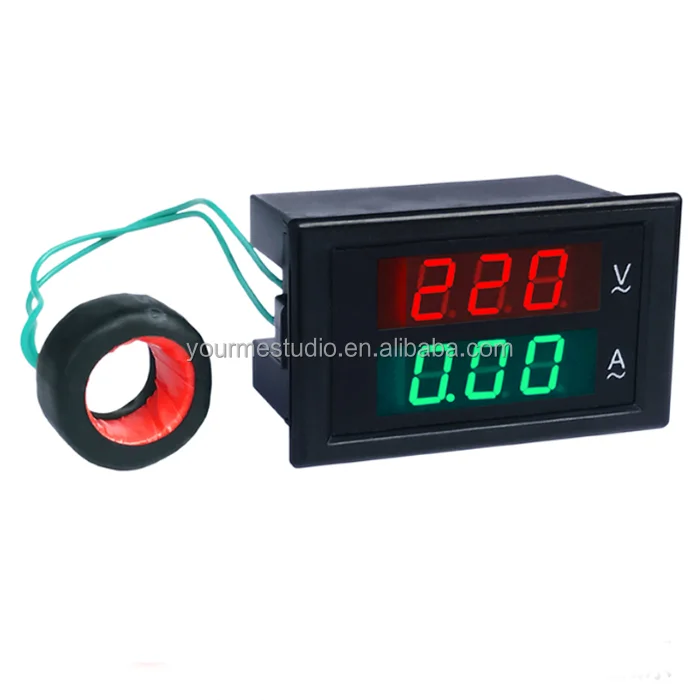

DL85-2041-2042 Digital AC Voltmeter Ammeter is to display the measured AC voltage and AC current separately on the same meter. The meter does not need to increase the working power supply and AC transformer (the meter itself is equipped with a precision transformer), and the measurement is very convenient and accurate. Widely used in power distribution automation, such as voltage stabilizers, teaching appliances, home appliance repairs, plug-in boards, small household distribution boxes, stage audio, timing devices, etc.

Main Specifications:
1. Measurement accuracy 1%±2 words
2. Measuring range: AC voltage AC 80-300V 200-450V, AC current AC 0-50A 0-100A 1-200A
3. Power consumption: 0.2VA
4. Measuring speed: about 2 times per second
5. Dimensions: 70 (length) * 40 (width / height) * 39 (depth) mm
6. Hole installation size: 68*38mm (embedded installation)
7. (External 100A transformer hole diameter 15.5mm) can meet the national standard 21-25 square (mm) standard copper wire passing through
8. (External 200A transformer hole diameter 24mm) can meet the national standard 30-45 square (mm) standard copper wire passing through
9. Model description:
1: DL85-2041 type: the transformer is fixed on the meter

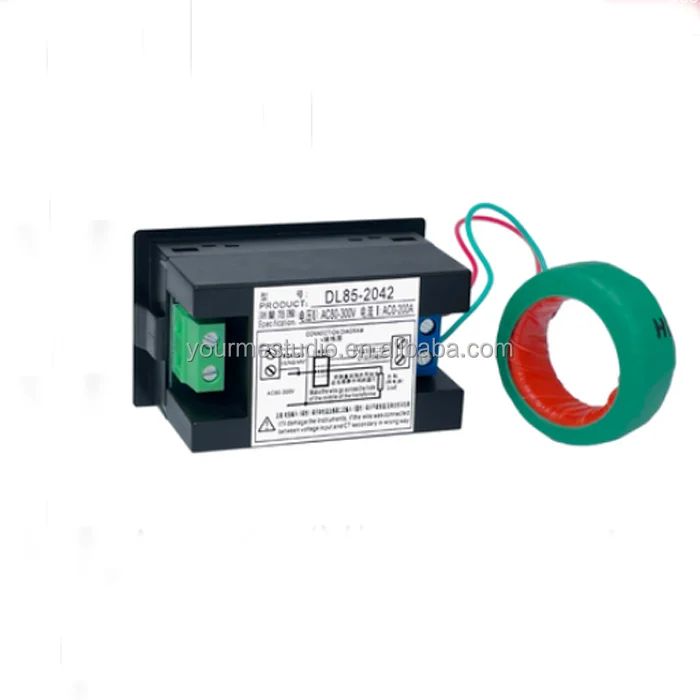

2: DL85-2042 type: The transformer is separated from the meter, the transformer can be installed according to the actual position of the measurement, and the secondary end lead of the transformer can be lengthened by 0.5-3 meters without affecting the measurement accuracy.

This meter is only suitable for pure AC 50-60HZ mains power supply. It cannot be used for square wave inverter output and correction sine wave circuit measurement, otherwise the meter will be permanently damaged!

Purchase Notes:
To measure 110V 220V voltage, please check AC80-300V, and measure 380V voltage to check 200-450V! If the measurement current is within 0.1-100A, check the fixed CT 0-50A or check the split CT 0-99.9A [measurement accuracy remains unchanged] to measure more than 100A, select 199A [1.0A-199A measurement accuracy remains unchanged]

Package includes:

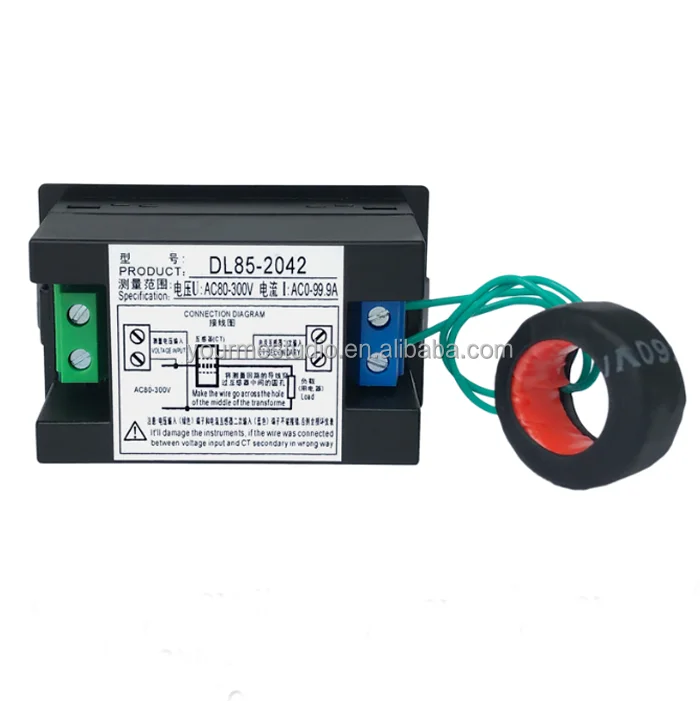

1x  DL85-2042 Digital AC ammeter and voltmeter AC 80-300V 0-100A Split CT

Related Products:

model 1:  AC 80-300V  0-50A Fixed CT (LXX-3052)

model 2. AC 80-300V 0-100A Split CT  (LXX-3053)
model 3. AC 80-300V  0-200A Split CT
model 4. AC200-450V 0-100A Split CT
model 5. AC200-450V 0-200A Split CT  (LXX-3054)
