Гидравлический гусеничный экскаватор 1 тонна мини-экскаватор с функцией бокового
- Категории: Землеройное оборудование >>>
- Поставщик: Shandong,Seagull,Construction,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

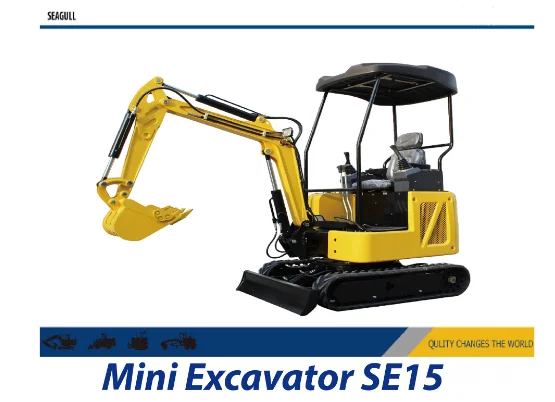

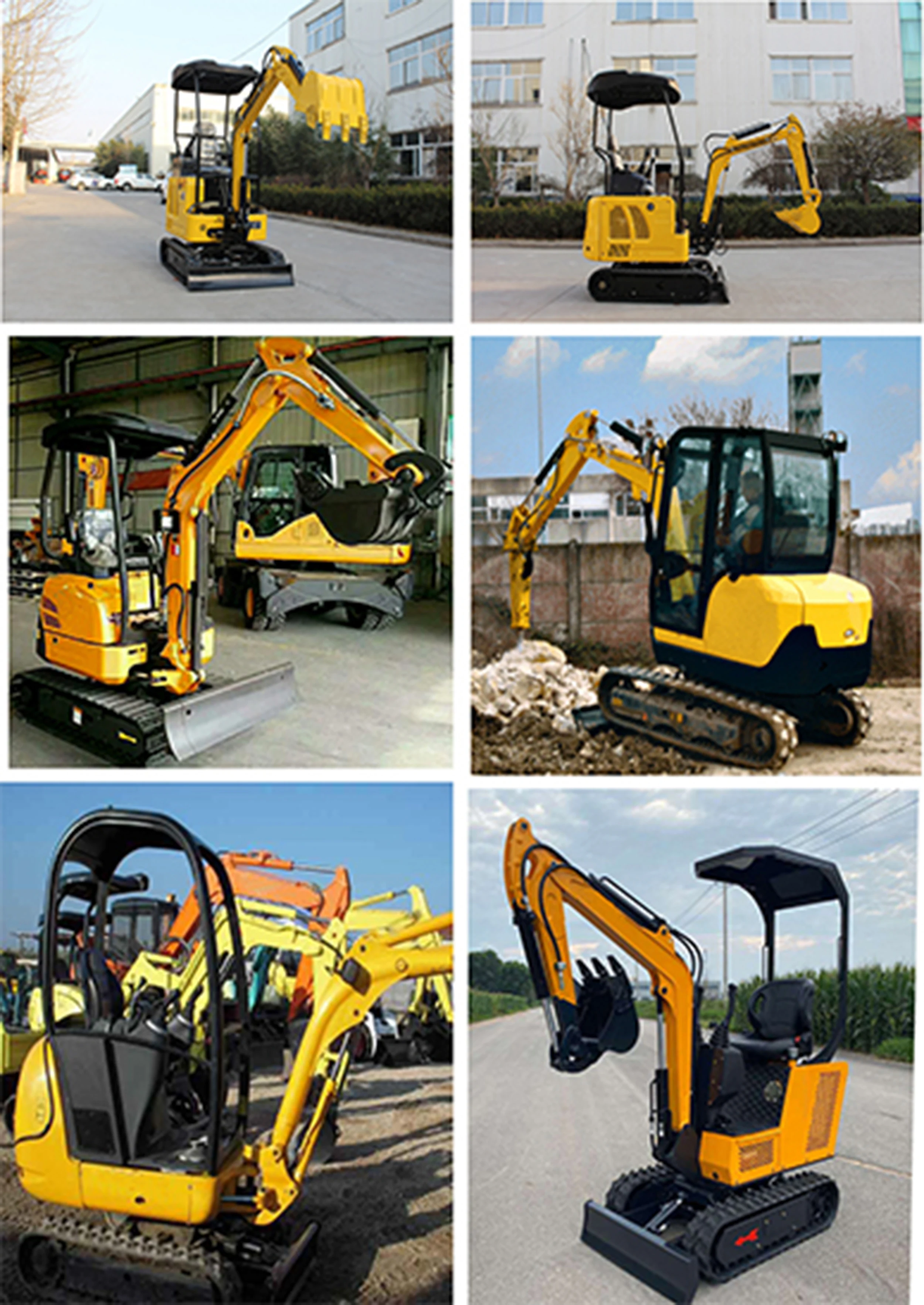

Hydraulic Crawler Excavator 1 Ton Crawler Mini Excavator With Side Swing Function
| Operating Weight(kg) | 1450 | Overall Length(mm): | 2900 |
| Bucket Capacity(m³): | 0.035 | Overall Width(mm): | 1100 |
| Bucket Width(mm): | 420 | Overall Height(mm): | 1600 |
| Boom Length(mm): | 1650 | Superstructure Width(mm): | 1100 |
| Arm Length(mm): | 1000 | Counterweight ground clerance(mm): | 400 |
| Travel Speed(Km/h): | 0-4.5 | Total track Length(mm): | 1360 |
| Grade Ability(%): | 45 | Total shoe Width(mm): | 180 |
| Ground Pressure(Kpa): | 35 | Total track Width(mm): | 1100 |
| Bucket digging force(kg): | 1500 | Min Front Swing radius(mm): | 1800 |
| Arm digging force(kg): | 1000 | Dozer blade Width(mm): | 1030 |
| Engine brand | CHANGCHAI EV80 | Max Digging radius(mm): | 2850 |
| Rated Power(p/Kw/rpm): | 17/12/3600 | Max Digging Depth(mm): | 1700 |
| Displacement | 0.794 | Max Digging Height(mm): | 2500 |
| Cylinders | 2 | Max Dumping Height(mm): | 1750 |
| Cooling type | Water+hydraulic oil cooling | Dozer blade Width(mm): | 1100*200 |
SHANDONG SEAGULL CONSTRUCTION MACHINERY CO., LTD
ADD: 6F, INTELLIGENT BUILDING, NO.149 YINGCUI ROAD, HIGH TECH ZONE, JINING,CHINA
TEL:+86-05372793988 FAX:+86 05372793989
