Good quality WIR1630119 water pump bearing 995238
1,Water pump bearing
2,Water pump shaft bearing
3,Factory direct sale
4,good quality with cheap price
Product Description
Specification:
Water pump bearings is a double supporting bearing with a simplified structure, which constitutes no inner ring for the two supporting bearing, groove for rolling element directly made on the shaft, the outer rings of the two bearings made to a unity and two sides of the bearing closed by rubber seals.In the condition of same loading capacity, the radial dimensions are usually smaller than those of same kind; while in the condition of same radial dimensions, the loading capacity is usually heavier. Because of its good steel capacity and easy rotation and structure, they are used by many developed countries including USA, Japan, Germany and so on.
Water pump bearings are double row bearings and, in contrast to conventional double row bearings, do not have an inner ring but raceways machined directly into the surface of the shaft. As a result, there is more space available for the rolling elements, giving a higher specific load carrying capacity than that of solutions with conventional single bearings.
Furthermore, it is possible in this type of bearing to achieve economical combinations of ball and roller rows. In a small design envelope, this gives a broad range of load carrying capacities. The use of a common outer ring for two rows of rolling elements prevents misalignment defects, eliminating the risk of undesirable distortion of the bearings.

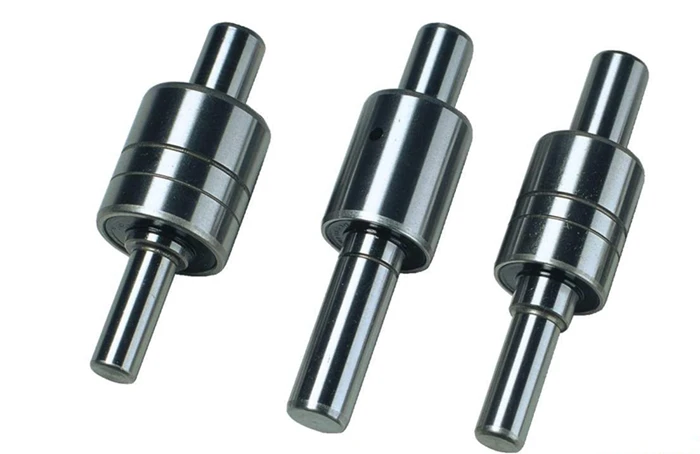

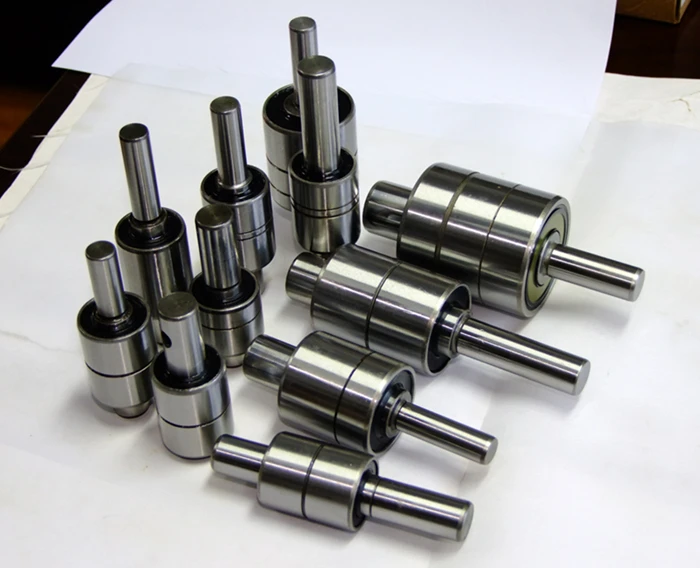

Picture:
Drawing:
Parameter:
| Current No. | Old No. | Dimensions | |||
| d | D | Width | Weight | ||
| WIR163083 | 665165 | 15.92 | 30 | 82.55 | 0.213 |
| WIR163080 | 665741+ | 15.92 | 30 | 80.04 | 189 |
| WIR1630154 | 665613 | 15.92 | 30 | 154.23 | 0.326 |
| WIR1630141 | 665458 | 15.92 | 30 | 141.25 | 0.305 |
| WIR1630140 | - | 16 | 30 | 140 | 0 |
| WIR1630139B | 665603 | 15.92 | 30 | 139.32 | 0.302 |
| WIR1630139A | 665413 | 15.92 | 30 | 139.32 | 0.302 |
| WIR1630139 | 665388 | 15.92 | 30 | 138.99 | 0.294 |
| WIR1630137 | 665003 | 15.92 | 30 | 136.68 | 0.298 |
| WIR1630136 | 665596 | 15.92 | 30 | 136.4 | 0.297 |
| WIR1630133 | 665113 | 15.92 | 30 | 132.56 | 0.291 |
| WIR1630129 | 665169 | 15.92 | 30 | 129.03 | 0.285 |
| WIR1630127 | 665334 | 15.92 | 30 | 127.43 | 0.283 |
| WIR1630124 | 665100B | 15.92 | 30 | 123.67 | 0.277 |
| WIR1630122A | 665476 | 15.92 | 30 | 122.17 | 0.275 |
| WIR1630122 | 995238 | 15.92 | 30 | 121.62 | 0.194 |
| WIR1630121 | 665491 | 15.92 | 30 | 120.68 | 0.272 |
| WIR1630120 | 665584S | 15.92 | 30 | 119.84 | 0.271 |
| WIR1630119A | 665118 | 15.92 | 30 | 119.08 | 0.27 |
| WIR1630119 | - | 16 | 30 | 119 | 0 |
| WIR1630117A | 665430S | 15.92 | 30 | 117.27 | 0.267 |
| WIR1630117 | 665249 | 15.92 | 30 | 117.48 | 0.267 |
