Product Description

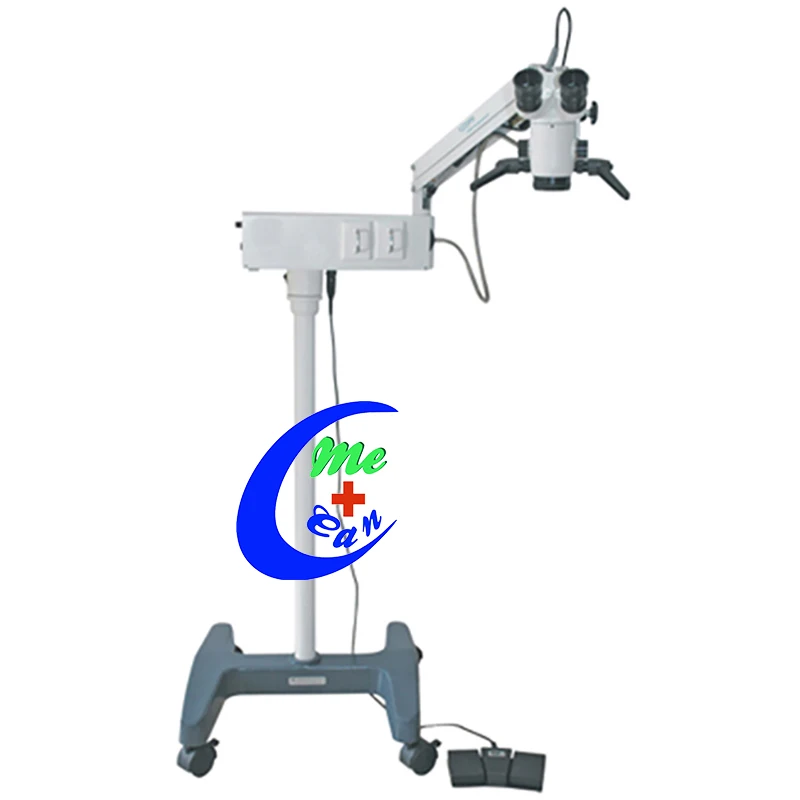

MC-20P5 Medical operating ophethalmic eye operation microscope for hospital
The product is a simple coaxial illumination operation microscope for one man.It is portable,compact and applied in mobile hospital.
Detailed profile
Characteristics:
·All the lenses are multi-coated, mildewproof and anti-reflective.
·Optional objectives: D250/D300/D350D/D400.
·Column stand can be reflitted to holding stand. It can also be customized according to various operation requirements.
Specifications:
Eyepiece Magnification | 12.5X |
Objective Lens | f=200 |
Working Distance | 190mm |
Magnifications for Main Microscope | 5.3X,8X,12X |
Diameter of field | D37mm,D25mm,D16.7mm |
Diopter Adjustment | ±7D |
Pupil Distance | 50mm~80mm |
Maximal Resolution | 100LP/mm |
Illumination Source | 12V/100W,medical cold reflection halogen lamp |
Illumination Type | 6°+0°Coaxial cold light source illumination |
Coaxial Illumination | ≥30000lx |
Reaching Radius of Arm | 870mm |
Adjustable Vertical Range | 700mm~1100mm |
Dine focusing Range | 30mm |
Input Voltage | AC220V±22 V / 50Hz±1Hz,AC110V±11V /60Hz±1Hz |
Power | 120VA |
Duse | AC250V T1.25A ,AC125V T2.5A |
Electrical Safety Standard | Executive Standard: GB9706.1-2007,type I |
Packing Volume | 0.2m3,1carton |
Total Weight | 41kg |
