S50CZ1 R134a 1/6HP LBP Портативный Компрессор льда компрессор холодильника-конденсаторные
- Категории: >>>
- Поставщик: Guangxi,Nanning,Jiaxin,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Model no. | S50CZ1 |
Horse Power | 1/6-HP |
Voltage | 160-260V 50HZ |
Displacement (cm3) | 5.0 |
Cooling capacity | 120W |
Refrigerant | R134a |
Specification
Evaporating Temperature Application | ||||||
type | name | Evaporating temperature | Application | |||
LBP | Low back pressure | -35°C~-10°C | Refrigerators, Etc. | |||
M/HBP | Middle/high back pressure | -15°C~10°C | Show case, cold drinking, dehumidifier,Etc. | |||
Test conditions | ||||||||||
Conditions | Application | Evaporating Temperature °C | Condensing Temperature °C | Ambient Temperature °C | Return Temperature °C | |||||
ASHRAE | LBP | -23.3 | 54.4 | 32.2 | 32.2 | |||||
M/HBP | 7.2 | 54.4 | 35 | 35 | ||||||
CECOMAF | LBP | -25 | 55 | 32 | 35 | |||||
M/HBP | 5 | 55 | 32 | 35 | ||||||
Cooling types | ||
Static(S) | Do not need a fan motor. | |
Fan(F) | Need Fan Motor. | |
Electrical Motor Types | ||
RSIR | no capacitor. | |
RSCR | no start capacitor, run capacitor is needed. | |
CSIR | no run capacitor,start capacitor is needed. | |
CSR | run capacitor and start capacitor are needed. | |

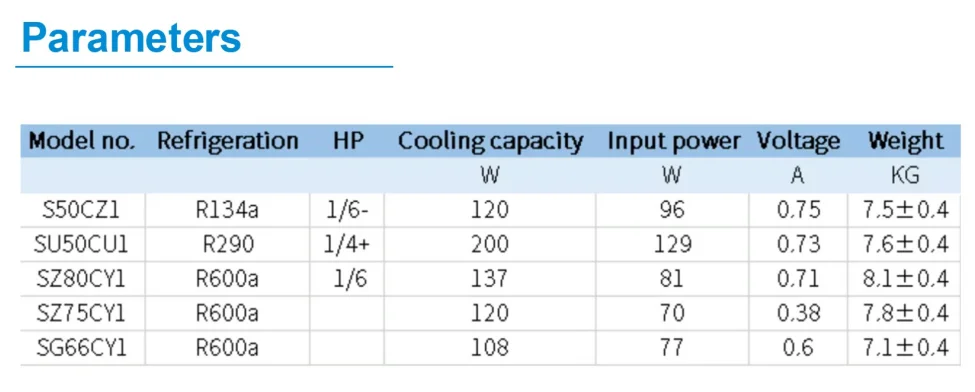

Product Paramenters
Packing & Delivery
We have two way of package:
1. Several pieces in a foam package with wooden frame protection;
2. Each in a box, then several in wooden frame protection.
Company Profile

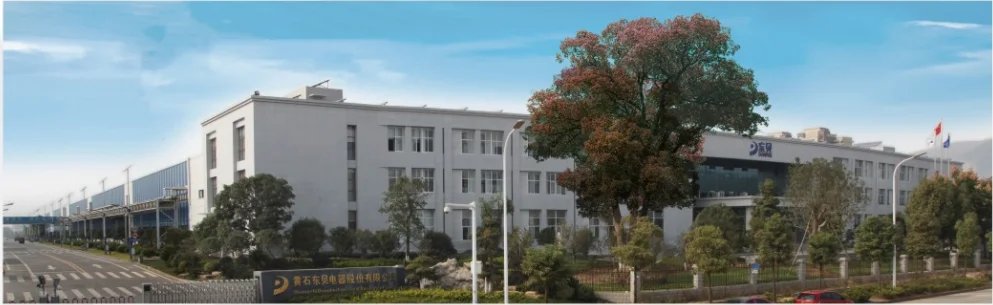

About our factory ：

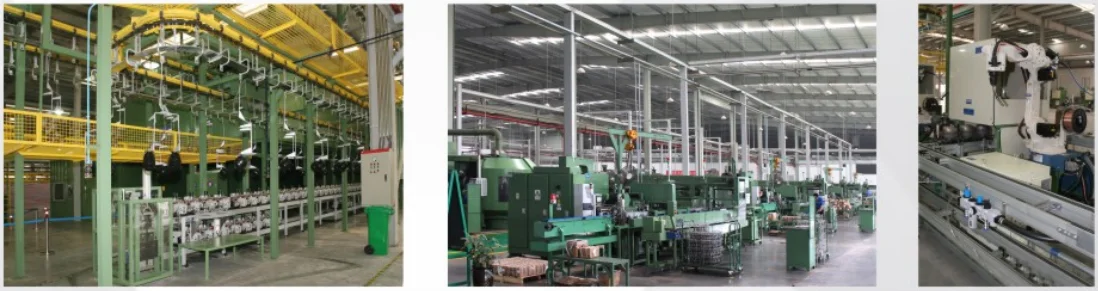

Our factory was founded in 2002 and located in Hangzhou,Zhejiang china.It specialized in developing and manufacturing the hermetical and semi-hermetic compressor&units, and all kinds of refrigeration parts such as the Filter Drier,Liquid Accumulator and Oil Separator.Our factory owns the standard plant and office building which covering manufacturing,inspecting and testing centers,and imported the international advanced high-tech equipment.It has passed the ISO9001,ISO14001,OHS18001 international management system certificates.The products have got UL, ETL, CE, CB, and CCC certificates.
Our Products are exporting to Europe,America Australia,Middle East,Africa and South Asia.
Our Products are exporting to Europe,America Australia,Middle East,Africa and South Asia.
Certifications
