Acrylic Polymer Soil Stabilization Retaining Wall Hdpe Geocell
Product Description
Click "Chat now"/"Send inquiry" to contact supplier
1. Cell depth: 50mm,100mm,150mm,200mm,250mm
2. Welding space: 330mm~1600mm
| Item | Height (mm) | Thickness (mm) | Welding Distance (mm) | Tensile strength of welding points (N/cm) | Tensile strength of connection of cells (N/cm) | Tensile strength at yield of each sheet (Mpa) |
Smooth and Not Perforated | 50≤H≤250 | 1.0~1.2 | 330≤A≤1000 | ≥100 | ≥120 | ≥20 |
Smooth and Perforated | 50≤H≤250 | 1.0~1.2 | 330≤A≤1000 | ≥100 | ≥120 | ≥20 |
Textured and Not Perforated | 50≤H≤250 | 1.5~1.7 | 330≤A≤1000 | ≥100 | ≥120 | ≥20 |
Textured and Perforated | 50≤H≤250 | 1.5~1.7 | 330≤A≤1000 | ≥100 | ≥120 | ≥20 |
| Remarks: All technical indexes can be customized, and the other special standards will be carried out by agreement or contact. | ||||||
Introduction:

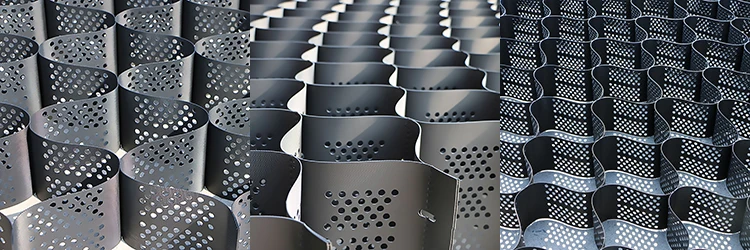

Plastic HDPE geocell is three dimensional, honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique. It is flexible to fold during the transport and installation on construction site. The geocell nets will be filled with soils, granular, cements or other on-site infill materials when stretched into web structures, which has powerful and rigid confinement in the lateral and vertical sides.
Feature
1. with flexible, transport can be folded, construction can be stretched into a network, filled with soil, gravel, concrete and other loose materials, constitute a strong lateral limit and stiffness of the structure.
2. light material, wear resistance, chemical stability, light and oxygen resistance aging, acid and alkali resistance, suitable for different soil and desert and other soil conditions.
3. higher lateral restrictions and anti-slip, anti-deformation, effectively enhance the bearing capacity of the roadbed and dispersed load.
4. Different engineering needs can be met by changing the height and welding distance of geotechnical chamber.
5. flexible, small transport volume; The connection is convenient and the construction speed is fast.

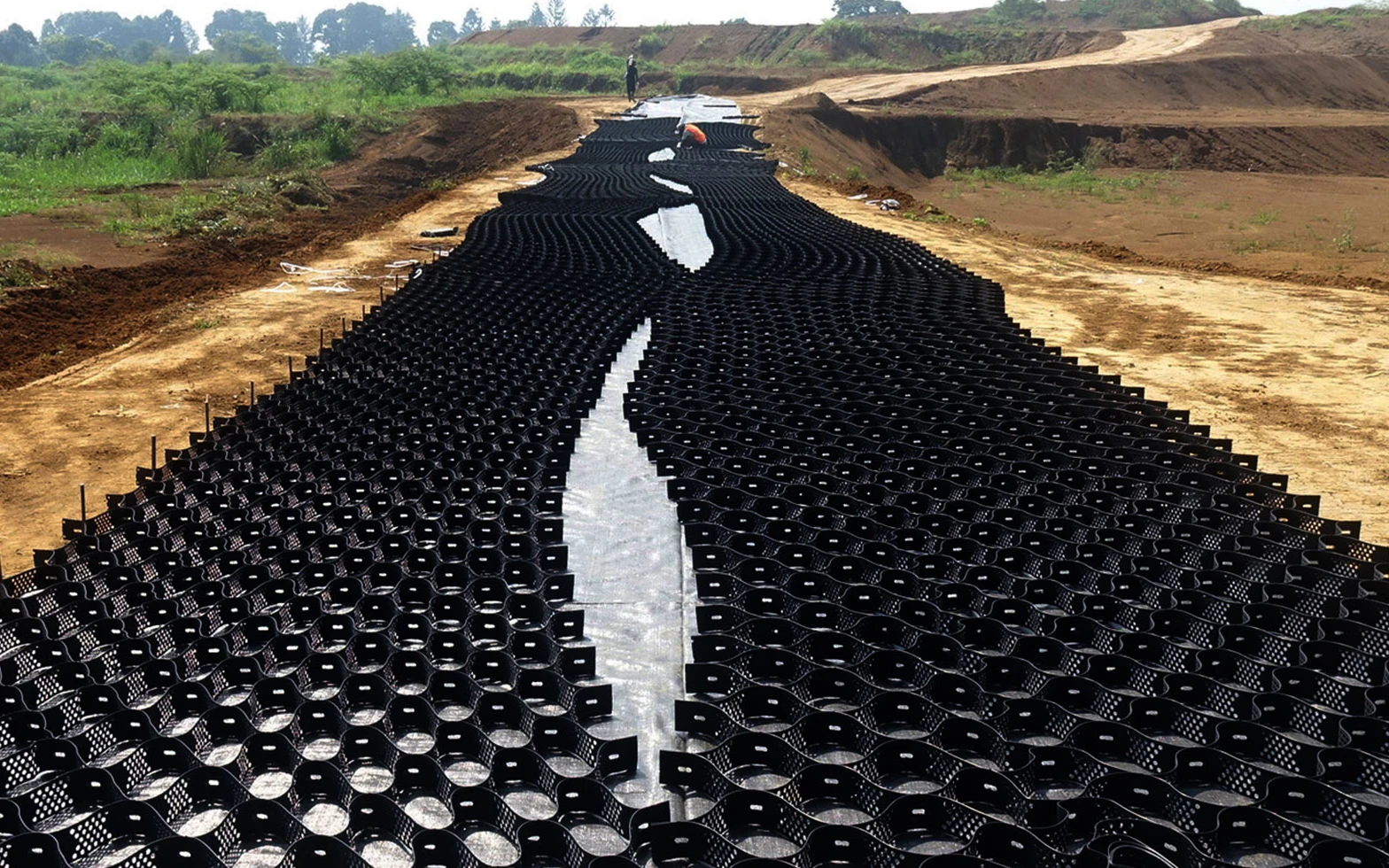

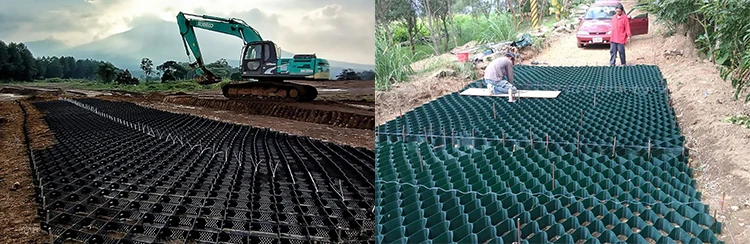

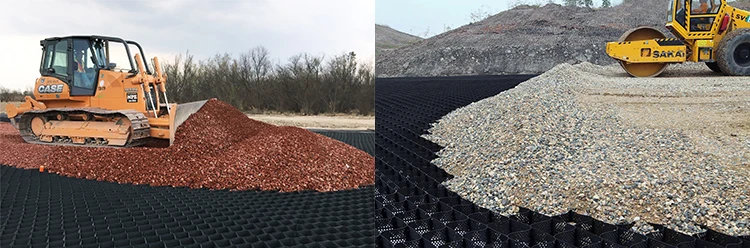

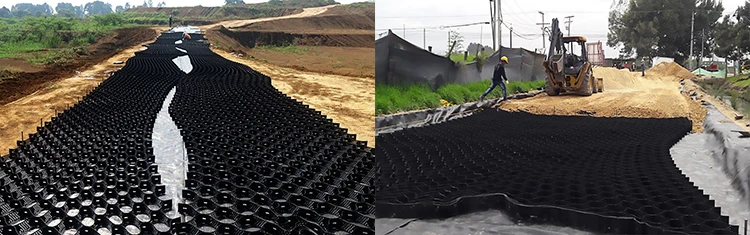

Product Application
A hybrid retaining wall to prevent landslides and load loads
Treat half fill and half dig roadbed
Permafrost subgrade
Company Information
Shandong Jinruixiang Geoetextilel Material Co.,Ltd. is a high-tech enterprise which integrates development, design, production, consultation, construction, domestic and international trade of new earthwork synthetic material. The company was established since 2000 and located in No. 10 Yuanshan Road, High-Tech Development Zone, Laiwu district, Jinan City, Shandong Province, China.
The company has specialized in producing geotechnical material including HDPE geomembrane, LDPE geomembrane, LLDPE geomembrane, EVA waterproof board, composite geomembrane, polypropylene geotextile, polyester geotextile, woven geotextile more than 15 years. The products are widely used in the field such as the landfill, pond, mine, garden landscape, water conservancy, highway, railway, oil field, biogas, industry and aquaculture etc.
——————————————— Raw Materials———————————————
——————————————— Finished Product———————————————
——————————————— Certificate———————————————
Customer feedback
Click "Chat now"/"Send inquiry" to contact supplier
Our clients
Why choose us

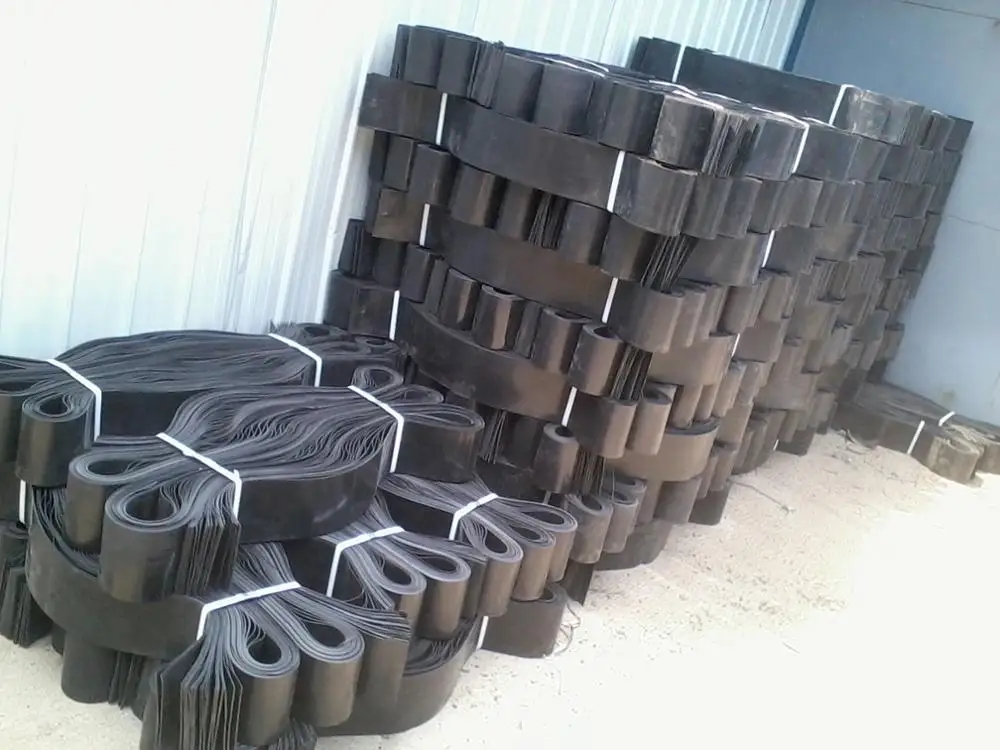

Packaging & Shipping
FAQ
Q : Are you a factory or trading company?
A : We are a professional manufacturer that specialized in geomembrane, geotextile, composite geomembrane etc with ISO9001 certificate more than 15 years.
Q : Where is your factory located? How can I visit there?
A : Our facoty is located is No.10 Yuanshan Road High-tech Development Zone, Laiwu District, Jinan City China. You can take the plan to Jinan Yaoqiang International Airport, then we can pick you up.
Q : Could you send the sample before order confirmation?
A : Yes, we'd love to send a free sample to you for an evaluation if you need.
Q : How about the delivery time?
A : General within 3-7 days after received the deposit.
Q : Can you produce the product according to customers' requirements?
A : Sure, we are professional manufacturer, OEM and ODM are both welcome.
Q : Are you the Gold and Assessed supplier on alibaba?
A : Yes. We are the gold and assessed supplier on alibaba and has got the factory report by SGS.
