TASI TA8315E 5999 отсчетов зажим AC DC Цифровой измеритель Бесконтактный True-rms
- Категории: Clamp Meters >>>
- Поставщик: Suzhou,TASI,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

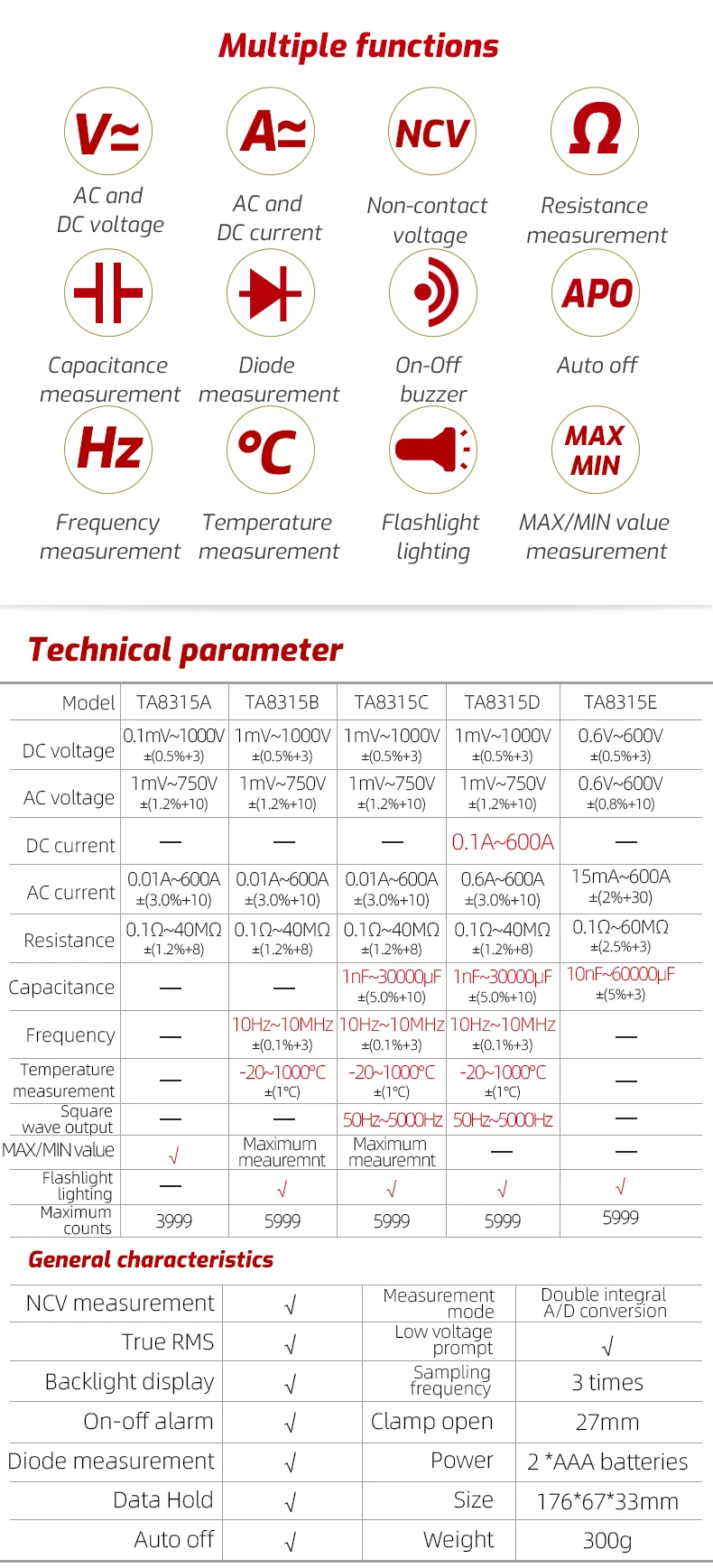

| Mode | TA8315A | TA8315B | TA8315C | TA8315D | TA8315E |
| DC voltage | 0.1mV~1000V ±(0.5%+3) | 1mV~1000V ±(0.5%+3) | 1mV~1000V ±(0.5%+3) | 1mV~1000V ±(0.5%+3) | 0.6V~600V ±(0.5%+3) |
| 0.6V~600V ±(0.8%+10) | 1mV~750V ±(1.2%+10) | 1mV~750V ±(1.2%+10) | 1mV~750V ±(1.2%+10) | 1mV~750V ±(1.2%+10) | 0.6V~600V ±(0.8%+10) |

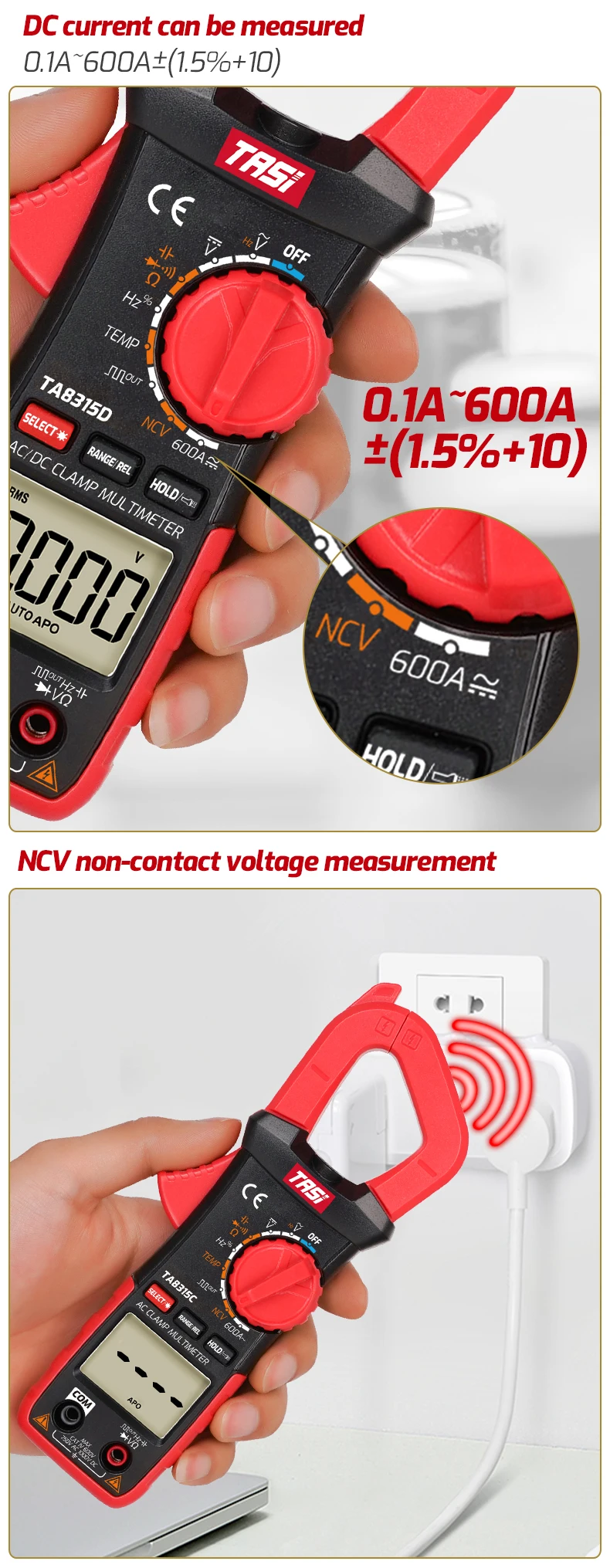

| DC current | 0.1A~600A ±(1.5%+10) | ||||
| AC current | 0.01A~600A ±(3.0%+10) | 0.01A~600A ±(3.0%+10) | 0.01A~600A ±(3.0%+10) | 0.1A~600A ±(3.0%+10) | 15mA~600A ±(2%+30) |
| Resistance | 0.1Ω~40MΩ ±(1.2%+8) | 0.1Ω~40MΩ ±(1.2%+8) | 0.1Ω~40MΩ ±(1.2%+8) | 0.1Ω~40MΩ ±(1.2%+8) | 0.1Ω~60MΩ ±(2.5%+3) |
| Capacitance | 1nF~30000μF ±(5.0%+10) | 1nF~30000μF ±(5.0%+10) | 10nF~60000μF ±(5%+3) | ||
| Frequency Hz | 10Hz~10MHz ±(0.1%+3) | 10Hz~10MHz ±(0.1%+3) | 10Hz~10MHz ±(0.1%+3) | ||
| Temperature | -20~1000℃ ±(1℃) | -20~1000℃ ±(1℃) | -20~1000℃ ±(1℃) | ||
| Square wave output | - | - | √ | √ | - |
| Max/min value | √ | - | - | - | - |
| Flashlight | - | √ | √ | √ | √ |
| Display screen (LCD) | 3999(3 3/4) digit | 5999(3 5/6) digit | 5999(3 5/6) digit | 5999(3 5/6) digit | 5999(3 5/6) digit |
| General Characteristic | |||||
| NCV measurement | √ | ||||
| True rms | √ | ||||
| Backlight display | √ | ||||
| On-off buzz | √ | ||||
| Diode | √ | ||||
| Date hold | √ | ||||
| Auto shut off | √ (about 15 minutes) | ||||
| Measurement method | Double Integral A/D Conversion | ||||
| Low battery indicate | √ | ||||
| Rate adopted | 3 times/second | ||||
| Jaw | 27mm | ||||

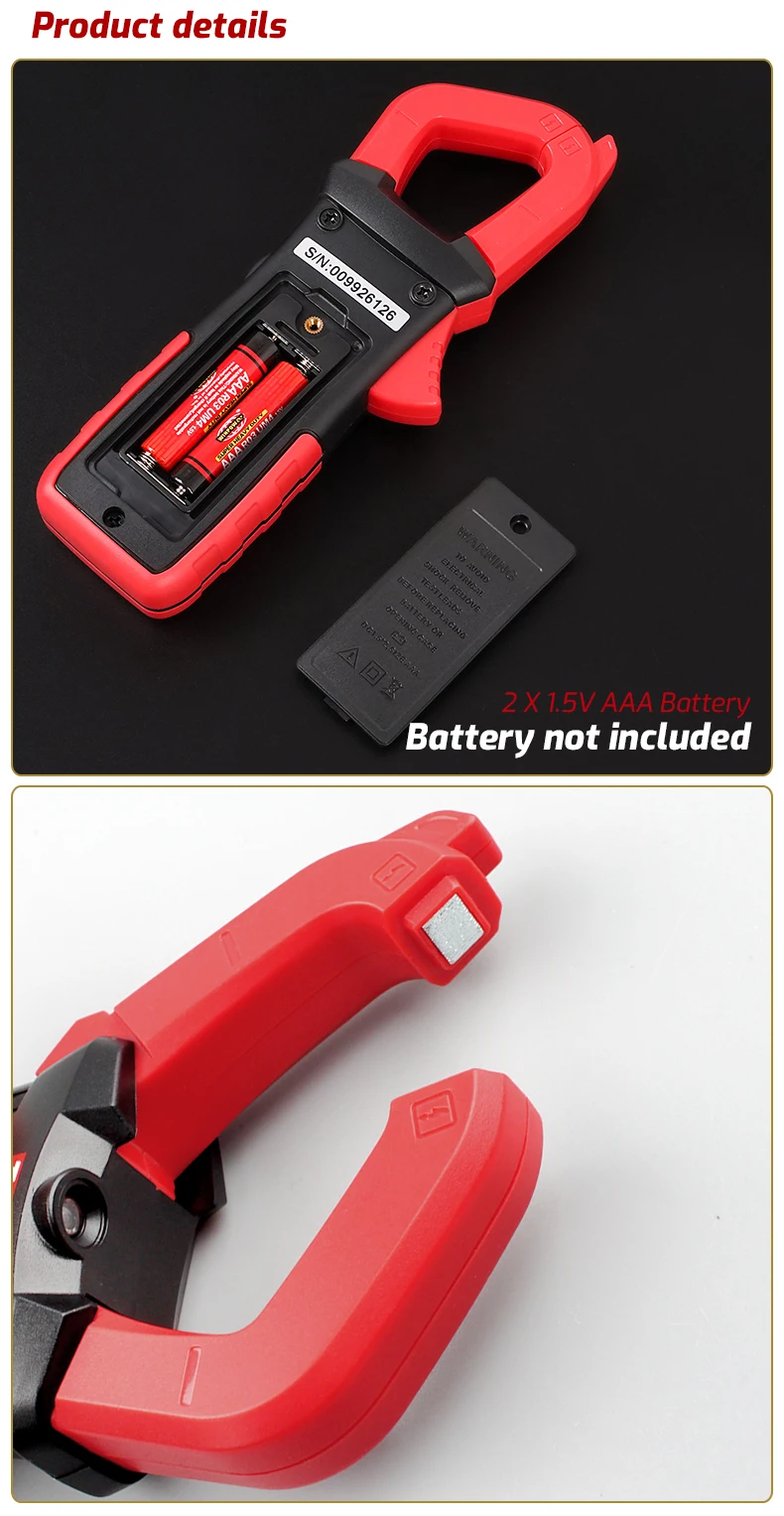

| Power Supply | 2 x 1.5 AAA Battery | ||||
| Product size | 176*67*33mm | ||||
| Product weight | About 300g(Containing battery) | ||||
Specification
Quantity: 40PCS per carton box;
Carton box size:450 *420*250mm;
Net weight: 15.32KGS;
Gross weight: 16.3KGS.
Packaging
Shipping Options
1. By Express: such as DHL, UPS, TNT, FEDEX etc. The dispatch time is about 3-5 days.
2. Air Freight: when your order more than 100kgs which will be more economical than express.
3. Sea Freight: we will update sea freight once we know your sea port where goods will be delivered.
FAQ
1. Q: Is your company accept customization?
A: We do customizing service for customers. OEM/ ODM is welcome. Any logo and any color is up to you.The English copy of manual is also available.
2. Q: What’s the delivery time after an order placed?
A: It depends on whether we are in stock or not. Our standard arrangement time is 3 days if we have stock, otherwise it will be decided by factory production. Generally, it needs 20-45
days of production according to the quantity of your order.
3. Q: What’s the MOQ?
A: Regular products only 1 standard carton. but no limit for sample order!
4. Q: What’s the warranty of the product?
A: We offer 12month warranty. Our policy: Within the warranty period, If there is any quality problem, please send us photos to show the problem.And then we will decide to send you parts
or you send the instrument back to us to repair or exchange. Please make sure to contact us first instead of sending it to us directly. You only need to pay double-run freight.
5. Q: What Shipping way Customer can choose?
A: DHL/FEDEX/UPS/EMS all is ok, it is base on Customer's prefer! and we can advise the suitable shipping way base on the customer's order q'ty!
6. Q: How to place an order?
a: send us an inquiry.
b: confirm your wanted products
c: confirm the price, freight and other details
d: complete the payment
e: we start production and arrange the shipment
f: you got your products
