Product Description
Best quality Factory supplied good Price EPA Earth-moving Machine Walk Behind Mini Skid Steer Loaders:
√ Application: Construction ,Grounds Maintenance, Landscaping use mini skid steer loader:
√ Briggs&stratton/HONDA/ RATO 23HP engine, optional. EPA certification available.
√4 PCS Danfoss hydraulic driving motors. 4WD
√ Compact size: only 45 inches/1150mm wide for wheeled, 33 inches/830mm wide for tracked.
√Bigger size wheels improved it's stability. 20*10-10.
√ Optional counter weight increased it's loading power. 25kg/pc.
√ Accept customize hitch plate to fit your local attachments.
√ Briggs&stratton/HONDA/ RATO 23HP engine, optional. EPA certification available.
√4 PCS Danfoss hydraulic driving motors. 4WD
√ Compact size: only 45 inches/1150mm wide for wheeled, 33 inches/830mm wide for tracked.
√Bigger size wheels improved it's stability. 20*10-10.
√ Optional counter weight increased it's loading power. 25kg/pc.
√ Accept customize hitch plate to fit your local attachments.
Mini skid steer loader specification | ||||
Driving type | Wheeled TY-323S | Tracked TY-323T | ||
Engine Model | B&S/Honda/Rato; Optional | |||
Rated Power | 23hp | |||
Engine displacement | 625ml | |||
Rotating Speed | 3600rpm | |||
Rated loading | 350kg/770 lb | |||
Max. loading | 400kg/880 lb(counter weight needed) | |||
Operating weight | 870kg/1914 lb | 900kg/ 1980 lb | ||
Max. Driving speed | 6km/h; 3.7m/h | |||
Bucket Capacity | 0.15m³ | |||
Skid steer loader working System | ||||
System Pressure | 17Mpa | |||
Lift time | 4s | |||
Tipping Bucket time | 1.3s | |||
Landing time | 3s | |||
Mini Skid Steer Loader Main dimension | ||||
Tire Model | 20*10-10 | 200*72*32 | ||
Overall length with bucket | 2170mm / 85.4 in | |||
Length Without Bucket | 1740mm / 68.5 in | |||
Total width | 1150mm / 45.3 in | 830mm / 32.7 in | ||
Max. working height | 2452mm / 96.5 in | 2435mm / 96 in | ||
Max hinge pin height | 1914mm / 75.3 in | 1897mm / 74.7 in | ||
Max. unloading height | 1515mm /59.6 in | 1498mm / 59 in | ||
Dumping reach | 545mm /21.5 in | 612mm / 24.1 in | ||
Rollback of bucket on ground(°） | 26 | |||
Rollback of bucket full height(°） | 114 | |||
Angle of departure (°） | 23 | 25 | ||
Dumping angle at Max. height(°） | 34 | |||
Total height of loader | 1370mm / 54 in | 1355mm / 53.3 in | ||
Ground clearance | 140mm / 5.5 in | 92mm / 3.6 in | ||
Wheelbase | 657mm / 25.9 in | 720mm / 28.3 in | ||
Packing&Shipping

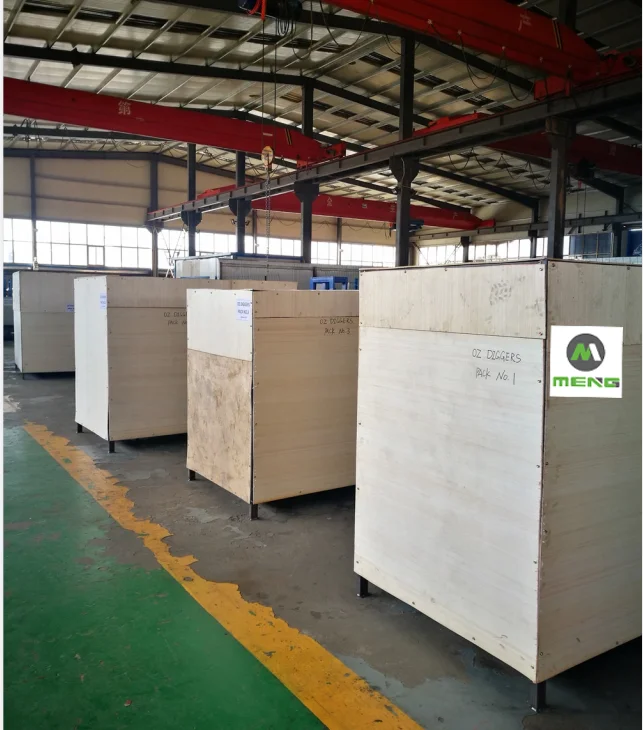

Packing: For order of 1-2 pcs, the mini track skid steer loader should be packed by steel frame and plywood box.
6 units in a 20ft' container.
12 units in a 40ft' container.
Shipping: 1: FOB-- We deliver to local port China, your agent collect there. 2: CIF-- We ship to your local port, you collect your self. 3: DDU--We ship to your home or appointed place.
6 units in a 20ft' container.
12 units in a 40ft' container.
Shipping: 1: FOB-- We deliver to local port China, your agent collect there. 2: CIF-- We ship to your local port, you collect your self. 3: DDU--We ship to your home or appointed place.
Products Warranty:
1: One year warranty for engine.
2: Spare parts delivery for machine repairing.
3: Machine operation instruction by videos if requested.
4: Daily maintenance technical support.
5: Other technical issues support if needed.
2: Spare parts delivery for machine repairing.
3: Machine operation instruction by videos if requested.
4: Daily maintenance technical support.
5: Other technical issues support if needed.
Optional attachments for Quick Hitch Attachments Mini Skid Steer Loaders:
Company Introduction
Hi-Tech Sunrise Machinery Co., Ltd , is a machinery manufacturer, professional high power loading mini skid steer loader with excavator and attachments.
we are professional manufacturer to produce skid steer loaders and it's attachments since 2003, our products market
mainly at Australia, North America, Europe, South America.....
Our skid steer loaders model covers 13.5hp up to 95hp, skid steer loaders and mini skid steer loaders, they are wheeled and tracked, we also accept customized color and your own logo/trade mark at free of charge.
mainly at Australia, North America, Europe, South America.....
Our skid steer loaders model covers 13.5hp up to 95hp, skid steer loaders and mini skid steer loaders, they are wheeled and tracked, we also accept customized color and your own logo/trade mark at free of charge.

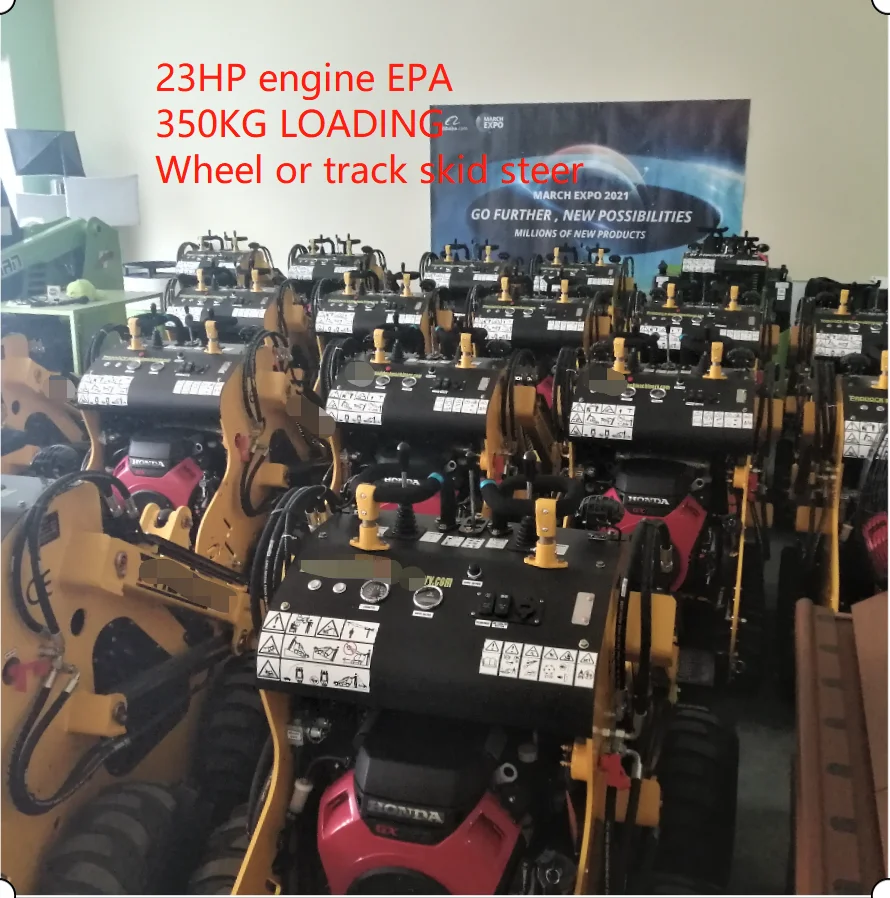

SKID STEER LOADER TESTING AFTER PRODUCTION IN OUR FACTORY.

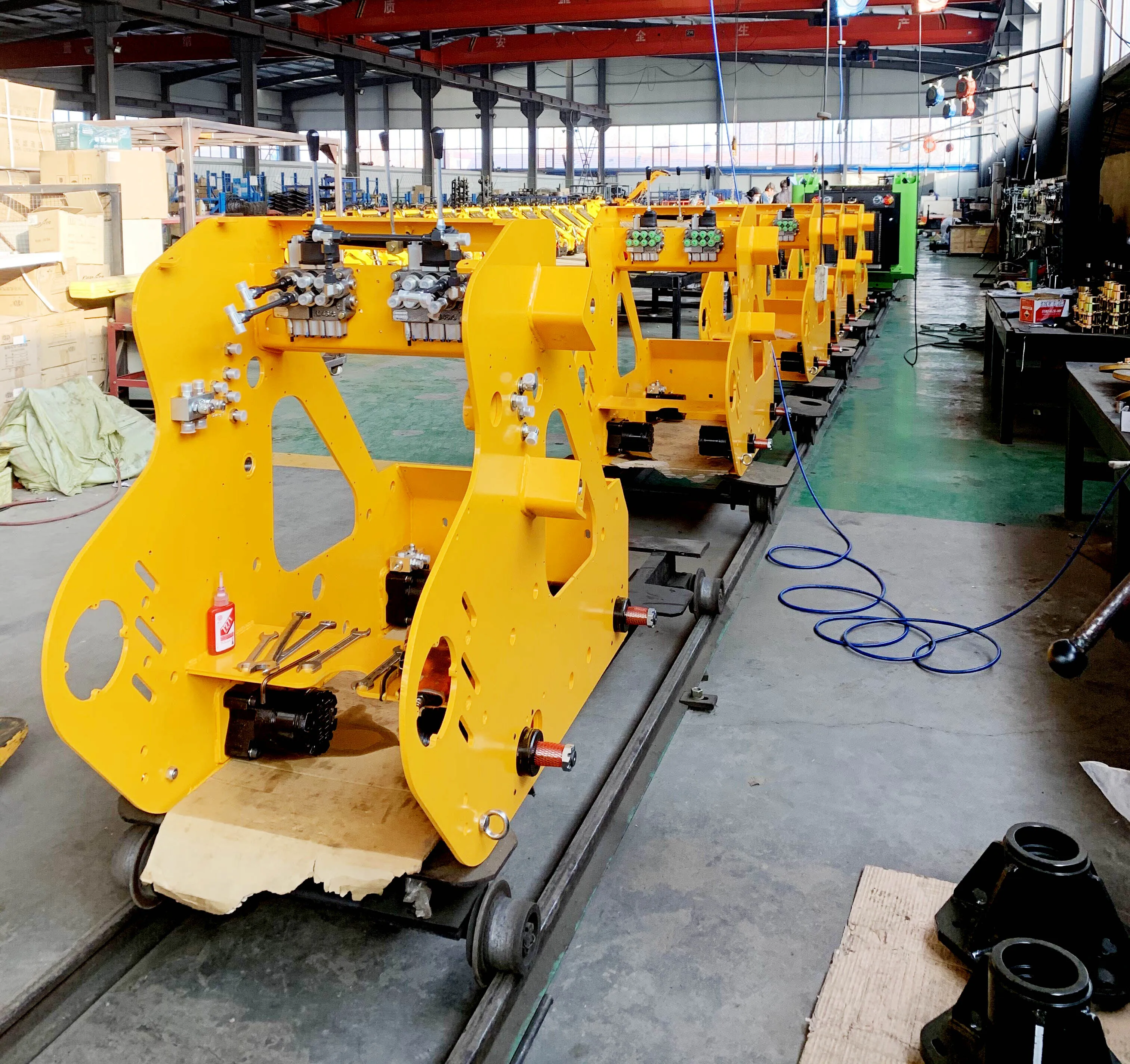

SKID STEER WORKSHOP AND EXPO AS BELOW:
