Cyclon рукавного фильтра дом промышленный пылесборник для фабрик мешок сбора пыли делая
- Категории: Dust Collector >>>
- Поставщик: Henan,Baichy,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Application:
* Cement production * Powder processing * Steel melting * Material handling * Primary metals, including steel-making * Metals fabrication: grinding, sawing, sanding, polishing * Paper making * Mixing and blending options * Mining * Foundries * Glass Plants * Battery Plants * Universities * Other industrial of management of dust in normal temperature.
Descriptions of Pulse Dust Collector:
Baichy pulse dust collector is researched and developed for dust removel and dust collection of crusher and grinder. Pulse bag dust collector uses advanced cleaning technology, increases ratio of substantial air into bags, dust removal efficiency can reach above 99%. Baichy pulse dust collector is our sophisticated technology and efficient dust removal equipment.
Features of Pulse Dust Collector:
1.High Purification efficiency, ability to handle large gas.
2.Stable performance,long service life.
3.Convenient operation and maintenance.
4.Suitable for dust removing of a variety of multiple points of dust producing.

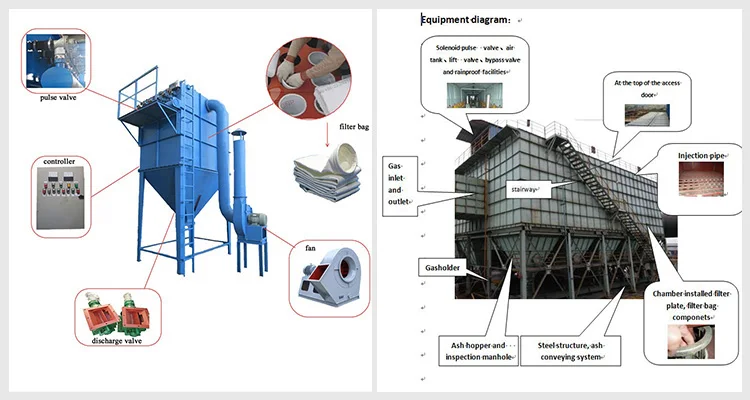

Product Structure

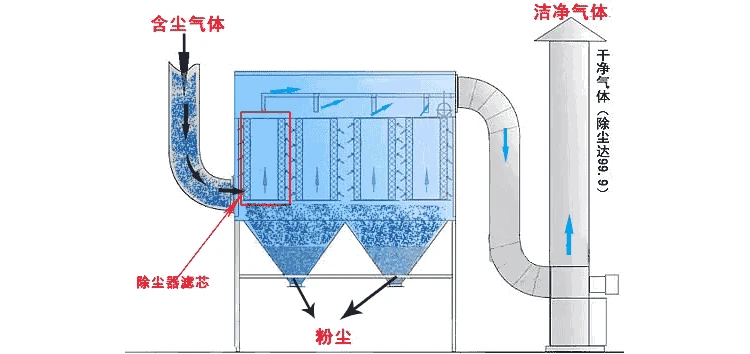

Under the effect of the air fan,air flow with dust is sucked into the dust collecting chamber from the bottom or one side. For those big dust particles, they will go downwards because of the decreasing speed of the air flow.While, for those fine dust particles,they will be stopped to the outside layer of the filter bag. When compressed air blow reverse back the filter bag, the fine particles will break away from the bag and go downwards with the big particles. Finally, dust particles will be discharged outside and the purified air will be discharged upon the upper side of the cleaning chamber. Finally, it plays the role of collecting dust, air pollution prevention purpose.
| Model | Total filter area (m2) | Filtering wind speed (m/s) | Input air (m³/h) | No. of filter bag (pc) | Specification of filter bag (mm) | Air consumption (m³/h) | Density of inlet (g/m³) | Density of outlet (mg/m³) |
| DMC-32 | 24-32 | 1.04-1.67 | 1500-2400 | 32 | ∅120x2000/∅130x2500 | 0.032 | 200 | 50 |
| DMC-48 | 36-48 | 1.15-1.62 | 2500-3500 | 48 | ∅120x2000/∅130x2500 | 0.048 | ||
| DMC-64 | 48-64 | 1.21-1.74 | 3500-5000 | 64 | ∅120x2000/∅130x2500 | 0.064 | ||
| DMC-80 | 60-80 | 1.25-1.67 | 4500-6000 | 80 | ∅120x2000/∅130x2500 | 0.08 | ||
| DMC-96 | 72-96 | 1.27-1.62 | 5500-7000 | 96 | ∅120x2000/∅130x2500 | 0.096 | ||
| DMC-112 | 84-112 | 1.28-1.68 | 6500-8500 | 112 | ∅120x2000/∅130x2500 | 0.11 | ||
| DMC-128 | 90-128 | 1.31-1.76 | 7500-9500 | 128 | ∅120x2000/∅130x2500 | 0.12 | ||
| DMC-168 | 126-168 | 2.54-2.87 | 9500-10500 | 168 | ∅120x2000/∅130x2500 | 0.168 |
Baichy headquarters is located in the industrial park in Jiaozuo City. It covers a total area of 200,000 square meters, including 150,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 500 workers, including more than 20 middle and senior technicians. Baichy is mainly focus on 4 series products: stone crusher machines, sand making equipment, powder grinding mills, mineral processing equipment and their spare parts. Every year, Baichy can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.
1. Are you manufacture or trading company?
We are factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
