Алюминиевый козловой кран регулируемый по высоте ручной толкание передвижной ширина нагрузки настраиваемый цепной подъемник

Описание и отзывы

Характеристики

Hot Sale Small Warehouse Used Portable Aluminum 2 5 Ton Gantry Crane With Hand Chain Blockle mini mobile aluminum gantry cran

Technical Parameters:



The following technical parameters is for the common size(Most of clients need). Pls check the rated load, the span and the lifting height is suitable for your requirements.



Item No.	Rated Load  (ton)	Total Height  (mm)	Max. Lifting Height (mm)	Outside  Span (mm)	Inner Span (mm )	H Height  (mm)
LT-1	0.5	3000	2420	2000	1880	460
	0.5	3000	2420	3000	2880	460
	0.5	4000	3420	3000	2880	460
	0.5	4000	3420	4000	3880	460
	1	3000	2470	2000	1880	410
	1	3000	2470	3000	2880	410
	1	4000	3470	3000	2880	410
	1	4000	3470	4000	3880	410
	2	3000	2215	2000	1800	535
	2	3000	2215	3000	2800	535
	2	4000	3215	3000	2800	535
	2	4000	3215	4000	3800	535
	3	3000	2122	2000	1800	685
	3	3000	2122	3000	2800	685
	3	4000	3122	3000	2800	685
	3	4000	3122	4000	3800	685



If the common size is not suitable for you, pls provide us the detailed data titled in the following X-Y scheme, including the span, the rated load, the lifting height and the other technical parameters( the other data in the table)






Appreciated providing the details, then our professional R&D team will provide you the best project as your situation.



Also if you do not know the specific data clearly, pls tell us the problem you meet now and you need to lift which things.Also you can see the video of 3D drawing showed in this page. Then you may get more information about our products( Advantages, function,  appearance and the handling method). We think you will have a better knowledge of our products and you will provide us the right data for our personnel.

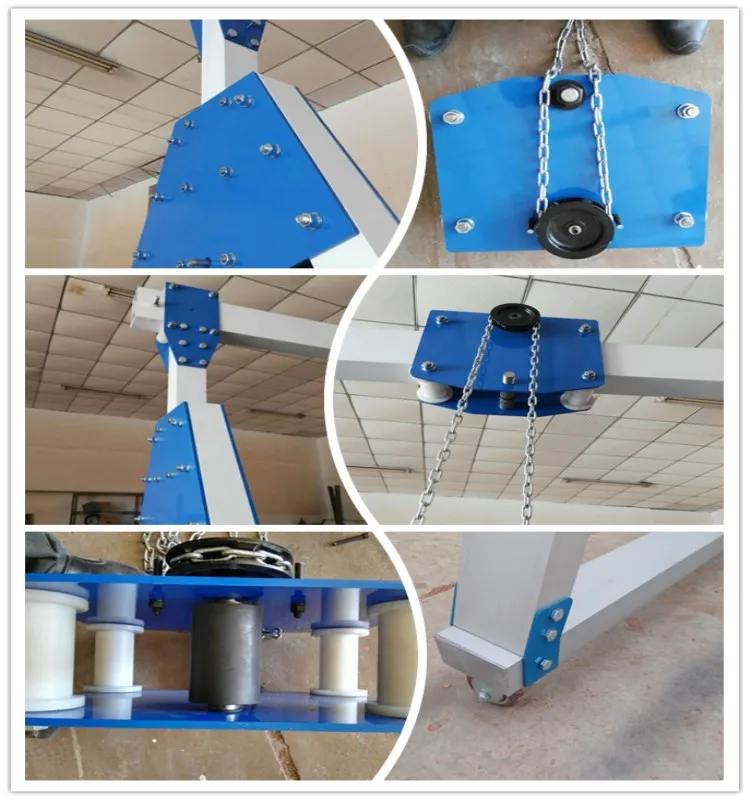

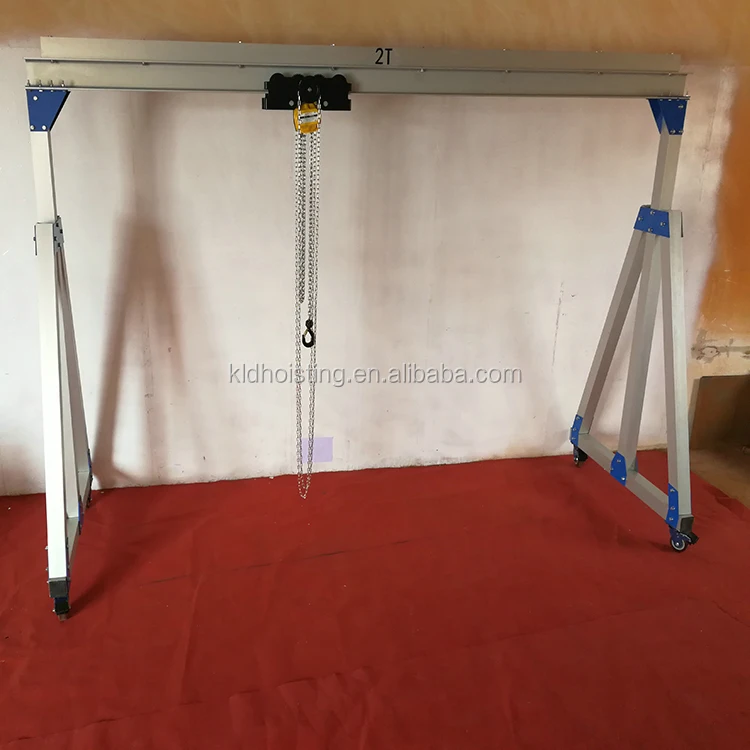

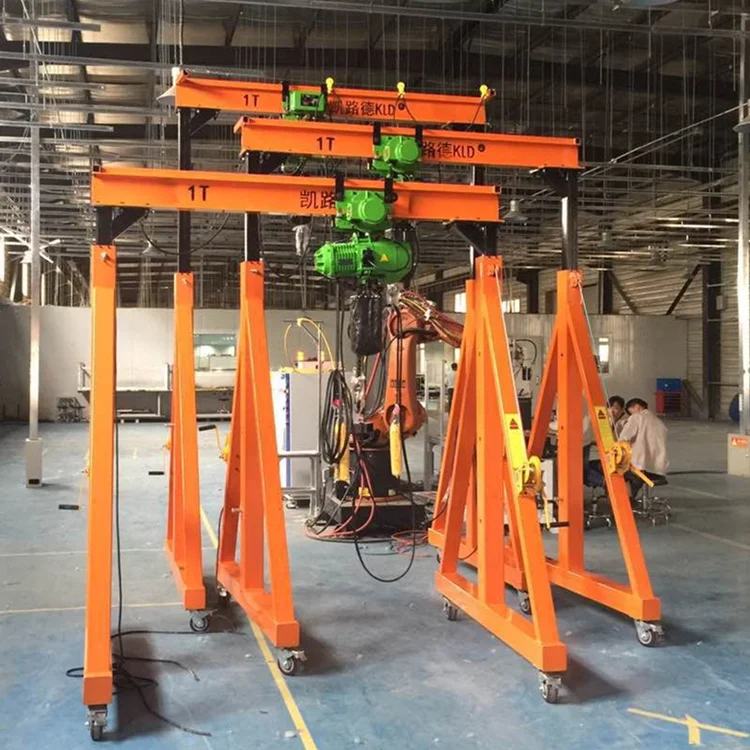

Pls see the pictures as follows, we usually use the same color hoist to attach the gantry crane, but this effect showed as the following pictures are much better than before. You may find it has really good looking. And as you know, we can also accept customized color. Feel free to contact us about your ideas. You ideas are good for our next development.

                                 CLICK FOR E-CATALOGUE



Pls see the following picture of production process:



For each step of production, we will arrange the relative quality control personnel to check the quality, it not only make the wokers to lose the production time but also can make the personnel to know which production link make the wrong handling. Solve the problem quickly and in order to happen this situation again.

PACKING: PACKED BUBBLE FILM FIRST, THEN PUT IN TO THE WOODEN CASE OR PACKED WITH THE STEEL PALLET.



DELIVERY: LAND TRANSPORTATION, SEA SHIPPING, AIR TRANSPORTATION



WE HAVE THE PROFESSIONAL SHIPPING AGENTS.

WE WILL CHOOSE THE BEST SHIPPING WAY FOR YOU.

YOU WILL DO NOT WORRY ABOUT THE SHIPPING ANY MORE.
