Машина для производства пластиковых резервуаров для воды Juneng
US $35000-$38000
Выдувная машина для литья под давлением выдувного формования пластиковых стаканчиков 1 8 л автоматическая выдувания
- Категории: Extrusion Blow Molding Machines >>>
- Поставщик: Shaanxi,Guoyuan,New,Material,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

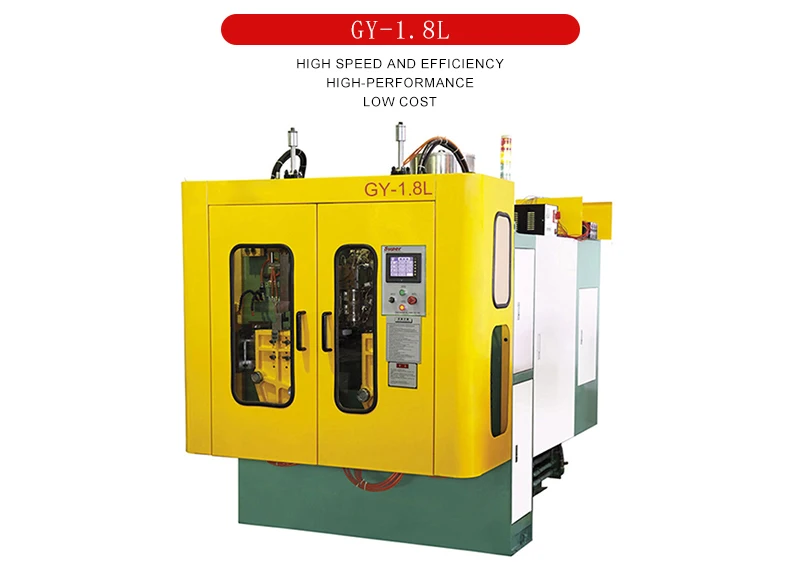

Blowing Injection Machinery Extrusion Blow Molding Machine 1.8L Plastic Cup Automatic Bottle Blowing Machine
Product Description
Specification
Model | GY-1.8L |
Extrusion Motor | 7.5KW |
Hydraulic Motor | 5.5KW |
Heating Points | 5Zome |
Heating Capacity | 6KW |
Mold Stroke | 110-330mm |
Mold Width | 200mm |
Dry Cycle Per Hour | 1000*2 Time/h |
Mold-Locked Pressure | 3Ton |
Oil Tank Capacity | 150L |
Air Pressure | 6-8Kg/cm² |
Air Consumption | 0.7m |
Cooling Water Pressure | 0.3-0.5Mpa |
Cooling Water Consumption | 30L/min |
Weight of Product | 10-100G |
Product Capacity | 1.0L |
Total Power Consumption | 16KW |
Average Power Consumption | 9.9KW |
Machine Net Weight | 2.2Ton |
Machine Gross Weight | 2.5Ton |
Machine Dimension | 2.321*1.8*2.366M |
Box Dimension | 9.9m³ |
Don’t worry about after-sales issues,
A、 After confirming the order, a special project team will be set up for you to formulate design, production, and quality inspection plans, and coordinate the work of various departments to ensure the quality of the goods and the delivery date.
B、After the contract takes effect, provide the customer with a full set of information about the machine, follow up the whole process and ensure the customer's installation and useC、Transportation: take all protective measures to ensure that the goods are delivered to the customer's location intact
D、During the equipment warranty period, there is no reason to replace the accessories (non-human damage)
E、In case of mechanical failure, on-site or remote guidance can be provided
F、Warranty period: 2 years

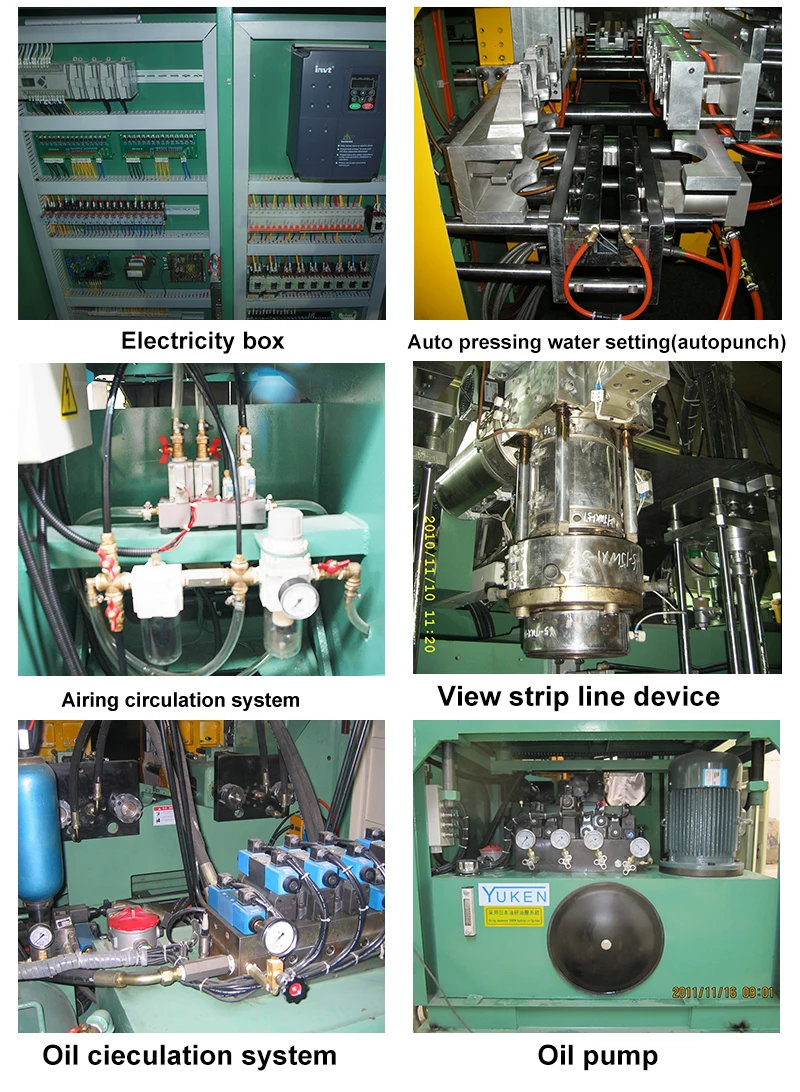

Details Images

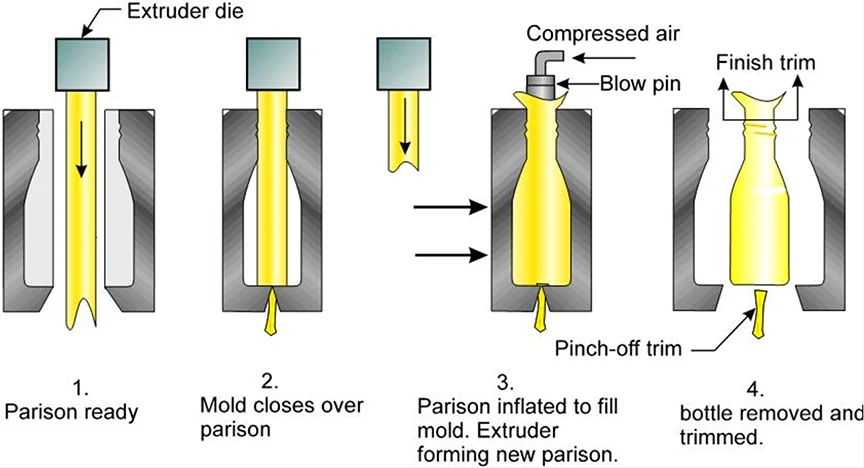

Product Function

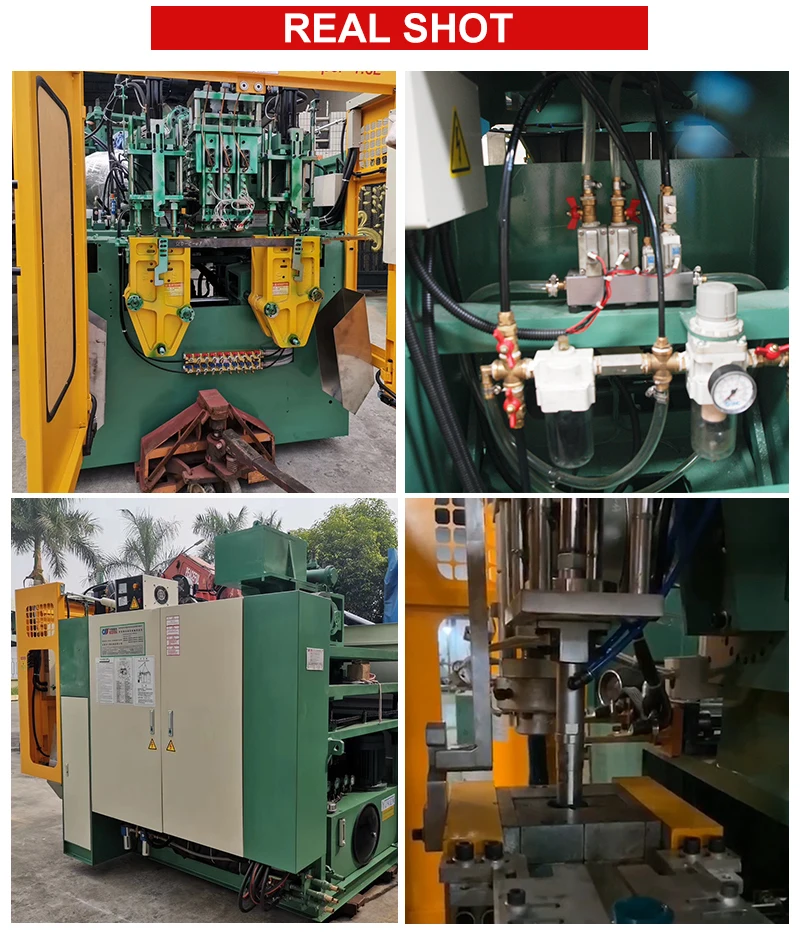

Product Display
Company Profile
Shaanxi GuoYuan New Material Technology Co., Ltd. is an innovative mechanical equipment and auto parts manufacturing enterprise with integrating R & D, manufacturing, sales, after-sales service in Xi'an. Our products has passed UL,CE ROHS,ect, committed to becoming a comprehensive industrial producer.
We are specialized in laser cutting machine, injection molding machine, blow molding machine and all kinds of auto parts...The hard power of an enterprise is embodied in strong financial resources, advanced equipment, ample and well-organized workshops, first-class human resources, advanced technology, excellent product quality, large sales network, large-scale production capacity, and has already formed economies of scale. And high market share.
GuoYuan attaches importance to every customer and provides customers with the best product quality, the greater technical solutions and the excellent service to meet their each needs.
We are specialized in laser cutting machine, injection molding machine, blow molding machine and all kinds of auto parts...The hard power of an enterprise is embodied in strong financial resources, advanced equipment, ample and well-organized workshops, first-class human resources, advanced technology, excellent product quality, large sales network, large-scale production capacity, and has already formed economies of scale. And high market share.
GuoYuan attaches importance to every customer and provides customers with the best product quality, the greater technical solutions and the excellent service to meet their each needs.
Our Factory
Packing & Delivery
FAQ
Q1: | I know nothing about this machine, what kind of machine should I choose? |
A1: | Very easy to choose. Just tell us what you want to do by using our machine, then let us give you professional solutions and suggestions. |
Q2: | When I got this machine, but I don’t know how to use it. What should I do? |
A2: | We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail. |
Q3: | If some problems happen to this machine during warranty period, what should I do? |
A3: | We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions. |
