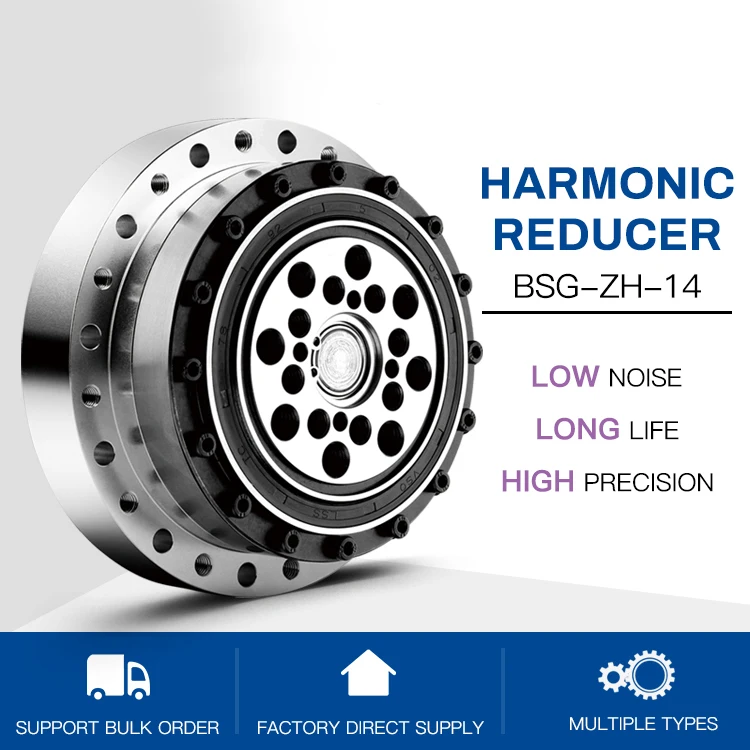

China mini size cup type harmonic gaer drive harmonic reducer for drive mechanism 14 50
Product Description

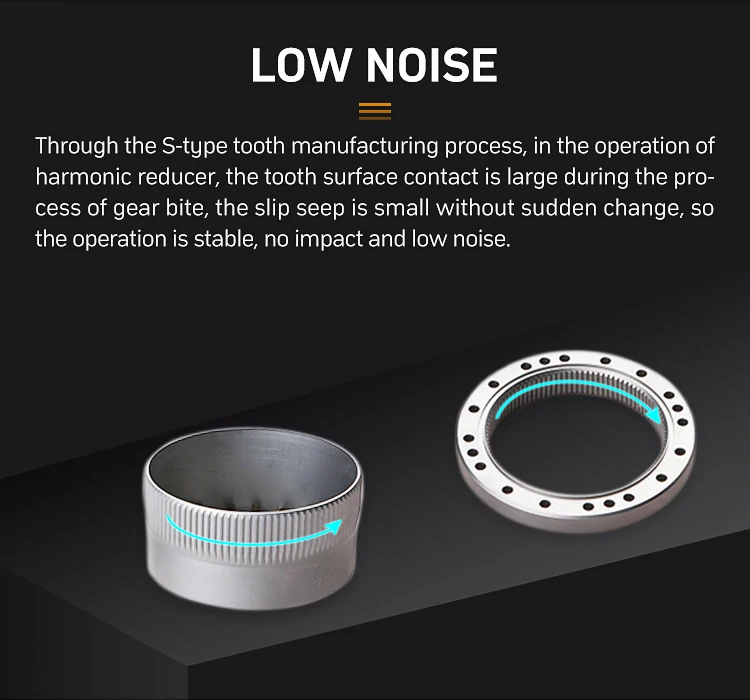

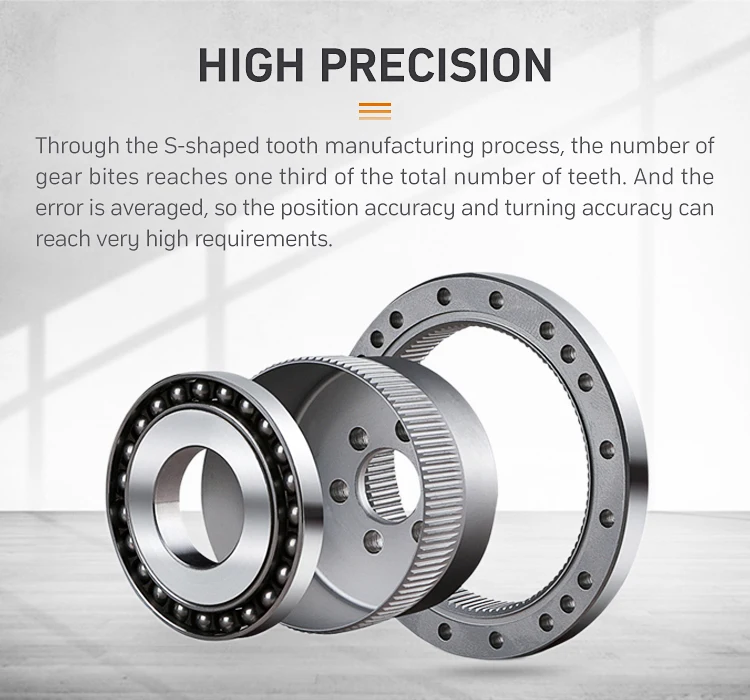

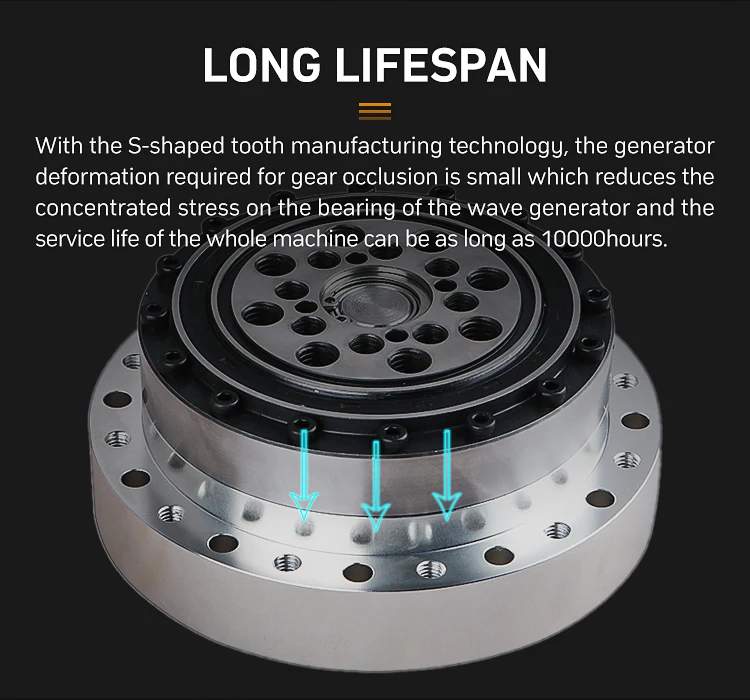

Adopt international latest technology, under innovative tech, strict QC, our independent R& D team synchronously adopt international craft and cast great quality harmonic gear reducer. With s-shaped teeth, our harmonic reducer with high precision, low noise and long life.
Product Features
Product Parameter
| Model | Reduction ratio | Rated speed when input 2000r/min | Allowable peak torque at start stop | Maximum allowable load torque on average | Maximum allowable moment torque | ||||
| Nm | kgfm | Nm | kgfm | Nm | kgfm | Nm | kgfm | ||
| 14 | 50 | 7.0 | 0.7 | 23 | 2.3 | 9.0 | 0.9 | 46 | 4.7 |
| 80 | 10 | 1.0 | 30 | 3.1 | 14 | 1.4 | 61 | 6.2 | |
| 100 | 10 | 1.0 | 36 | 3.7 | 14 | 1.4 | 70 | 7.2 | |
| 17 | 50 | 21 | 2.1 | 44 | 4.5 | 34 | 3.4 | 91 | 9 |
| 80 | 29 | 2.9 | 56 | 5.7 | 35 | 3.6 | 113 | 12 | |
| 100 | 31 | 3.2 | 70 | 7.2 | 51 | 5.2 | 143 | 15 | |
| 120 | 31 | 3.2 | 70 | 7.2 | 51 | 5.2 | 112 | 11 | |
| 20 | 50 | 33 | 3.3 | 73 | 7.4 | 44 | 4.5 | 127 | 13 |
| 80 | 44 | 4.5 | 96 | 9.8 | 61 | 6.2 | 165 | 17 | |
| 100 | 52 | 5.3 | 107 | 10.9 | 64 | 6.5 | 191 | 20 | |
| 120 | 52 | 5.3 | 113 | 11.5 | 64 | 6.5 | 191 | 20 | |
| 160 | 52 | 5.3 | 120 | 12.2 | 64 | 6.5 | 191 | 20 | |
| 25 | 50 | 51 | 5.2 | 127 | 13 | 72 | 7.3 | 242 | 25 |
| 80 | 82 | 8.4 | 178 | 18 | 113 | 12 | 332 | 34 | |
| 100 | 87 | 8.9 | 204 | 21 | 140 | 14 | 369 | 38 | |
| 120 | 87 | 8.9 | 217 | 22 | 140 | 14 | 395 | 40 | |
| 160 | 87 | 8.9 | 229 | 23 | 140 | 14 | 408 | 42 | |
| 32 | 50 | 99 | 10 | 281 | 29 | 140 | 14 | 497 | 51 |
| 80 | 153 | 16 | 395 | 40 | 217 | 22 | 738 | 75 | |
| 100 | 178 | 18 | 433 | 44 | 281 | 29 | 841 | 86 | |
| 120 | 178 | 18 | 459 | 47 | 281 | 29 | 892 | 91 | |
| 160 | 178 | 18 | 484 | 49 | 281 | 29 | 892 | 91 | |
| Model | Reduction ratio | Allowable maximum input speed r/min | Allowable average input speed r/min | Rotational inertia | |||
| Lubricating oil | Grease lubrication | Lubricating oil | Grease lubrication | I*10-4kgm² | J*10-5kgfms² | ||
| 14 | 50 | 14000 | 8500 | 6500 | 3500 | 0.033 | 0.034 |
| 80 | |||||||
| 100 | |||||||
| 17 | 50 | 10000 | 7300 | 6500 | 3500 | 0.079 | 0.081 |
| 800 | |||||||
| 100 | |||||||
| 120 | |||||||
| 20 | 50 | 10000 | 6500 | 6500 | 3500 | 0.193 | 0.197 |
| 80 | |||||||
| 100 | |||||||
| 120 | |||||||
| 160 | |||||||
| 25 | 50 | 7500 | 5600 | 5600 | 3500 | 0.413 | 0.421 |
| 80 | |||||||
| 100 | |||||||
| 120 | |||||||
| 160 | |||||||
| 32 | 50 | 7000 | 4800 | 4600 | 3500 | 1.69 | 1.72 |
| 80 | |||||||
| 100 | |||||||
| 120 | |||||||
| 160 | |||||||
Application
This model harmonic gear reducer could be used in spraying equipment, CNC machine, printing equipment, packaging machinery and etc.
Packaging & Shipping
We adopt thick foam inside the carton to protect the harmonic drive reducer. DHL, FEDEX, TNT, EMS are ok for sample order. We also could provide sea transport for large quantity orders of harmonic reducers.
Company Information

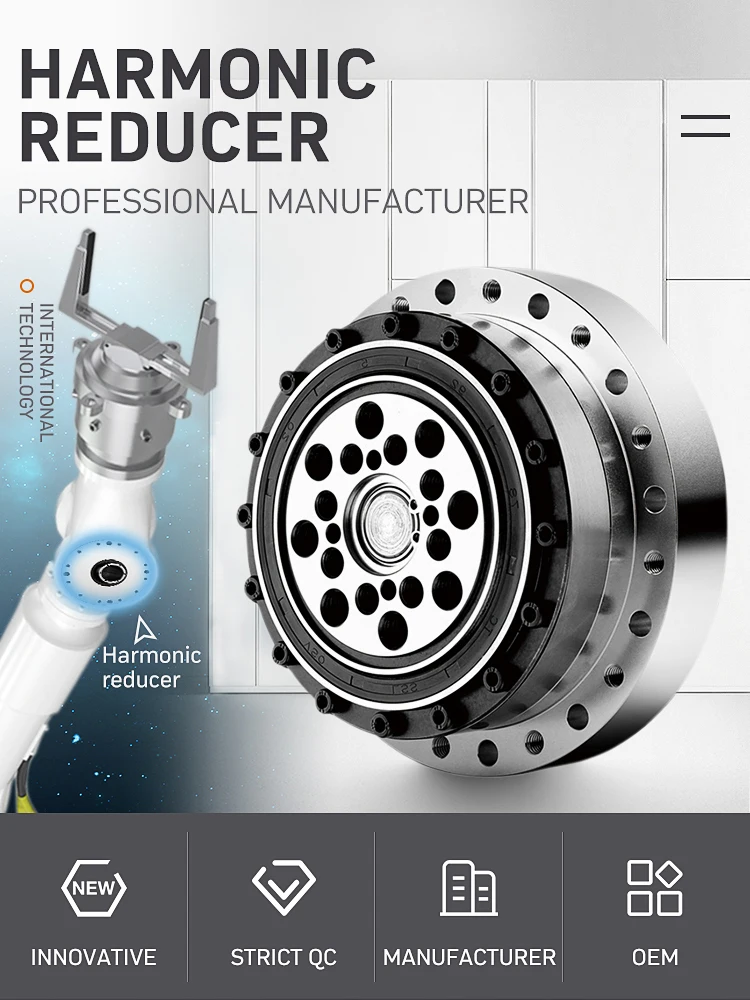

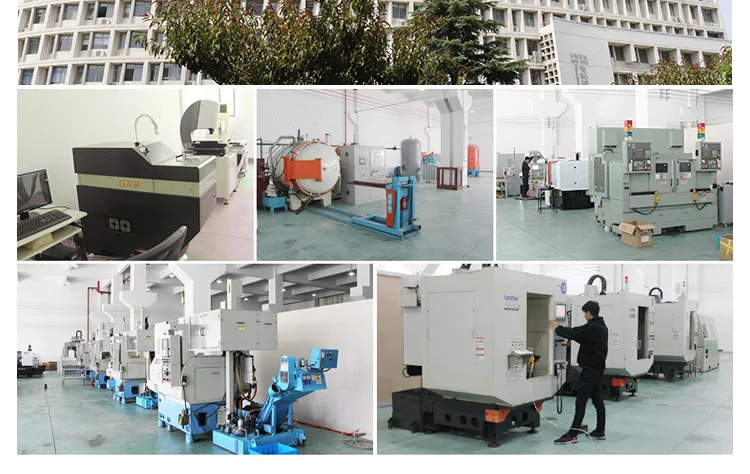

Zhengzhou Defy Mechanical&Electrical Equipment Co., Ltd is a professional manufacturer of harmonic drive reducer. Our factory dedicates to the research of harmonic reducer since 2010s, more than 10 years’ experience makes our product quality rank in the leading position in China. The precise harmonic reducer developed and produced by our company adopts the latest international S-shaped gear transmission mechanism, which is the only domestic enterprise capable of quantifying the production of this kind of toothed harmonic reducer, with an annual output of 500,000 sets of various products for the market.
Our Services
1. We accept small order of harmonic reducer;
2. Sample order of harmonic gear speed reducer delivery time is in 9 days, mass quantity order lead time is 9-15 days;
3. We can accept payment via paypal, T/T and L/C;
4.Quality assurance of our harmonic reducer is 1 year, and we can provide you professional technical support;
5. We provide free software wand training how to use the products. Engineers are available for technical support.
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer and trading company.
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q: How long is your delivery time?
A: Due to the complex process, production takes 8-10 working days. For customized goods, please check with us before order.
Q. How do you ship the goods and how long does it take to arrive?
A: Usually by express, like DHL, UPS, FedEx, EMS or TNT; By air and sea are also available.
Express takes 3-15 days to arrive.
Q: What is your terms of payment?
A: We accept Trade Assurance Order, TT, Paypal, West Union and L/C.
