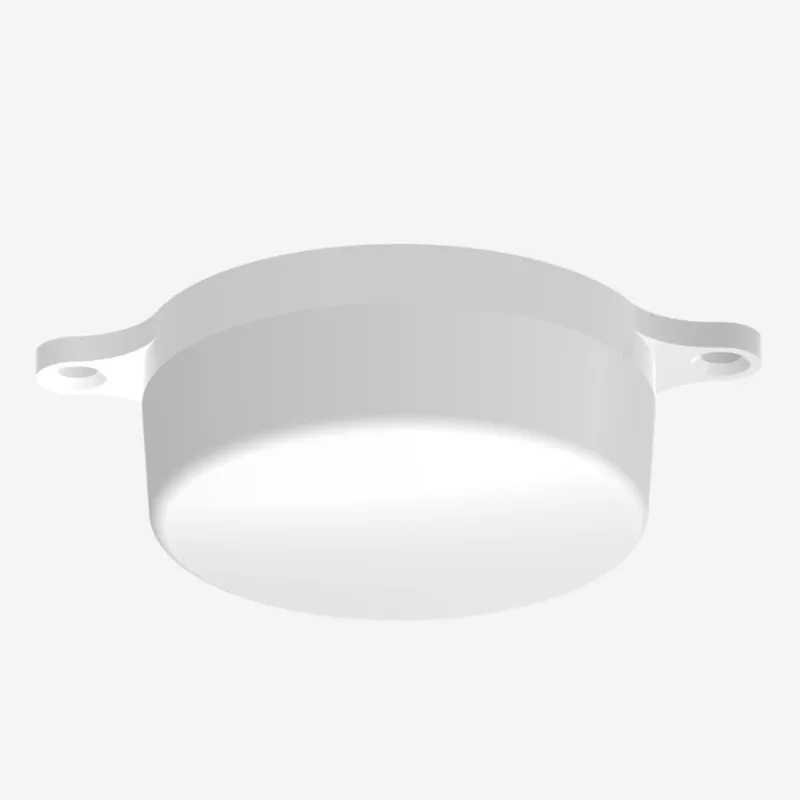

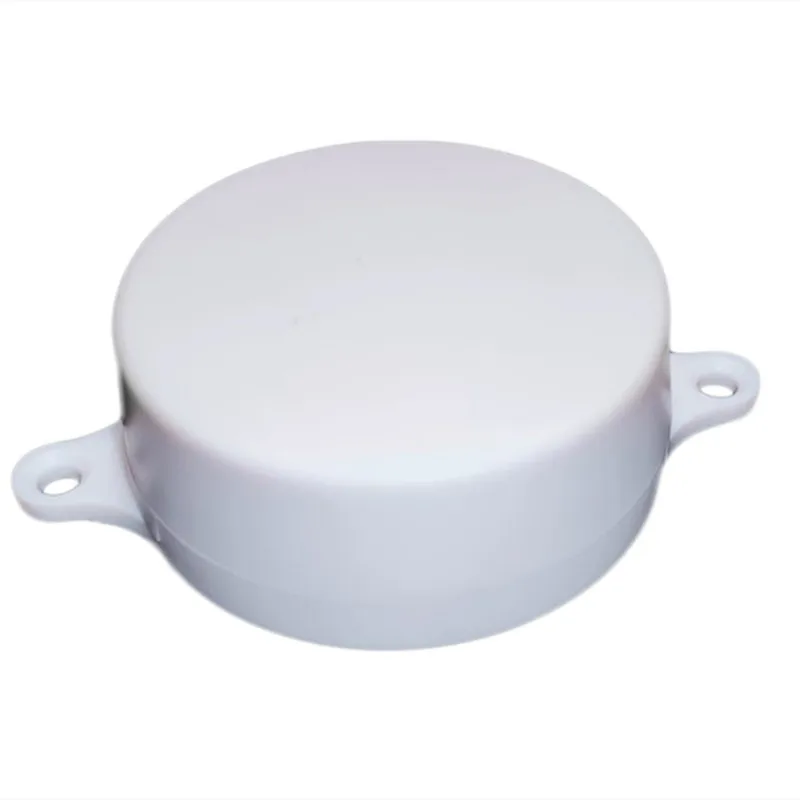

BT V5.1 BLE ibeacon длительное время автономной Водонепроницаемость в течение всего срока эксплуатации Dialog 14531
- Категории: >>>
- Поставщик: Dongguan,Shengken,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Key Features
Long battery life up to 3 years
Long range up to 120 meters
SDK available
Parameters programmable
Can program in clients' firmware
SDK available
Parameters programmable
Can program in clients' firmware
Product Paramenters
Physical parameter
Waterproof rating: IP67Shell material: PC
Shell color: white
Product size: diameter 55.8*23mm
Product weight: 35g (including battery)
Battery: ER14250 (lithium battery)
Power supply voltage: 3.6V DC
Installation method: screw fixation, double-sided adhesive paste
Technical parameter
Communication method: BLE 5.1
Broadcast power: -19.5~+2.5 dBm, default +2.5dBm
Broadcast frequency: 100ms~10S, default 500ms
Transmission distance: Open limit transmission distance 120 meters
Security: Support password function, prevent malicious tampering
OTA: Support
Power monitoring: support
Broadcast data format:
Broadcast power: -19.5~+2.5 dBm, default +2.5dBm
Broadcast frequency: 100ms~10S, default 500ms
Transmission distance: Open limit transmission distance 120 meters
Security: Support password function, prevent malicious tampering
OTA: Support
Power monitoring: support
Broadcast data format:
ibeacon mode (fixed UUID)
ibeacon mode (non-fixed UUID, 9-14 bytes of UUID are automatically written to MAC, and 15 bytes are automatically written to power)
Normal broadcast mode (MAC + battery)
Eddystone (reserved)
Support certification: BQB/FCC/CE/SRRC/ROHS/REACH
Support equipment: IOS7.0 and above, Android 4.3 and above
ibeacon mode (non-fixed UUID, 9-14 bytes of UUID are automatically written to MAC, and 15 bytes are automatically written to power)
Normal broadcast mode (MAC + battery)
Eddystone (reserved)
Support certification: BQB/FCC/CE/SRRC/ROHS/REACH
Support equipment: IOS7.0 and above, Android 4.3 and above
Electrical parameter
Quiescent current | ≤0.27uA |
Peak current | 3.5mA (0dBm) |
Average current | 20uA (+2.5dBm/500ms) |
Battery capacity | 1200 mAh |
Service life | more than 5 years (+2.5dBm/500ms), replaceable battery |
Working temperature | -40℃~+85℃ |
