Болт f593c с пассивированной отделкой из нержавеющей стали
US $0.01-$0.10
Зажимные U-образные болты из нержавеющей стали SS316 SS317L Китай 3 дюйма m6 m8 m12 m22 размеры 50 мм тип u-образных
- Категории: Bolt >>>
- Поставщик: Dongtai,Hongshenglong,Stainless,Steel,Products,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
*For example, 10*22 means the pipe with outer diameter of 22mm can be fixed. Select the corresponding u-bolt according to the outer diameter of the pipe

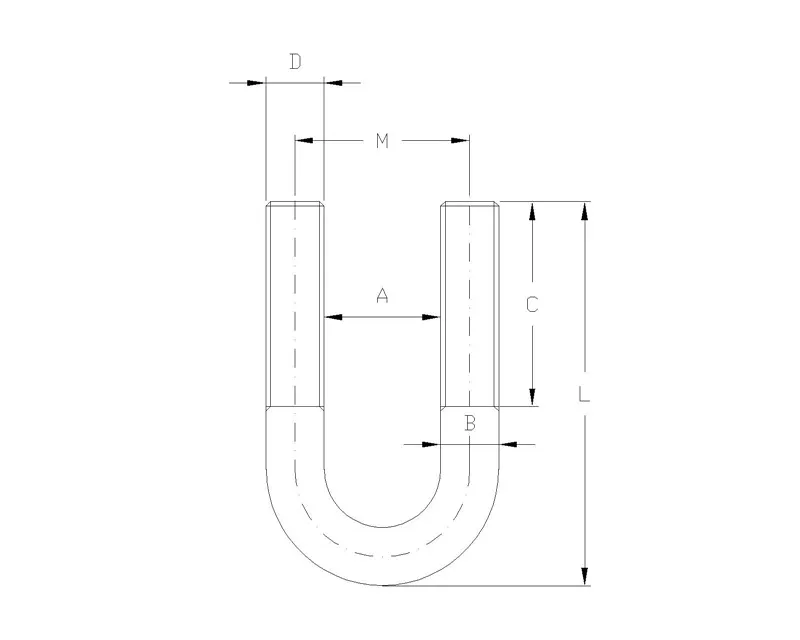

| Specifications | Pipe diameter A | The polished rod diameter B | Length of thread C | Dia D | Center distance M | Height L |
| M10*22 | 24 | 8.9 | 28 | 10 | 34 | 53 |
| M10*25 | 27 | 8.9 | 28 | 10 | 37 | 56 |
| M10*27 | 29 | 8.9 | 28 | 10 | 39 | 58 |
| M10*33 | 35 | 8.9 | 28 | 10 | 45 | 64 |
| M10*38 | 40 | 8.9 | 30 | 10 | 50 | 69 |
| M10*42 | 44 | 8.9 | 30 | 10 | 54 | 73 |
| M10*45 | 47 | 8.9 | 35 | 10 | 57 | 76 |
| M10*48 | 50 | 8.9 | 35 | 10 | 60 | 82 |
| M10*51 | 53 | 8.9 | 35 | 10 | 63 | 85 |
| M10*57 | 59 | 8.9 | 35 | 10 | 69 | 91 |
| M10*60 | 62 | 8.9 | 35 | 10 | 72 | 94 |
| M10*63 | 65 | 8.9 | 35 | 10 | 75 | 97 |
| M10*76 | 78 | 8.9 | 40 | 10 | 88 | 110 |
| M10*89 | 91 | 8.9 | 40 | 10 | 101 | 123 |
| M10*102 | 104 | 8.9 | 40 | 10 | 114 | 135 |
| M10*108 | 110 | 8.9 | 40 | 10 | 120 | 142 |
| M10*114 | 116 | 8.9 | 45 | 10 | 126 | 148 |
| M10*133 | 135 | 8.9 | 45 | 10 | 145 | 167 |
| M10*140 | 142 | 8.9 | 45 | 10 | 152 | 175 |
| M10*159 | 161 | 8.9 | 50 | 10 | 171 | 195 |
| M10*168 | 170 | 8.9 | 50 | 10 | 180 | 202 |
| M10*219 | 221 | 8.9 | 55 | 10 | 231 | 263 |
| M10*273 | 275 | 8.9 | 65 | 10 | 285 | 322 |
| M10*325 | 327 | 8.9 | 65 | 10 | 337 | 378 |
| M10*377 | 379 | 8.9 | 65 | 10 | 389 | 432 |
The above data is single batch manual measurement, there is some error, please take the real object as the standard! Those who mind are careful to shoot (unit: mm)
