Products Description


 1.Technical specification of APM0908
1) Angle size: ∠40*40*3～∠90*90*8mm
2) Max. punching diameter:φ25.5mm(8mm thickness, material type Q345)
Nominal punching force: 350KN
3) Quantity of punching head per side: 2
4) The quantity of punching row per side: arbitrariness
5) The quantity of character group: 4 groups
6) Dimension of characters: 14*10mm (18 Nos.)
7) Nominal Marking force: 1030KN
8) Max. length of the raw angle: 12m
9) Cutting mode: Single-blade shearing
10) Nominal Shearing force: 1000KN
11) Quantity of CNC axes: 3
12) The finished angle conveyor is rotated to one side by pneumatic power, the max. length of finished angle is12m.
13) There are four sets of transverse conveyor, infeeding automatically and intermittently
14) Angle feeding Speed: 60m/min
15) Production efficiency is about 60 holes/min.
16) Type of programming: keyboard input, USB interface input, floppy disc input.
17) Layout: A or B type
18) Working environment:
Working temperature: 0℃~ 40℃
Power: Three phase four wire system
AC Voltage: 380V
Fluctuation of voltage: ±10%
Frequency: 50 Hz
19) Hydraulic station cooling method: water cooling




Company Profile




Shandong FIN C N C MACHINE CO., LTD is located in Jinan high tech Development Zone, is committed to the development, research, design, manufacture, sales of CNC machine tools, such as processing angle bar, beam channel profiles, steel plates, tubesheet and flanges and other integrated equipment professional company. It is mainly used in iron tower, steel structure, heat exchanger, boiler, bridge, truck and other industries
Strong R & D center with 30 engineers team, 20 years of experience from year 2001, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine.
FIN C N C machines exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: C N C Angle Line, C N C Beam Drilling Sawing Machine, C N C Plate Drilling Machine, C N C Rail Processing Machine, C N C Tubesheet Flange Drilling Machine, Truck beam plate punching machine.
One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines’ perfect quality and reliable performance.
The company drafted many China national standards for C N C angle line machine and C N C beam drilling sawing machine and C N C plate drilling machine.

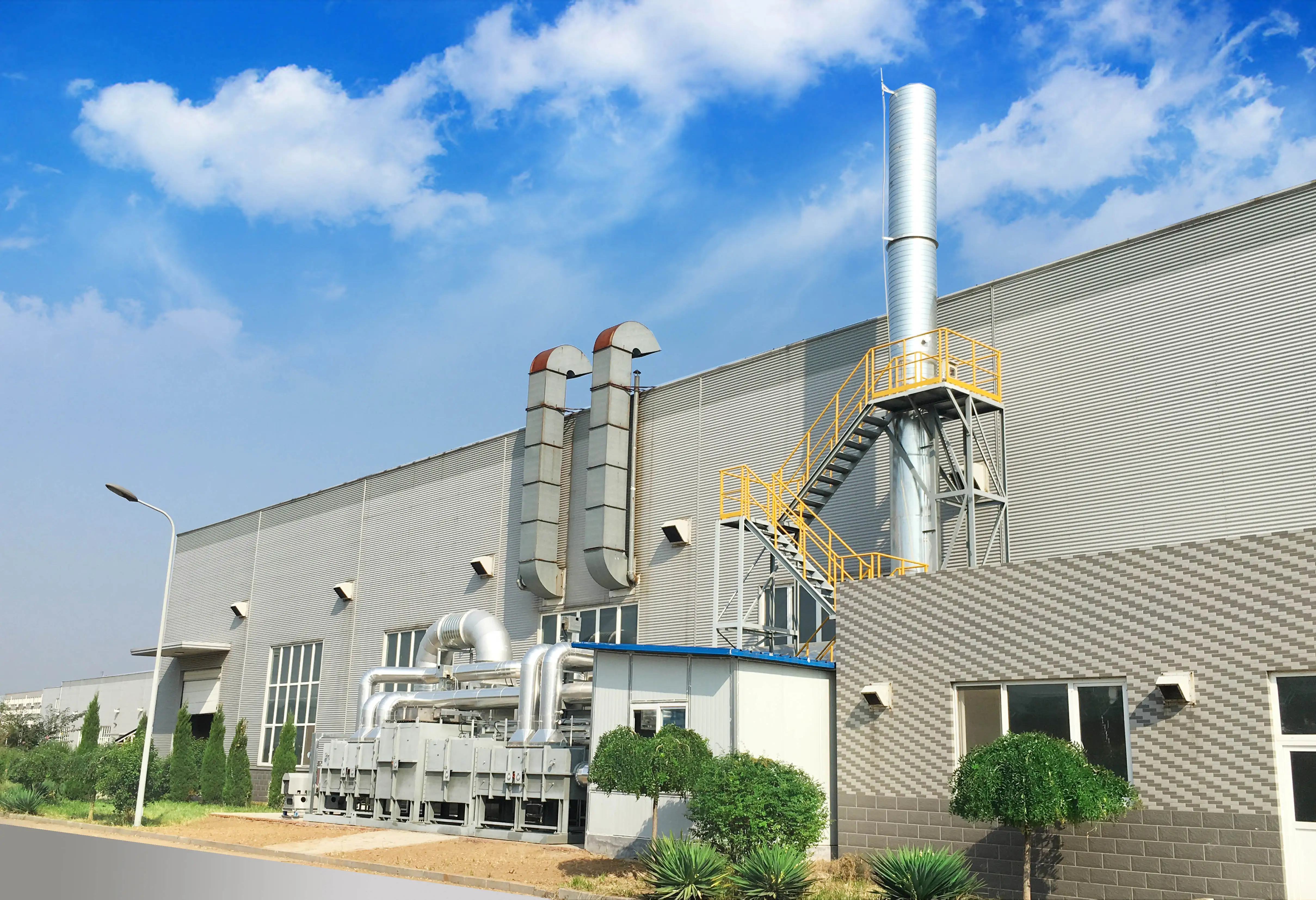

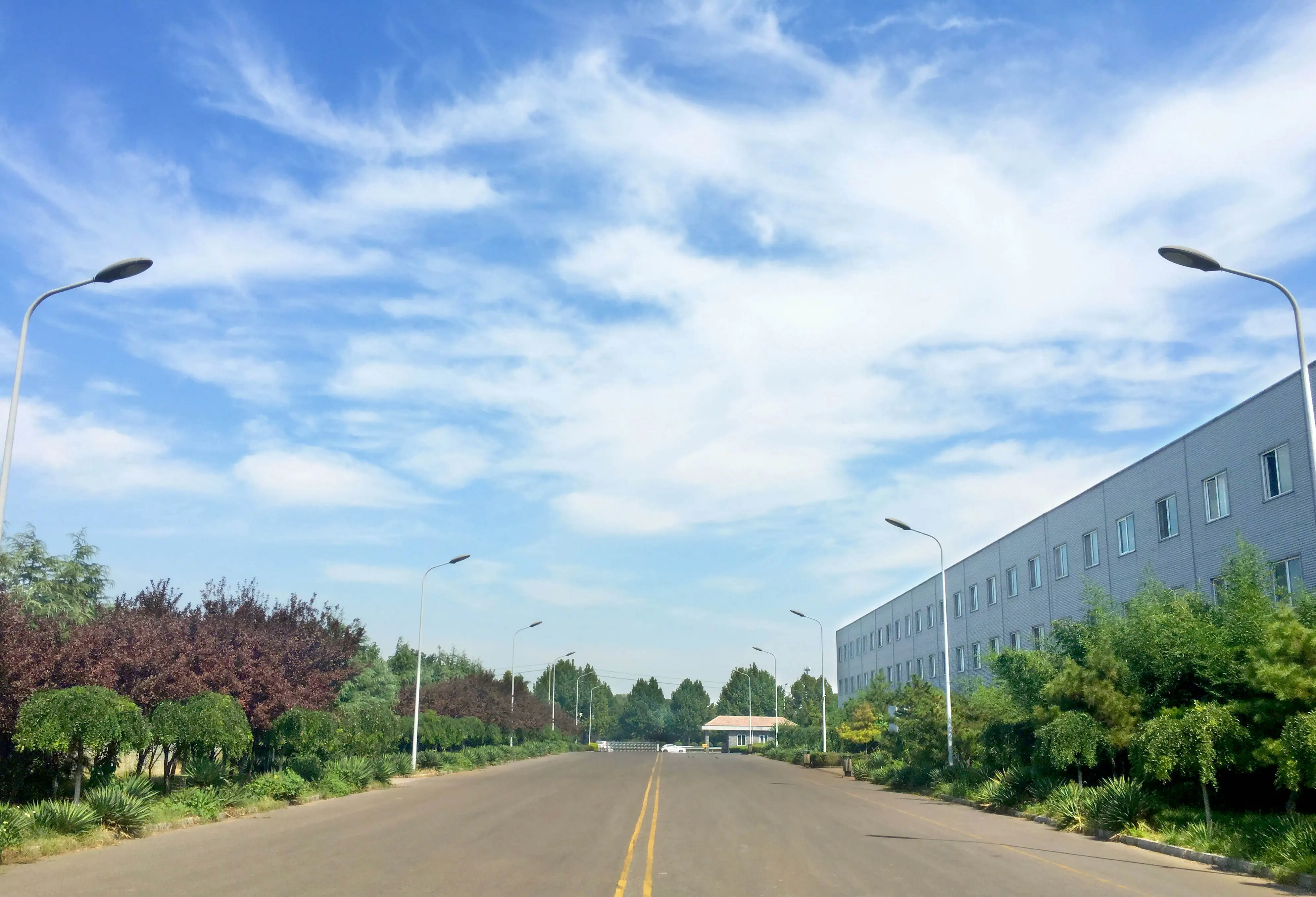

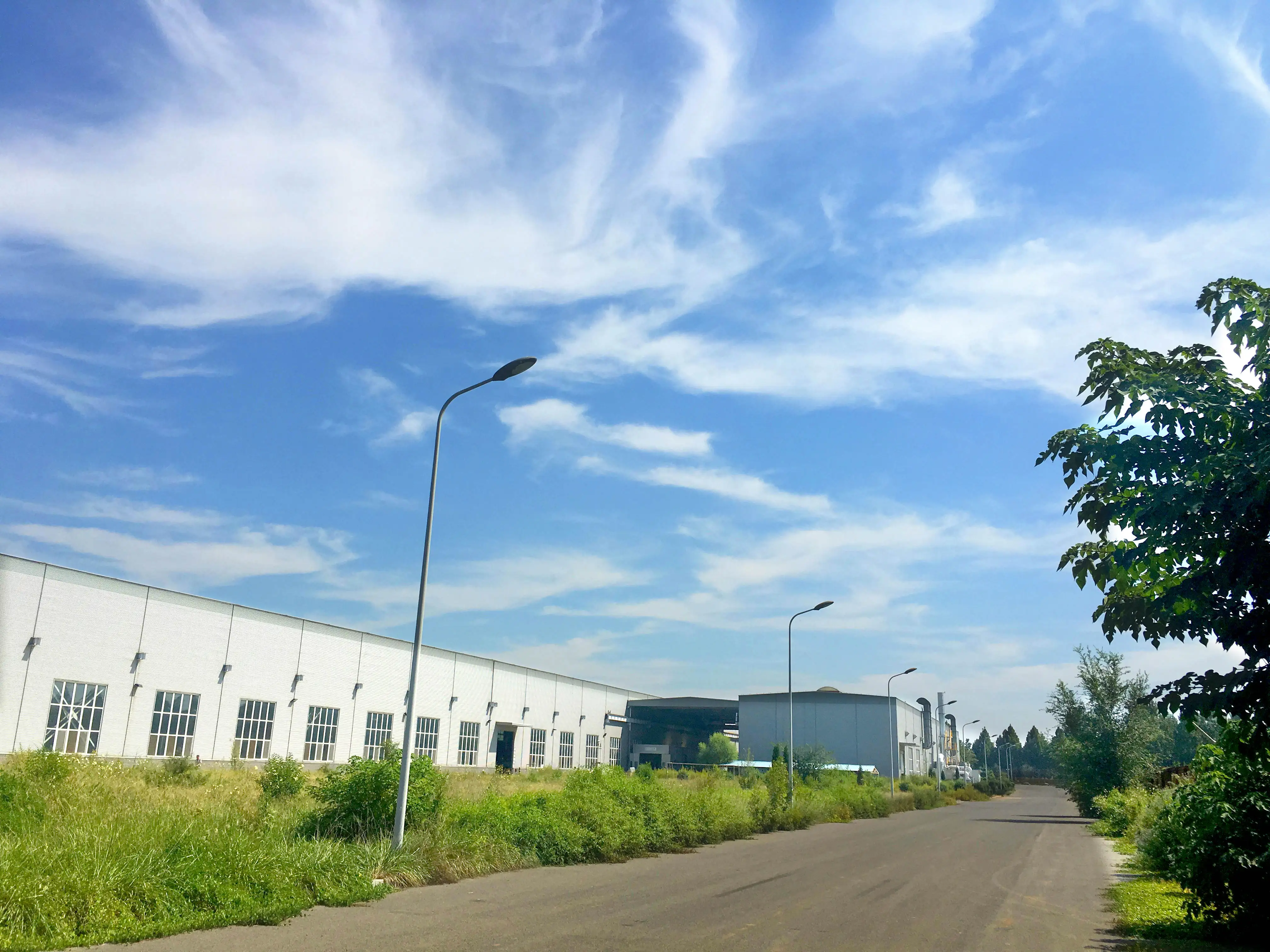

Production Workshop




1. We have a professional research and development team
2. The machine is widely used in the industry.
3. The performance and quality of the machine are reliable.
4. It has been exported to more than 50 countries in the world.

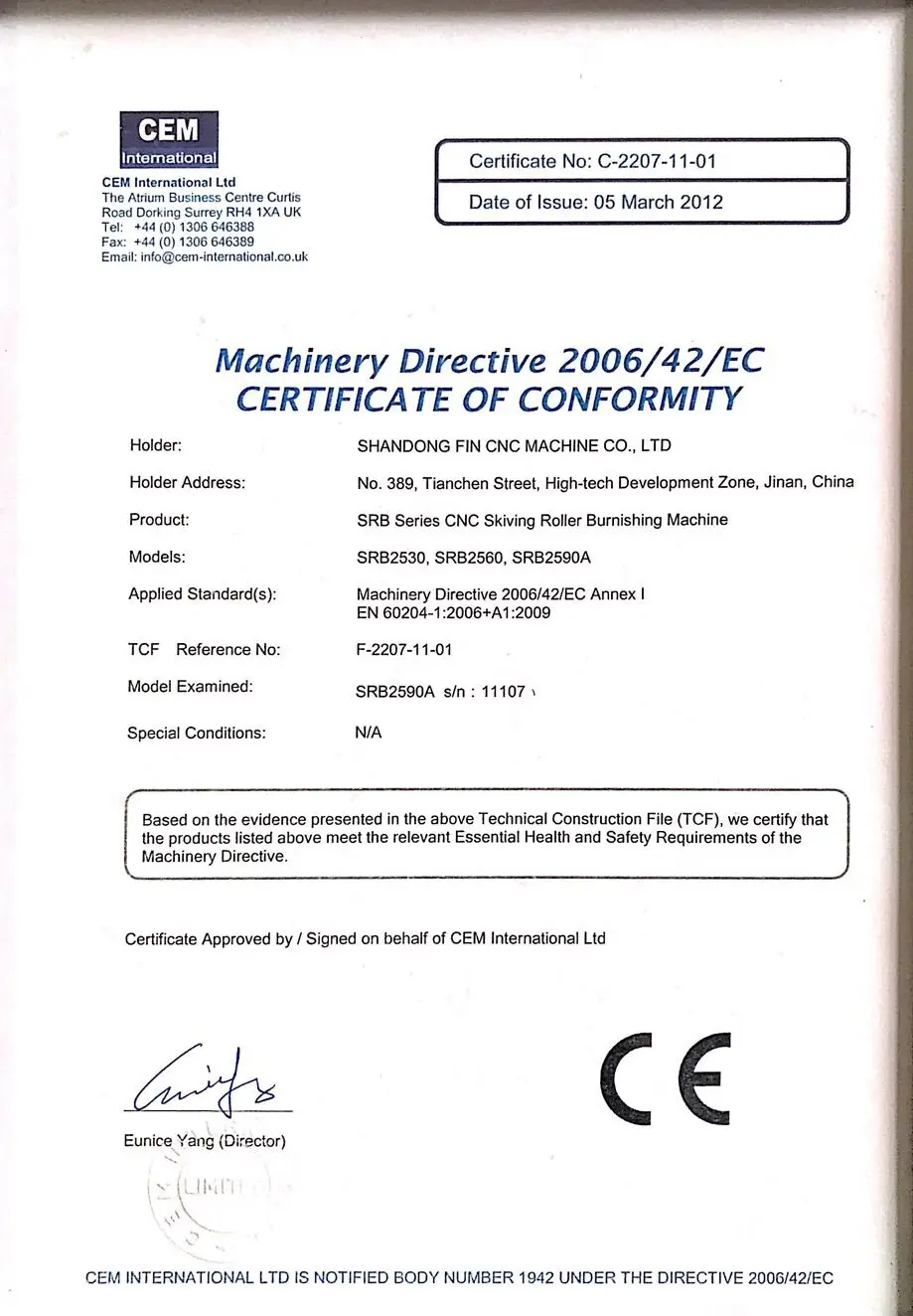

Certifications




Exhibition & Customer








Packaging Logistics




Our Service




FAQ
