❤Welcome to Cambo manufacturers direct sales❤
UTP Cable Cat5e 305M
U/UTP Cat5e Lan Cable Network Data Cable
AWG | Packing | Jacket | Color | Conductor |
24AWG | 100M/Pull Box 305M/Pull Box 500M/Wooden Reel | FR PVC LSZH | Optional | Pure CopperCCA CCAE CCC |
25AWG | ||||
26AWG |
Applications:
Used as work-station oution to the FD/IDF and other horizontal cabling, supporting TP_PMD Audio, integrated service digital network(ISDN), ATM 155Mhz, 100/1000mbps TPDDI, Fast Ethernet ETC
Used as work-station oution to the FD/IDF and other horizontal cabling, supporting TP_PMD Audio, integrated service digital network(ISDN), ATM 155Mhz, 100/1000mbps TPDDI, Fast Ethernet ETC
Support CCTV Camera: IP Camera, Analog camera 1080P
Working Distance:
Network Cabling Working Distance : More than 200M (bare copper)
100-120M(CCA)
180M(CCAE)
CCTV Camera Working Distance: More than 300M
Note:
IP Camera and Analog camera working distance different. for more details, please contact us.
Note: for the working performance difference for Bare Copper, CCA and CCAE, please contacts us

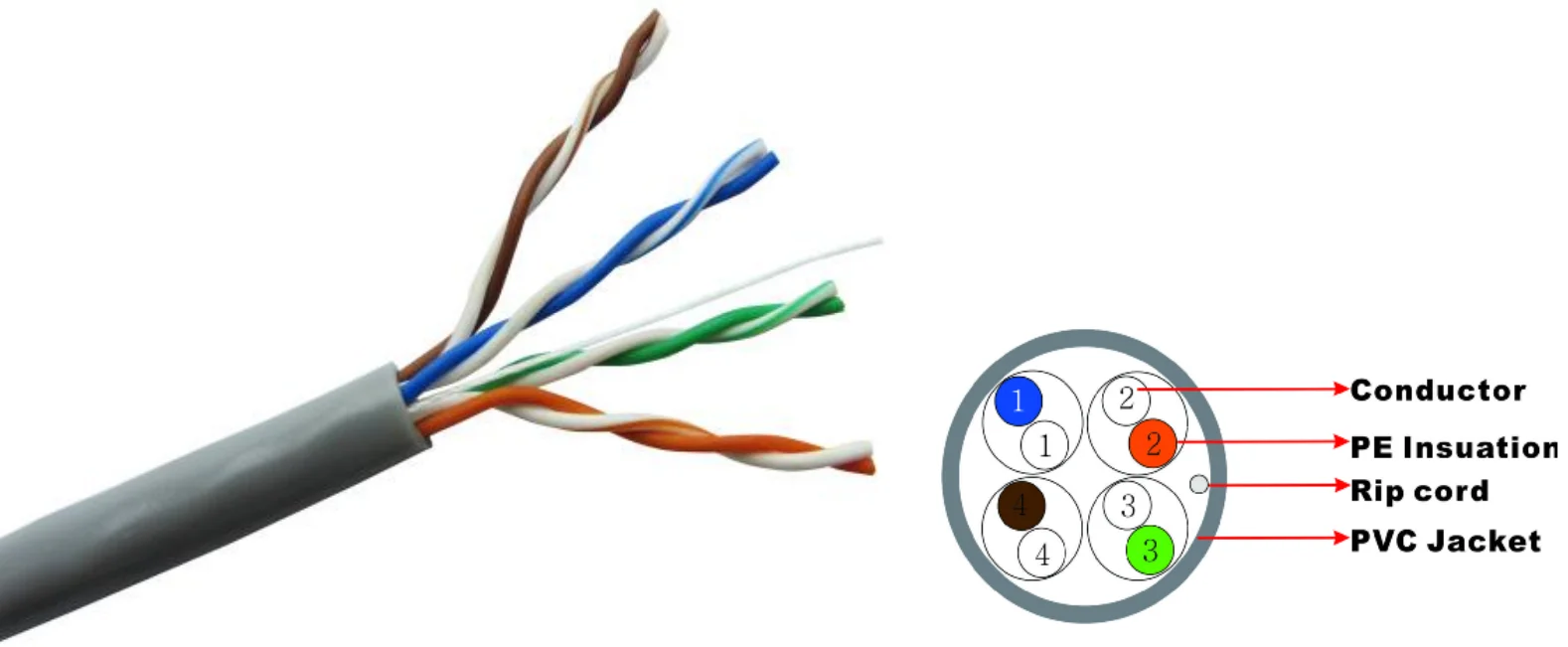

Structure:
Bare copper, PE insulation, FR PVC/LSZH jacket.
Standards:
ISO/IEC 11801, ANSI/TIA/EIA-568B
Working Distance:
Network Cabling Working Distance : More than 200M (bare copper)
100-120M(CCA)
180M(CCAE)
CCTV Camera Working Distance: More than 300M
Note:
IP Camera and Analog camera working distance different. for more details, please contact us.
Note: for the working performance difference for Bare Copper, CCA and CCAE, please contacts us
Structure:
Bare copper, PE insulation, FR PVC/LSZH jacket.
Standards:
ISO/IEC 11801, ANSI/TIA/EIA-568B
Product Paramenters
Name | 305M Easy Pull Out Box Network Cable 1000ft 24awg Cat5 cable UTP Cat 5e 4 Pair Twisted 150Mhz |
BCConductor Material | BC pure copper 100%, CCA, CCAE |
Conductor Size | 24AWG/(0.51±0.01)mm |
Number of Conductor | 4 Pairs / 8 Cores |
Shield | UTP |
Indoor/Outdoor | Indoor |
Insulation Material | HDPE |
Insulation Thickness | 0.91mm |
Jacket Material | 75°PVC/LSZH Flame Resistance |
Outer Jacket Thickness | 5.1mm |
DC Resistance Imbalance | 2.50% |
Insulation Resistance | 10000 MOhm.km |
Transmission Velocity | 65% |
Operating Temperation | -40 °C - +75 °C |
PVC Jacket Color | As client's request. |
Marking On Jacket | On your request (Print your brand) |
Product Description
Related Products
Company Introduction
CAMBO is a leading manufacturer of cables.We are specialized in producing and selling Communication cables with more than 15 years of experience.Our main popular products are Lan Cable,Coaxial cableFiber Optic Cable,Telephone cable,Alarm Cable,Network Accessories,Fiber Optic Accessories,and so on.Our products have passed UL, ISO9001:2000,CE,CPR,SGS and RoHS certificates.And our products have got the quality insurance commitments by China Pacific Insurance Company.Our products have been exported to Europe, South America, Southeast Asia, the Middle East, etc.
Why Choose Us
Certifications
Products with international mainstream certificates
UL,CPR,IOS9001,Rosh,CE,FCC
Exhibition
Packing&Shipping
