Уличный полностью закрытый трансформатор напряжения JDZW из сухой

Описание и отзывы

Характеристики

Description:

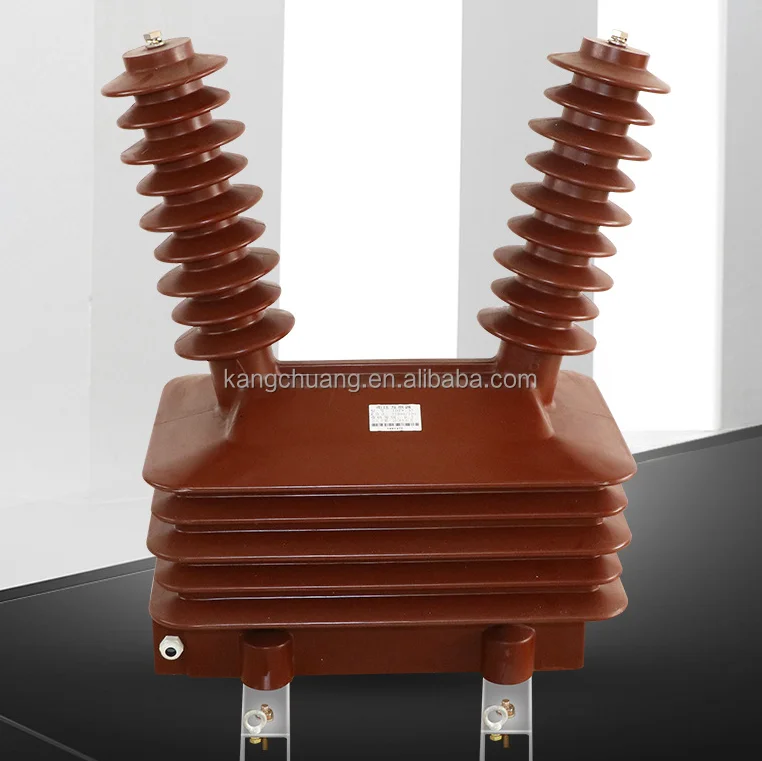

JDZW-35 products for the single-phase three-winding, outdoor full-closed voltage transformer. Suitable for outdoor communication 50/60Hz, rated voltage of 35kV, in the neutral point of non-effective grounding system for voltage measurement, energy measurement purposes.The transformers can be executed according to the standards IECl86

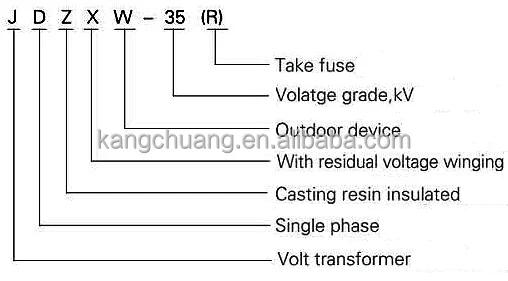

Product model description:









Construction:

This types of voltage transformers are full enclosed structure of outdoor cast-resin insulation. They have many merits, such as electric arc resistance, ultraviolet ray and aging resistance long creepage distance, Iittle partial discharge and large caliber of resistance to over voltage.
JDZW-35(R) is a single-phase transformer connected between phase to phase. The JDZF35W2 has two secondary windings. It is separation of energy measiring form voItage monitoring; The JDZXW-35(R) is aIso single-phase transformer connected between phase to ground. The primary A terminaI is connected with phase wire, the N terminaI is earthen. The JDZXW-35(R) has three secondary windings. It is separation of energy measuring form voItage mintoring and relay protection.



 Product parameter table:

Type	Rated voltage(kV)	Accurany class combination	Rated secondary load(VA)	Rated insulation level(kV)	Limit output(VA)
JDZW-35W2	35/√3/0.1/√3/0.1/3	0.2/6P	30/100	600	40.5/80/185
JDZXFW-35W2	35/√3/0.1/√3/0.1/√3/0.1/3	0.2/6P	80/100	500
		0.2/0.2/6P	30/30/100
		0.2/0.5/6P	30/50/100
		0.2/0.5/6P	30/50/100
		0.5/0.5/6P	30/50/100











Suitable Operating Condition:

1.Altiude is no more than 1000m.

2.The maximum change of surrouding temperature is no more than -30~+40°C.

3.Universal product is only used in the area with less than 85% relative humidity.

4.Installation field had no serious effect transformer insulated, steam, chemical

deposition, dust foul and other explosive and corrosive medium, and the field without

serious shake and bump.

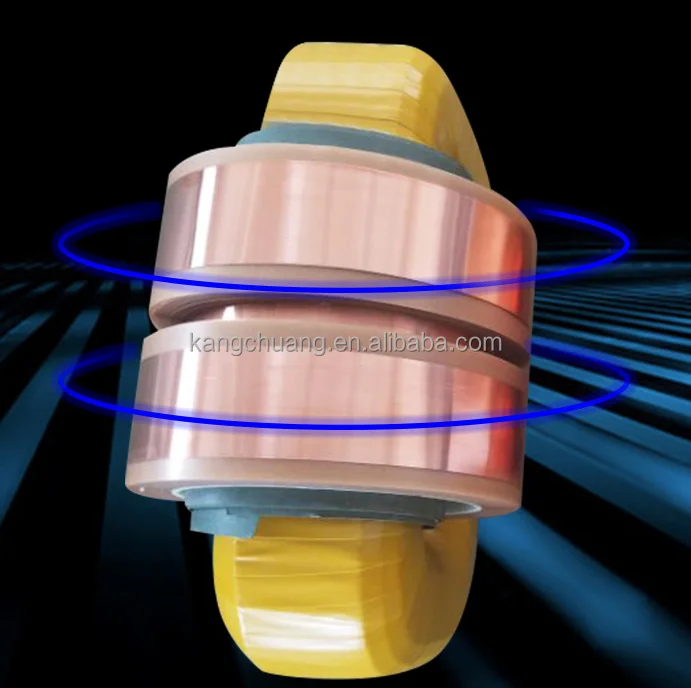

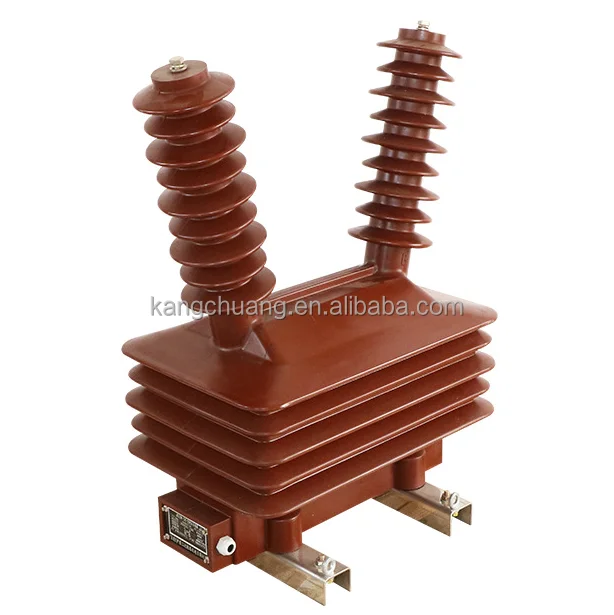

Large coil:

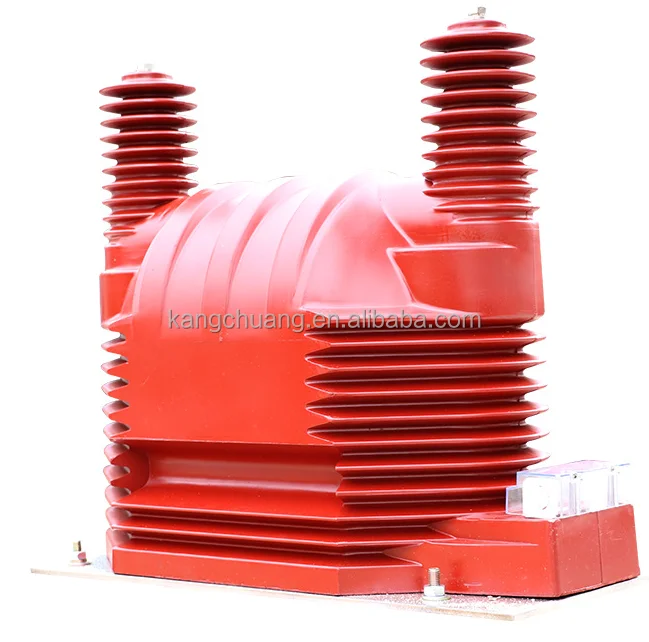

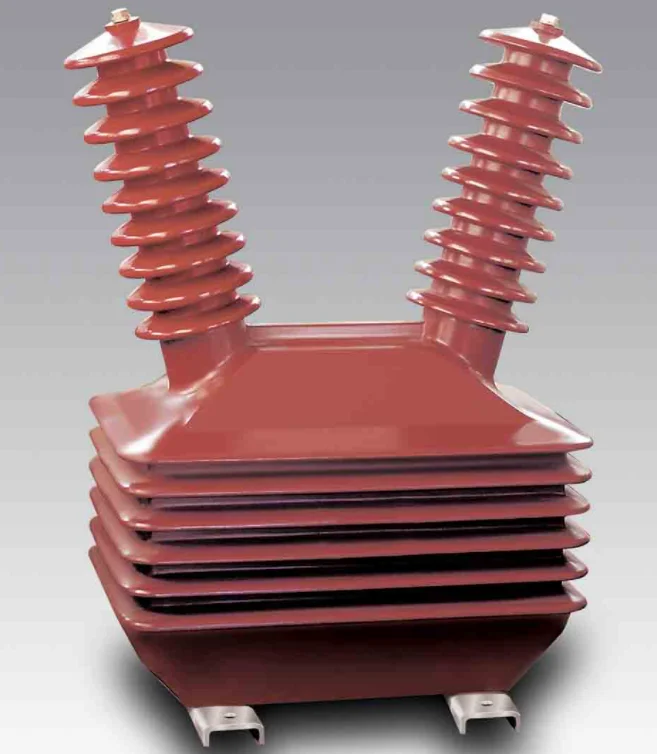

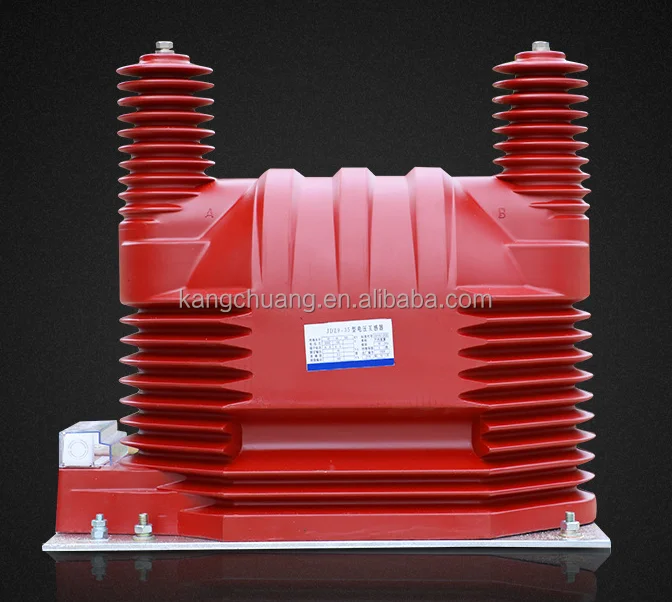

 Same type of voltage transforme:

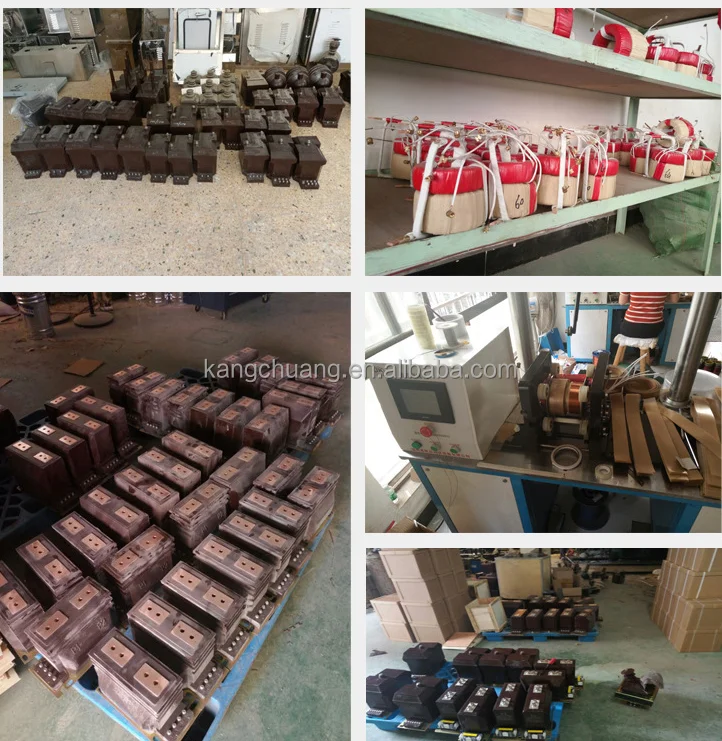

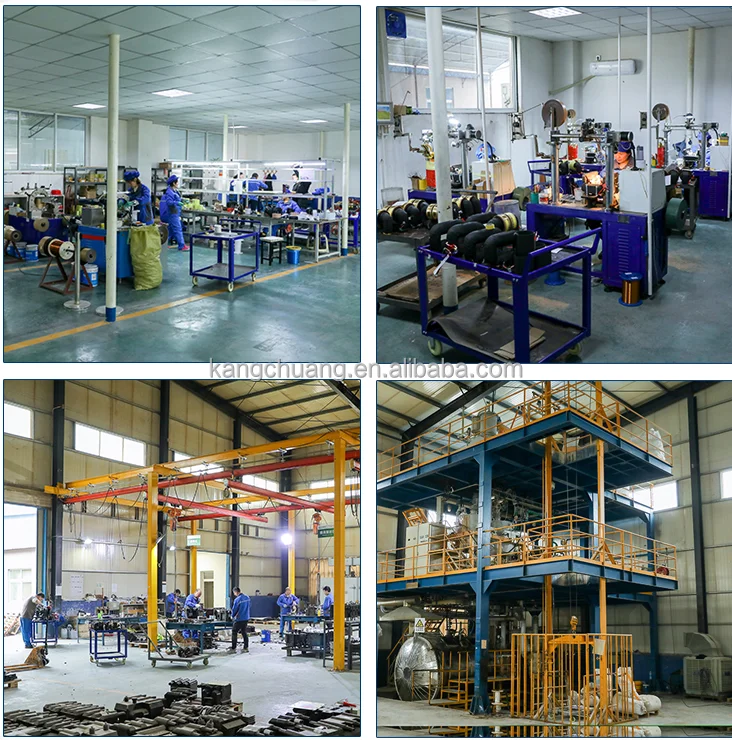

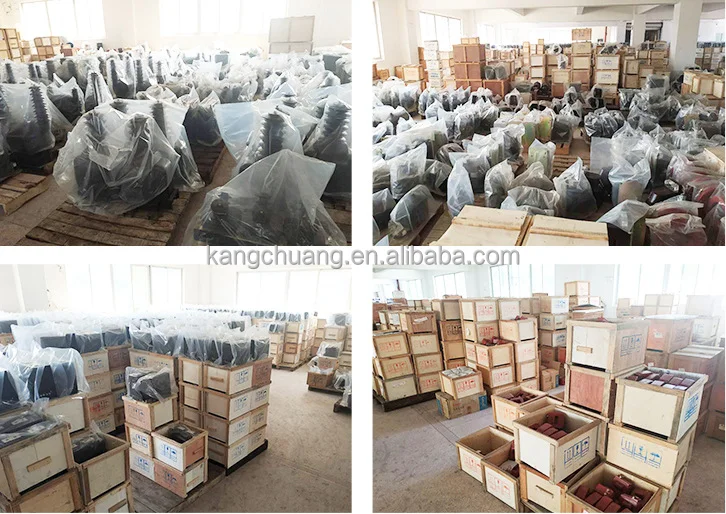

A corner of the production workshop:

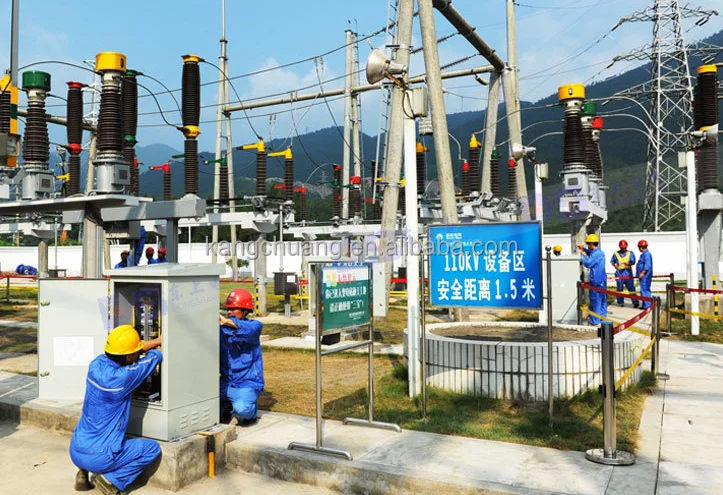

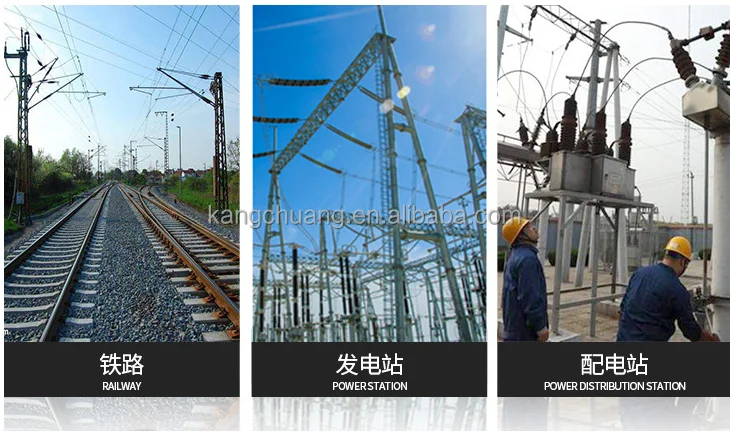

Application scenarios:

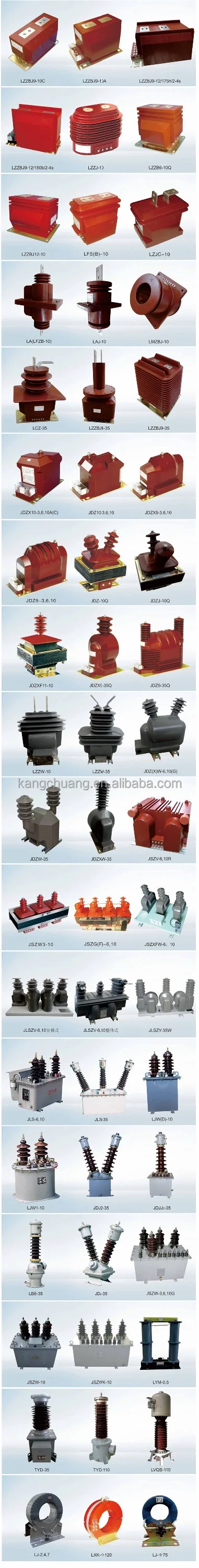

More products of the same type:
