Группа управления BLE модуль с вторичной разработкой для

Описание и отзывы

Характеристики



Do you have trouble getting Engineer Support from factories for further development?

Do you have trouble getting Custom Made Service from tech giants?

Do you have trouble getting Bluetooth Device from other solution providers?



If have any of these problems, ALM-IoT can help!



We provide Bluetooth Modules, Hardware and Middle Layer Software Solution to reduce your development lead time of IoT solution.

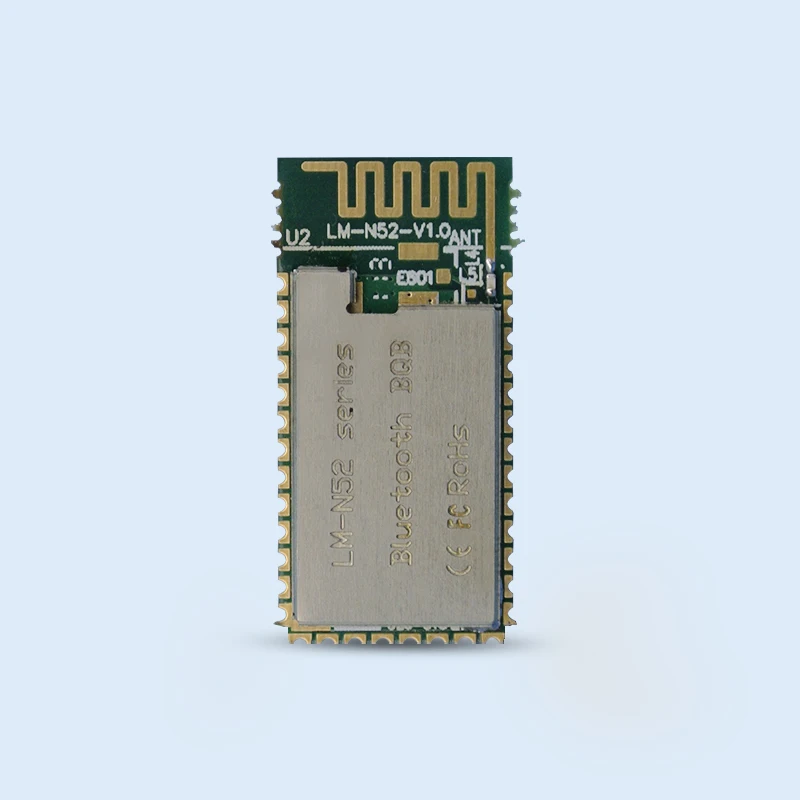

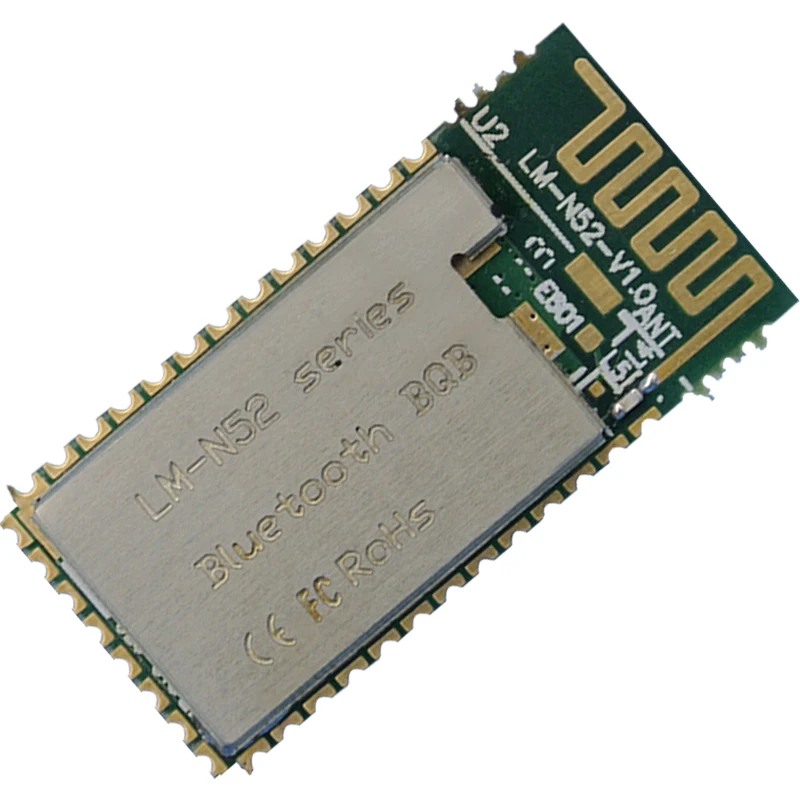

group control BLE module with secondary development for Smart gateways/joints/relays



Basic Feature
Mechanical Size/Dimension	27 x 13 x 2mm
Power Voltage Range VDD	1.7V ~ 3.6V
Temperature Range	-35 ~ +80°
Physical Interfaces	GPIOs/I2C/SPI; UART; PWM/12bit-ADC
Application Input/Output	General
Wireless Connection	Wireless/Bluetooth
IoT Networking
On-site control modes	Single link (P2P), Group Triggering(P2MP)
On-site Triggering response	Response to APP console, BLE Beacons on Scene/Events
Networking mode	MP2MP mesh, cooperative proxy networking
Max Qty of Single Group	64 ~ 128 TBD
API to the cloud server	N/A
BLE
Core specification	V5.1/5.0, V4.x compatible
Frequency range	2.4G ~ 2.48G (2401MHz~2479MHz)
Supported data rates	2 Mbps, 1 Mbps, 500 kbps, and 125 kbps
BLE roles/modes	Beacon scan/broadcast, connection/GATT@Host/device
Tx power	+6dBm with additional PA
Rx sensitivity	-95dBm
Wireless range	50m~100 meters @ free space, by modes typically

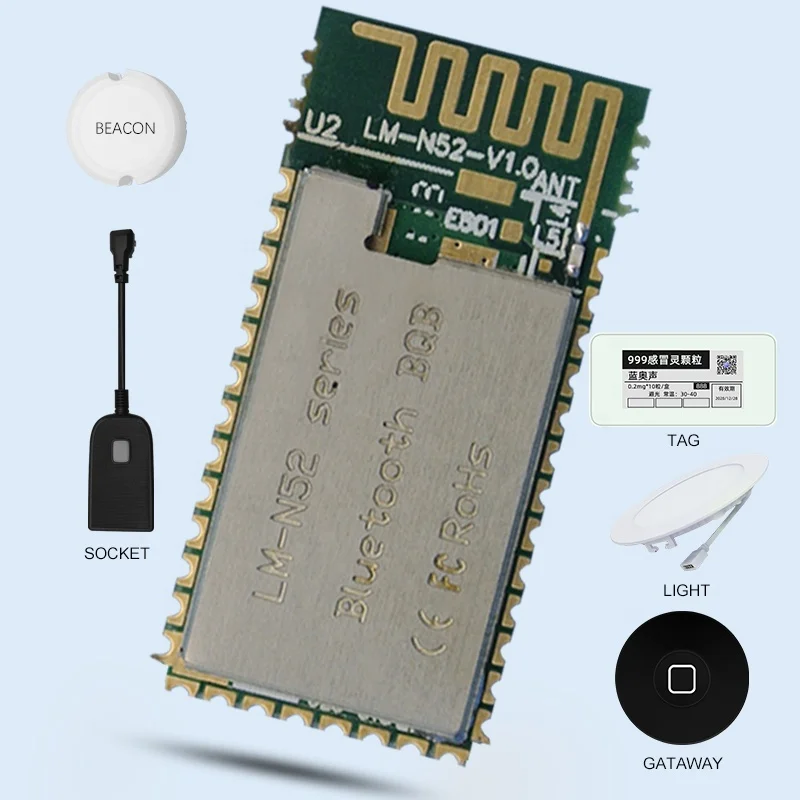

Typical Applications Available
Smart Router/Proxies	Smart Router/Gateway/Joints
Location Positioning	Beacon modulation/Positioning Base, AoA/AoD direction finding
Controller Base/Devices	Smart Metering Socket/Adapter
Switch & Lighting Dimmer Series	Remote Dimmer/Switch Panel, Single-wire Dimmer/Switch Panel
Smart Beacon/Tag Series	Beacon Tag/Base, Beacon Scanner
Sensor Series	Remote Panel, Proximity/Magnetic/Temperature/Humidity Sensor







In the past 7 years, we have been developing Bluetooth hardware for our clients, now we have the following mature products for our clients to develop their IoT solution.



IoT-EI system solutions
S1	Positioning & location tracking
		Active positioning
		Passive positioning & location tracking
		Low-power-synch active/positioning positioning & location tracking
S2	Industrial on-site monitoring
		Equipment position/status monitoring
		Electricity safe monitoring
		On-site environmental monitoring
S3	Low-power-synch group-control (LGC)
		LGC power suppliers
		LGC locker cabinet units
		LGC single-wire switches
S4	Light-based wireless sensing and location tracking (LWS)
		LWS-based dynamic BLE beacon advertisers & scanners
		LWS-based scene linkage dimmer/control
		LWS-based positioning & location tracking
Smart wireless hardware products available for IoT applications
A	IoT gateways/bases (BLE, BLE+WiFi)
	A1	Smart routers & gateways
			Smart routers, IoT management host
			Smart gateways, joints/relays
	A2	Positioning/monitoring bases
			BLE Beacons
			BLE positioning bases (for both advertisers and scanners)
B	Industrial on-site monitoring devices (BLE, BLE+WiFi)
	B1	Smart metering sockets (BLE, BLE+WiFi)
		Smart metering sockets
		Electricity monitoring adapters for industrial equipment
	B2	Environmental monitors (BLE, BLE+WiFi)
			Temperature & humidity monitors
			Smoke monitors
			VOC, PM2.5 monitors
C	Sensors & Tags (BLE)
	C1	BLE proximity switches, Hall-effect sensors
			Proximity switches/counters
			Magnetic door sensors
	C2	BLE temperature & humidity sensors
	C3	BLE tags/beacons
			Moving beacons for location tracking
			Price tags, EPD tags, electronic shelf labels (ESL)
D	Lighting Dimmer Devices/Bases (BLE, BLE+WiFi)
	D1	LED light panels (BLE, BLE+WiFi)
			LED light PWM dimmers/drivers
			Single-color high-brightness LED light panels (BLE)
			Multi-color high-brightness LED light panels (BLE+WiFi)
			RGBW full-color LED light panels (BLE, BLE+WiFi)
	D2	Dimmer console (BLE+WiFi)
			Light dimmer console panels (BLE+WiFi)
			Remote dimmer controller (switches attachable) (BLE)







We are a technology-focused company, an industry leader in the wireless BLE domain.
We provide API, SDK and engineer support for further development.
Instead of passing your device data to other cloud or platform, you can integrate Bluetooth hardware into your own platform and cloud with our middle layer software solution.
Reach me for further info!

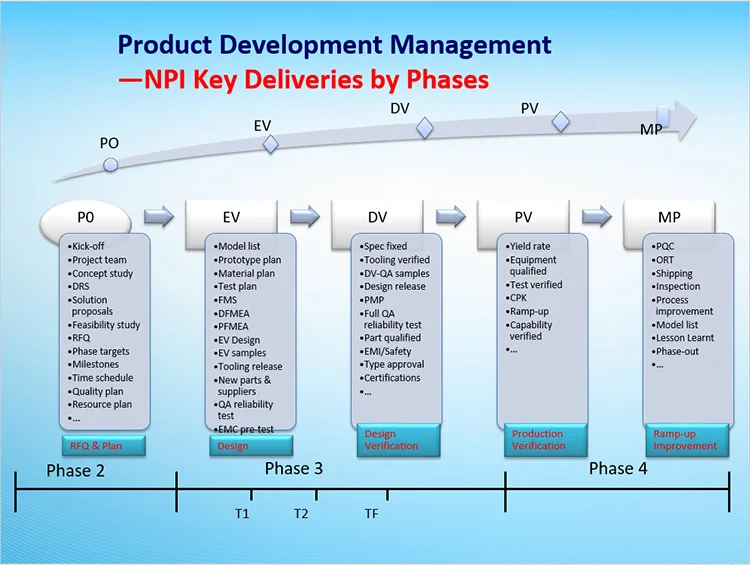

A TOP Research and Development Management, from PO to MP, has been established in past 7 years.









Located in Shenzhen China. Our company holds 21 Invention Patents, 4 in wireless audio, 5 in network communication, 5 in wireless control, 6 in wireless sensing, and 3 in the application system.









And besides our invention patents, advanced Product Development & Production Management are also the key to deliver high quality and competitive products to our clients.











For more information, contact us now!
We are a tech design company, not a trading company. We recommend your products based on technical applicability, NOT sales profits.



ALM provide Bluetooth module, devices and middle layer software solution. Your IoT development lead time can be reduced!





Click the below dialogue box and contact us! It is so easy to lose a reliable partner lead on enormous Internet.
