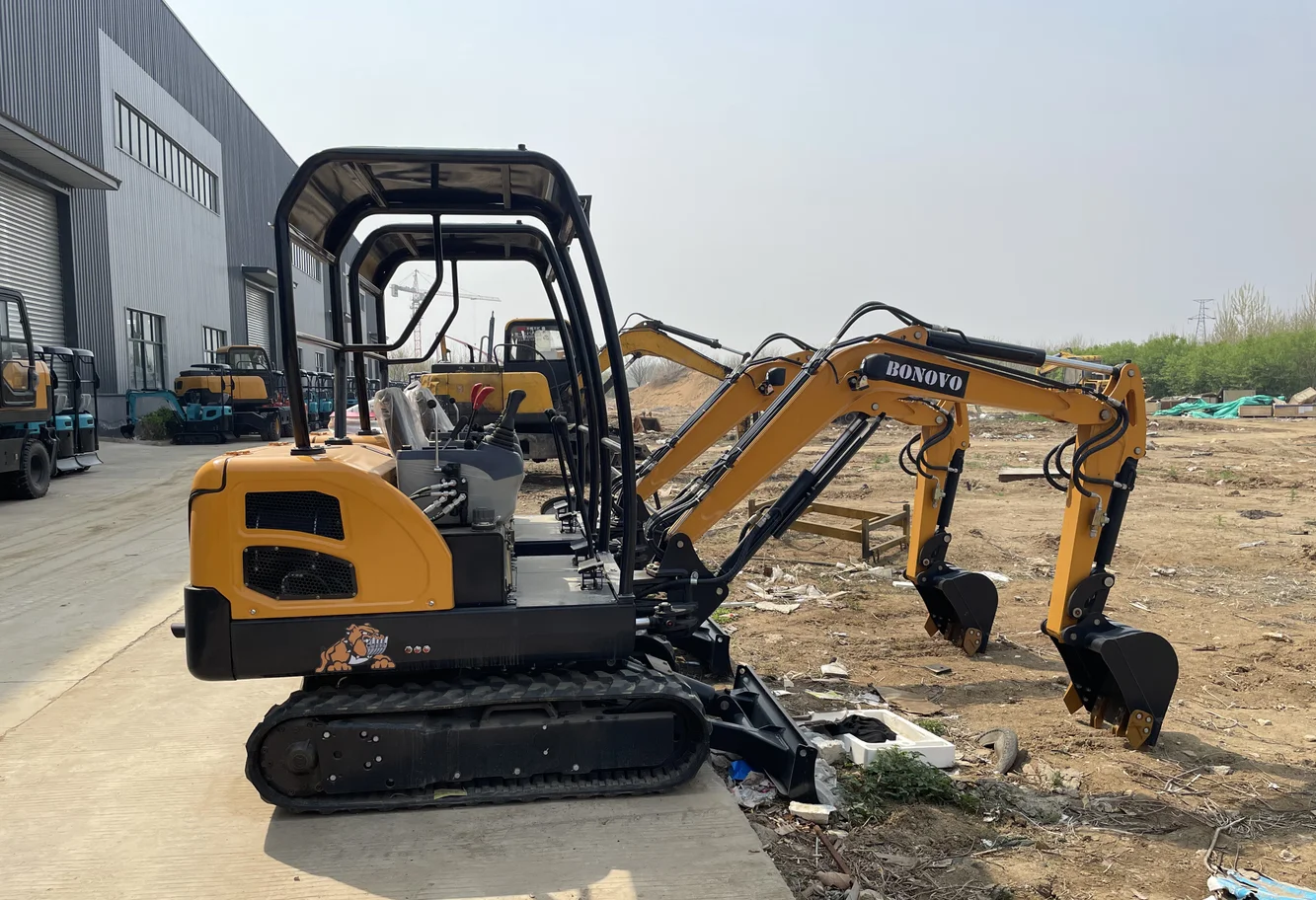

MINI EXCAVATOR
Application Range：

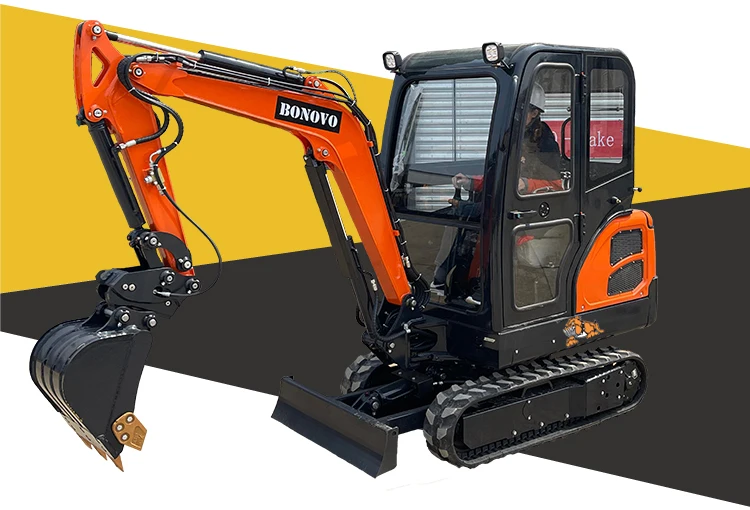

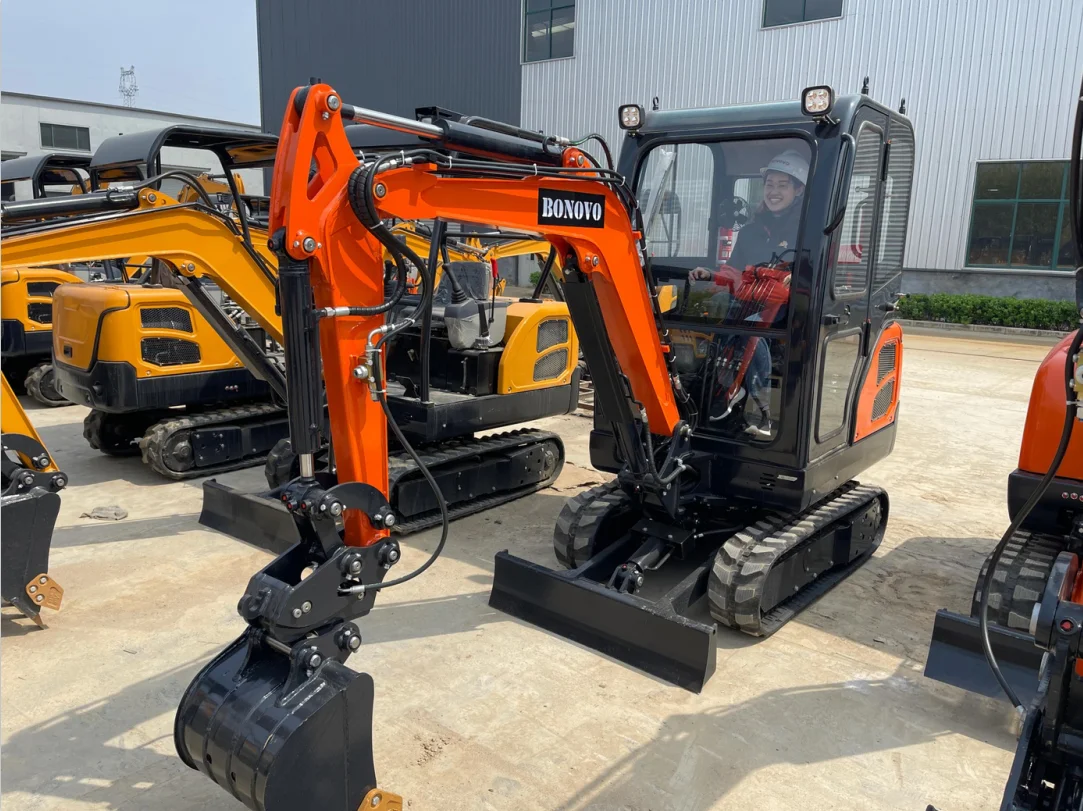

DG18 mini Excavator with Tailless small wing structure and boom-side-shift option, which can be used for narrow-space operation tailless rotation, retractable chassis, deflective boom, first-class configuration, load pilot operating system, changeable rubber track, imported engine, environmental protection standard (Euro 5 ) Can be equipped with a fully enclosed cabin to provide a comfortable environment for work.
This product with beautiful appearance, high configuration,superior perfomance,low fuel consumption,wide operating range. It is suitable for loosing soil of vegetable greenhouse,campus greening of municipal departments. digging the hole for tree planting of Fuit-land Nurseries. concrete pavement crushing,sand-gravel material mixing, construction work in the narrow place and so on. Use the quick hitch can add the attachment tools like auger,hydraulic hammer,ditching bucket,grapple,thumb,tilt bucket,ripper,rake and so on. It can reduce maintenance and operating costs, iberate the workforce improve the mechanization, low investment, high return. Bonovo is willing to provide you with construction plans and procurement plans.
Data
Working range | Max.Digging Height | 3365mm |
Max.Dumping Height | 2385mm | |
Max.Digging Depth | 2050mm | |
Max.Vertical Digging Depth | 1725mm | |
Max.Digging Radius | 3860mm | |
Min.Swing Radius | 1720mm | |
Tail Swing Radius | 1125mm | |
Swing System | Boom swing angle(Left/Right) | 750/450 |
Swing Speed | 10~12rmp |
Standard digging bucket 0.06m3 | High back vinyl seat+Seat belt | |
4-pillar ROPS/FOPS Canopy | Key ignition | |
Hydraulic tensioner crawler chassis | Swing boom | |
230mm rubber tracks | Radiator | |
Travel levers and pedals | Boom working light | |
Joystick pilot control | Operation Manual | |
ROPS/TOPS Closed Canopy | Hydraulically retractable undercarriage | |

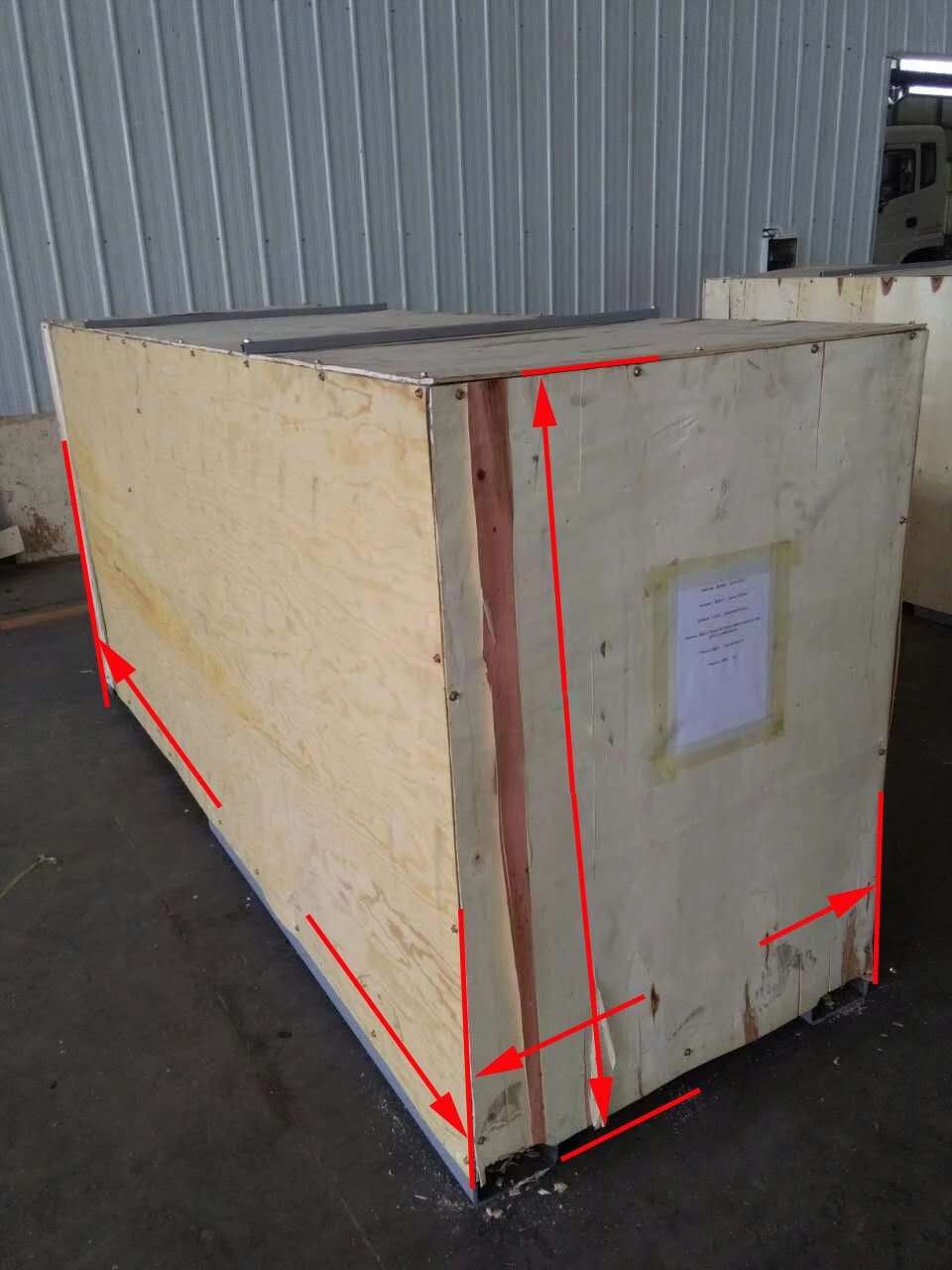

Wooden Box Protection for sea shipping |

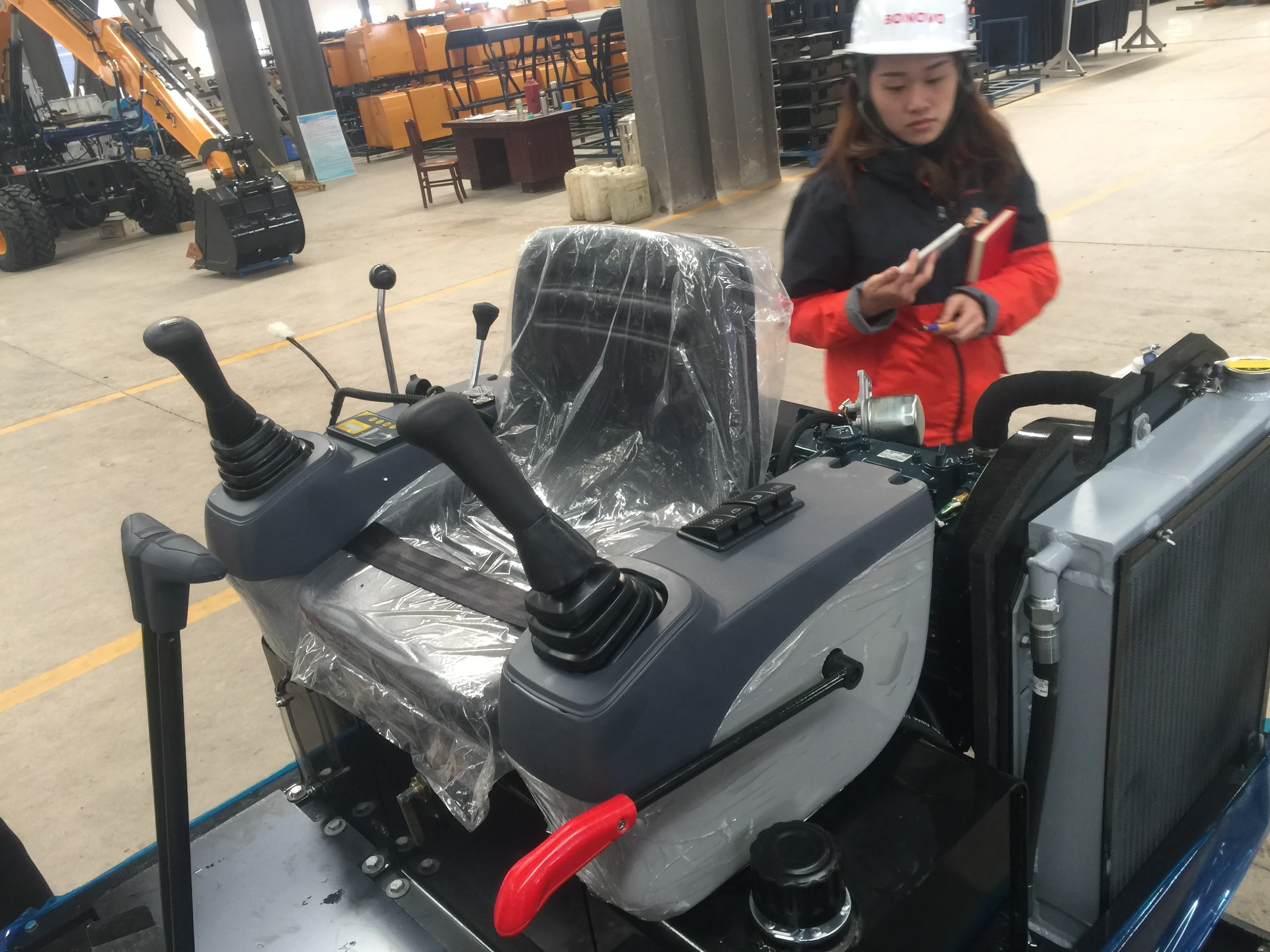

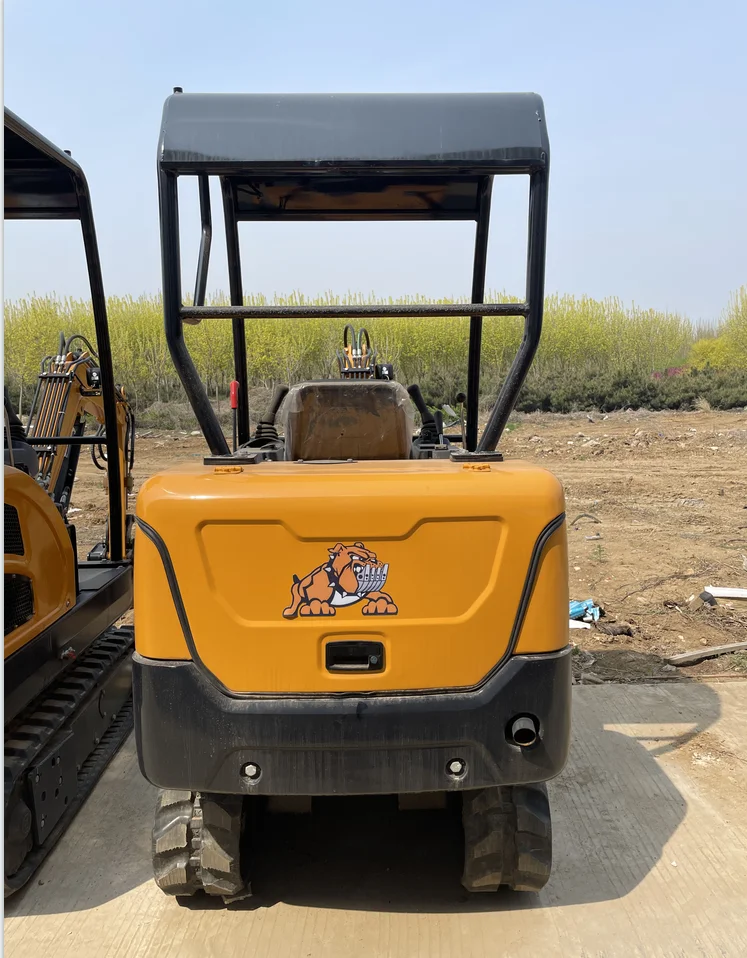

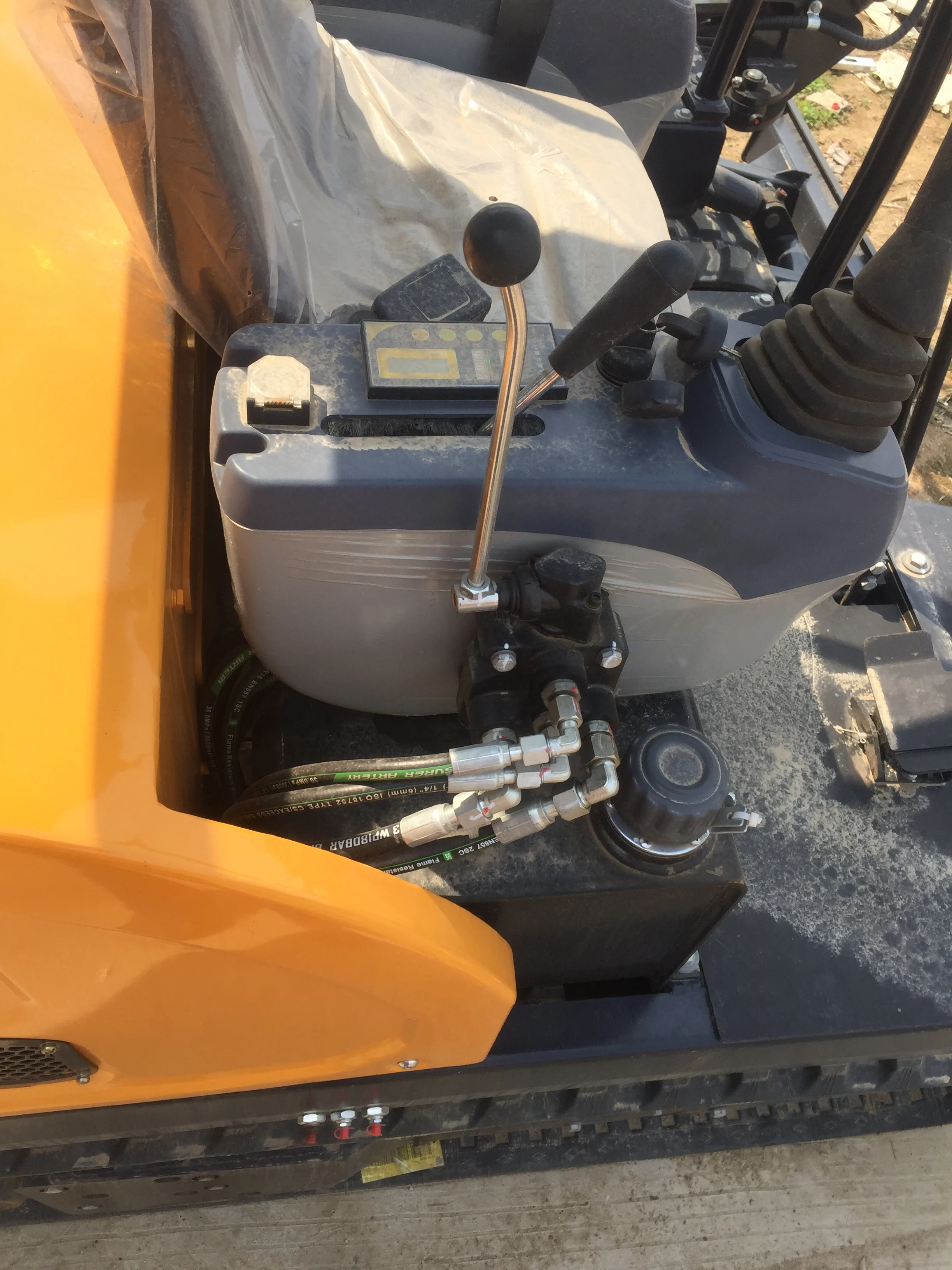

Details

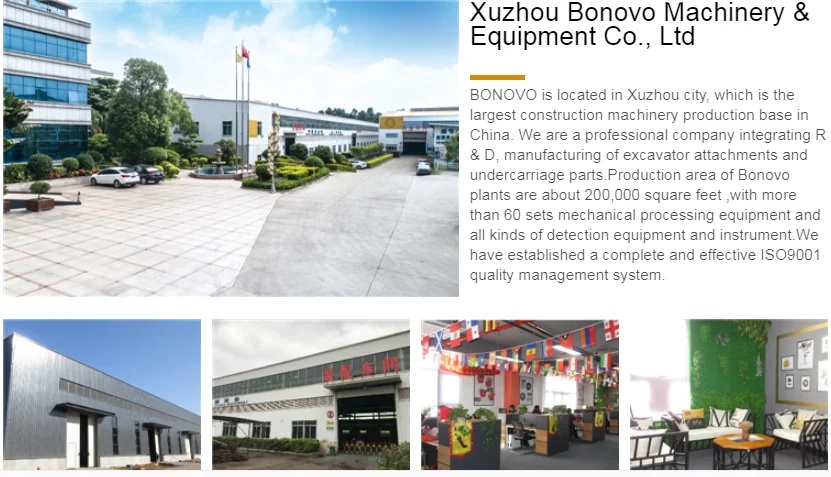

Company Introduction
Exhibition
Certification

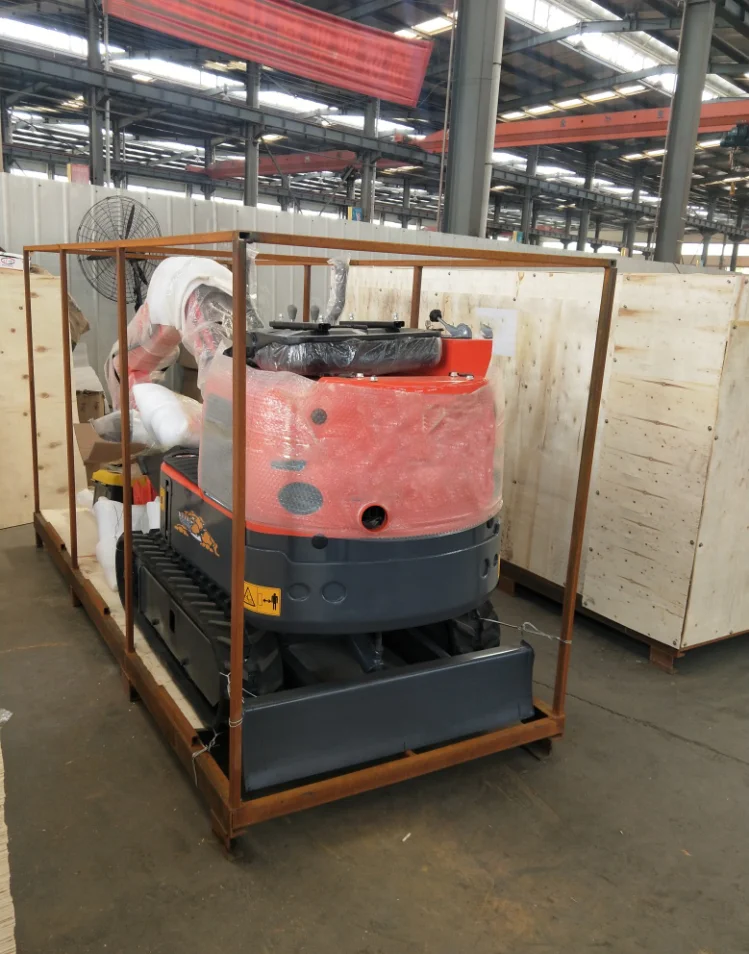

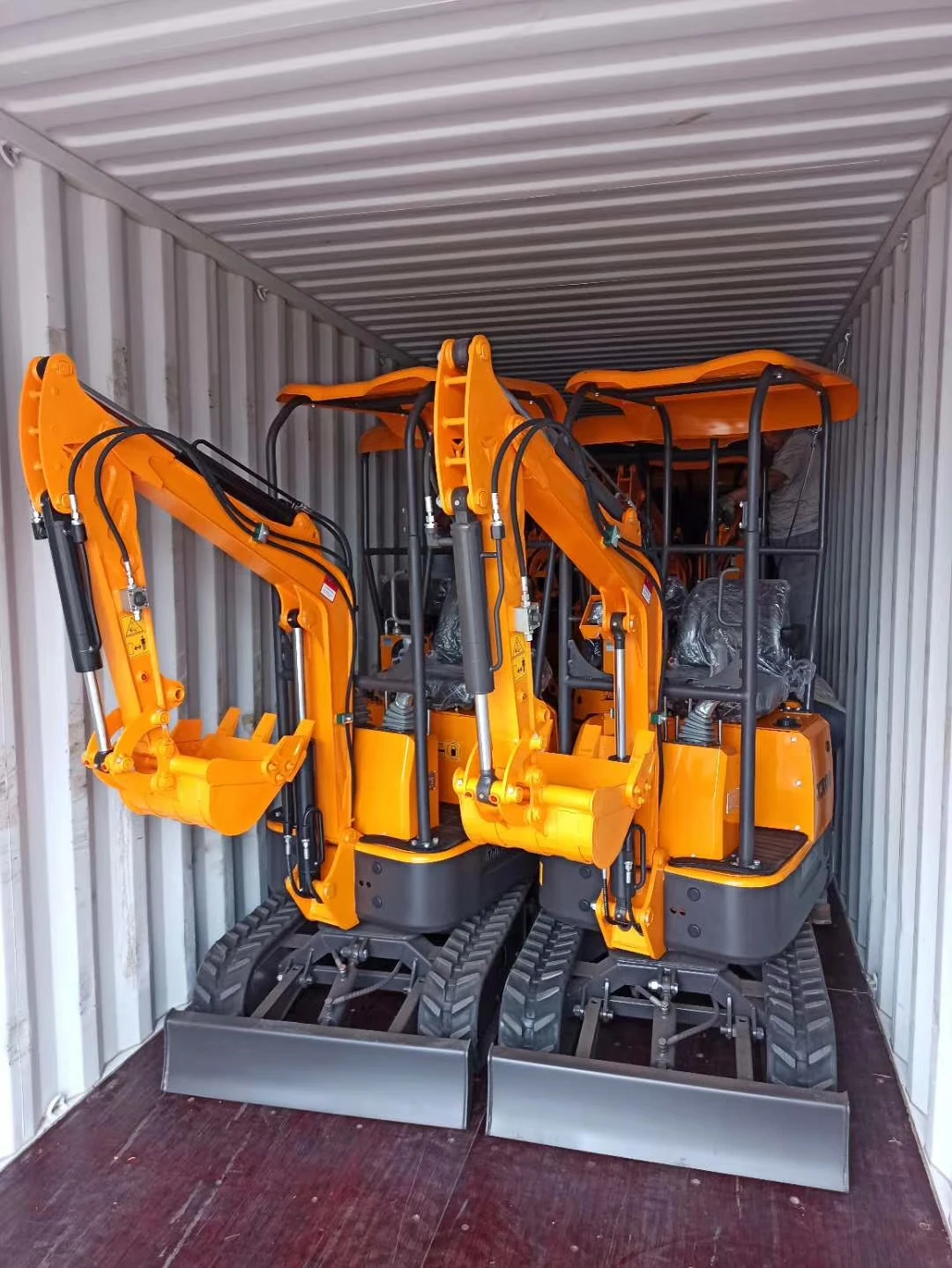

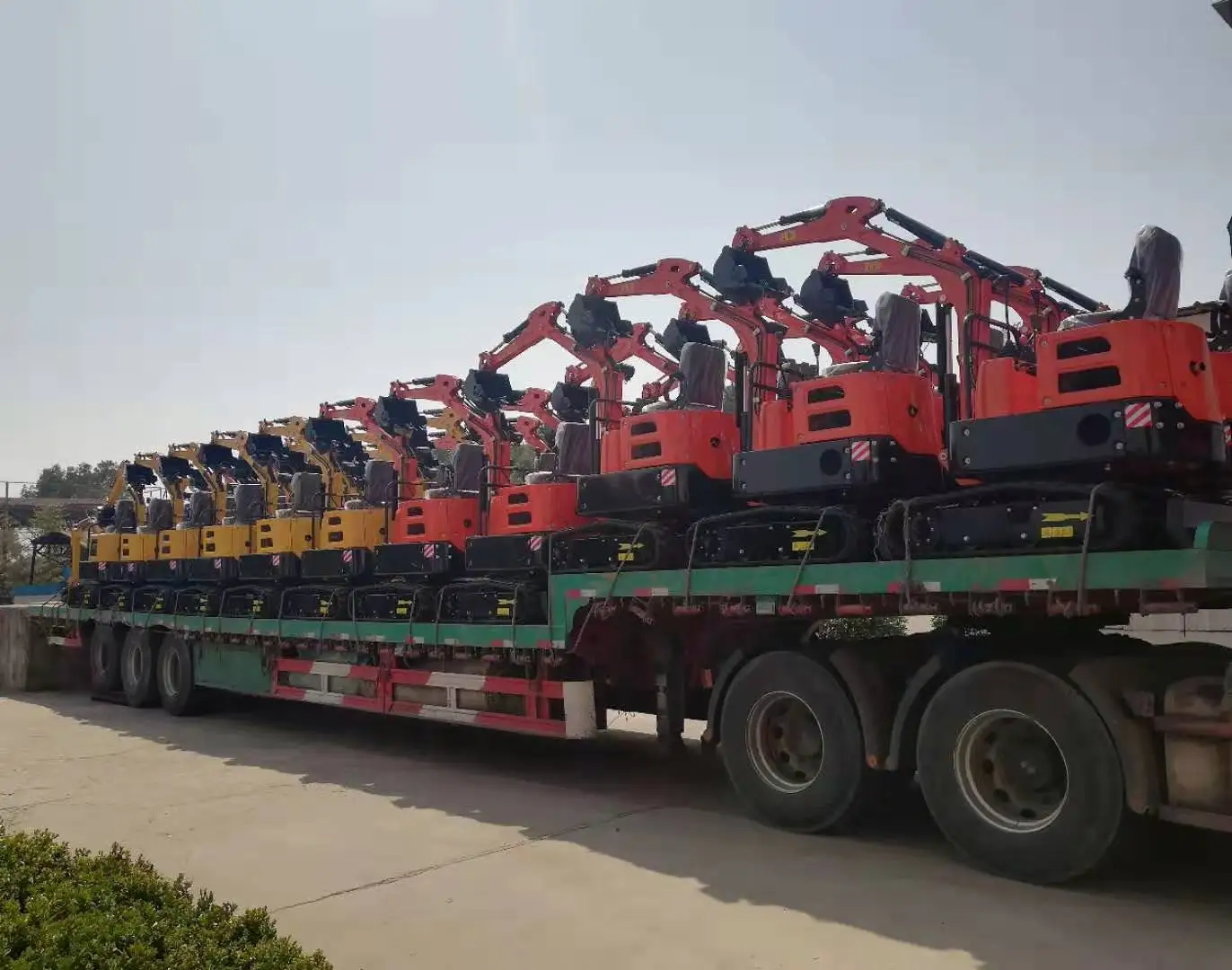

Shipping
Q:Are you a manufacturer?
A:Bonovo Undercarriage Parts offered a wide range of undercarriage wear parts for excavators and dozers. Such as track
roller,carrier roller,idler,sprocket,track link,track shoe,etc.We understand a perfect combination of high quality cast steel and advanced heat treatment technology are the key factors behind the success of BONOVO brand.
Q:Why choose BONOVO over any other companies?
A:We manufacture our products locally. Our customer service is exceptional and personalized for every customer. Every BONOVO product is armored and durable with a 12-month structural warranty. We use high quality materials sourced from the very best in China. Our design team works closely with customers for any custom orders.
Q:Which payment terms can we accept?
A:Normally we can work on T/T or L/C terms, sometimes DP term.
1). on T/T term, 30% advance payment is required and 70% balance shall be settled before shipment.
2). On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted. Please contact directly with our customer
representatives for specific payment term.
Q:What logistics way for product delivery?
A:1).90% in shipment by sea, to all main continents such as South America, Middle East, Africa, Oceania and Europe, etc.
2). For neighborhood countries of China, including Russia, Mongolia, Uzbekistan etc., we can ship by road or railway.
3). For light parts in urgent need, we can deliver in international courier service, including DHL, TNT, UPS or FedEx.
Q:What are your warranty terms?
A:We provide a 12-month or 2000 working hours structural warranty on all our products, except failure caused by improper
installation, operation or maintenance, accident, damage, misuse or non Bonovo modification and normal wear.
Q:What is your lead time?
A:We aim to provide customers with a fast lead time. We understand emergencies happen and priority production should be preferred in a faster turnaround. A stock order lead time is 3-5 working days, while custom orders within 1-2 weeks. Contact BONOVO products so we can provide an accurate lead time basing on situations.
A:Bonovo Undercarriage Parts offered a wide range of undercarriage wear parts for excavators and dozers. Such as track
roller,carrier roller,idler,sprocket,track link,track shoe,etc.We understand a perfect combination of high quality cast steel and advanced heat treatment technology are the key factors behind the success of BONOVO brand.
Q:Why choose BONOVO over any other companies?
A:We manufacture our products locally. Our customer service is exceptional and personalized for every customer. Every BONOVO product is armored and durable with a 12-month structural warranty. We use high quality materials sourced from the very best in China. Our design team works closely with customers for any custom orders.
Q:Which payment terms can we accept?
A:Normally we can work on T/T or L/C terms, sometimes DP term.
1). on T/T term, 30% advance payment is required and 70% balance shall be settled before shipment.
2). On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted. Please contact directly with our customer
representatives for specific payment term.
Q:What logistics way for product delivery?
A:1).90% in shipment by sea, to all main continents such as South America, Middle East, Africa, Oceania and Europe, etc.
2). For neighborhood countries of China, including Russia, Mongolia, Uzbekistan etc., we can ship by road or railway.
3). For light parts in urgent need, we can deliver in international courier service, including DHL, TNT, UPS or FedEx.
Q:What are your warranty terms?
A:We provide a 12-month or 2000 working hours structural warranty on all our products, except failure caused by improper
installation, operation or maintenance, accident, damage, misuse or non Bonovo modification and normal wear.
Q:What is your lead time?
A:We aim to provide customers with a fast lead time. We understand emergencies happen and priority production should be preferred in a faster turnaround. A stock order lead time is 3-5 working days, while custom orders within 1-2 weeks. Contact BONOVO products so we can provide an accurate lead time basing on situations.
Specification
Machine model No. | DG18 | ||
Type of tracks | Rubber track | ||
Machine weight | 3968lbs/1800kg | ||
Bucket Capacity | 0.06m3/435mm width | ||
System Pressure | 18Mpa | ||
Max. grade ability | 350 | ||
Max.Bucket Digging Force | 14KN | ||
Max.Arm Digging Force | 10KN | ||
Operation type | Joystick poilt control | ||
Engine | Model | Laidong 3TE25 | |
Displacement | 1.532L | ||
Type | Water-cooled 3-cylinder diesel | ||
Max. Power | 18.4kW/2350r/min | ||
Max. Torque | 92.5N.m | ||
Overall Dimensions | Overall Length | 3865mm | |
Overall Width | 1050mm | ||
Overall height | 2270mm | ||
Chassis width | 1050mm | ||
Min. ground clearance | 210mm | ||
Cabin height | 2270mm | ||
Axle base | 1230mm | ||
Blade | Width | 1050mm | |
Height | 235mm | ||
Max.lift of dozer blade | 230mm | ||
Max.depth of dozer blade | 275mm | ||
Hydraulic system | Pump type | Gear pump | |
Pump capacity | 52.8L/Min | ||
Fluid Capacities | Hydraulic system | 17L | |
Fuel tank | 19L | ||
Motor | Traveling motor | Eaton OMB-160 | |
Swing motor | Eaton SW2.5K-245 | ||
