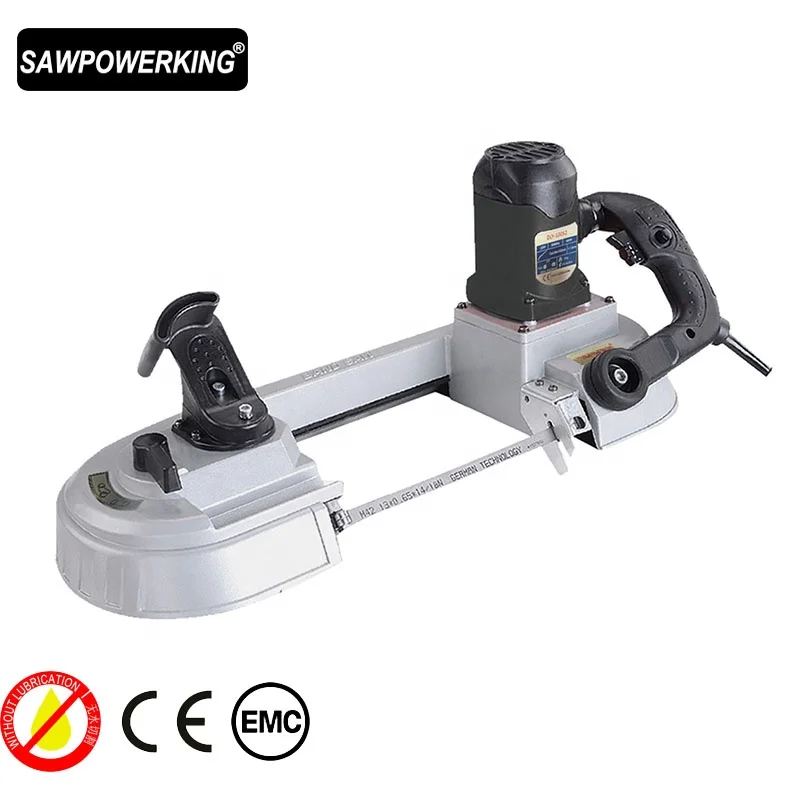

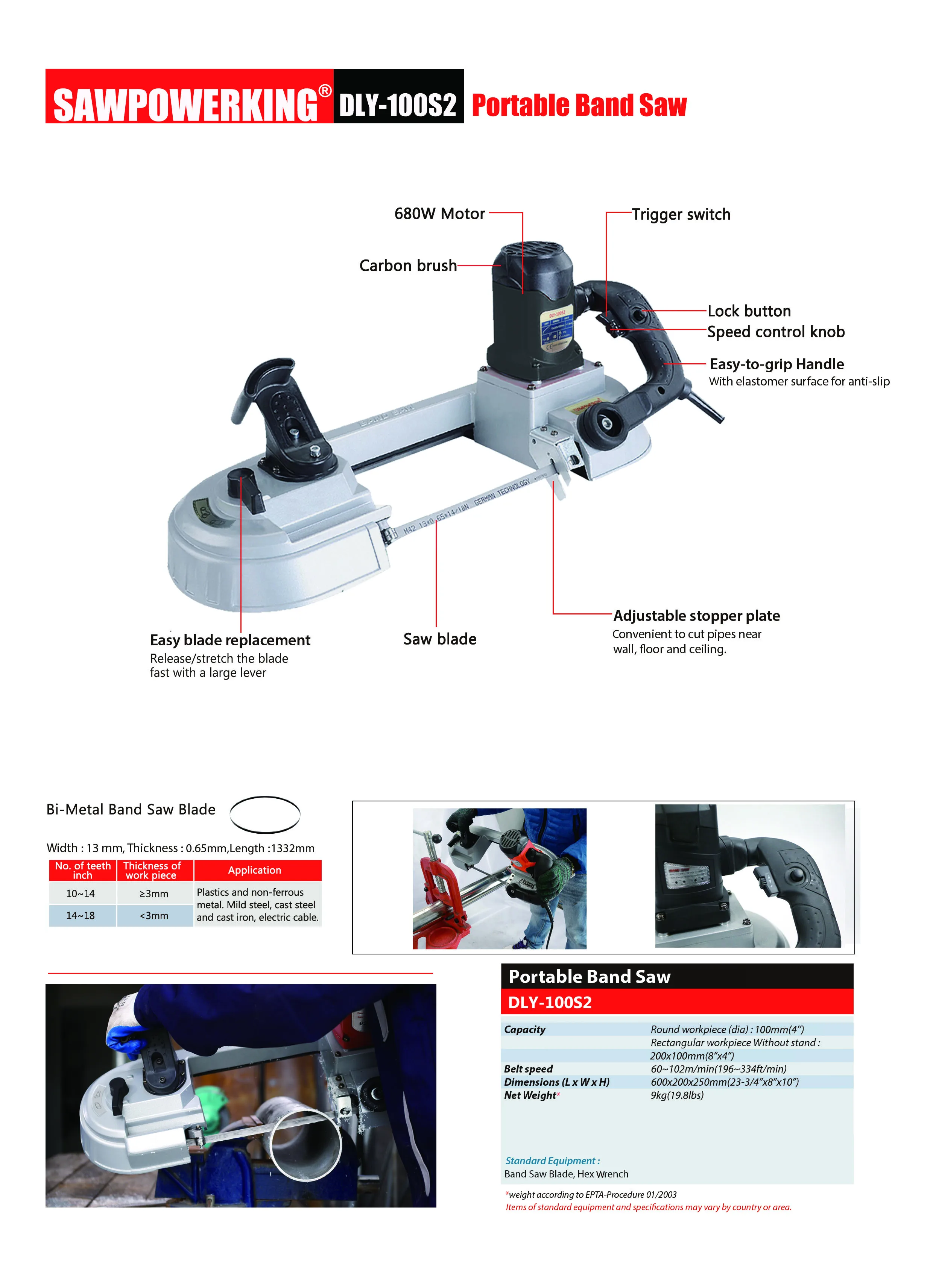

DLY-100S2 portable band saw machine has 100mm cutting capacity.
It can cut kinds of steel, aluminum, plastic, wood, etc. Technical Parameters for DLY-100S2 pvc pipe cutting machine / plastic tube cutting machine | ||||||
Model | DLY-100S2 | |||||
Power | 680W | |||||
Voltage | 110V/220V | |||||
Frequency | 50Hz/60Hz | |||||
Blade Size | 13×0.65×1332mm | |||||
Blade Speed | 1~1.9m/s | |||||
Max Cutting Capacity@90º | Round Pipe | ø100mm | ||||
Solid Round Steel | ø50mm | |||||
Square Pipe | 100×100mm | |||||
Round Pipe | ø55mm | |||||
Solid Round Steel | ø50mm | |||||
Square Pipe | 50×50mm | |||||
N.W/G.W | 9/10.5kg | |||||
Machine Size | 60×20×25cm | |||||
Machine Packing Size | 70×29×27.5cm | |||||
20-foot Cabinet Loading | 465 sets | |||||
Certificates | CE MD ROHS EMC |
1) It has 100mm cutting capacity.
2) No sparks, no flying cutting powder.
3) It is equipped with a mute motor. Work without noise even during night.
4) Cutting angle can be adjusted from 45 to 90 degrees, and the cutting surface is smooth and flat.
5)The anti-slip handle make hand-held operation easier, safer and more reliable.
6)Continuously Variable Speed make cutting more efficiently.
7)If need long-time work, after press switch lock button, it will cut automatically.
* Inquiry and consulting support.
* Sample testing support.

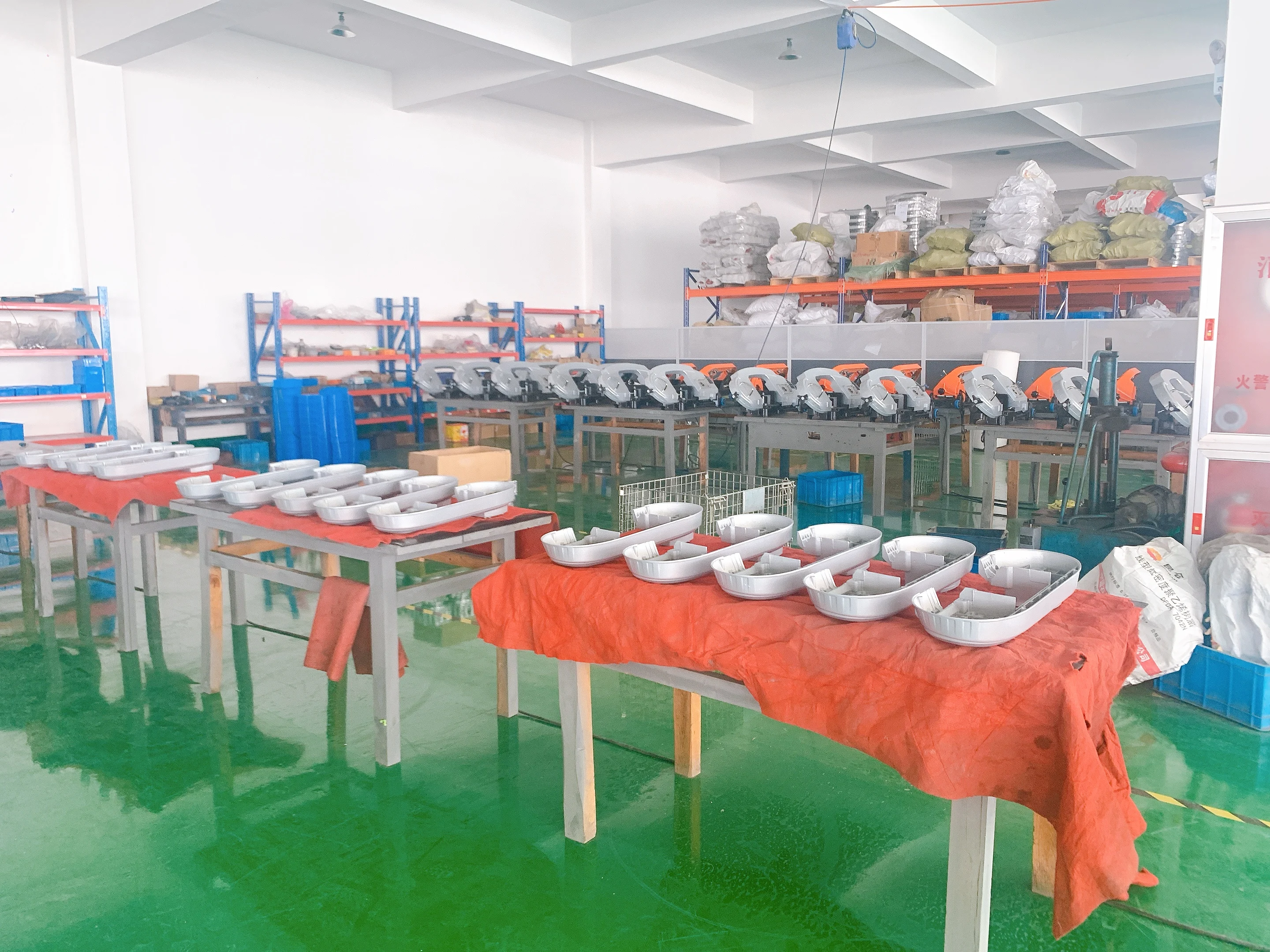

* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging | ||
Size | 680 (L) * 340(W) * 450 (D) | |
Weight | 11kg | |
Packaging Details | The normal package is Five-layer thick cardboard box(Size: L*W*H). If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
