Whey And Milk Protein Concentration With UF Ultrafiltration Spiral Wound Polymeric Membrane MPC WPC

Overview/UF

Ultrafiltration membranes are capable of separating larger materials such as colloids, particulates, fats, bacteria, and proteins, while allowing sugars, and other low molecular weight molecules to pass through the membrane.

With a pore size range between 1KD to 300KD, ultrafiltration membrane pore sizes fall between that of nanofiltration and microfiltration. UF membranes typically operate between 50–120 PSI (3.4–8.3 bar) and are dependent on transmembrane pressure to drive the separation process. Other polymeric ultrafiltration membrane characteristics include robust chemical and temperature resistance, and low fouling tendencies if proper pretreatment is employed.

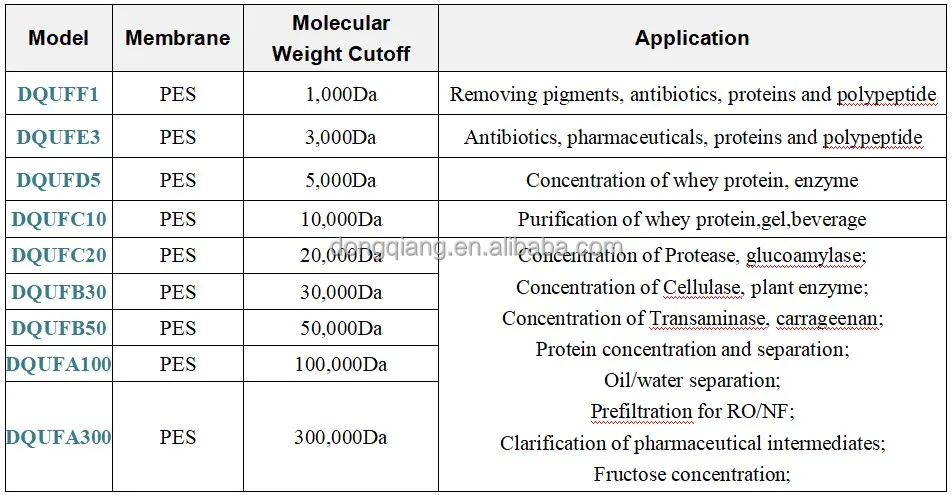

1: DQUF membrane Model and Application

2: Specification:



Dimensions(“/mm)				Surface area(m2)
	B	A	ID	32mils	46mils	65mils	80mils
1812	1.85”(47)	12”(304.8)	0.625”(15.9)	0.30	/	/	/
	1.81”(46)	11.73”(298)	0.67”(17)	0.24	/	/	/
2319	2.3”(59)	19.25”(489)	0.625”(15.9)	1.3	0.9	/	/
2540	2.5”(64)	40”(1016)	0.75”(19.05)	2.5	1.7	/	/
3838	3.8”(97)	38”(965)	0.83”(21)	6.5	5.0	3.5	2.9
4040	4.0”(101)	40”(1016)	0.625”(15.9)	6.5	5.0	3.5	2.9
			0.75”(19.05)	6.3	4.8	3.4	2.8
6338	6.3”(160)	38”(965)	1.125”(28.6)	20	15.5	11.8	10.1
8038	8.0”(201)	38”(965)	1.125”(28.6)	32.1	25.6	19.7	16.5
8040	8.0”(201)	40”(1016)	1.125”(28.6)	32.1	25.6	19.7	16.5
8340	8.3”(210)	40”(1016)	1.125”(28.6)	26	29	21.8	18.5

 3: Material of element:

        PES,PVDF,TFM



 4: Applications

Nanofiltration membranes are a relatively recent development, and offer greater selectivity of ions vs. reverse osmosis membranes that reject all ion species in a feed stream. This unique characteristic provides flexibility in separation process development that can greatly impact performance and profitability, especially for industrial applications. Here are some common applications:

Dairy,food and beverage ------

Lactose and whey demineralization in dairy processing

Lactose and whey concentration

Protein concentration

Industrial/Wastewater Treatment ------

Removal of natural organic matter in water and wastewater treatment Reduction of hardness in water purification

Sulfate removal from seawater and chemical processes Desalting of process streams in various industries

Zibo Dongqiang Ceramic Filter Co.,Ltd. is a specialized manufacturer of inorganic ceramic membrane and polymeric membrane and equipment and solution provider of membrane filtration,separation,concentration and extraction technology.

We have a R&D center,6 ceramic membrane production line,2 polymeric membrane production line,1 housing fabricating workshop,1 equipment assembly and fabricating workshop.

With the above production capacity and expertized staff,our business ranges from MF,UF,NF,RO membrane and euqipment manufacturing to the complete process development,engineering design,system integration,assembly and commissioning.

We supply our customers with:

1:Membrane module:

  Ceramic membrane,polymeric membrane and housing.

2:Membrane equipment:

  Lab scale pilot,Middle scale pilot,and industrial scale equipment.

3:Membrane technology solution:

  Water treatment,Environmental protection,Food and beverage,

Biochemical,Pharmaceutical,Oil field industries.

4:Membrane technology and service.



*For more detailed information,feel free to contact us.
