Аккумуляторная батарея для велосипеда XP Step-Thru
- Категории: >>>
- Поставщик: Shenzhen,Ryder,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Quick Details
Product Name: Lithium-ion Battery 48V 10.4Ah for Electric bike
Voltage: 48V
Voltage: 48V
Capacity: 10.4Ah
Cell: 18650
Cell: 18650
Battery pack dimension: L*W*H 433*103.5*49.5mm
Warranty: 1 Year
TECHNICAL SPECIFICATIONS
Working Temperature | charging:10~45℃ |
discharge:-20~60℃ | |
Weight | 3KG |
Voltage | 36V/48V |
Rated capacity | 10Ah/10.4Ah |
Configuration | 10S4P/10S5P/13S4P/13S3P |
Maximum charging current | 3Ah |
Maximum continuous working current | 18A (Could be customized) |
Maximum Discharge Current | 30A (Could be customized) |
Discharge cut-off voltage | 25V |
Cycles life | 500 times |
Case Material | Metal |
Power | 250W-750W |
Over-charged Protection Voltage | 4.25±0.025V/Cell(adjustable) |
Over -discharged Protection Voltage | 2.50±0.10V/Cell(adjustable) |

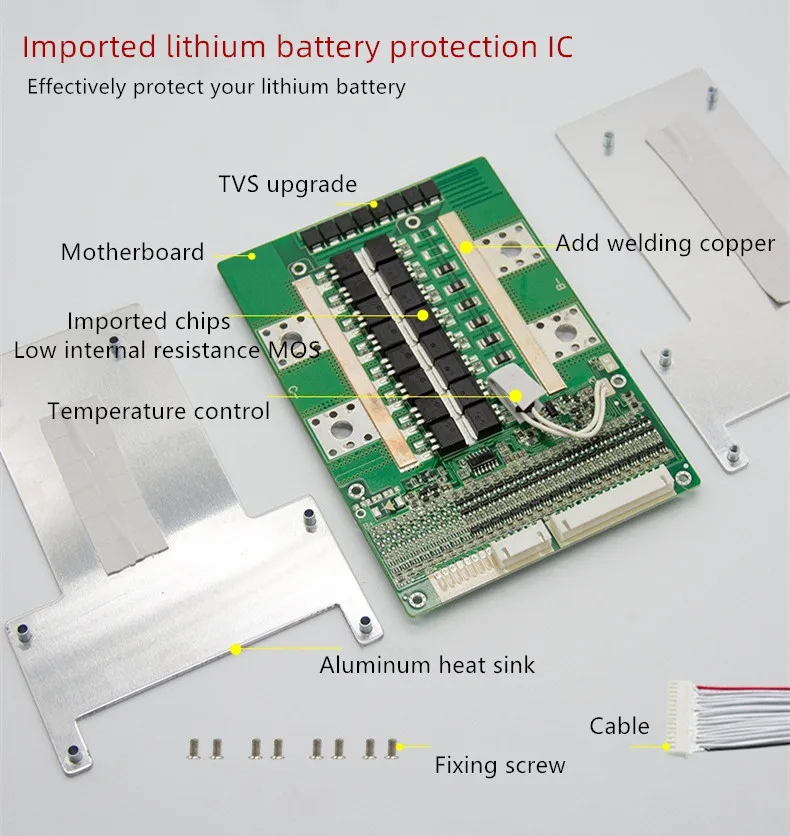

Battery BMS Function: | Over-charge, Over-discharge, Over-current, Temperature protection, Cell balancing, Secondary protection. |
Battery Charging Time(Hrs): | 3~4 Hours (Fast) 6~7 Hours (Standard) |
Details Images

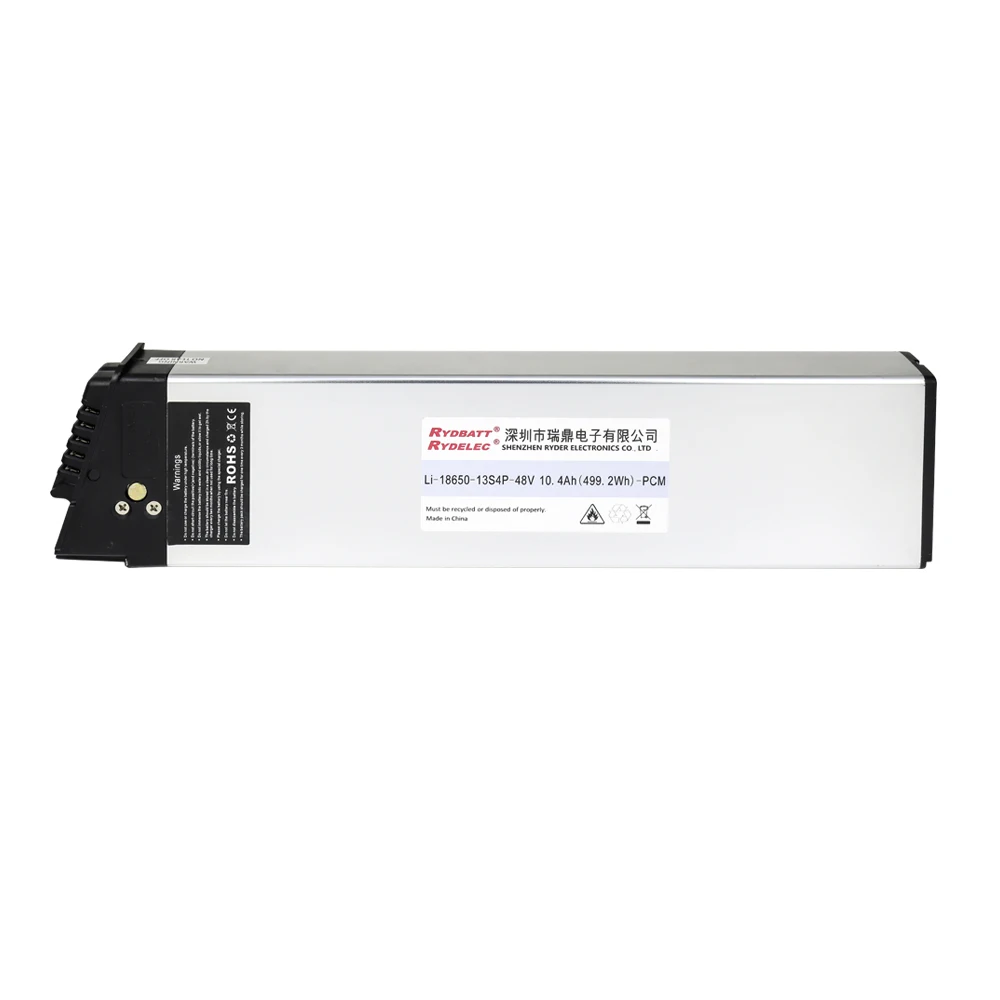

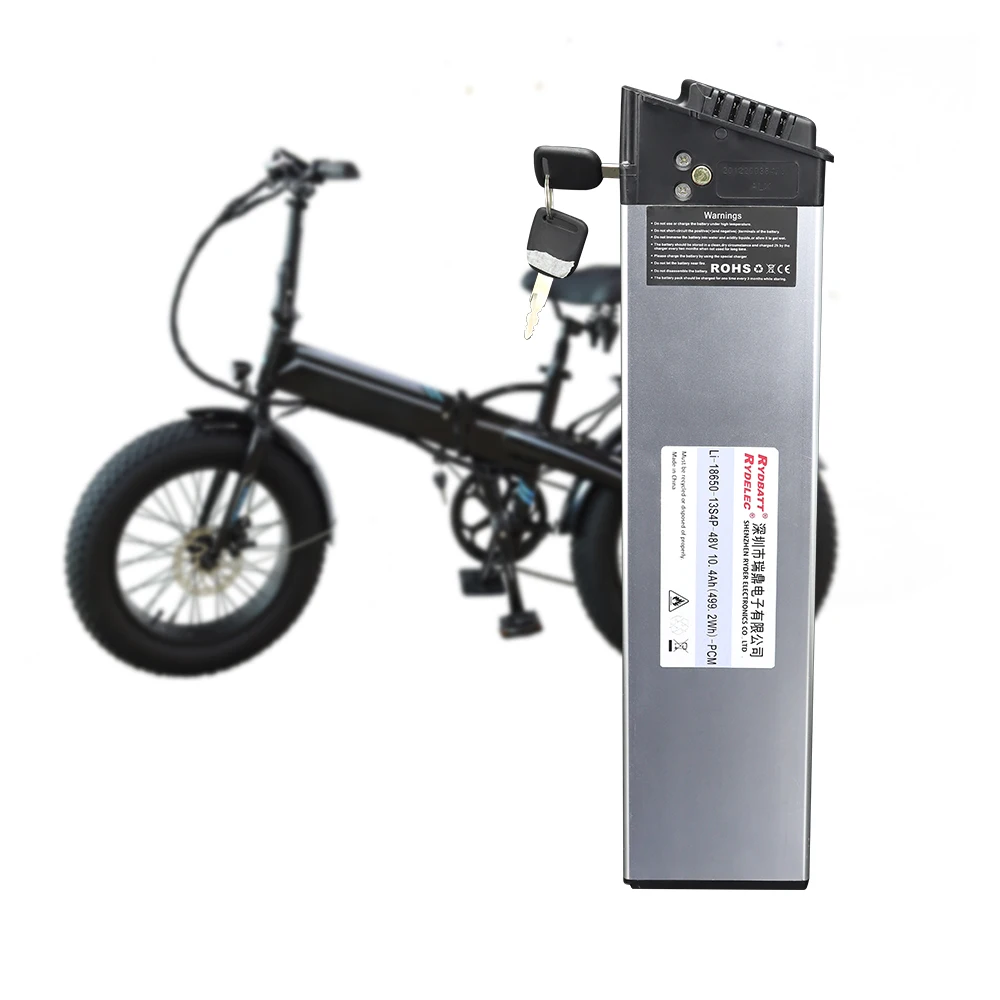

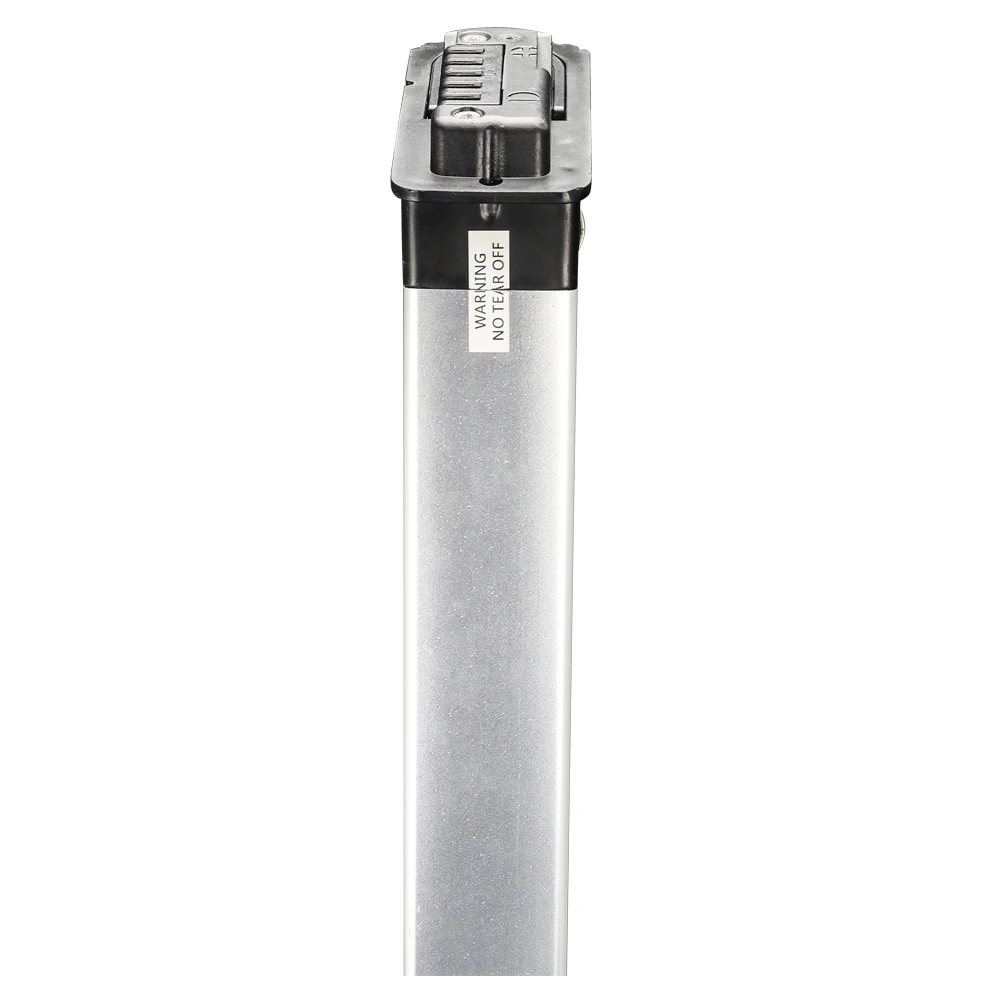

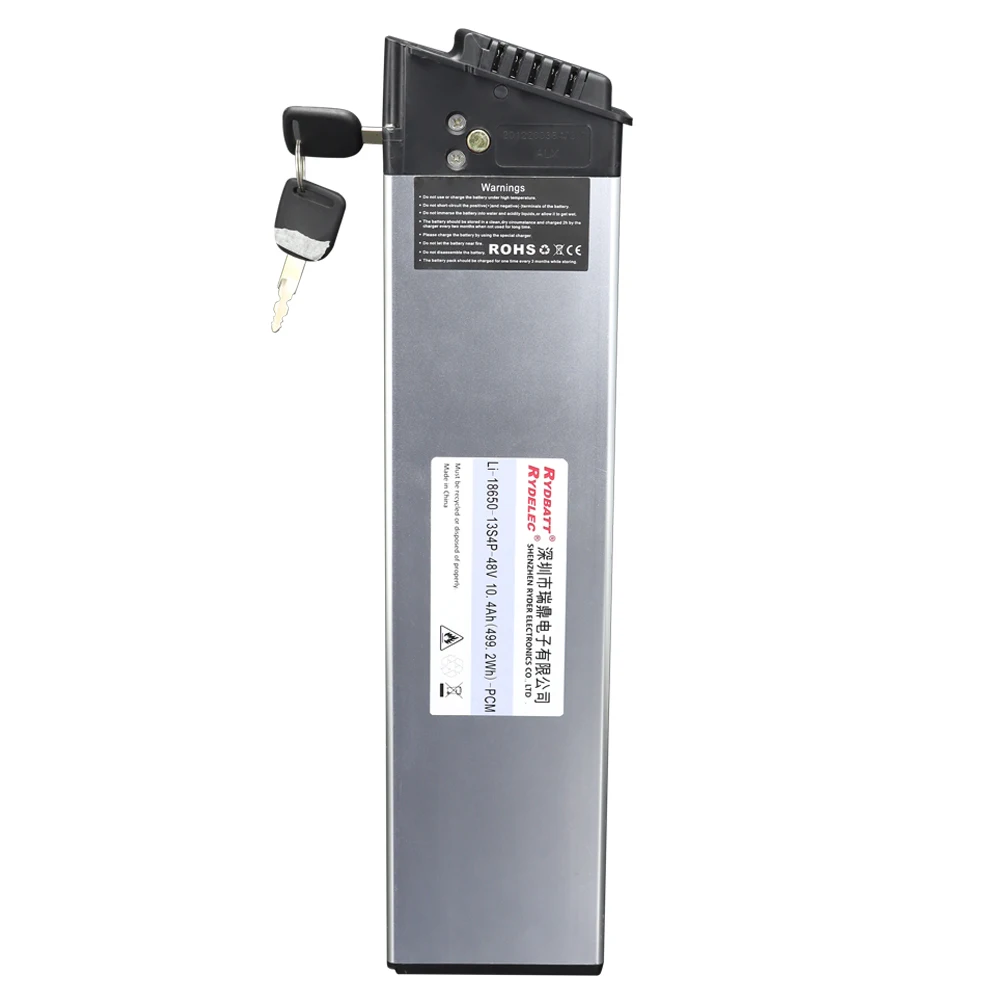

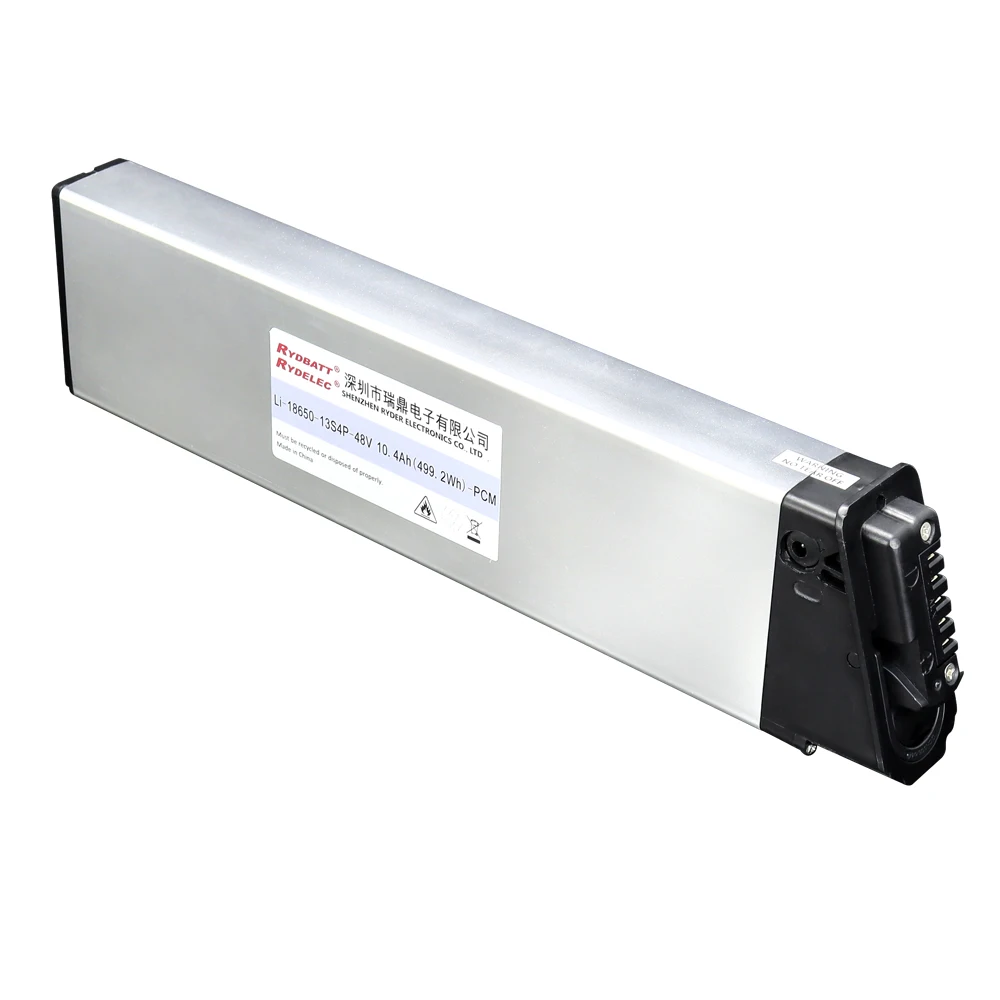

Battery
Lithium Ion 48v 10.4ah
4-6 hour charge time, Up to 45+ mile range;
4-6 hour charge time, Up to 45+ mile range;
FAQ
Q1: Are you a trading company or manufacturer?
A: We are professional manufacturer specialized in Lithium ion batteries and LiFePO4 batteries for Electric bicycle, Electric scooter, Electric motorcycle, Electric Tricycle, Sharing bike, vacuum cleaners, Energy storage system for Industrial and household, as well as customized battery packs application.
Q2: What’s your battery product range?
A: The battery range we can make is voltage from 3.2V to 100V, Capacity from 1Ah to 100Ah.
.
Q3: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. You can provide the detailed specification requirements to us, our engineers can design the most suitable battery solution for you.
Q4: Is it possible to buy a sample to test?
A: Yes. You can buy a sample to test.
Q5. What is your terms of payment?
A: T/T 30% as deposit, and 70% balance payment before shipment. We'll show you the photos of the products and packages before shipment.
Q6:What is your terms of delivery ?
A:EXW, FOB, CIF, DDU
Q7: How about your battery delivery time?
A: Within 25-30 days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
A: We are professional manufacturer specialized in Lithium ion batteries and LiFePO4 batteries for Electric bicycle, Electric scooter, Electric motorcycle, Electric Tricycle, Sharing bike, vacuum cleaners, Energy storage system for Industrial and household, as well as customized battery packs application.
Q2: What’s your battery product range?
A: The battery range we can make is voltage from 3.2V to 100V, Capacity from 1Ah to 100Ah.
.
Q3: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. You can provide the detailed specification requirements to us, our engineers can design the most suitable battery solution for you.
Q4: Is it possible to buy a sample to test?
A: Yes. You can buy a sample to test.
Q5. What is your terms of payment?
A: T/T 30% as deposit, and 70% balance payment before shipment. We'll show you the photos of the products and packages before shipment.
Q6:What is your terms of delivery ?
A:EXW, FOB, CIF, DDU
Q7: How about your battery delivery time?
A: Within 25-30 days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
