Оборудование для воздушных линий электропередачи включает в себя Алюминиевый зажим с параллельным

HE Code

Specification

Bolts

HEAPG-A1

AL 16-70 mm²

Single bolt

HEAPG-A2

AL 16-150 mm²

Single bolt

HEAPG-B2

AL 16-70 mm²

Double bolts

HEAPG-B3

AL 16-150 mm²

Double bolts

HEAPG-B4

AL 25-240 mm²

Double bolts

HEAPG-C1

AL 16-70 mm²

Three bolts

HEAPG-C2

AL 16-150 mm²

Three bolts

HEAPG-C3

AL 25-240 mm²

Three bolts

HEAPG-C4

AL 35-300 mm²

Three bolts

Notes:

1. Tolerance: ±5%

2. All dimensions are in MM.

3. Material: aluminum

4. Customized sizes are available at request.

3.Product Description:

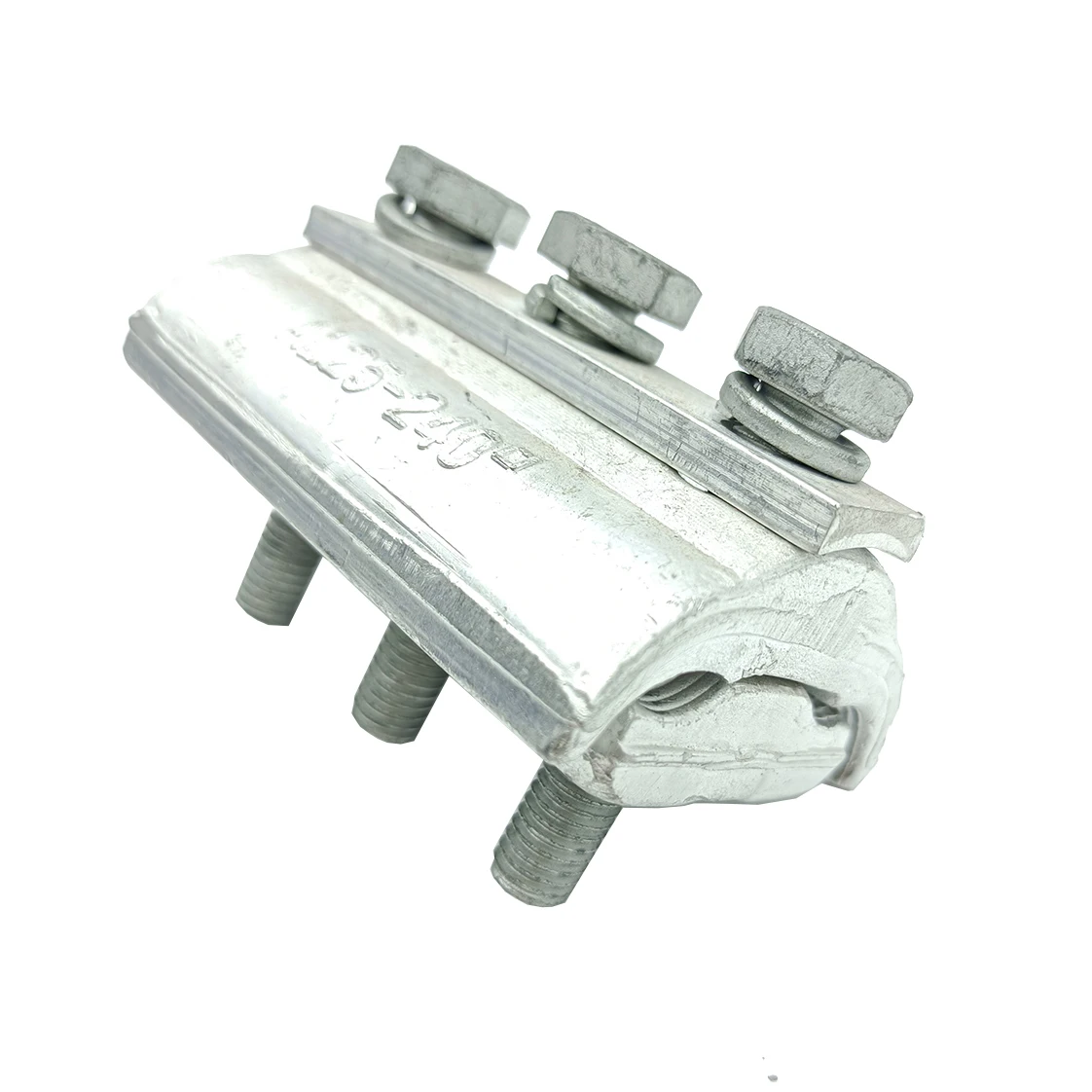

Aluminum parallel groove clamps are produced for aluminum conductors.

Aluminum for clamp body.

Galvanized steel for bolts, nuts.

The above are typical only, please consult Shanghai Herrajes for further information.

4.Product Details:

Name: aluminum PG clamps, aluminum parallel groove clamps, dismantable current clamps al,

      parallel clamps for aluminum conductors, straight line clamps

HS code: 7326

Model: CSA

Package: bulk packing; palletized; as required

Trademark: HE, as required

Origin: China

Raw material: aluminum

Finish: HDG

ODM&OEM service: yes

Sample: available, FOC

Payment term: T/T, 30% prepayment and 70% balance against B/L

Certificate: ISO

Delivery time: 20-40 days

MOQ: 500kgs

Export term: FOB; CIF

Production capacity pcs/day: 2000

Bolt qty: 1,2,3,etc.

Bolt size: M8, M10,etc.
