B7008C Высокоточный радиально-упорный шарикоподшипник 40*68*15
B7008C Высокоточный радиально-упорный шарикоподшипник 40*68*15
B7008C Высокоточный радиально-упорный шарикоподшипник 40*68*15
B7008C Высокоточный радиально-упорный шарикоподшипник 40*68*15
B7008C Высокоточный радиально-упорный шарикоподшипник 40*68*15
B7008C Высокоточный радиально-упорный шарикоподшипник 40*68*15
B7008C Высокоточный радиально-упорный шарикоподшипник 40*68*15

B7008C Высокоточный радиально-упорный шарикоподшипник 40*68*15


Поделиться:

Цена:*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



B7008C Super-precision angular contact ball bearing


Product Description






Specification


item
value
Type
BALL
Structure
Angular Contact
Applicable Industries
Building Material Shops, Manufacturing Plant, Machinery Repair Shops
Brand Name
SDVV
Precision Rating
P4
Seals Type
OPEN
Number of Row
Single Row
Place of Origin
Germany
Product name
B7008C
Size
40*68*15mm
Inside diameter
40mm
Outside diameter
68mm
Width
15mm
Basic dynamic load rating
20.9 kN
Basic static load rating
11.2 kN
Fatigue limit load
1.18 kN
Grease lubrication limit speed
22000 r/min
Oil lubrication limit speed
34000 r/min
Contact angle
15°
Mass bearing
0.188kg


Similar model bearings


Bearing No.
d(mm)
D(mm)
B(mm)
B7000C
10
26.00
8
B7001C
12
28.00
8
B7002C
15
32.00
9
B7003C
17
35.00
10
B7004C
20
42.00
12
B7005C
25
47.00
12
B7006C
30
55.00
13
B7007C
35
40.00
14
B7008C
40
68.00
15
B7009C
45
75.00
16
B7010C
50
80.00
16
B7011C
55
90.00
18
B7012C
60
95.00
18
B7206C
30
62.00
16
B7207C
35
72.00
17
B7208C
40
80.00
18
B7210C
50
90.00
20


Bearing knowledge: bearing cleaning

When disassembling the bearing for maintenance, first record the appearance of the bearing, confirm the residual amount of lubricating agent, take a sample of the lubricant for inspection, and wash the bearing. As a cleaning agent, gasoline and kerosene are commonly used. The cleaning of the removed bearing is divided into rough cleaning and fine cleaning, respectively, in the container, first put a metal mesh bottom, so that the bearing does not directly contact the dirt of the container. During the fine cleaning, if the bearing is rotated with dirt, it will damage the bearing rolling surface, so care should be taken. In the rough cleaning oil, use a brush to remove grease and adhesions. After it is roughly clean, switch to fine cleaning.
Fine washing is to wash the bearing carefully while rotating it in the washing oil. In addition, the cleaning oil should always be kept clean.

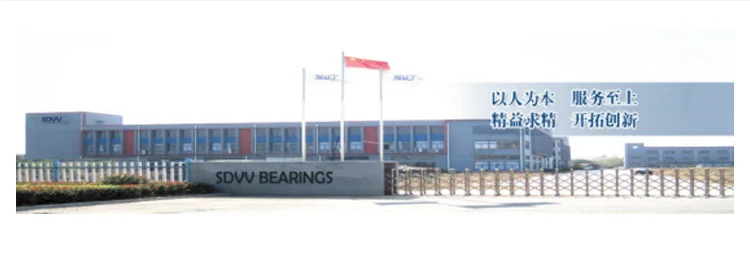

Company Profile




Jinan Deyi Ruisheng Mechanical and Electrical Equipment Co., Ltd. is a subsidiary of Hong Kong SUN RISES GROUP LTD. It is a group company whose main business is bearing export. The company's products sell well in Southeast Asia, South America, Africa, the Middle East, North America, Europe, etc. many countries.Sun Rises Group Limited. was established in 1986, is a professional exporter of bearings and other industrial products. Our own brand is SDVV and we also agent for many world-famous bearings, the bearing brands include: SKF bearings, FAG bearings, INA bearings, TIMKEN bearings, KBC bearings and a series of Japanese bearings (NSK, NTN, KOYO, IKO, NACHI, ASAHI, FYH, NMB, THK bearings and so on).

Bearing Types: deep groove ball bearings, self-aligning ball bearings, angular contact ball bearings, thrust ball bearings, cylindrical roller bearing, tapered roller bearings, spherical roller bearings, CARB toroidal roller bearings, needle roller bearings, cylindrical roller thrust bearings, tapered roller thrust bearings, spherical roller thrust bearings, needle roller thrust bearings, supper precision bearings, INSOCOAT bearings, high-temperature bearings, stainless steel bearings, cam rollers, support rollers, cam followers, track rollers, plain bearings, Y-bearings (insert bearings), cross roller bearings, rolling mill bearings, bearings housings and units, plummer block housings, slewing bearings,split bearings, thin section bearings, joint bearings, bearing accessories (adapter sleeves, withdrawal sleeves and lock nuts) etc. We can also supply some uncommon bearings such as non-standard bearings, linear bearings, automobile bearings, Mega-bearings, railway bearings, etc. as well as Bearing Tools such as SKF Bearing Heaters, SKF Precision Metric Shim Kits TMAS, etc.














1. who are we?
We are based in Shandong, China, start from 2015,sell to South America(18.00%),Eastern Europe(15.00%),Africa(15.00%),Mid
East(10.00%),Western Europe(10.00%),North America(8.00%),Northern Europe(6.00%),Southern Europe(5.00%),Southeast
Asia(5.00%),Eastern Asia(5.00%),South Asia(1.00%),Central America(1.00%),Oceania(1.00%). There are total about 51-100 people in
our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
SKF bearings,TIMKEN bearings,NSK bearings,FAG bearings,INA bearings

4. why should you buy from us not from other suppliers?
In accordance with ISO standards, we have professional Q/C staff, precision testing instruments and internal inspection system,
the quality control is implemented in every process from material receiving to products packaging to ensure our bearings quality

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union;
Language Spoken:English,Chinese


We have sufficient inventory to achieve fast delivery. If you want to know more, please feel free to contact us so that we can get back to you quickly.
