Products Description
Details Images

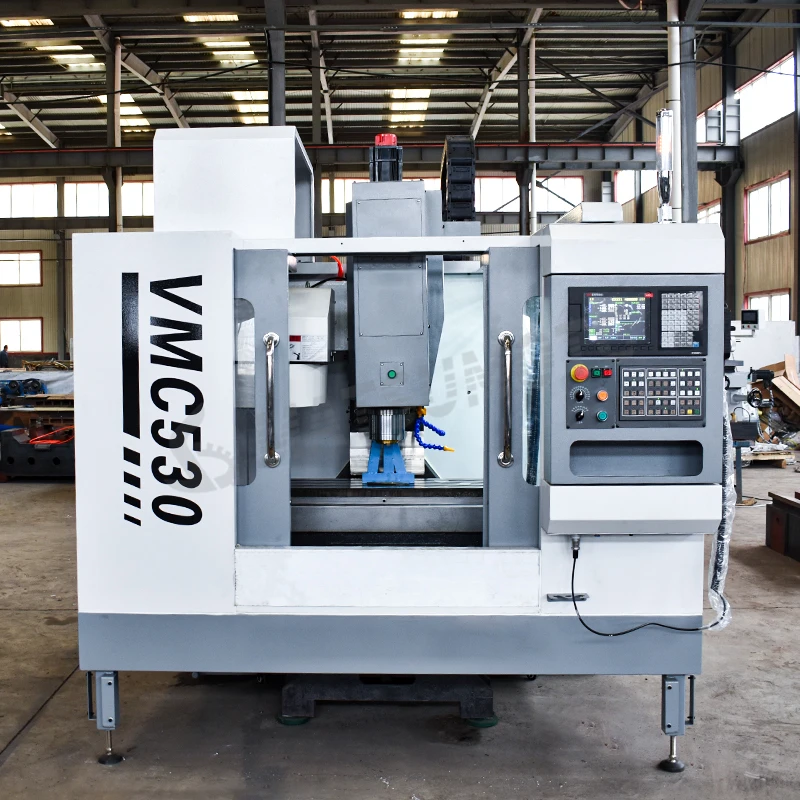

VMC530 Vertical machining center
Use strong rigid casting steel. Imported bearing with high precision.Coolant system equipped with pump of large flow and high lift pump to insure enough cooling under
high-speed cutting.
Product Paramenters
VERTICAL MACHINE CENTER VMC530

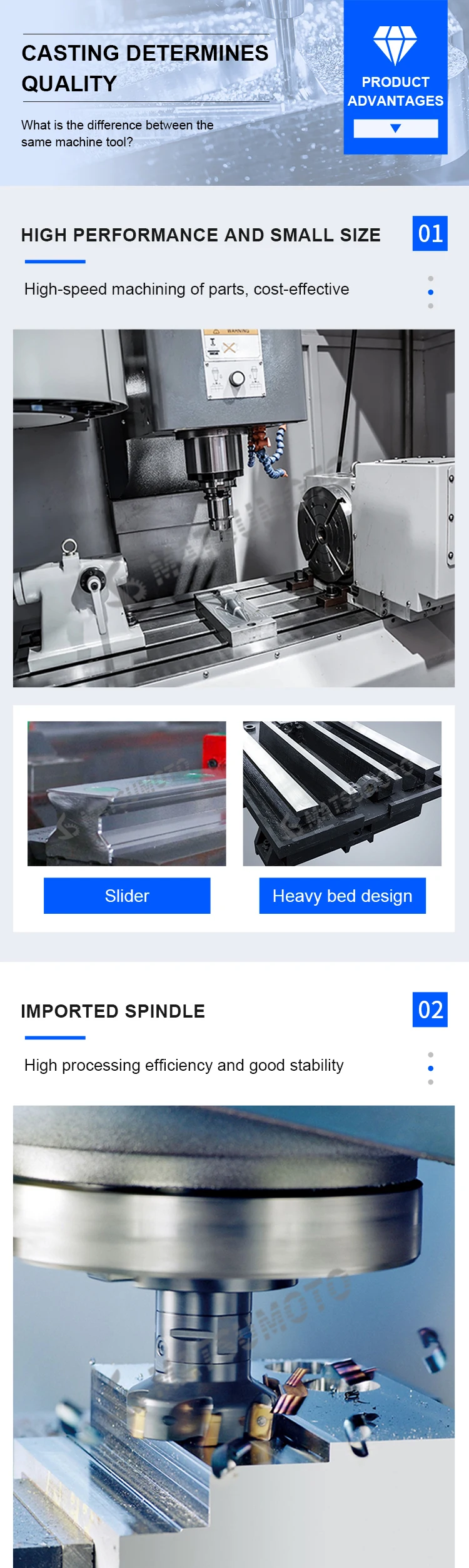

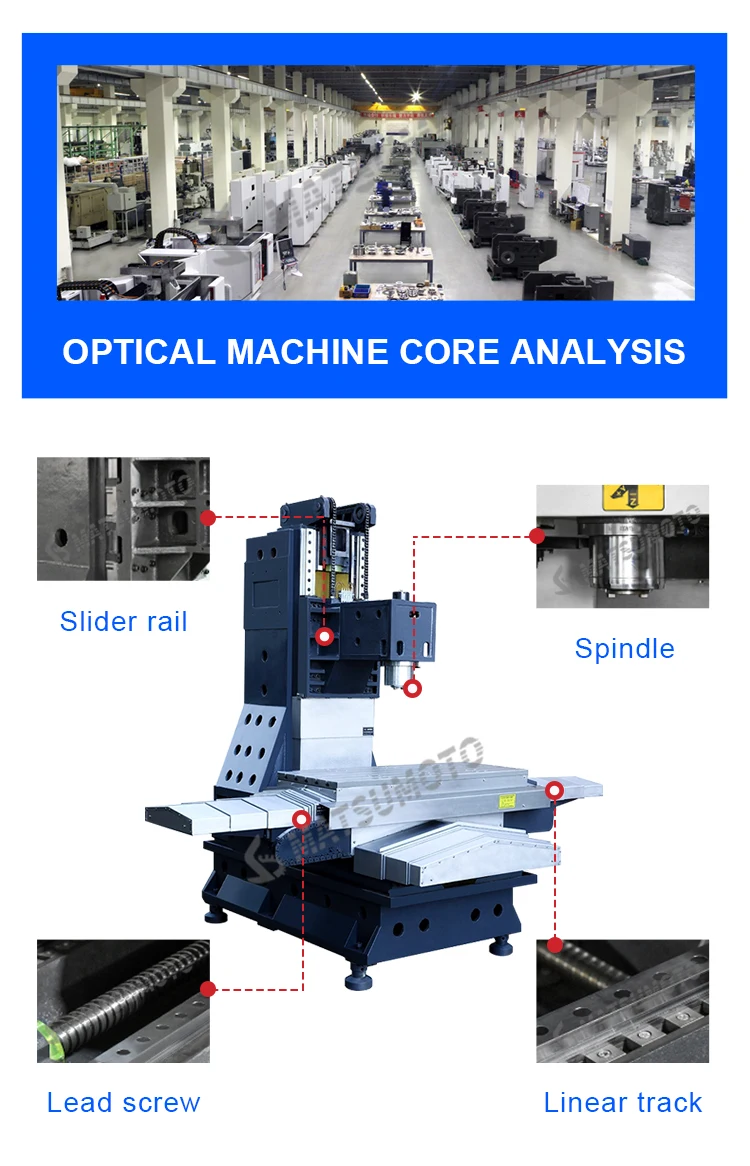

FEATURES:Use strong rigid casting steel. X/Y/Z axis are supplied with rectangular guide ways by plastic sticker,edium frequency quenching and precisely scraping. Spindle from Taiwan with high speed and precision. Imported bearing with high precision.Coolant system equipped with pump of large flow and high lift pump to insure enough cooling under high-speed cutting.
SPECIFICATIONS:
ITEM | VMC530 |
X-Axis travel | 500mm |
Y-Axis travel | 320mm |
Z-Axis travel | 375mm |
Distance from Spindle nose to worktable surface | 25-425mm |
Distance from spindle center to surface of column ram | 343mm |
T slot (width×number) | 16mm×3 |
Worktable size | 600×300mm |
Max.loading of worktable | 120Kg |
Power of spindle motor | 3.7KW |
Spindle speed | 6000-10000rpm |
Spindle taper | BT30 |
Spindle bearing | P4 |
Rapid traverse speed of 3 axis | X /Y 15m/min |
Z 15m/min | |
Cutting feed rate | 0-4000mm/min |
Min.set unit & moving unit | 0.001mm |
Pitch of X/Y axis | 6mm |
Pitch of Z axis | 6mm |
Positioning accuracy (300mm) | ±0.008 |
Repeatability accuracy (300mm) | ±0.005 |

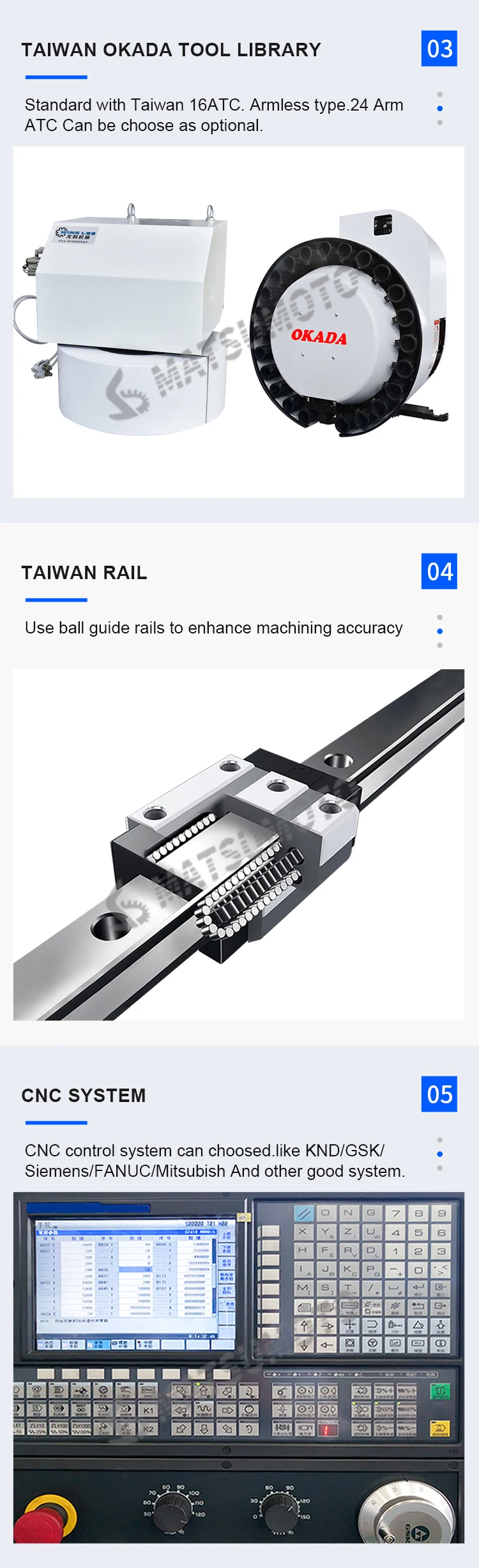

Changing way of tools | Cloak'type |
Tool magazine | 12 |
Tool spec. max.dia. (neighboring Tool)×weight×length | φ60mm×3.5Kg×175 |
Tool changing time | 6s |
Machine weight | 1800kg |
Power of cooling pump for cutting | 370W |
Overall size | 1700*1640*2100mm |
Recommend Products
Company Profile
Certifications
Packaging & Shipping
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Machining Center ,Grinding Machines，Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: What about the quality of the machine?and after-sales service?
A : Our machine warranty period is 3 years，and we provide free technical service.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
