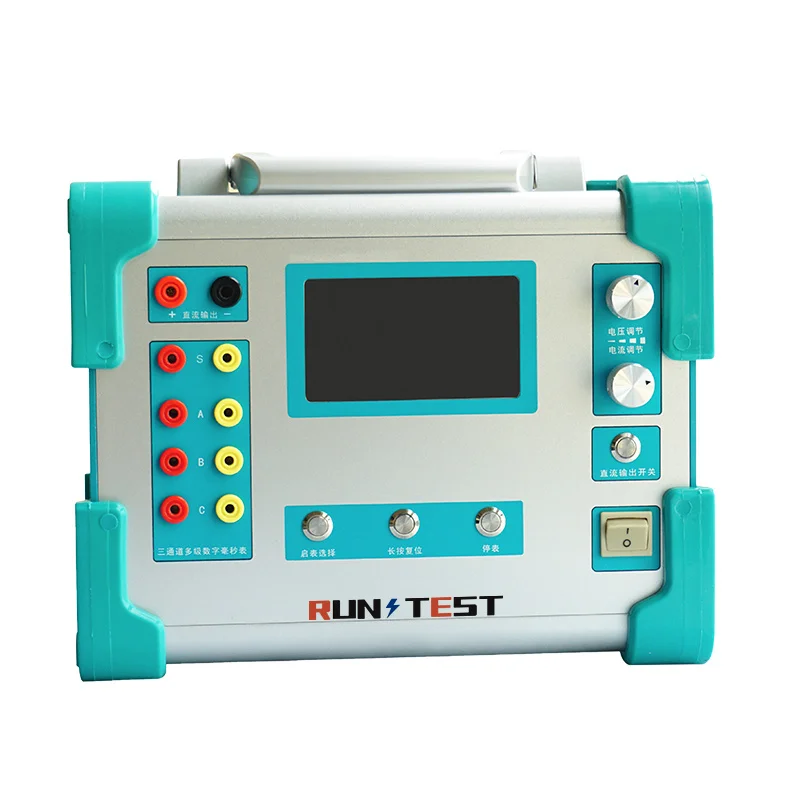

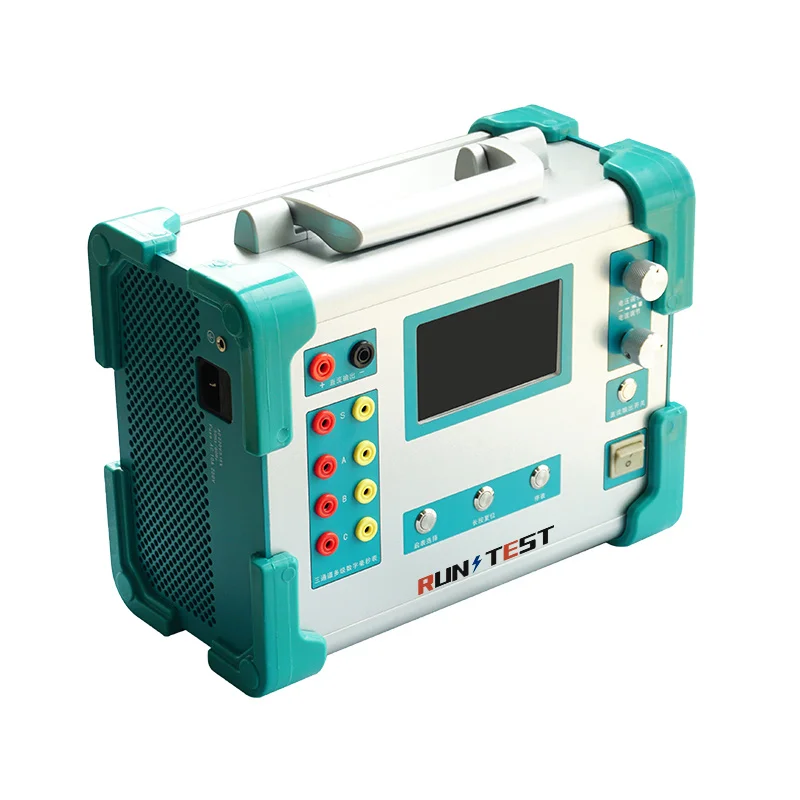

Product name | DC Power Supply |
Relative Humidity | ≤90%RH |
Operating Temperature | 0~40℃ |
Dimension | 296 *151 *245 |
Weight | 7 KG |
Product details:
1.Small Size, light weight, smaller than A4 paper
2.Universal adjustable power supply and three channels smart millimeter.
3.DC10V~260V, wide range voltage output, precision constant voltage and constant current power supply
4.Precision multi-turn potentiometer adjustment, output voltage continuously adjustable
5.10A output can work for a long time, can be used for DC screen or battery charging
6.LED large screen display, you can display the set voltage, current value, or the actual output voltage and current value
7.With perfect over current, overvoltage, short circuit, overload, overheating protection, high reliability
8.The millisecond meter can be started with the output of the power supply, or it can be started by an external switch
9.It can measure the on-off time and on-off state of the external switch at the same time;
10.Each switch can save eight sets of time data.
Technical Parameter
Power Supply
Input Voltage | AC 220V ±20% |
Input Frequency | 47~63Hz |
Efficiency | ≥85% |
Output Voltage | DC10~260V |
Output Voltage Stabilization accuracy | ≤5% |
Output Current | 10A, continuous |
Millisecond Meter
Measuring Range | 1~60000ms |
Resolution | 1ms |
Accuracy | 1ms |
Storage | 8 Sets |
