Car Battery tester Konnwei KW510 12V Vehicle Universal Lead-acid Battery repair tool with American Socket
Product Description
Model: KONNWEI KW510 Battery repair recharger and tester
| Display: | 2.0 inch LCD Screen |
| System Voltage: | 12 Volts |
| Input Voltage Range: | 8V-16V |
| Power Requirements: | No internal batteries required. |
| Power supply: | Power on when hooked up during testing. |
| Operating Temperatuer: | 0℃-50℃. |
| Storage Temperature: | -20℃-70℃ |
AC input | 100-240V/50-60Hz |
Output Voltage | 12V |
Output Current | 5A |
Output Volt No Load | 13.8V |
Minimum Start Volt | >2.0V |
Input Power with Load | Max 80W |
Input Power No Load | 3W |
Cooling | Fan |
Voltage Measurement Range 8-16V DC
1.4 Working Environment Requirement
Working Environment Temp: 0°C- 50°C/ -32°F - 122°F
It is applicable for automotive manufacturers, automotive maintenance and repair workshops, automotive battery factories, automotive battery factories, automotive battery distributors , and educational organizations , etc

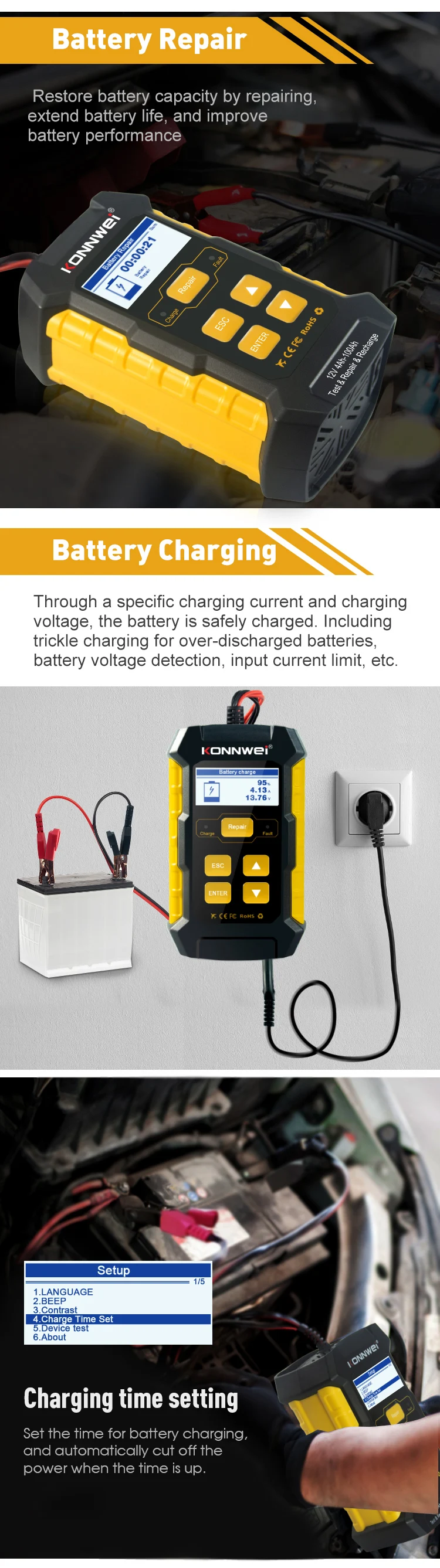

2. Battery Repair & Charge & Test

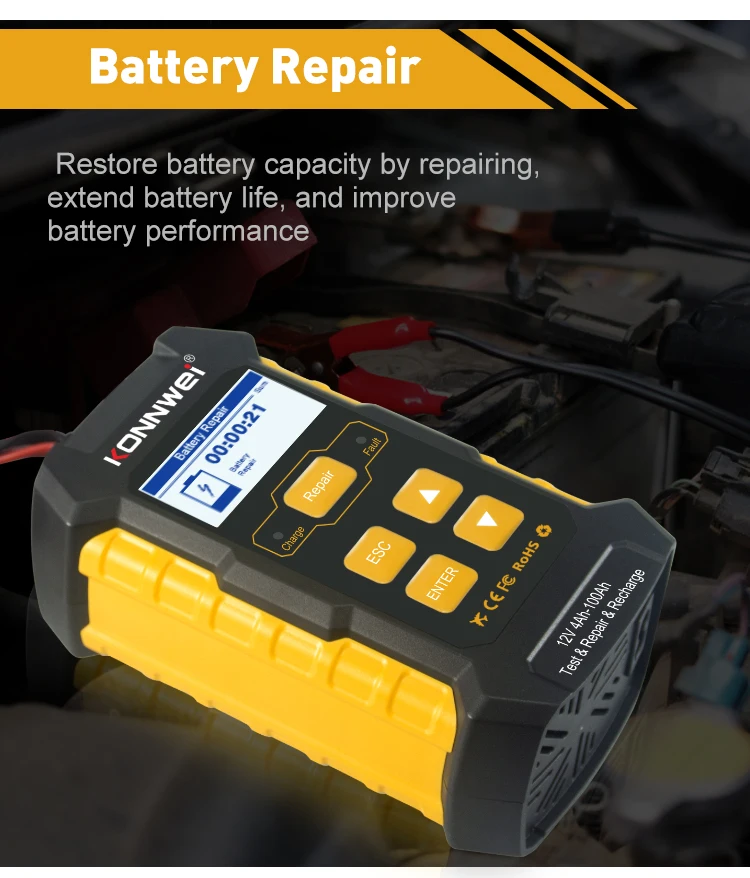

2.1 Battery Repair
From the startup screen, or press EXIT button to enter Main Menu.
Press UP/DOWN key to select Battery Repair, then press ENTER key to confirm.(You can also press Repair shortcut key to enter)
2.2 Battery Charge
From the startup screen, or press EXIT button to enter Main Menu.
Press UP/DOWN key to select Battery Charge, then press ENTER key to onfirm.(You can also press Repair shortcut key to enter)

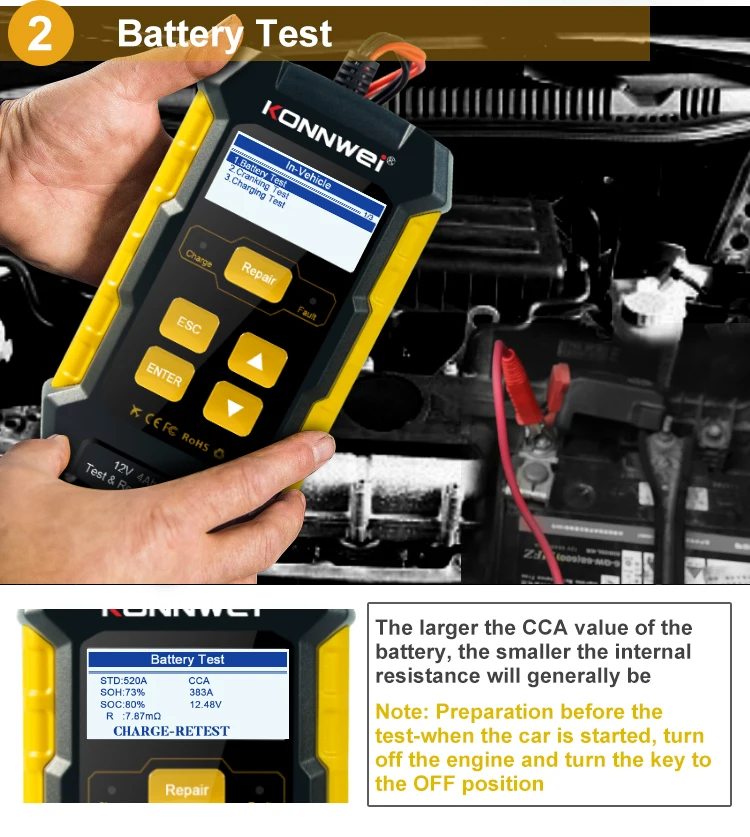

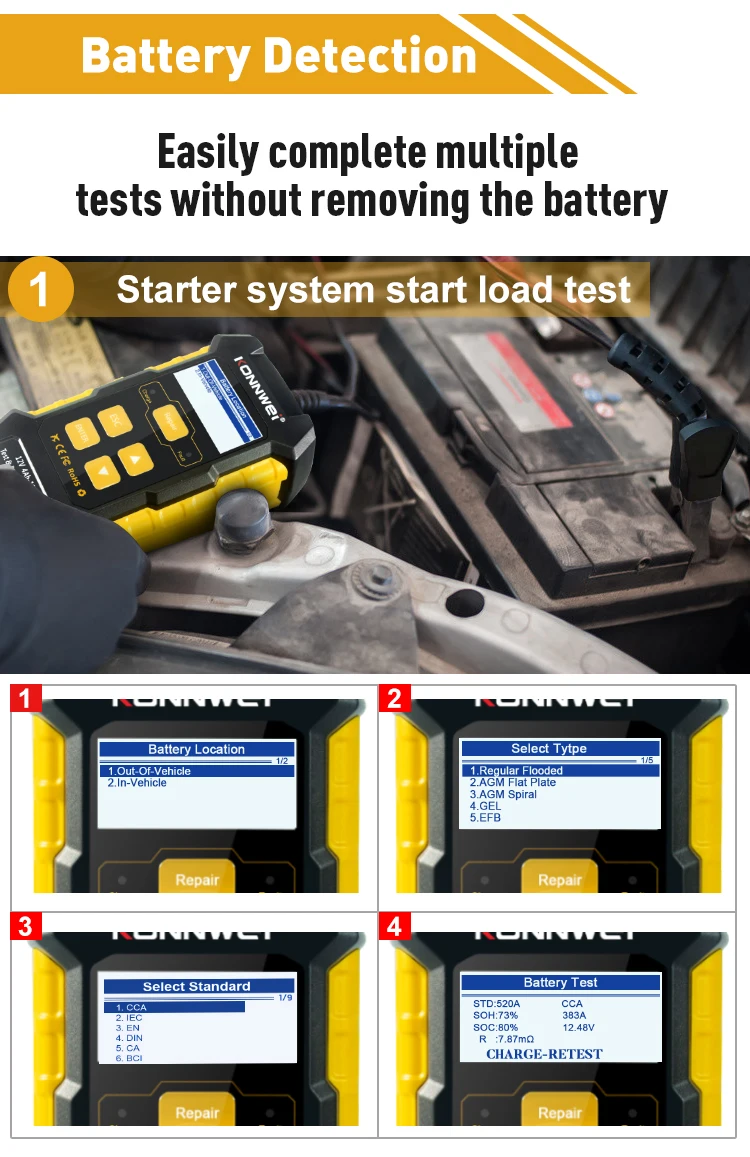

2.3 Battery Test
From the startup screen, or press EXIT button to enter Main Menu.
KONNWEI KW510 is mainly targeted to analyze the battery healthy status to calculate the actual cold cranking, capability of the battery, and the aging extent, which provide reliable analysis evidence for the test and maintenance of the battery. KW600 notifies the users to replace the battery in advance when the battery getting aged
KW510 Battery Tester Function:
Identify battery status Good or Replace
Check Battery Capacity - Cold Cranking Amps (CCA), DIN, EN, and IEC information relative to battery rating.
Check Internal resistance value (m)
Display Life in percentage (%)

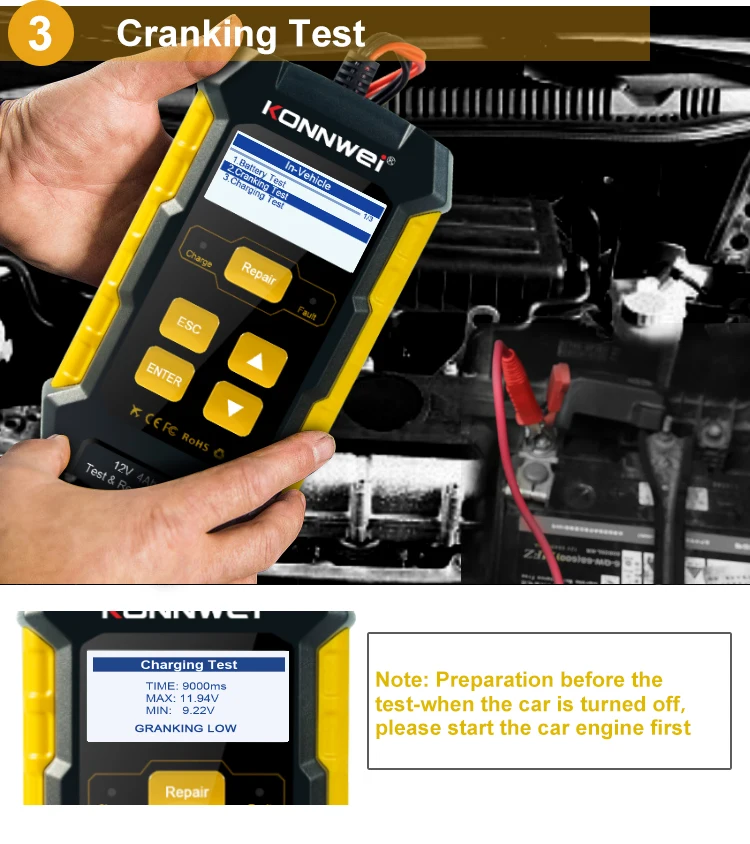

Battery Cranking Test, load test

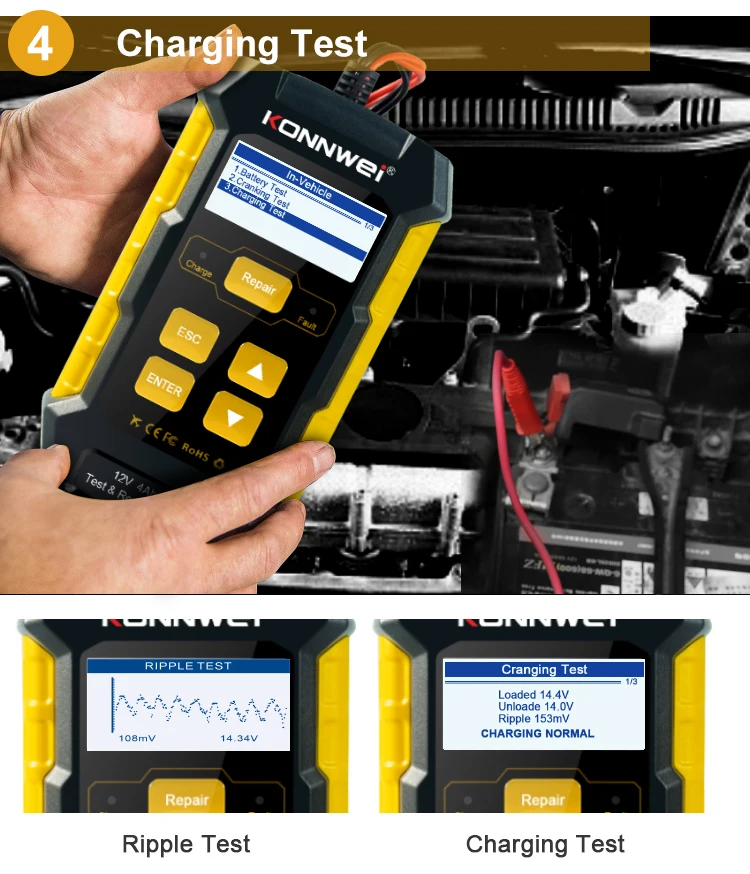

Battery Charging Test, Ripple Test
Graphing voltage real-time monitoring
Test results storage and review
Print test results and battery report on PC
Lifetime upgrade free
KW510 Battery Tester Function:
Identify battery status Good or Replace
Check Battery Capacity - Cold Cranking Amps (CCA), DIN, EN, and IEC information relative to battery rating.
Check Internal resistance value (m)
Display Life in percentage (%)
Battery Cranking Test, load test
Battery Charging Test, Ripple Test
Graphing voltage real-time monitoring
Test results storage and review
Print test results and battery report on PC
Lifetime upgrade free
Measurement Standard | Measurement Range |
CCA | 100-2000 |
BCI | 100-2000 |
CA | 100-2000 |
MCA | 100-2000 |
JIS | 26A17-245H2 |
DIN | 100-1400 |
IEC | 100-1400 |
EN | 100-2000 |
SAE | 100-2000
|
We also have OBD scanner car code reader
KW850/ KW808/ KW903 / KW680/ KW590 etc.
Contact me for more details and discount price
Ms Elva
Tel/WhatsApp/Wechat: +86 13923861970
Skype ID: konnwei02
Tel/WhatsApp/Wechat: +86 13923861970
Skype ID: konnwei02
And other Top selling models
Large color screen LCD display, pattern design

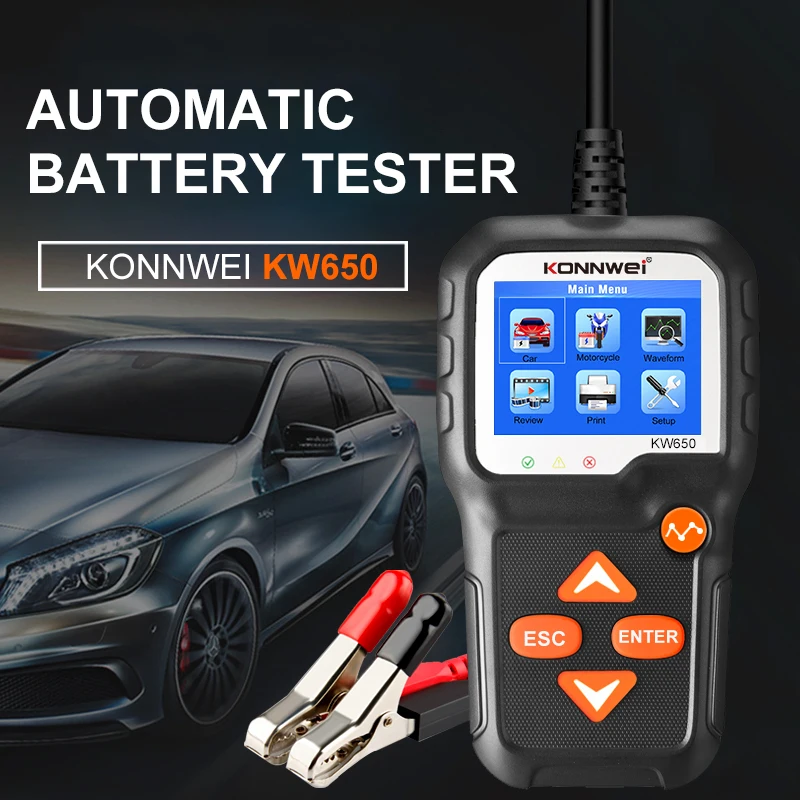

Other battery tester models.
Other popular models from Konnwei:

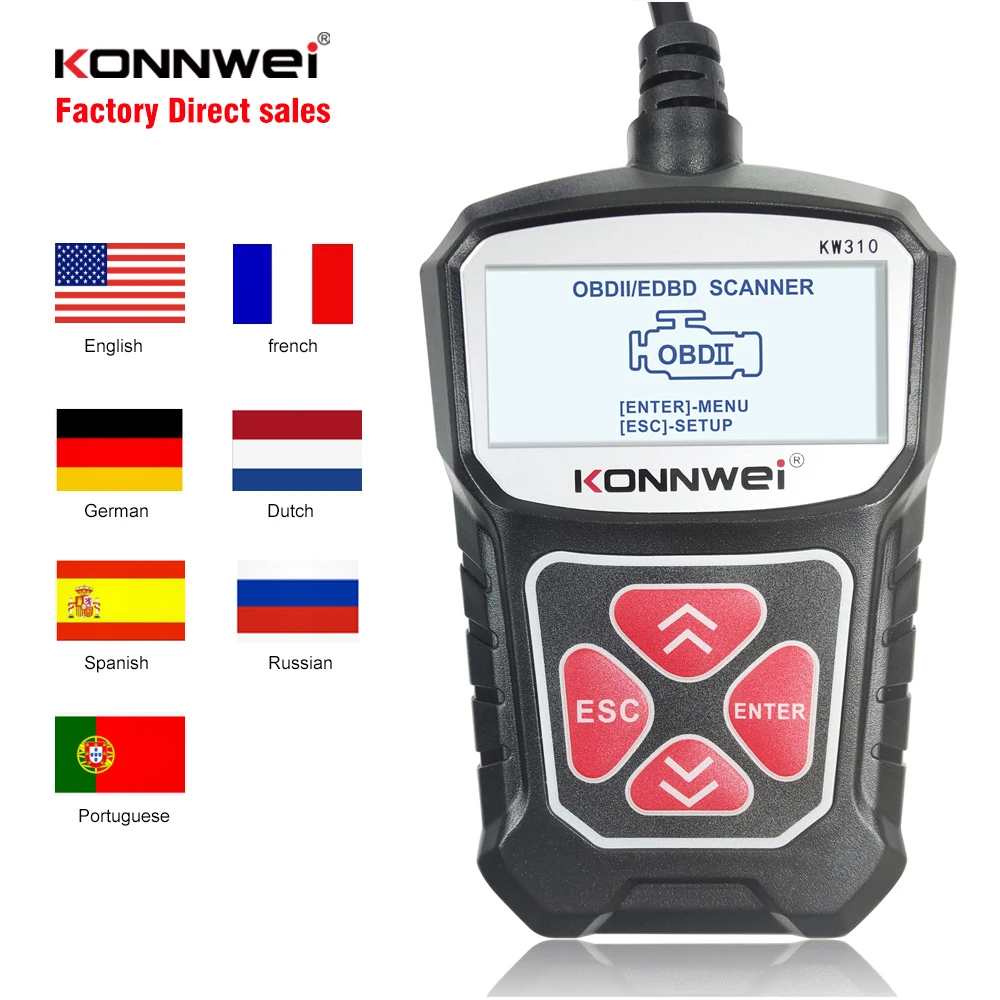

Unitversal OBD2 code reader KW850, KW808, and KW310
