Заводской mdvr 4 cam правоохранительное оборудование Кабельный разъем 4g gps счетчик
- Категории: Car Black Box >>>
- Поставщик: Shenzhen,Citops,Systems,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Main Features

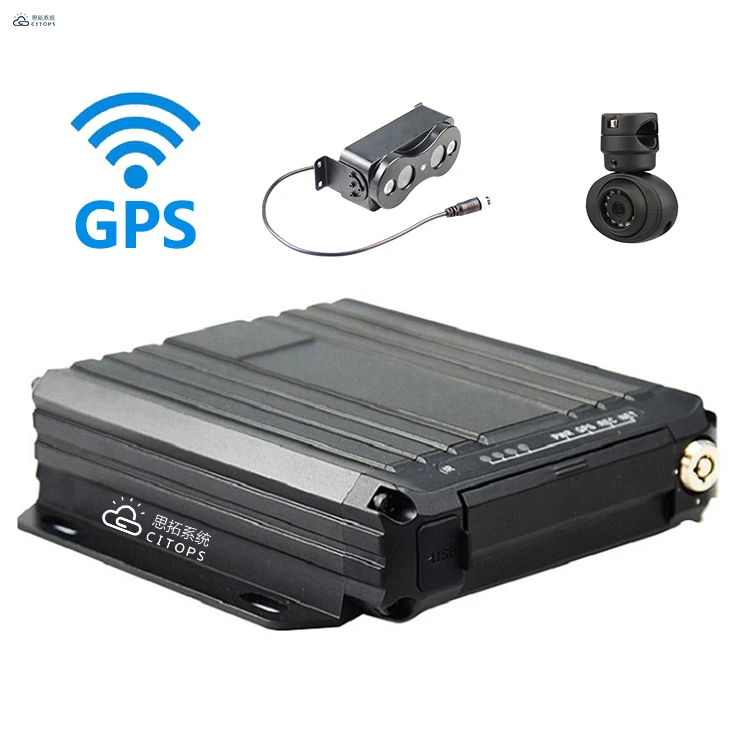

Citops mdvr dvr marcas mdvr system full mini cameras with aviation connector mdvr lte
1. Industrial-grade design with super mini size
2. Wide voltage support over-load ,short circuit ,reverse connect protection
3. Support 2 SD cards up to 256G for record storage
4. 4G / WIFI transmit; multiple grade image quality transmitting optional
5. GPS / BD / GLONASS global positioning optional
6. Powerful software platform including remote live, playback, broadcast, talk and more
7. IP communication
8. PTT group talk function
2. Wide voltage support over-load ,short circuit ,reverse connect protection
3. Support 2 SD cards up to 256G for record storage
4. 4G / WIFI transmit; multiple grade image quality transmitting optional
5. GPS / BD / GLONASS global positioning optional
6. Powerful software platform including remote live, playback, broadcast, talk and more
7. IP communication
8. PTT group talk function
Packing & Delivery
Specification
Item | Description | ||
Model | M16H | ||
OS | Linux3.18 | ||
Operating | UI, Cell phone APP, PC client, Remote controller | ||
Functions Summary | Preview, recording, playback, network transmission, positioning, AI analysis, multiple sensor data acquisition. | ||
Video and Preview | Video Input, Output, Signal standard | AHD input: 1080p, 720p, D1 IPC input:1ch default Output: 1ch CVBS default, VGA optional Signal standard:1.0Vp-p, 75Ω, NTSC/PAL optional | |
Audio | Audio Input, Output | 3ch audio input; 1ch audio output. 2.0Vp-p, 4.7kΩ | |
Recording | Storage Medium | Supporting dual SD card for storage, each one max support 256gb | |
Video Strategies | Recording at start up by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording | ||
Alarm pre-recording | 0-60min | ||
Alarm recording delay | 0-30min | ||
Browse mode | Time, channel, event. | ||
Wireless Transmission | 3/4G wireless transmission module, Wi-Fi module, Ethernet: Network aviation head(100M) | ||
Position | GPS/BD: Positioning, speed detection, time synchronization | ||
Power Supply and Power Consumption | Power Supply | 1ACC on/off | |
Input Voltage | DC:+8V ~ +36V | ||
Output Voltage | +12V@1A; +5V@1A | ||
Power Consumption | Max 25W consumption, about 0W in standby mode | ||
Operating Environment | Temperature | preheating: -20℃ ~ +70℃ | |
Humidity | 8% to 90% | ||
Dimensions | 177 (L)x 186.8(W) x 54(H) mm. | ||
Weight | Net: 0.45KG | ||
Specifications
Our Company
Shenzhen Citops System, Inc is the most professional supplier for Mobile Digital Video Recorder (MDVR) and vehicle monitoring site solutions. The company was established in Shenzhen with R&D center and manufacturing base set up. It's specializing in video monitoring solution, products range from hard disk Mobile DVR, SD card Mobile DVR, CCTV camera, vehicular camera, 3G portable mobile monitoring system and inside Car Camera etc.
