Product Overview
Pneumatic butterfly valve
Butterfly valve, also called flap valve, is a kind of regulating valve with simple structure.
A butterfly valve for on/off control of low pressure pipeline media is a valve where the closing member (valve flap or butterfly plate) is a disc that rotates around the valve shaft to achieve opening and closing.
The valve can be used to control the flow of various types of fluids such as air, water, steam, various corrosive media, slurry, oil, liquid metal and radioactive media. In the pipeline mainly plays a cutting and throttling role. The opening and closing part of the butterfly valve is a disc-shaped butterfly plate, which rotates around its own axis in the valve body, thus achieving the purpose of opening and closing or regulating.
A butterfly valve for on/off control of low pressure pipeline media is a valve where the closing member (valve flap or butterfly plate) is a disc that rotates around the valve shaft to achieve opening and closing.
The valve can be used to control the flow of various types of fluids such as air, water, steam, various corrosive media, slurry, oil, liquid metal and radioactive media. In the pipeline mainly plays a cutting and throttling role. The opening and closing part of the butterfly valve is a disc-shaped butterfly plate, which rotates around its own axis in the valve body, thus achieving the purpose of opening and closing or regulating.

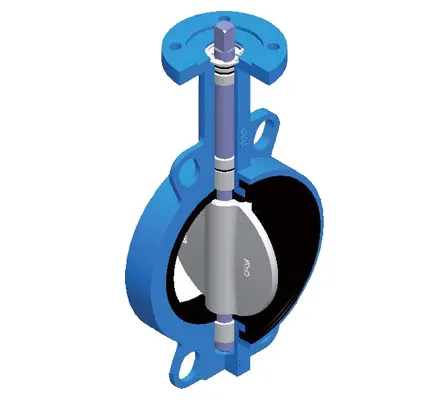

Structure features
Wafer lug type
International compatibility
Anti-blow out
Manually polished disc edge
SIMPLE CONTROL
Rubber seat design
Wafer lug type
Double flange type
wafer lug type
Technical Data
Model | JCV-68 | JCV-88 | JCV-98 | |
Nominal diameter | DN40-DN500 | DN50-DN300 | DN40-DN500 | |
Nominal pressure | 1.0MPa-1.6MPa | 2.8 M3 | 1.0MPa-1.6MPa | |
Connection | Wafer,flange | 125Ton | Wafer | |
Flange standard | GB、DIN、 ASME、JIS | GB、DIN | GB、DIN、ASME、JIS | |
Mode of Operation | Notch lever / Worm gear | 96kN | Notch lever / Worm gear | |
6 | Electric actuator / Pneumatic actuator | 60kN | Electric actuator / Pneumatic actuator | |
Seat | PTFE lined EPDM -20℃ to 150℃ | 6750ml | PTFE-lined, Silicon insert -60℃ to 210℃ | |
PTFE-lined, Viton insert -20℃ to 200℃ | ||||

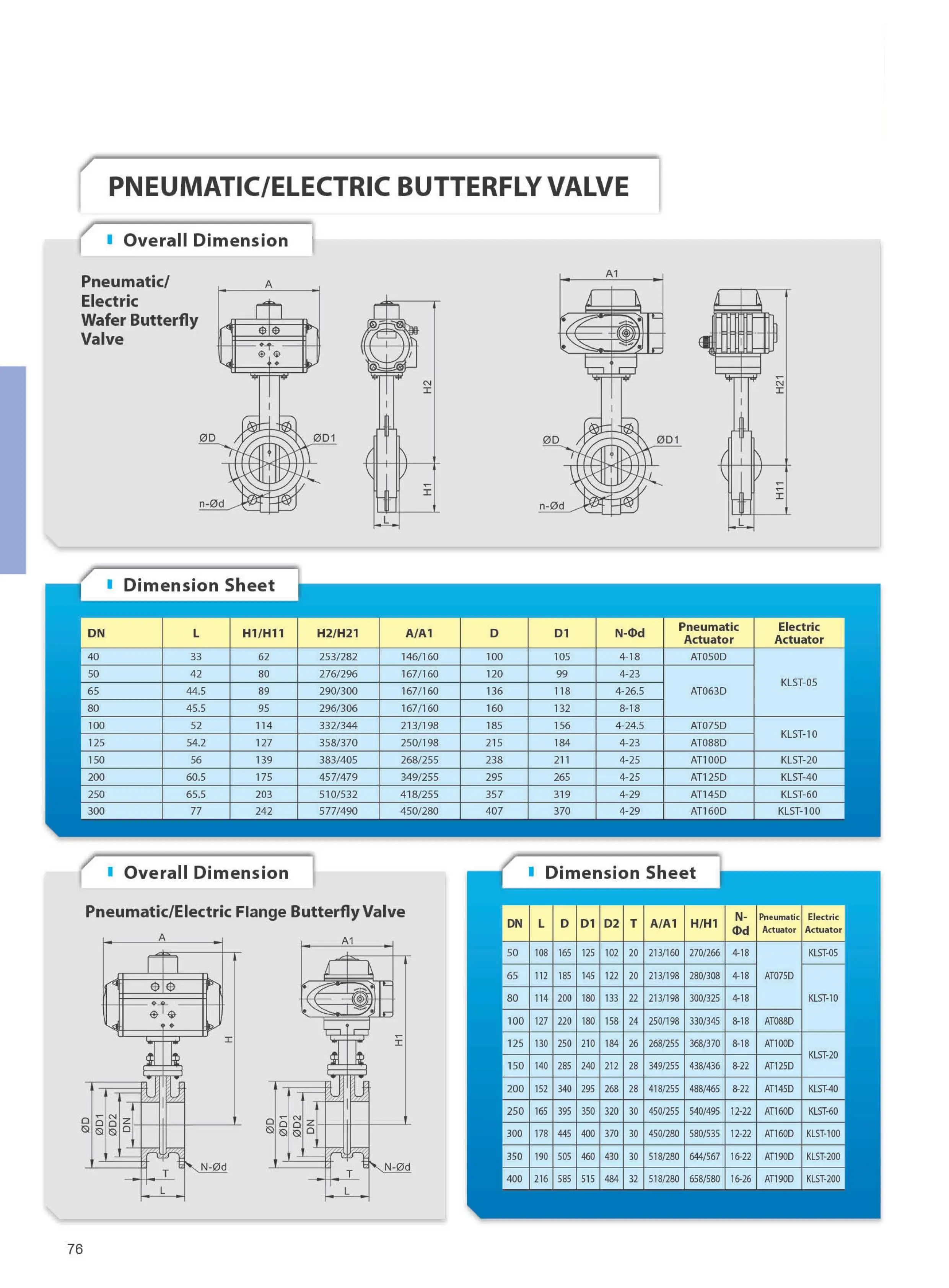

Dimensions
