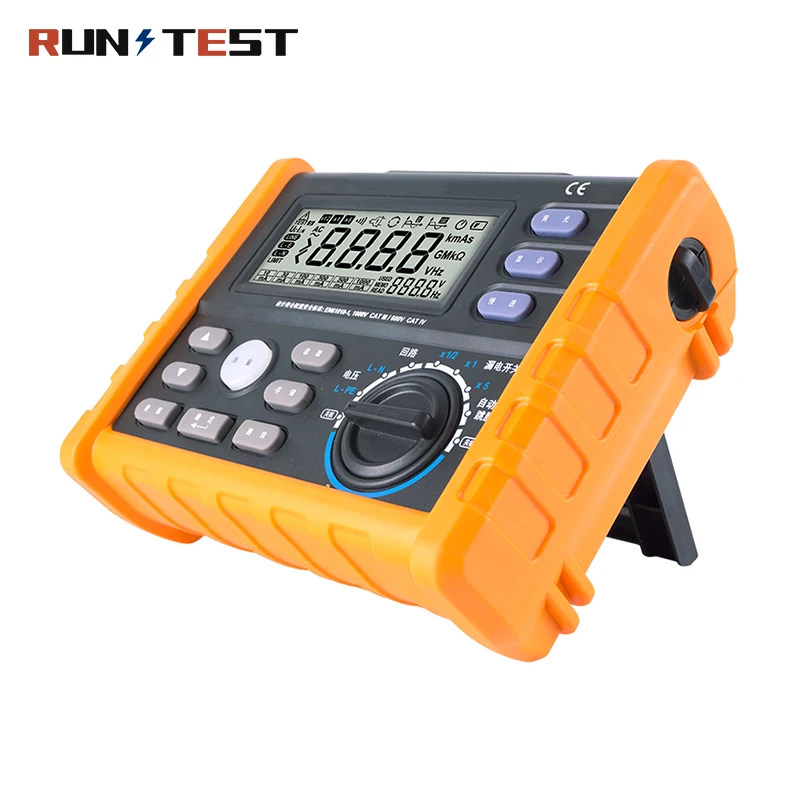

High Accuracy Leakage switch RCD Loop Tester contact resistance RCD digital Multimeter RCD/LOOP Tester is widely used in Electricity, Aarchitect, Electrical Installation area etc. It complys with IEC/EN 61010-1 1000V CAT II, 600V CAT III safety standards. Max common mode voltage: 600V AC RMS.
The instrument can measure trip-out current, trip-out time, loop resistance, and online voltage, frequency measurement etc.

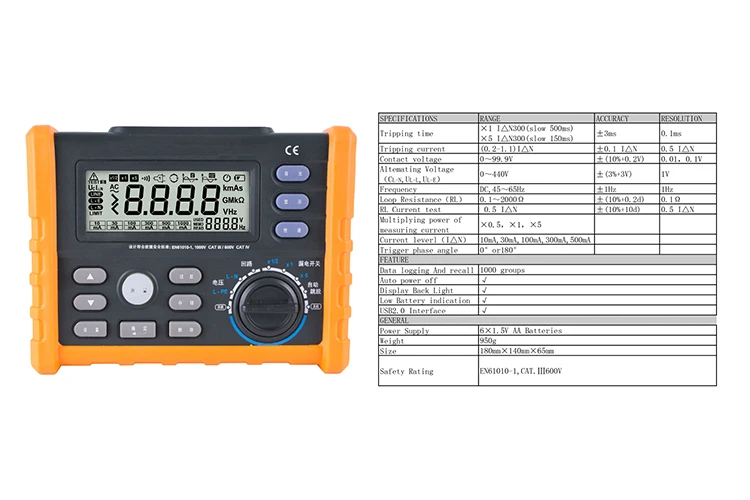

Specification
SPECIFICATIONS
RANGE
ACCURACY
RESOLUTION
Tripping time
×1 I△N300(slow 500ms) ×5 I△N300(slow 150ms)
±3ms
0.1ms
Tripping current
(0.2-1.1)I△N
±0.1 I△N
0.5 I△N
Contact voltage
0～99.9V
±(10%+0.2V)
0.01,0.1V
Altemating Voltage (UL-N,UL-L,UL-E)
0～440V
±(3%+3V)
1V
Frequency
DC,45～65Hz
±1Hz
1Hz
Loop Resistance(RL)
0.1～199.9Ω
±(10%+0.2d)
0.1Ω
200～1999Ω
±(10%+0.2d)
1Ω
2000～9.99KΩ
±(10%+0.2d)
0.01KΩ
RL Current test
0.5 I△N
±(10%+10d)
0.5 I△N
Multiplying power of measuring current
×0.5,×1,×5
Current leverl(I△N)
10mA,30mA,100mA,300mA,500mA
Trigger phase angle
0°or180°
FEATURE
Data logging And recall
1000 groups
Auto power off
√
Display Back Light
√
Low Battery indication
√

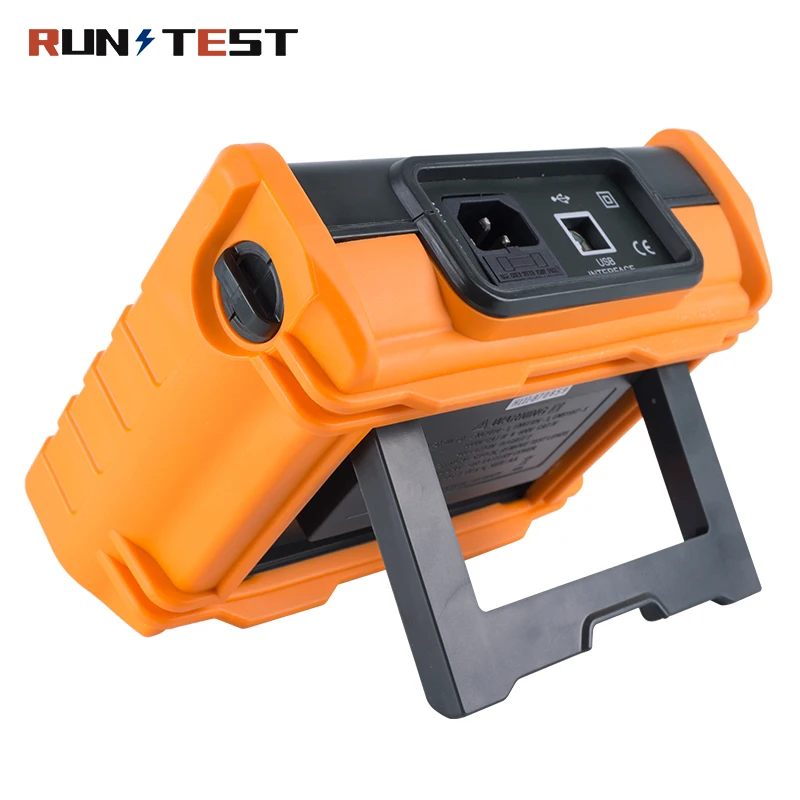

USB2.0 Interface
√
GENERAL
Power Supply

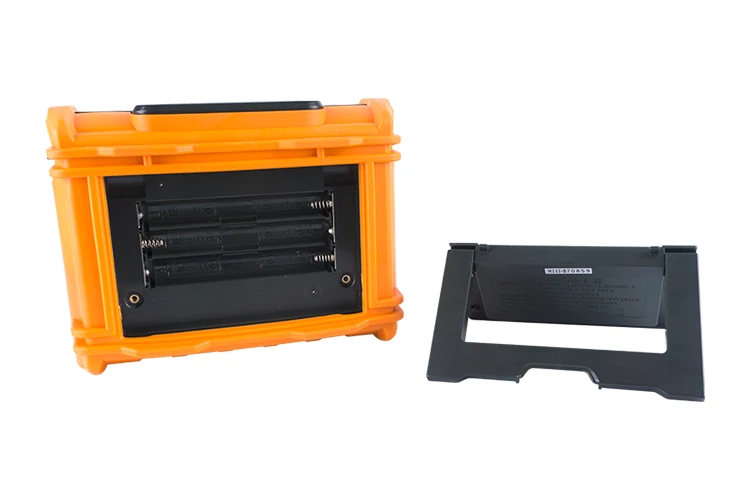

6×1.5V AA Batteries
Weight
Approx.950g
Size
194mm×150mm×72mm
Safety Rating
EN61010-1,CAT.Ⅲ600V
