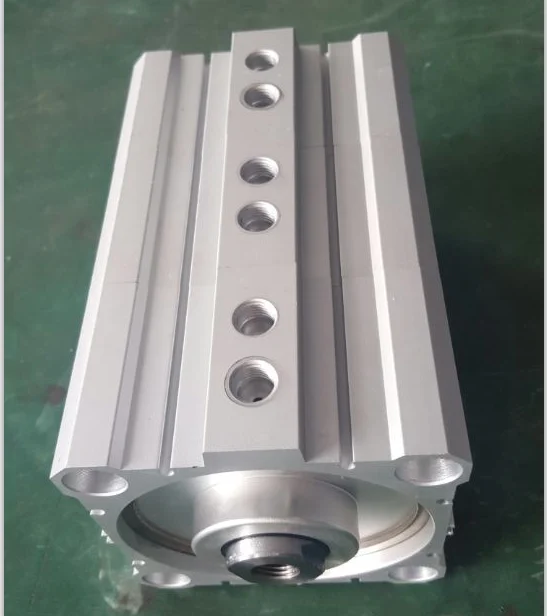

new design CQ2-100-12-3 series alluminum alloy air pneumatic compact cylinder

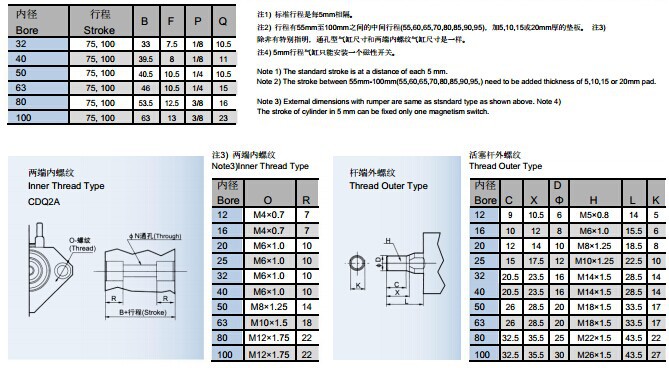

 Product pictures

 Product Description



  Product name : CQ2 Series space save pneumatic cylinder



  Motion pattern : Doulbe Action/ Single Action Extrusion type/Single Action Drawing-in Type


Series CQ2 compact cylinders provide a space- saving design and exceptional service life. They feature front snap ring design for easy access to internal parts. Available in single and double rod models, male and female thread design, double acting, spring return and spring extend. Choose from 12 bore sizes up to 200mm. Optional reed/solid state switches may be used. The aluminum extruded bodies, featuring through-hole and threaded body mounting, provide versatility and reliability in any design application
