OUR ADVANTAGE :
1) New design
2) One year free accessories
3) Accept customized design (Hengwang Group has its own R&D team)
2) One year free accessories
3) Accept customized design (Hengwang Group has its own R&D team)
Product Description

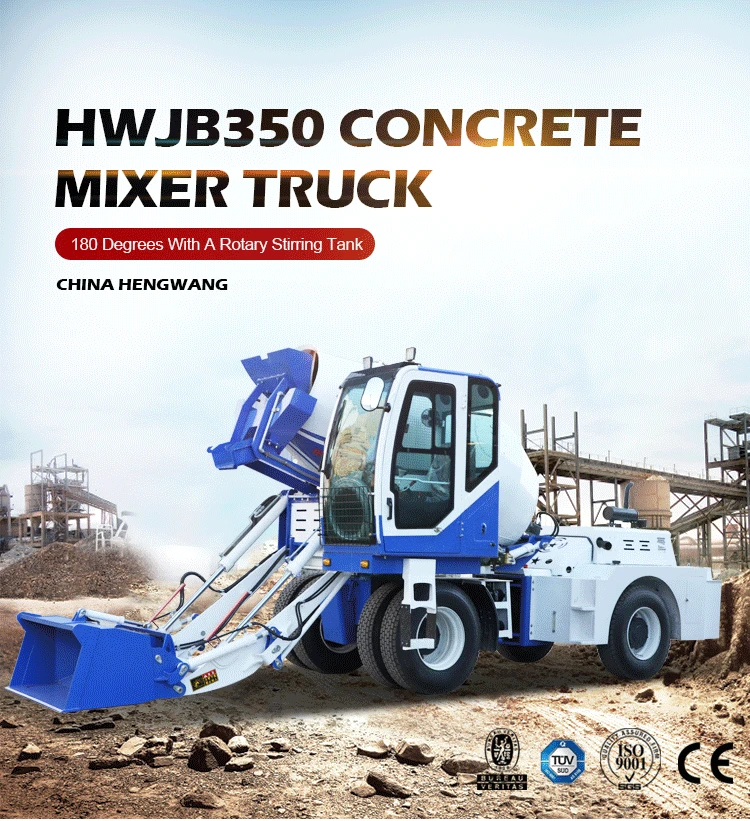

Mini concrete transit mixing truck 3.5m3 mixer truck
HWJB350 Concrete Mixer Truck Production Characteristic
Italy Leading Design，Automatic Feeding Mixing System
Simple And Convenient Operation
High Efficiency Output，Save Time And Labor，Save Cost

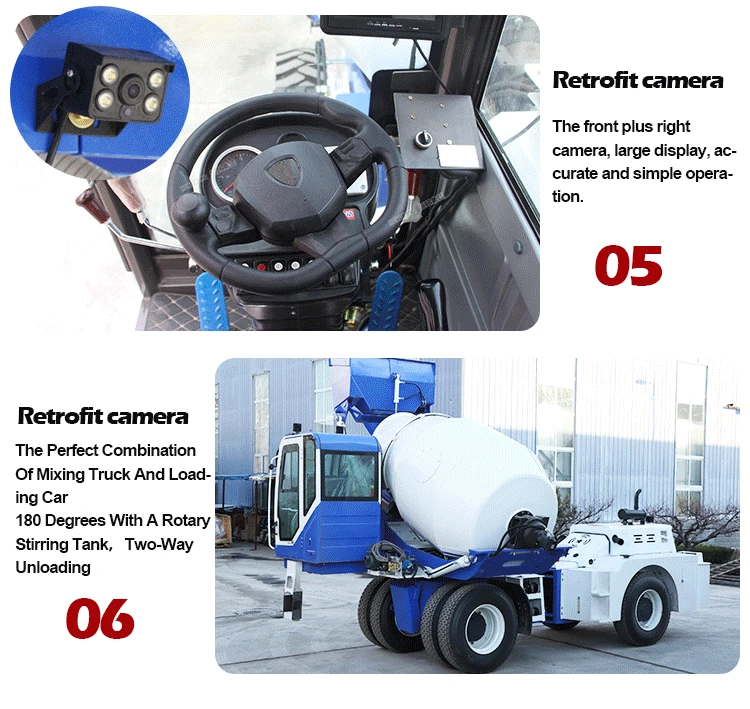

The Perfect Combination Of Mixing Truck And Loading Car
180 Degrees With A Rotary Stirring Tank，Two-Way Unloading
Italy Leading Design，Automatic Feeding Mixing System
Simple And Convenient Operation
High Efficiency Output，Save Time And Labor，Save Cost
The Perfect Combination Of Mixing Truck And Loading Car
180 Degrees With A Rotary Stirring Tank，Two-Way Unloading
Specification
Specifications | Unit | Parameter | ||
Model | / | HWJB350 | ||
Actual stirring capacity | m³ | 3.5 | ||
Rotary drum capacity | m³ | 3.6 | ||
Degree of bias | ° | 16 | ||
Rotational speed | r/min | 10-20 | ||
Direction of rotation | Feed:clockwise output:counter clockwise | |||
Mixing drum blade | Two sets of spiral blades and four sets of auxiliary blades | |||
Slump of concrete | mm | 70-260 | ||
Hydraulic Power Transmission System | ||||
Pump model | CBGV-4025 | |||
Hydraulic motor model | BM5-400 | |||
Reducer ratio | 01：24 | |||
Water Supply | ||||
Tank capacity/ water supply form | L | 540/ automatic timing water supply mechanism with automatic timing | ||
The main performance parameters of the chassis and the main performance parameters of the engine | ||||
Engine type / displacement | L | CF4C100T-Z-13B2 | ||
model | Straight injection type four stroke water cooled supercharged diesel engine | |||
Rated power | kw/r/min | 95KW/2400 | ||
Max torque | N.m/r/min | 380/1500-1800 | ||
Max running speed | km/h | 24 | ||
Min steering radius | mm | 4500 | ||
Climbing capacity | % | 26 | ||
Tire | 16/70-20 | |||
Driving way | 4×4 | |||
Weight | kg | 7500 | ||
Maximum load capacity | kg | 7800 | ||
Whole machinery weight | kg | 15300 | ||
Overall size(L*W*H) | mm | 6650*2600*3200 | ||
The wheelbase | mm | 3000 | ||
Bucket capacity | m³ | 0.6 | ||

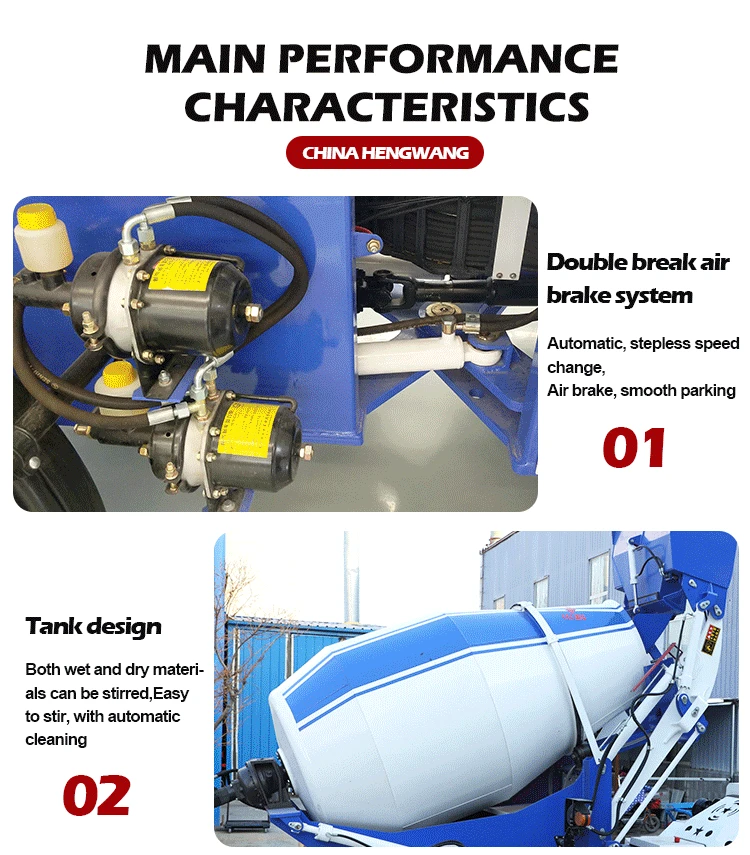

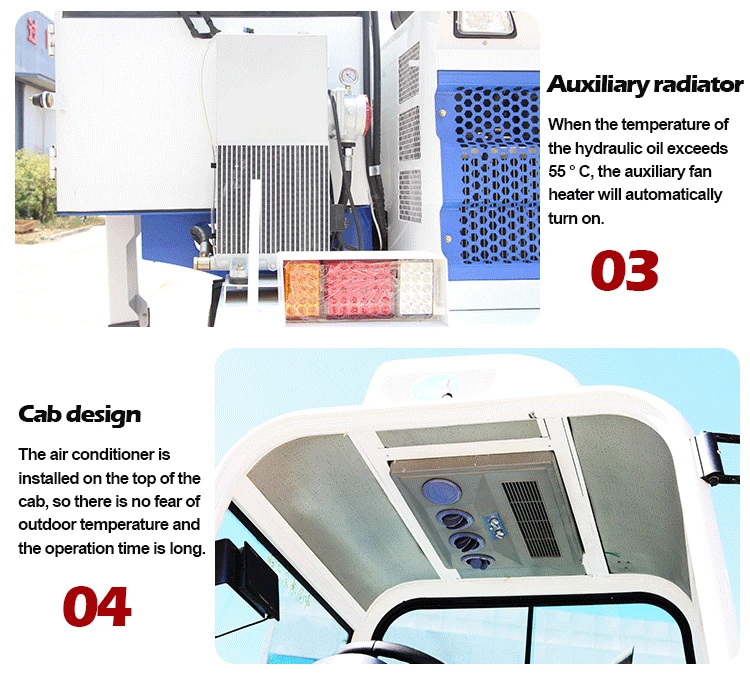

Product analysis
Packing & Delivery
Company Profile
-------------------------------------------------------------------------------------
Mob / What's app:+8618853716329
Tel:+0537-2883178
E-mail: hw007 chinahwgroup.com
Jining hengwang Construction machinery Co.,Ltd
Tel:+0537-2883178
E-mail: hw007 chinahwgroup.com
Jining hengwang Construction machinery Co.,Ltd
