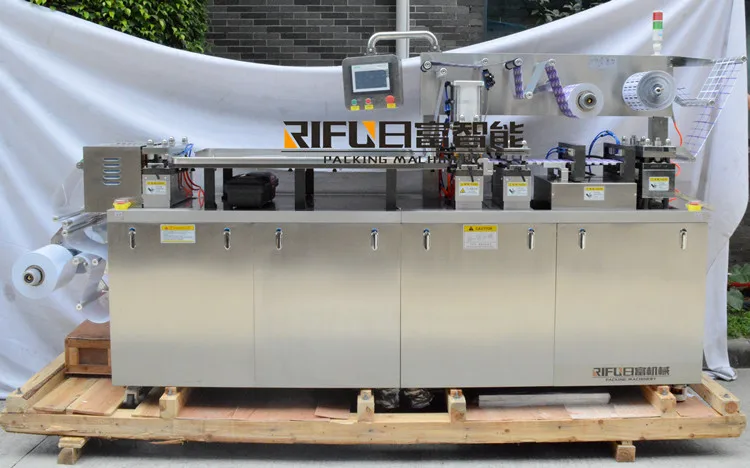

RIFU автоматическая роторная блистерная упаковочная машина для наполнения пластиковых стаканчиков Maquina de embalaje blister
- Категории: Blister Packaging Machines >>>
- Поставщик: Guangdong,Rifu,Intelligent,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Blister packing machine jams and butter blister pack Blister de mermeladas y mantequilla Marmeladen und Butter Blisterpackung
Machine Features:
1.Automatic Blister Packing Machine is a high-tech packing machine for aluminum-aluminum, aluminum-plastic,
paper-plastic packing.
paper-plastic packing.
2.Adopting PLC, frequency converter and man-machine interface with features of all round function, ease
operation, stable running, qualified with GMP.
operation, stable running, qualified with GMP.
3.Molding, heat sealing, indentation, punching and other parts of the body in the same plane can be arbitrarily adjustable spacing, suitable for various sizes of the packaging, high precision, strong applicability.
4.Adjustable stroke, automatic feeding, for heating, positive pressure molding, on net, cylinder heat sealing,
automatic indentation printing, mechanical hand traction, simple operation, reliable operation.
automatic indentation printing, mechanical hand traction, simple operation, reliable operation.
Technical Parameter
Maximum forming area and depth | 140×110×26mm(the standard depth is 14mm) | ||||||
Standard section | 80×57 (can be customized) | ||||||
Standard range of travel | 50-120 (can be customized) | ||||||
Air pressure | 0.6-0.8Mpa | ||||||
Voltage | 220V/380V/50hz(can be customized) | ||||||
Power | 4.5KW | ||||||
PVC Hard Pieces | 0.15-0.5×140mm | ||||||
PTP Aluminum foil | 0.02-0.035×140mm | ||||||
Dialysis paper | 50-100g×140mm | ||||||
Mould cooling | Tap water or circulating water | ||||||

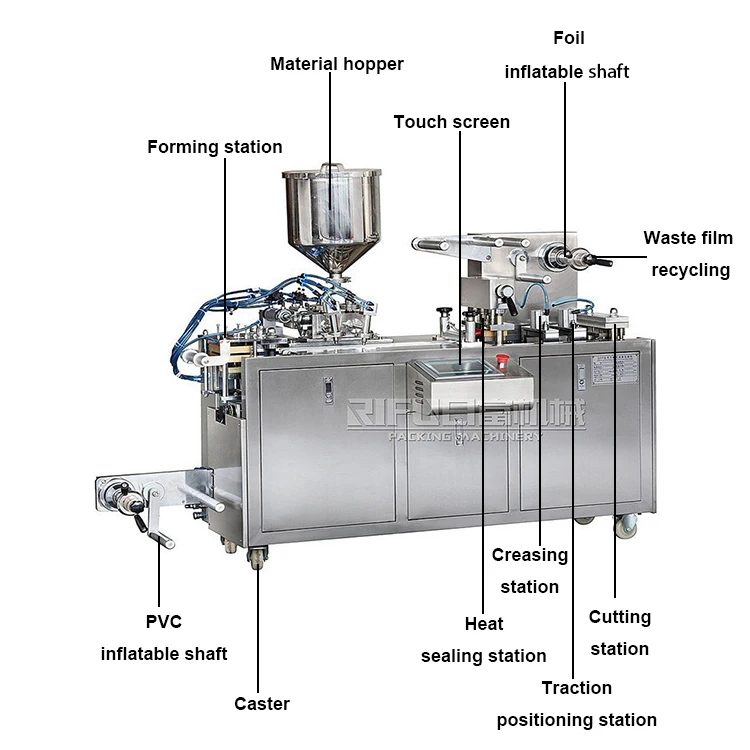

Detailed Images
Rolling film
Mold forming
Sensor
Sealing
Cutting
SIEMENS Touch screen

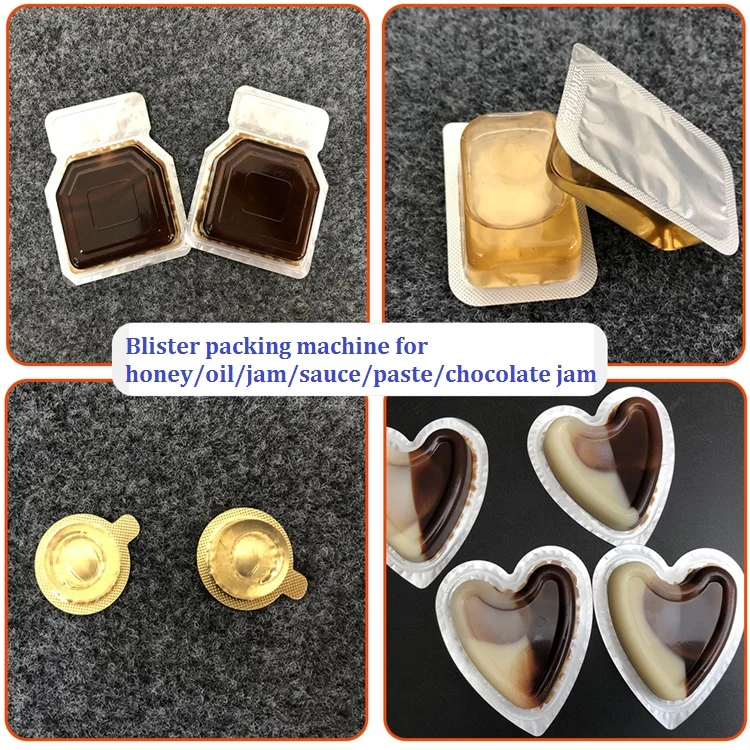

Sample
Suitable for capsule, tablet, big honey pill, candy, liquid, paste, one injector as well as irregular shape Al-plastic,
paper-plastic composite sealing packaging in pharmacy, health care, food, cosmetics, medical equipment industry etc.
