Гидравлические гильотинные ножницы для резки листового

Описание и отзывы

Характеристики

metal sheet cutting machine hydraulic guillotine metal shear blades

Video link:

YouTube: https://youtu.be/ya8VmHqORqA

QQ video: https://v.qq.com/x/page/k3215hu5ul0.html

Baidu video: https://haokan.baidu.com/v?vid=3844352724008884888&bfe=1

Technical Parameters

Model	Max.cutting thickness (mm)	Max. Cutting width (mm)	Shearing angle (  °  ″  )	Strokes (times/min)	Back gauge (mm)	Main power (KW)	weight (kg)	Dimension (L x W x H)  mm
QC12Y-4x2500	4	2500	1°  30″	≥18	20-600	4	4200	3040x1610x1650
QC12Y-4x3200	4	3200	1°  30″	≥14	20-600	5.5	5500	3840x1610x1650
QC12Y-4x4000	4	4000	1°  30″	≥10	20-600	5.5	6500	4640x1705x1700
QC12Y-4x6000	4	6000	1°  30″	≥10	20-600	7.5	15000	6460x2100x3200
QC12Y-6x2500	6	2500	1°  30″	≥18	20-600	7.5	5200	3140x1610x1650
QC12Y-6x3200	6	3200	1°  30″	≥14	20-600	7.5	6500	3840x1610x1650
QC12Y-6x4000	6	4000	1°  30″	≥10	20-600	7.5	7500	4640x1705x1700
QC12Y-6x5000	6	5000	1°  30″	≥10	20-750	11	13500	5786x2200x2160
QC12Y-6x6000	6	6000	1°  30″	≥7	20-800	15	17000	6900x2570x2280
QC12Y-8x2500	8	2500	1°  30″	≥14	20-600	11	5800	3040x1610x1650
QC12Y-8x3200	8	3200	1°  30″	≥10	20-600	11	6800	3840x1610x1650
QC12Y-8x4000	8	4000	1°  30″	≥8	20-600	11	8500	4860x1705x1700
QC12Y-8x5000	8	5000	1°  30″	≥7	20-750	15	15000	5786x2252x2310
QC12Y-8x6000	8	6000	1°  30″	≥5	20-750	18.5	18000	6900x2570x2280
QC12Y-10x2500	10	2500	1°  30″	≥11	20-600	15	6500	3350x2050x1950
QC12Y-10x3200	10	3200	1°  30″	≥10	20-600	15	7400	4050x2050x1950
QC12Y-10x4000	10	4000	1°  30″	≥12	20-600	18.5	12500	4800x2200x2100
QC12Y-10x6000	10	6000	1°  30″	≥10	20-800	18.5	22000	6900x2570x2280
QC12Y-12x2500	12	2500	1°  30″	≥11	20-600	18.5	9500	3350x2050x1950
QC12Y-12x3200	12	3200	1°  30″	≥10	20-800	18.5	11500	4020x2050x2230
QC12Y-12x4000	12	4000	1°  30″	≥8	20-800	18.5	13500	4820x2400x2730
QC12Y-12x5000	12	5000	1°  30″	≥7	20-800	22	18000	5600x2500x2000
QC12Y-12x6000	12	6000	1°  30″	≥6	20-800	22	19000	6900x2570x2280
QC12Y-16x2500	16	2500	2°	≥8	20-800	18.5	11500	3520x2060x2350
QC12Y-16x3200	16	3200	2°	≥7	20-800	22	13500	4062x2300x2320
QC12Y-16x4000	16	4000	2°	≥5	20-800	22	16000	4850x2350x2300
QC12Y-16x5000	16	5000	2°	≥5	20-800	22	25000	5900x2600x2700
QC12Y-16x6000	16	6000	2°	≥5	20-800	22	36800	6900x2700x2700
QC12Y-20x2500	20	2500	2°  30″	≥6	20-800	37	18000	3400x2088x2570
QC12Y-20x3200	20	3200	2°  30″	≥5	30-800	37	23000	4150x2350x2710
QC12Y-20x4000	20	4000	2°  30″	≥5	30-1000	37	19000	4920x2400x2730
QC12Y-20x5000	20	5000	2°  30″	≥4	20-800	37	25000	5900x3000x3300
QC12Y-20x6000	20	6000	2°  30″	≥4	20-800	37	47000	6700x3000x3000
QC12Y-25x2500	25	2500	3°	≥5	30-800	45	19000	3500x2400x2500
QC12Y-25x3200	25	3200	3°	≥4	30-800	45	22000	4200x2400x2500
QC12Y-25x4000	25	4000	3°	≥4	30-800	45	26000	4950x2500x2600
QC12Y-30x2500	30	2500	3°	≥4	30-800	37	28000	3300x2900x3000
QC12Y-30x3200	30	3200	3°  30″	≥4	30-800	45	34000	4200x2500x2600
QC12Y-40x2500	40	2500	4°	≥3	30-800	75	46000	3200x3300x3200
QC12Y-40x3200	40	3200	4°	≥3	30-800	90	58000	4300x3300x3000

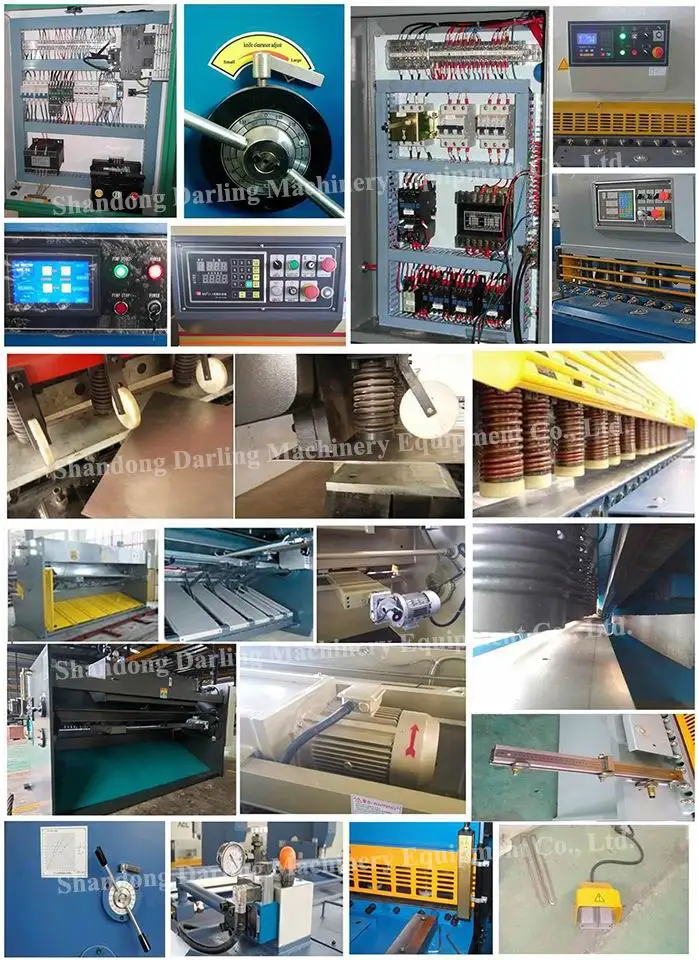

Main configuration

1, electric control parts is manufactured by Schneider.

2, cylinder main sealing parts is manufactured by VALQUA of Japan.

3, hydraulic system is cartridge valve control, main part of hydraulic is manufactured by HOERBIGER of Germany.

4, cutting knife is manufactured by Shanghai brand (shang knife) 6CrW2Si.

5, hydraulic pump standard is space technology, lower noise gear pump NT3 series.

6, line guide and ball screw guide is supplied by HIWIN of Taiwan.

7, hydraulic system joint is EMB of Germany, which keep hydraulic system steady working.

Our service

1, before sales: we will give you professional instruction and help you to buy the suitable machine, after you choose our  machine, let you take the biggest profit through using our  machine.

2, in sales: we will give you feedback informations about your order through photos and video. let you put your heart into stomach.

3, after sales: we will go to your factory to give you a training and teach you how to use our machine, or we will give you a video training. if there is our local agent and office, we will let our local engineer to your factory and give you a training.

4, our quality assurance: all our  machine using life.

Getting Local office support, please contact with our company:

Shandong Darling Machinery Equipment Co., Ltd. Add: Shacun Industry Park, Licheng District, Jinan City, China. Contact person: Martin Hoo +86-15253156158 (WhatsApp) Skype/Wechat: martinhoo936 QQ: 613252158  Website: www.darlingmachinery.com

We will be the best partner



Although we live in different countries, our hearts are always together. We don’t only sell machine, we also sell service, technology and brand. One time cooperation, be friend forever!



Our cooperation is Double win results.



® Our aim is:

Through using our machine, you can make better product and earn more money !



FAQ:

1, are you manufacture or trading company?

we are manufacture more than 15 years, 3 branch factory, more than 10000 square meters.

2, how about your quality ?

we only sell high quality machine, we use the world famous brand component, like SIEMENS, MITSUBISHI, DELEM, PANASONIC, SCHNEIDER, ABB, etc. so there is no worry about our quality.

3, what about your after sales service ?

we go to your factory for site training or you can get local branch company traning, if there is no requirement, we can give you video training in other methods.

4, why  do we must choose you as our supplier ?

customer real voice is your best reference, 5 stars customer feedback reviews, 100% high praise. those voice can let  you to cooperate with us safely.
