Высокоскоростная двойная система Flyknit Jogger 3D обувь верх Компьютеризированная плоская вязальная
- Категории: Knitting Machines >>>
- Поставщик: Dongguan,Benoy,Intelligent,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

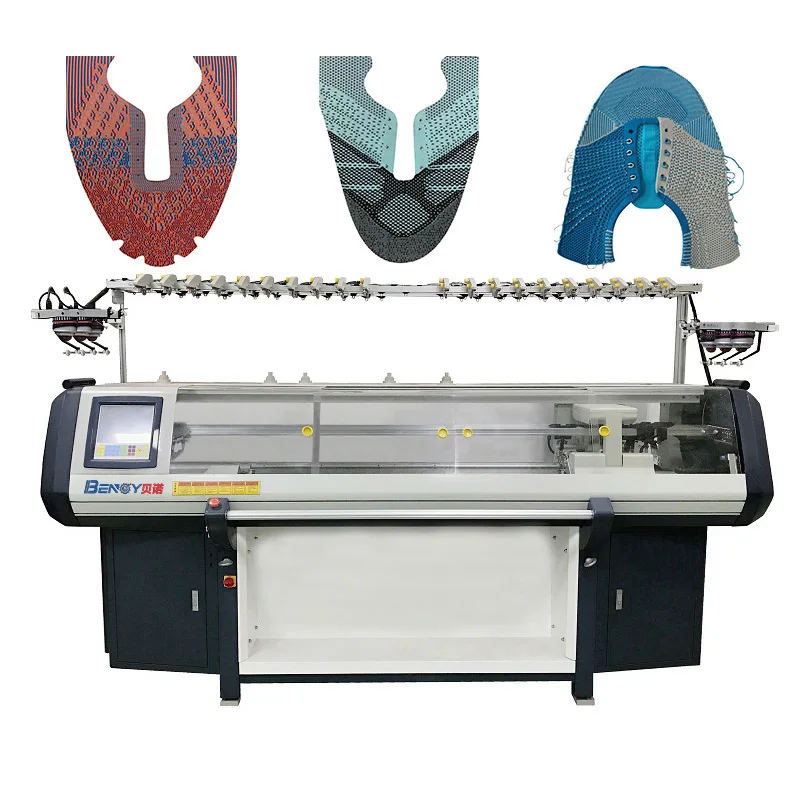

High Speed Double System 3D Shoe Upper Sweater Computerized Flat Knitting Machine
Products Description
Single Carriage with double system , this computerized flat knitting machine are used digital technology to achieve the patterns of knit ,transfer , tuck , pointel , intarsia , jacquard ,apparent shape, hidden shape , and other regular or irregular patterns knitting functions , can knit basic single or double jersey plain fabric , irregular multi-color jacquard , intarsia , cable and pointel structure patterns , which suitable to knit by yarns of pure silk ,mixed silk , synthetic , wool ,acrylic ,mixed fiber material etc. knitted for shaping fabric and accessories of sweater, collar , cardigan ,rib, cuff, scarf, pocket, socks and trousers etc.
Knitting Bed
2*3pcs Yarn Storage
Knitting Needles
Drive Belts
Gauge | 14G, 16G |
Knitting width | 36/52/72 inches |
Knitting system | double systems/triple systems |
Machine speed | The maximum speed is 1.6m/s,32 section adjustable |
Racking | Motor drive, the maximum racking within 2 inches |
Needle actuator | 8 section electronic needle actuator |
Sinker | Driven by stepping motor, latest cross-sinker system design, Can be adjusted for different fabrics |
Roller device | High-order Rollar,32 section automatic control, subsection adjustable |
Stitch density/Loop density | Controlled by 32 section electricity, density adjustment driven by stepping motor, the adjustable range: 0-650 |
Tight tuck | Tight tuck cam controlled by motor, achieve different tightness of the tight tuck, the adjustable range: 0-90 |
Yarn forward device | Yarn feeder and yarn storage device(optional),accurate control of yarn tension, to ensure the quality of the overall quality of the fabric |
Yarn feeder | 2*8 yarn carriers are arranged on the left and right sides of the 4 double side guide rails. |
Transmission system | Belt drive, AC servo motor control. |
Data input | Input and output patterns via USB, PC and Internet |
Protection system | Automatic stopping device if yarn broken, yarn knot, batching, striking, completion, overload, designated starting and stopping, program error |
Safety device | The whole machine cover to reduce noise and dust, the protecting cover is equipped with stopping sensor, emergency stopping and power off device |
Control system | hengqiang/ruineng system |
The screen adopts LCD touch screen display, graphical interface, can store a large number of pattern files, and can be called at any time according to production needs. | |
Through the screen checking page, you can view the working status and actual position of the cam; and adjust it at any time while the machine is running, which is most convenient for operation. | |
The control system (software part) and the pattern-making system are easily upgraded and are free of charge. | |
Multi-language version switching (Set up according to customer requirements) | |
Size&Weight | 2450x750x1750mm, 500KG |
Power | Voltage: AC 220-380V, Frequency: 50HZ/60HZ, Power:1.5KW |

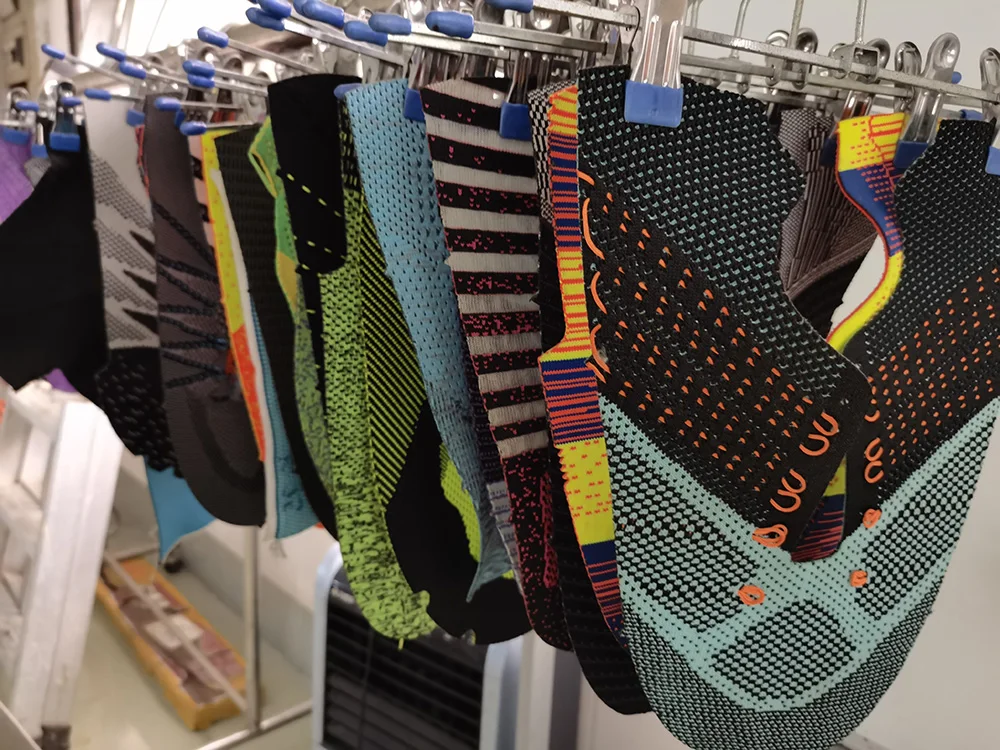

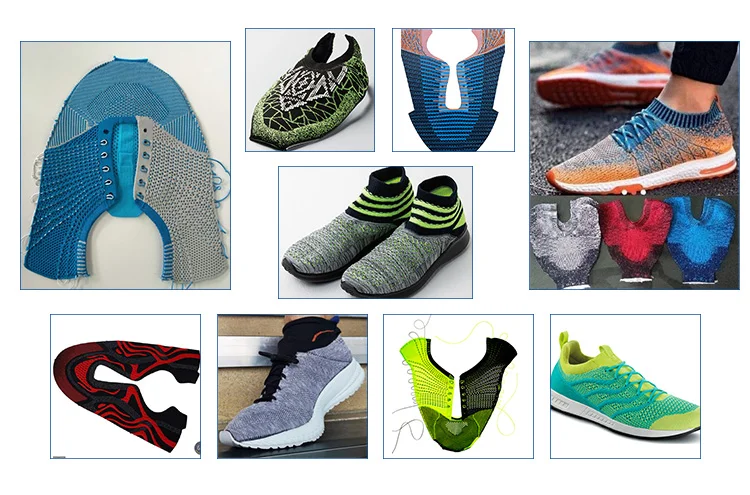

Knitting Sample
Benoy flat knitting machines are mainly suitable for sweaters, shoe upper, jacquard collar, blankets, carpets, scarf, cuffs, hats, etc.
Company Profile
Benoy Intelligent Technology CO., LTD

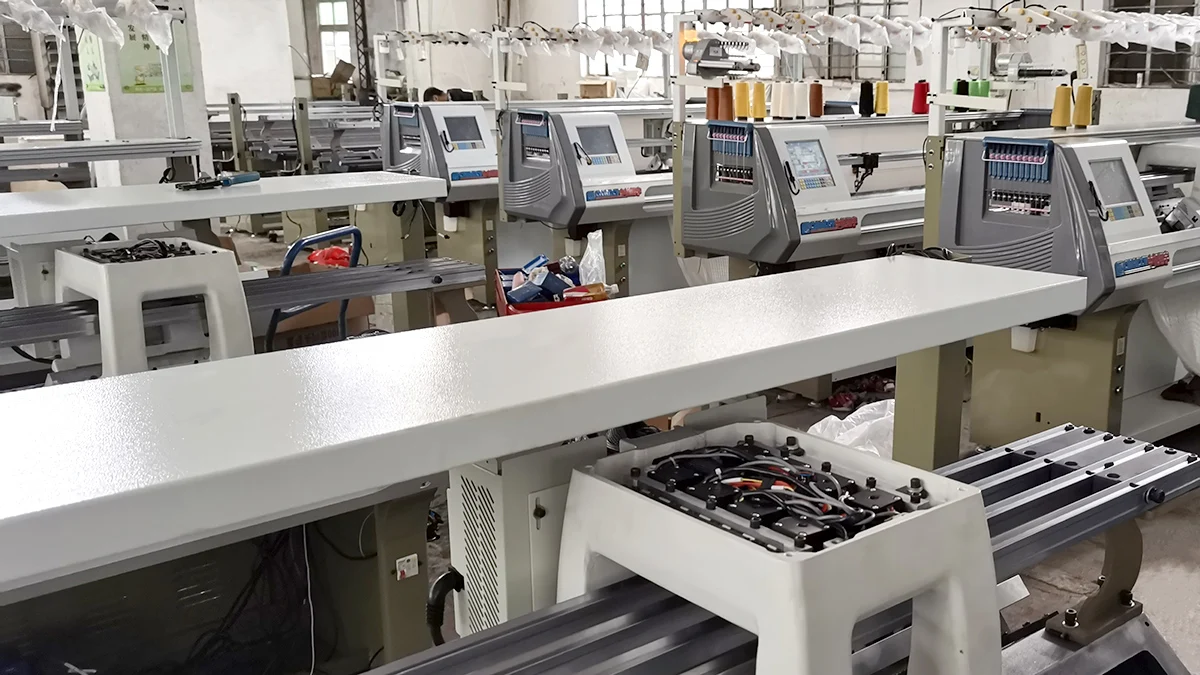

Our factory was established in 2003, located in Dalang Dongguan, where famous as the "hometown of sweater " in China. It's about half hours from Benoy office by car. We have an area covered 13000 square meters: 4000 square meters for flat knitting machine assembling plant, 2000 square meters for flat knitting machine frame producing plant. The left parts is for raw materials treatment place, such as laser cutting, bending, polishing, moulding, painting and CNC of precision spare parts producing , which is other part business of us. Our produce capacity for flat knitting machine is 300 sets for each month. There are total 200 workers in our factory. The flat knitting machine frame, whole construction and needle bed were designed by our own R&D team. So we can OEM&ODM the machine in any size&function as customer demand. We have got patent design of the machine construction.Our sweater flat knitting machine special advantages is smaller and smarter, which is the best choice to save space.
From established till now, we have sold more than 30 thousand machines. Including domestic and oversea business. And the complain rate in the first 5 years is zero.Almost whole half of Dalang sweater factory use our flat knitting machine.
From established till now, we have sold more than 30 thousand machines. Including domestic and oversea business. And the complain rate in the first 5 years is zero.Almost whole half of Dalang sweater factory use our flat knitting machine.
Why Choose Us
Certifications
Packing&Shipment
Contact us
