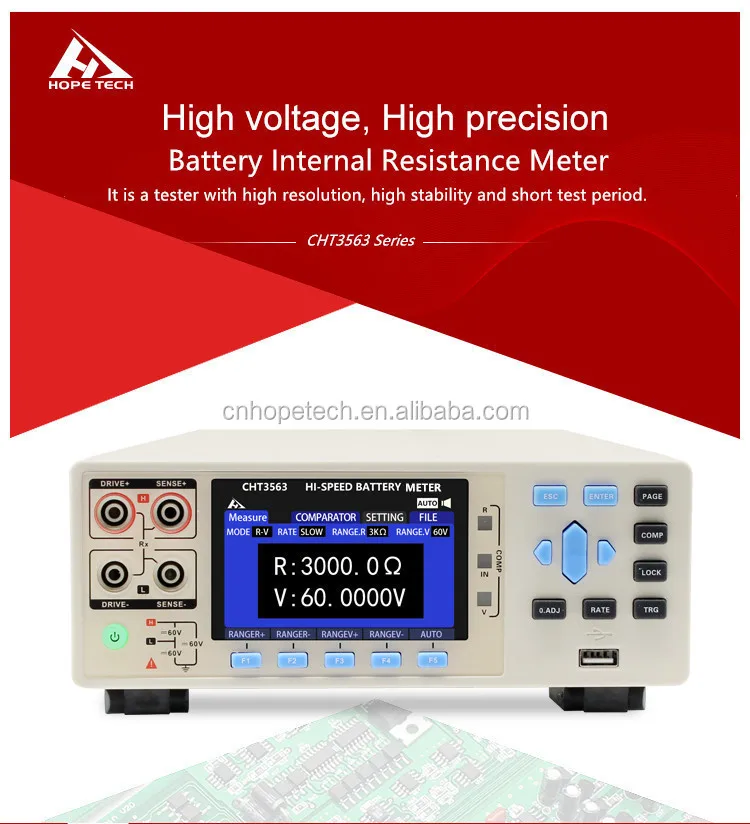

Инструмент для ремонта батареи ноутбука CHT3563 простой в эксплуатации тестер
- Категории: Battery Repair Device >>>
- Поставщик: Changzhou,Chuangkai,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Features
Internal resistance resolution 0.0001mΩ, accuracy 0.3%
Voltage range up to 800V, resolution 0.00001V, accuracy 0.01%
Support multi-channel test (optional multi-channel scan box)
Standard RS232C/485, HANDLER, LAN interfaces
The test speed is 100 times/second at the fastest, and works for automatic sorting machine high-speed sorting.
Application
Battery degradation status and life assessment
High precision lithium battery internal resistance, voltage detection
ESR test of super capacitor (low internal resistance capacitor)
Works for automatic sorting machine for battery internal resistance + voltage automatic test

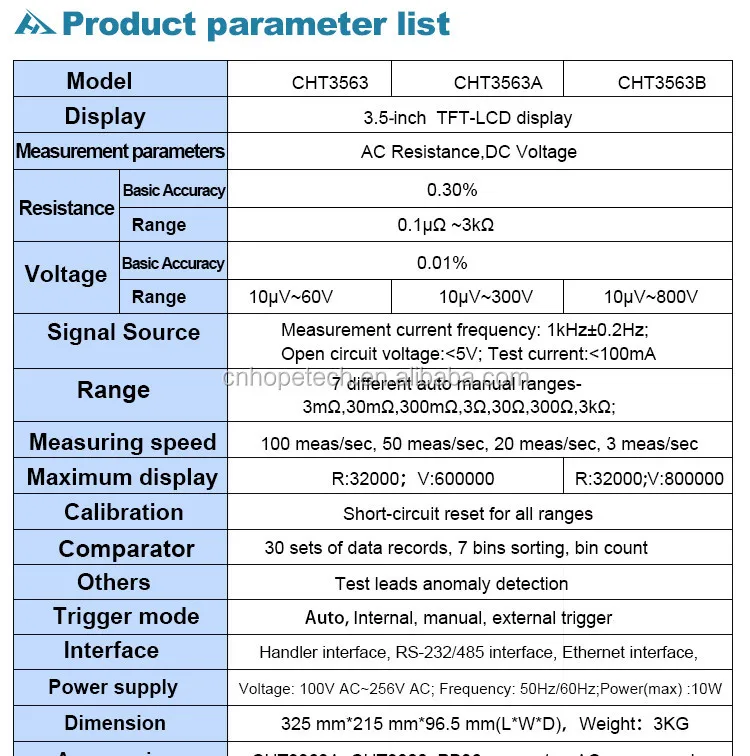

Technical parameter
Model | CHT3563 | CHT3563A | CHT3563B | |

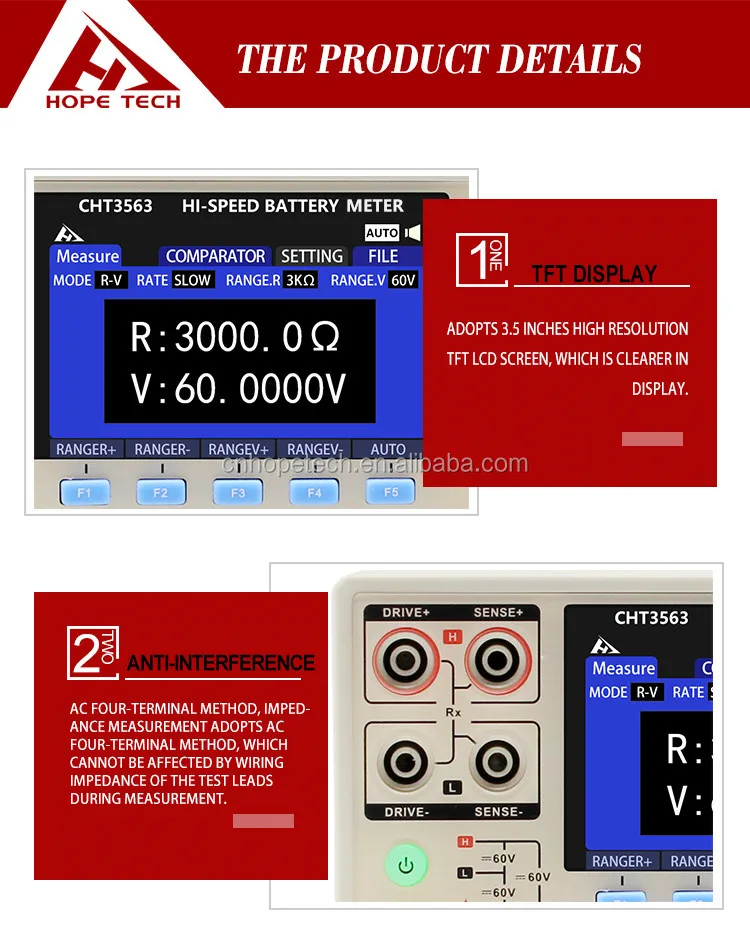

Display | 3.5 inches TFT true color LCD | |||
Signal Source | 1kHz AC test current:<100mA | |||
Measurement Parameters | AC resistance, DC voltage | |||
Internal Resistance | Basic Accuracy | 0.3% | ||
Range | 0.1μΩ ~ 3kΩ | 0.1μΩ ~ 3kΩ | 0.1μΩ ~ 3kΩ | |
Voltage | Basic Accuracy | 0.01% | ||
Range | 10μV~60V | 10μV~300V | 10μV~800V | |
Range | Auto and manual with 7 ranges | |||
Measuring Speed | 100 meas/sec., 50 meas/sec., 20 meas/sec., 3 meas/sec. | |||
Maximum Display | Resistance | 32,000 | ||
Voltage | 600,000 | 600,000 | 800,000 | |
Adjustment | Short-circuit reset for all ranges | |||
Comparator | 30 sets of data records, 7 bins sorting, bin count | |||
Others | Test leads anomaly detection | |||
Trigger mode | Auto, internal, manual, external trigger | |||

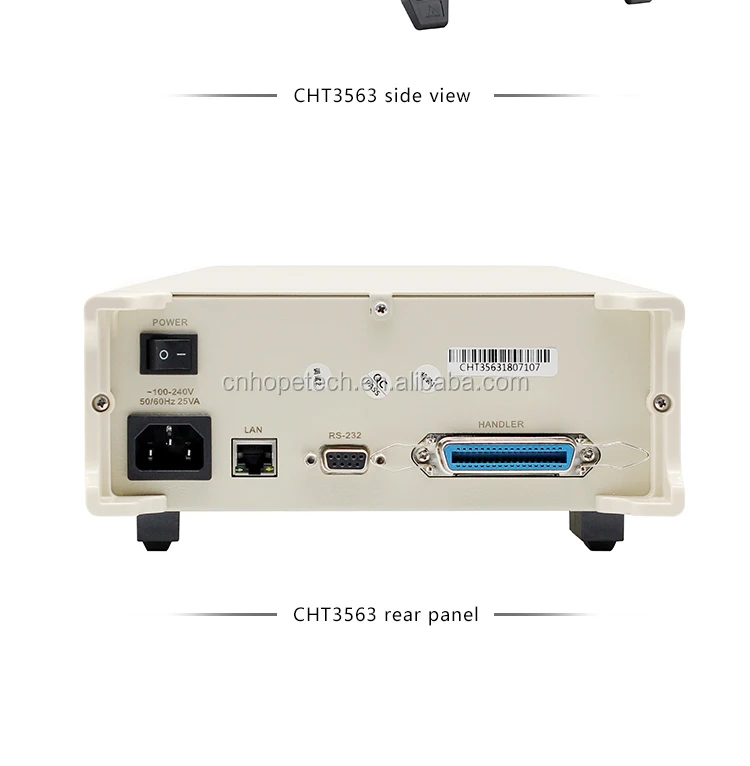

Interface | RS232C/485 Interface, Handler Interface(PLC), LAN interface | |||
Power supply | Voltage: 100VAC~256VAC; Frequency: 50Hz/60Hz | |||
Power(max) | 15VA | |||

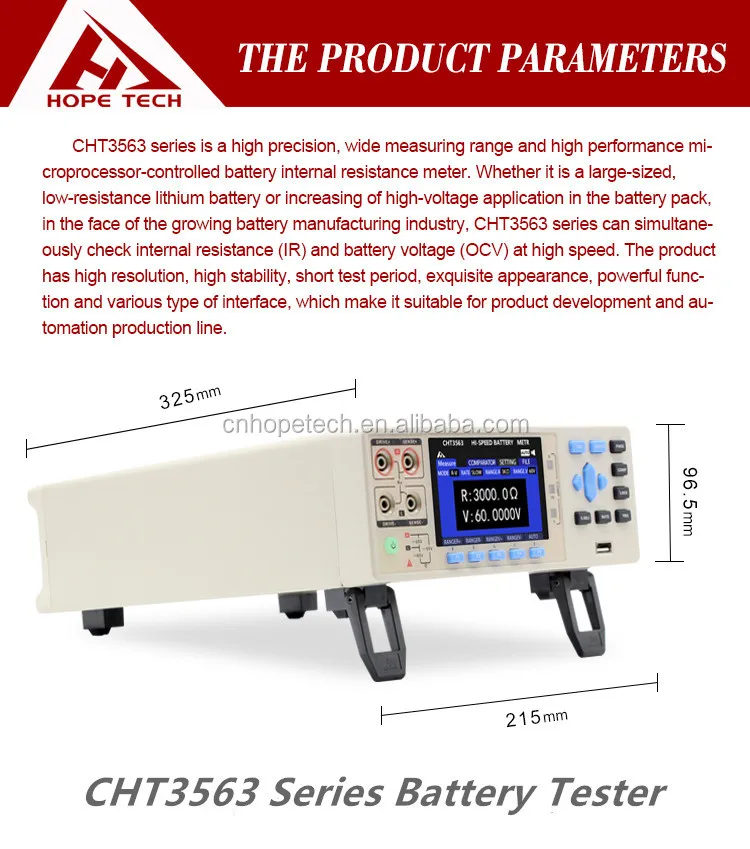

Dimension (L*W*D) | 325 mm*215 mm*96.5 mm | |||
Net weight | 4kg | |||
FAQ
Q: How long is the delivery date?
A: Inventory products will be delivered within 5-7 days after receipt of deposit; products
requiring new production of common materials, usually within 15-20 days; products requiring new production of special and rare materials, usually within 30-40 days.
Q: Can you customize it?
A: There are many models in our company, which can support customization.
Q: Are there any after-sales guarantees?
A: Were one-to-one after-sales It's absolutely satisfying to you.
Q: How many years have you guaranteed it?
A: Instrument quality guarantee for 1-2 years(different products), lifelong maintenance.
Q: Do you provide invoices?
A: Invoices are issued free of charge.
