Комплект деталей для воздушного цилиндра DNC диаметр 32/40/50/63/80/100/125/160 алюминиевый

Описание и отзывы

Характеристики

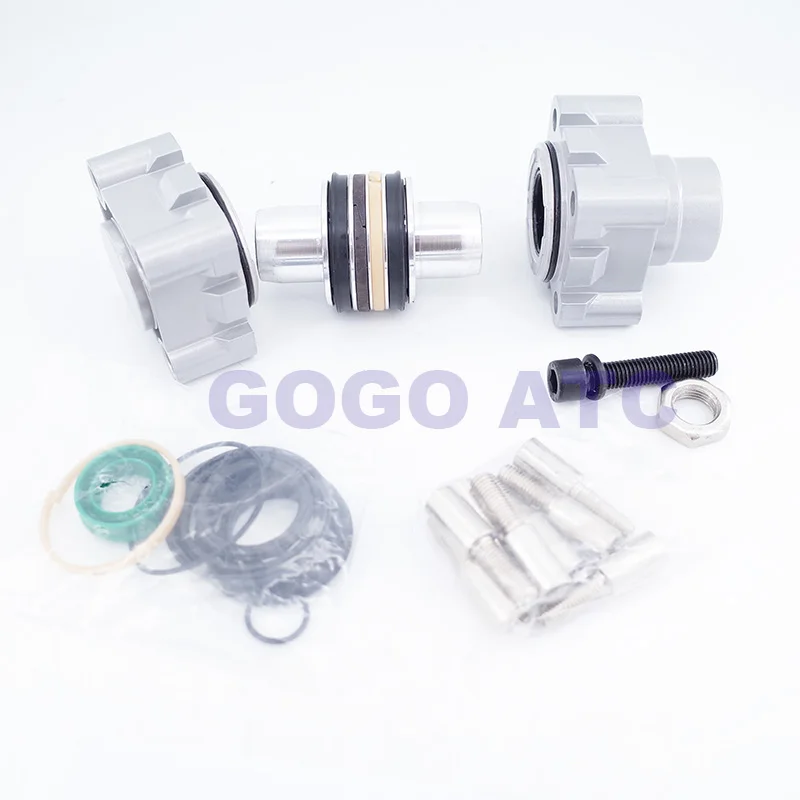

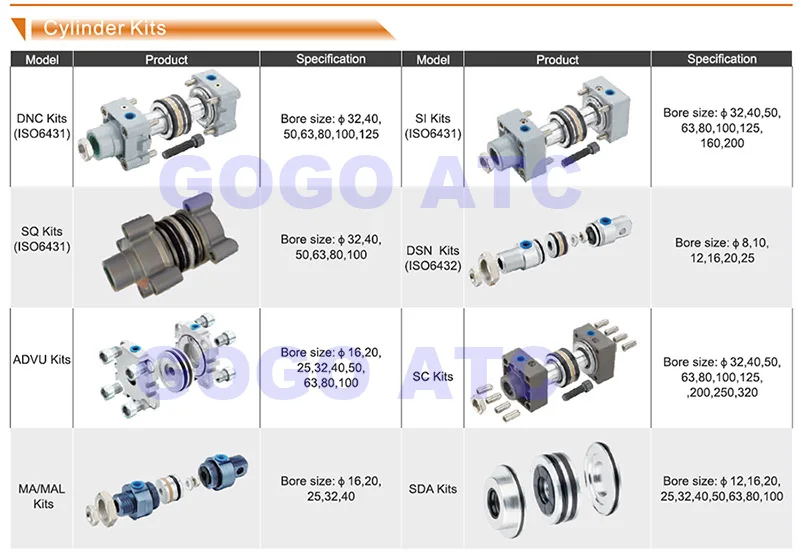

SE/SI/SC/DNC air cylinder body parts repair kits cylinder diameter 32/40/50/63/80/100/125/160 Aluminum profile





Specification



1.Airtac type SC standard pneumatic cylinder. .
2.Good quality and competitive price
3.Magnet: optional
4.1 year warranty

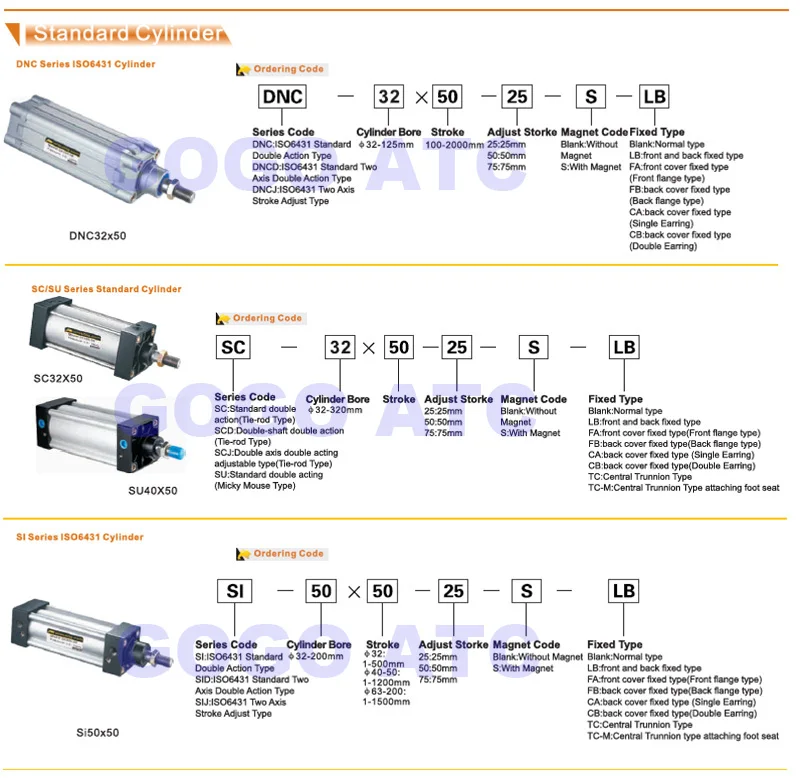

AIRTAC SC Series Double Acting Standard Pneumatic Cylinder-Air Cylinder
Features:
1).Normal bore size from 32mm to 200mm,bigger size from 250mm to 400mm can also be provided.
2).Provided with adjustable cushion on both cylinder end covers to make sure cylinder works smoothly,safely and with low noise.
3).Spray painted cylinder head and internal hard anodized cylinder body.
4).With self lubricating bearing,the piston rod is lubrication free.
5).Magnet and sufficient fixing style are available.
6).Precision grinding piston rod,cylinder parts were processed by high precision CNC machine and good seals to guarantee good action and long lifetime.
7).Double ends SCD,stroke adjustable SCJ and tow –stage SCT can also be supplied.



Bore (mm)	32	40	50	63	80	100	125	160	200
Port Size	PT1/8	PT1/4	PT1/4	PT3/8	PT3/8	PT2/1	PT1/2	PT3/4	PT3/4
Action	Double Action
Working Fluid	Filtered Compressed Air
Working Pressure	0.1-0.9MPa
Proof Pressure	1.5MPa
Working Temperature	~5~70 °C
Cushion	Adjustable Air Cushion at both ends
Piston rod thread	M10X1.25	M12X1.25	M16X1.5		M20X1.5		M27X2.0	M36X2.0








Packing



1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton, Foam outside protecting the goods against damage







Shipment and Payment



1: Usually we ship your order by sea or by air...
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.

4: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.

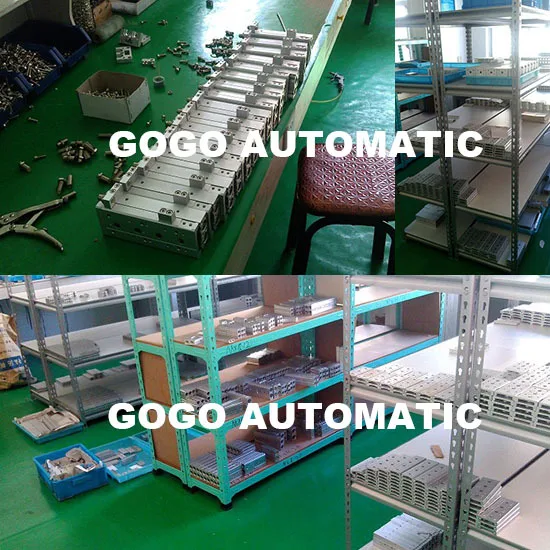

About us

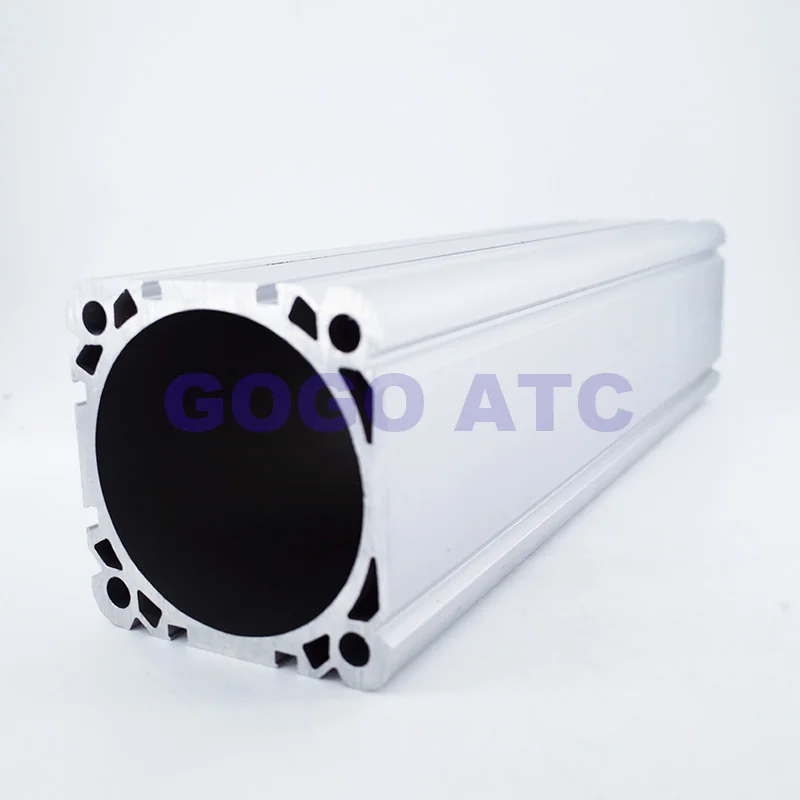

aluminum profile



Skype: bagadandan
