Автоматическая машина для наполнения тормозным маслом на 6 головок и
- Категории: Pharmaceutical Filling Machine >>>
- Поставщик: Brightwin,packaging,machinery,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики
Details
Model No:Automatic brake oil 6 head filling machine metal can brake oil filling and capping machine brake oil 6 head filling machine
(Alibaba trade assurance and TOP gold supplier )
All of our machine can be Customized according to your request
Product parameters
| Name | Automatic brake oil 6 head filling machine metal can brake oil filling and capping machine brake oil 6 head filling machine |
Filling head | 1,2, 4, 6, 8, 10, 12, 16 etc(optional according to speed) |
Filling volume | 10-20000ml etc(customized) |
Filling speed | 360-8000bph(customized) For example 2 nozzles filling machine can fill about 720-960bottles for 500ml bottles/jars |
Filling precision | ≤±0.1% |
Power supply | 380V/220V etc(customized) 50/60HZ |
Power supply | ≤1.5kw |
Air pressure | 0.6-0.8MPa |
Quick wearing parts | sealing ring |
Elements brands list
Brand and materials | |
PLC | Mitsubishi Japan |
Touch screen | Mitsubishi Japan |
Servo motor | Mitsubishi Japan |
Piston cylinder | Genuine SUS316 stainless steel CNC grinding machine, thickness 5MM |
Three-way components | SUS316L stainless steel material |
Filling three-way steering valve | Fast loading Designed by Germany |
Filling nozzles assembly | SUS316L stainless steel anti-drip quick-load design |
Cylinder | Taiwan genuine Airtac |
Filling pipe | fast loading pipe from Italy |
Sealing ring | Variseals sealing;It is composed of stainless steel spring and UPE |
Low-voltage electrical parts | Schneider |
Rack | SUS304 stainless steel |
bearings | Japan NSK, original imported |
Level control | With |
Product display

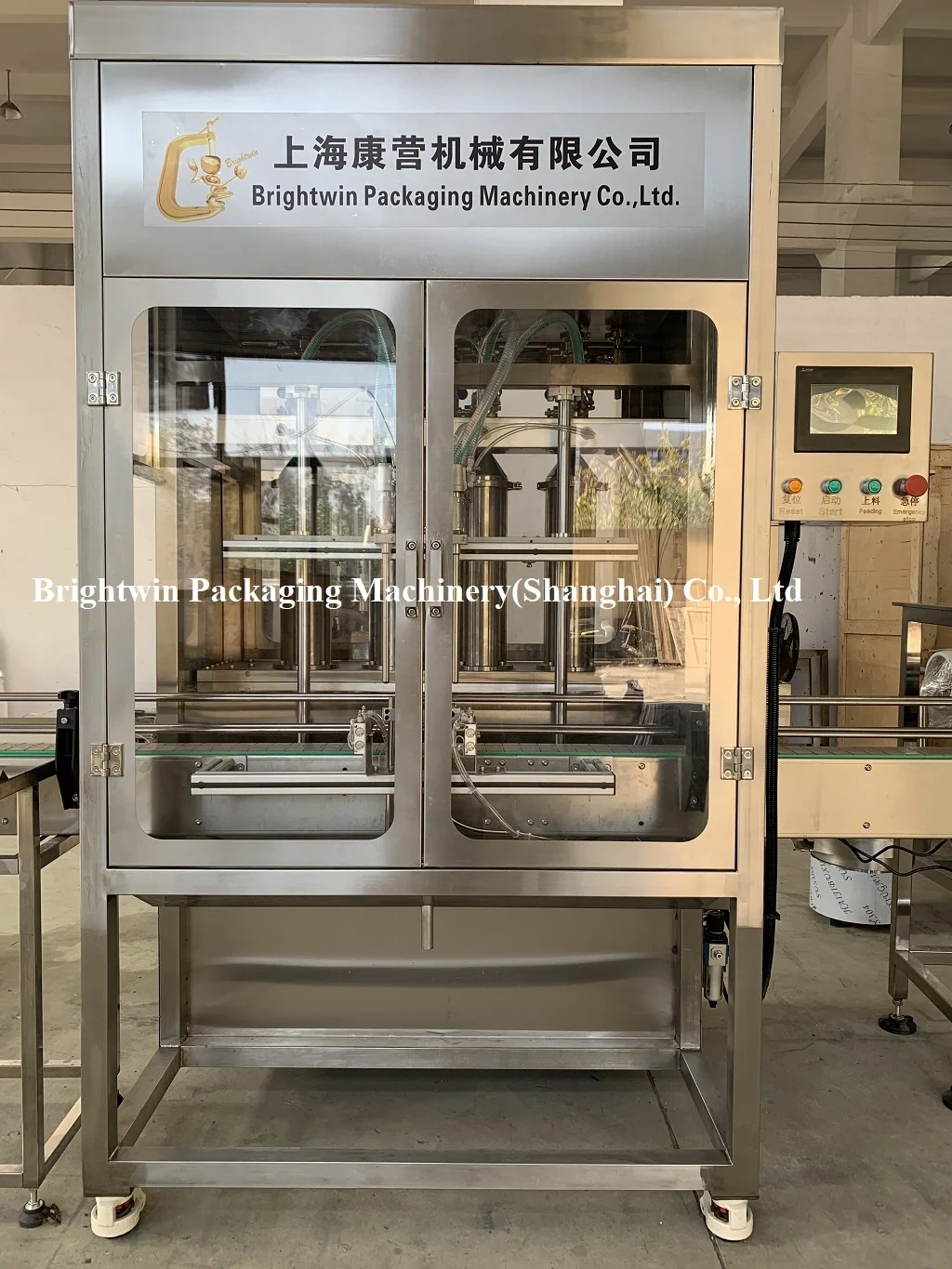

1.Automatic filling machine
The volume is adjustable,just input the volume you want on the touch screen.
Detailed parts of the filling machine
1.Long and thick filling nozzle:Equipped with SUS316L long special designed no
drip filing nozzles, which can protect the cylinder on the top being damaged by material,
drip filing nozzles, which can protect the cylinder on the top being damaged by material,

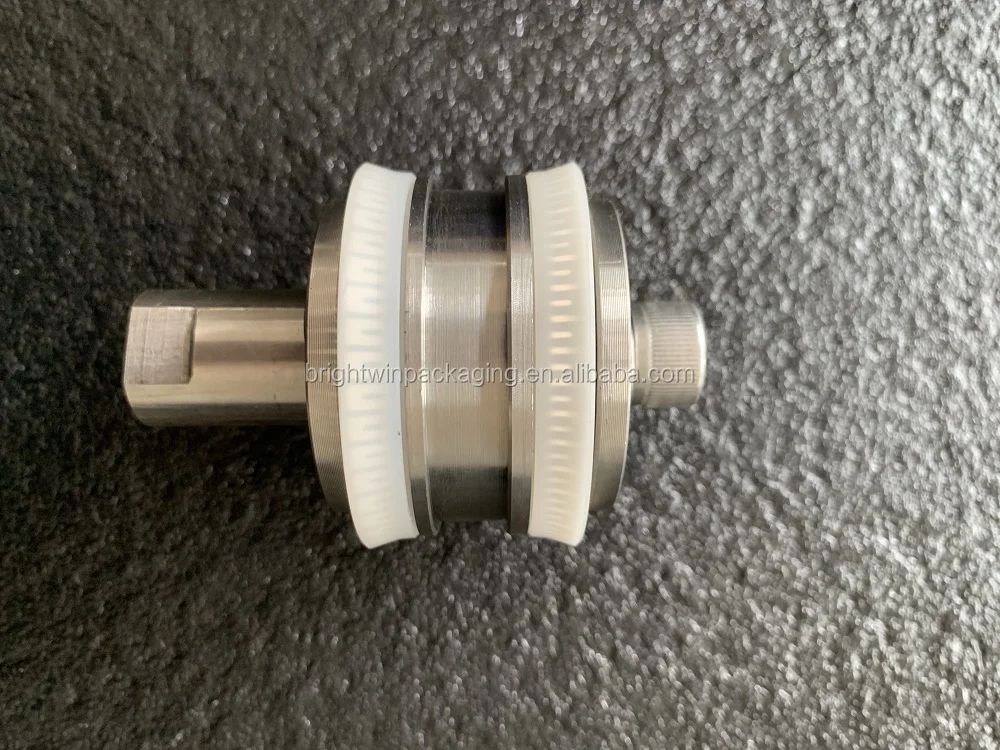

2.sealing ring:
Imported from Germany. It is composed of stainless steel spring and UPE (ultra high molecular weight polyethylene)
Withstand temperature range: -200 ℃ to 300 ℃ ;Low friction coefficient (especially under the high working pressure)
3. Piston pump:304 frame, 5mm thick SUS316L piston pump, manufactured by Taiwan producer

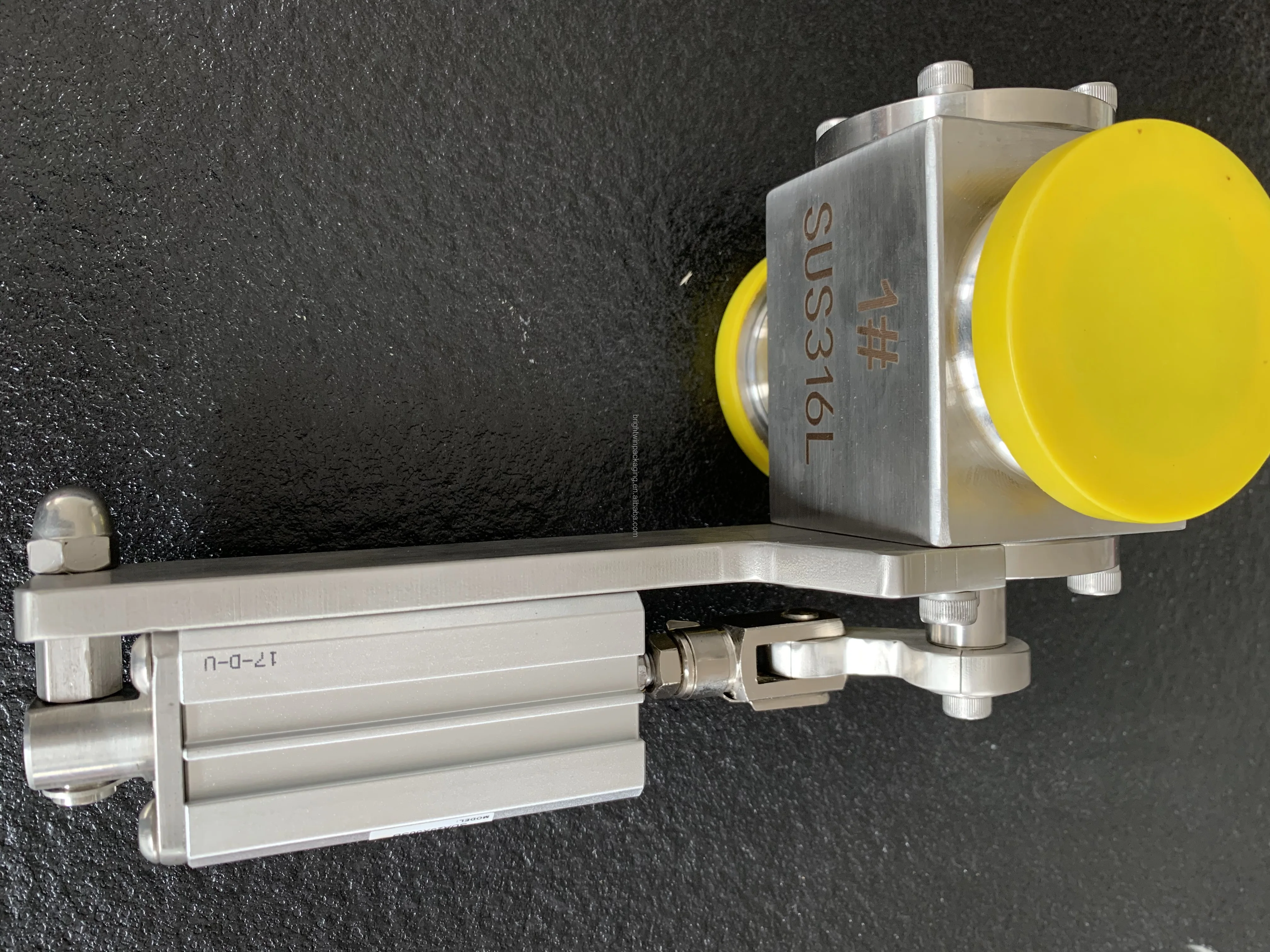

4. Rotary valve:With sensor in each SUS316L rotary valve and filling nozzle, if there is any problem in any nozzle, it shows in touch screen, its easy to be found.

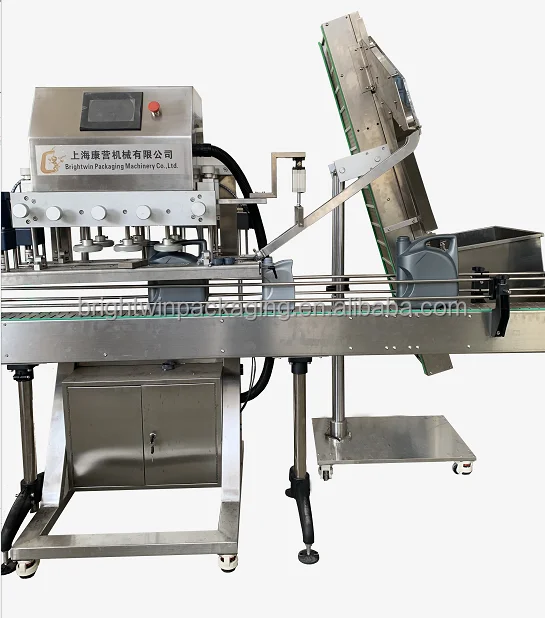

2. Automatic capping machine
Automatic capping machine for many different kinds of bottles and caps
3. Automatic multi-functional labeling machine
(this machine is avaiable for all of your different bottles and labels)

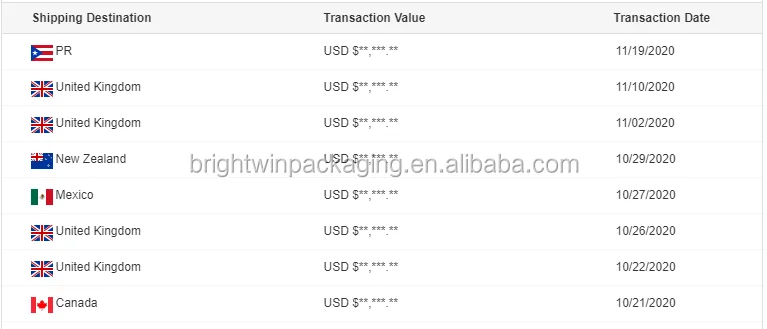

Some of Transaction History
Contact us
Clients feedback
Our partner and factory
WeChat/WhatsApp:86-15730993174
Welcome to visit our company at any time
