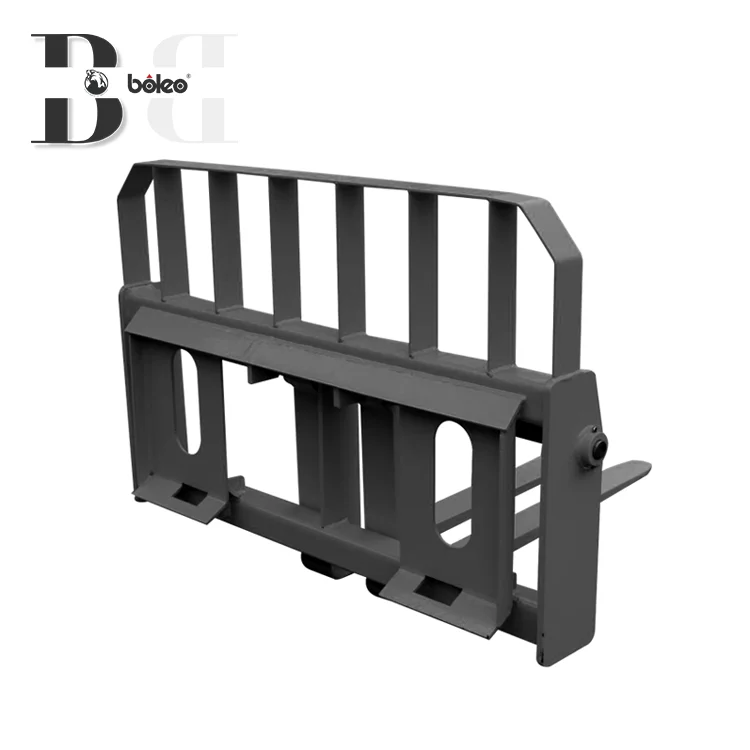

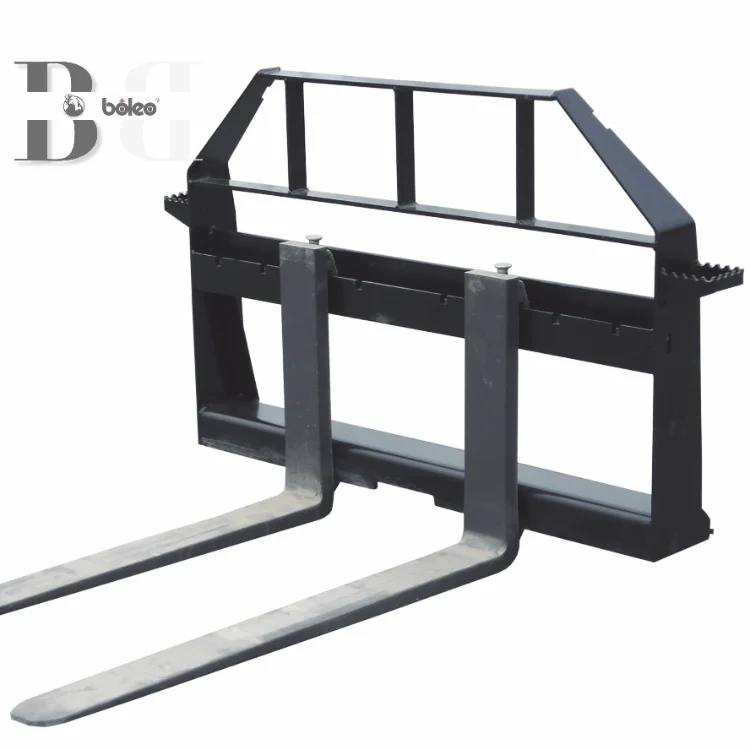

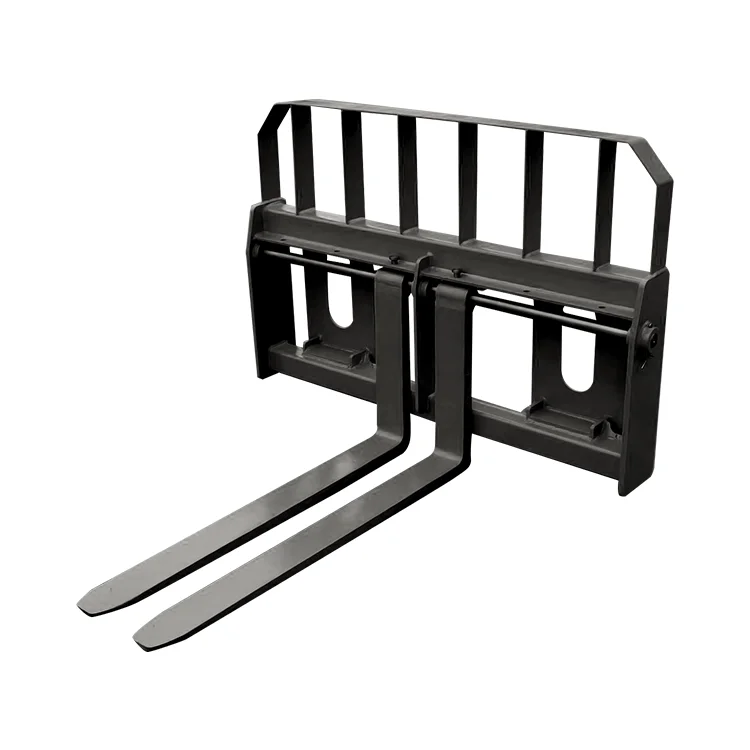

Быстрое крепление вилок для погрузчика с бортовым поворотом и трактора грузоподъемностью 1500
- Категории: Material Handling Equipment Parts >>>
- Поставщик: Boleo,Machinery,Equipment,(Changzhou),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
FEATURES
● Universal Quick-Attach
● Lever style locks provide additional leverage when operating the tine latching mechanism
● Heat-treated forged tines, material is AISI 5140 alloy steel/40Cr (295 MPa or 42,800 PSI Minimum Yield Strength),manually adjustable
● Locking position pins
● Excellent see through visibility allows the operator to see tine ends
● Easy adjustable Forks, forks slide easily on carrying bars from one position to another
● Meets most needs for low cost fork lift handling on customer owned skid steer loader with skid steer style loader hitch or front tractor loaders
● Custom carriage widths and tine lengths available(Tine lengths options 1,070 mm / 1,220 mm /1,370mm / 1,520 mm / 1,670 mm)
● Easy adjustable Forks, forks slide easily on carrying bars from one position to another
● Meets most needs for low cost fork lift handling on customer owned skid steer loader with skid steer style loader hitch or front tractor loaders
● Custom carriage widths and tine lengths available(Tine lengths options 1,070 mm / 1,220 mm /1,370mm / 1,520 mm / 1,670 mm)
SPECIFICATIONS | ||||
Model | BPF10 | BPF15 | ||
Overall Width(mm) | 1590 | 1590 | ||
Overall Height(mm) | 820 | 820 | ||
Length of forklift teeth(mm) | 1070 | 1070 | ||
Height of forklift teeth(mm) | 30 | 35 | ||
Width of forklift teeth(mm) | 90 | 100 | ||
Range of adjustable distance(mm) | 330-1290 | 330-1290 | ||
Weight(Kg) | 175 | 190 | ||
Rated Lift Capacity(kg) | 1000 | 1500 | ||
Compatible Carrier | Skid Steer Loader/Compact Loader | |||
