Product Description
Product Description.
UKK 125A Din Rail Unipolar Junction Box Screw Distribution Block
UKK125A Power Distribution Terminal Block Box on Din Rail
Choose your UKK Junction box direct manufacturer--Mindian Electric . Our UKK Junction box advantages:
1.Competitive price of course,
2.Made of flame-retardant shell, it is high temperature resistant and corrosion resistant
3.Good insulation performance and durability for using
4.The transparent cover can see if the cable is connected reliably.
5.The box is easy quick to install on the rail
6.Generally used in power distribution cabinets, distribution boxes, and various high voltage cabinets
Choose your UKK Junction box direct manufacturer--Mindian Electric . Our UKK Junction box advantages:
1.Competitive price of course,
2.Made of flame-retardant shell, it is high temperature resistant and corrosion resistant
3.Good insulation performance and durability for using
4.The transparent cover can see if the cable is connected reliably.
5.The box is easy quick to install on the rail
6.Generally used in power distribution cabinets, distribution boxes, and various high voltage cabinets
7.We make stocks, small qty can send in short time.

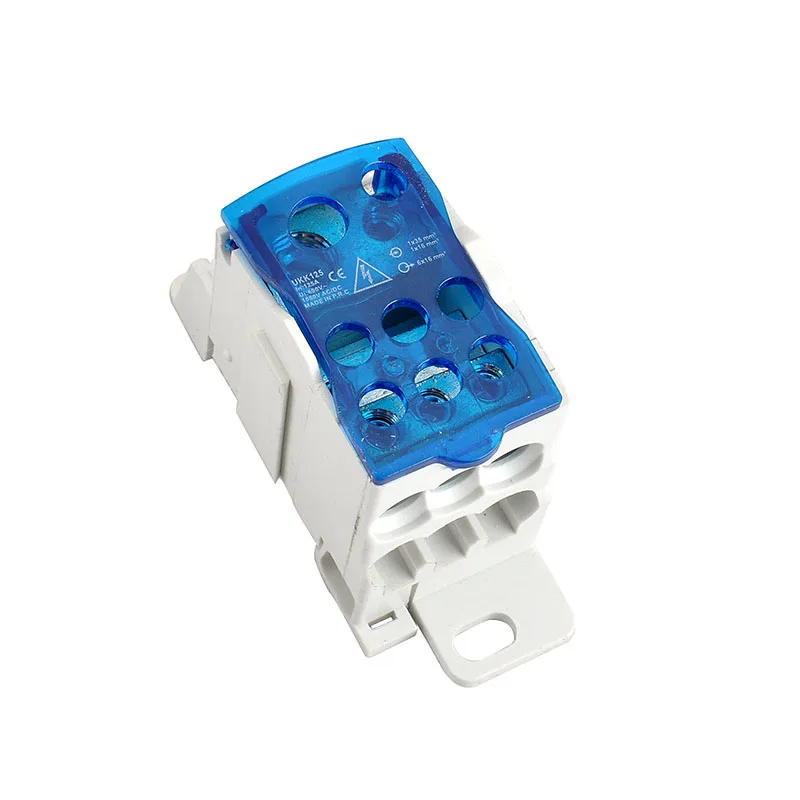

Product Name： | Factory Price UKK 125A Din Rail Unipolar Junction Box Screw Panel Power Distribution Block |
Model： | UKK-125A |
BRAND： | MINDIAN |
Rated current： | 125A |
Voltage :： | 690v |
Enter detail ： | 1x35mm2 |
Output detail ： | 4x16/6x16mm2 |
CERTIFICATION： | CCC CE ISO9001 |
Product Detail
Installation Instructions

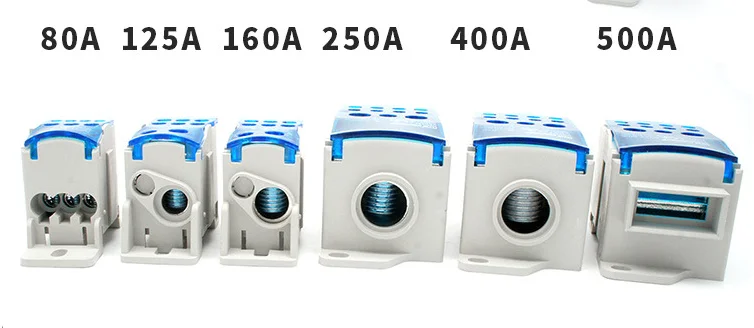

Model number | Current | Voltage | Conductors with starfix temules X-section(mm2) | QTY of hole(pcs) | Dimensions(L*W*H)MM |
UKK-80A | 80A | 690V IEC | Enter 6 to 16 output2.5 to 6 output2.5 to 16 | 1 4 2 | 30*69*49 |
UKK-125A | 125A | 690V IEC | Enter 10 to 35 output 6 to 16 output2.5 to 16 | 1 4 6 | 29*77*46 |
UKK-160A | 160A | 690V IEC | Enter 10 to 35 output 6 to 16 output2.5 to 16 | 1 4 6 | 29*77*46 |
UKK-250A | 250A | 690V IEC | Enter 35 to 120 output 6 to 35 output2.5 to 16 output2.5 to 10 | 1 2 5 4 | 47*96*50 |
UKK-400A | 400A | 690V IEC | Enter 95 to 185 output 6 to 35 output2.5 to 16 output2.5 to 10 | 1 2 5 4 | 47*96*50 |
UKK-500A | 500A | 690V IEC | Enter 4*15.5*0.8 to 8*24 output 6 to 35 output2.5 to 16 output2.5 to 10 | 1 2 5 4 | 49*96*50 |

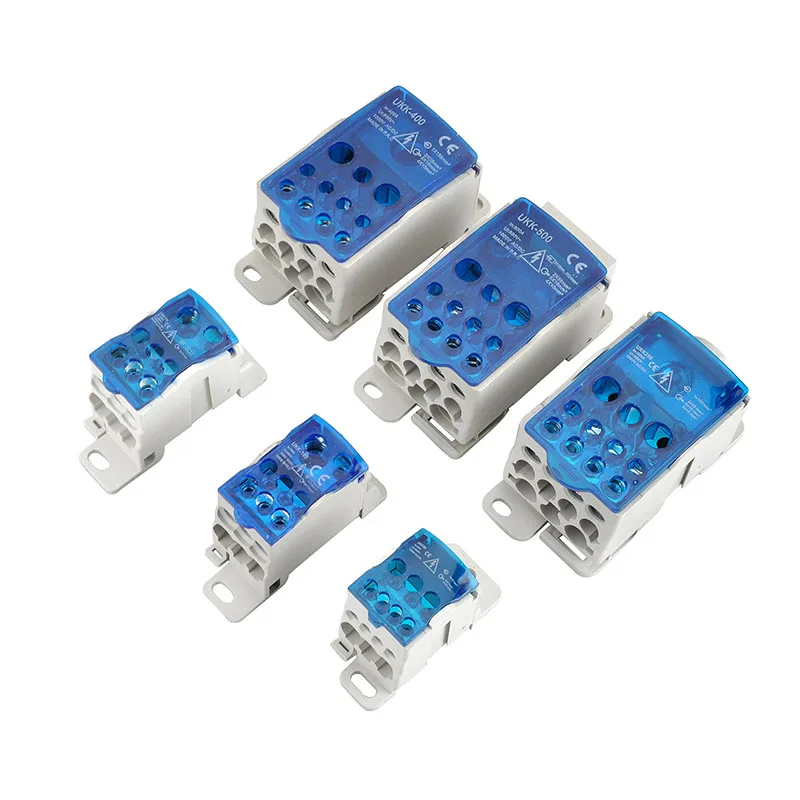

UKK distribution terminal block
These blocks are used in electrical power distribution. An electric power distribution terminal block is a convenient, economical
and safer way to distribute power from a single input source to multiple outputs. Complete with main removeable cover.High
conductivity with excellent electrical contacts.
Compact design.
* Simple and Safety Operating
* Install on 35mm wide DIN rail or chassis mounting with screws.

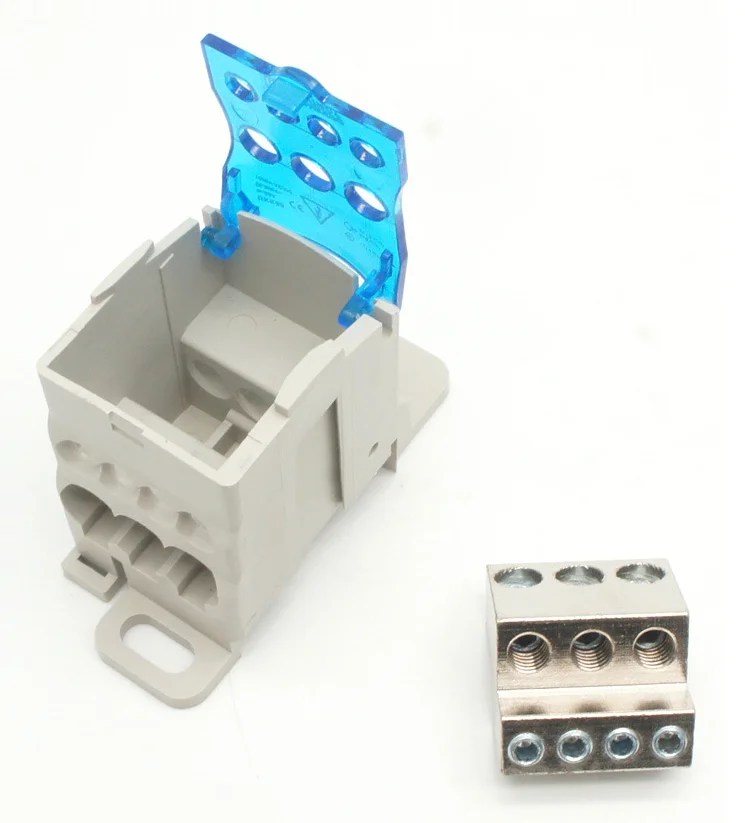

* With Dust-proof and insulation cover
*beautiful design with safety removable cover..
and safer way to distribute power from a single input source to multiple outputs. Complete with main removeable cover.High
conductivity with excellent electrical contacts.
Compact design.
* Simple and Safety Operating
* Install on 35mm wide DIN rail or chassis mounting with screws.
* With Dust-proof and insulation cover
*beautiful design with safety removable cover..

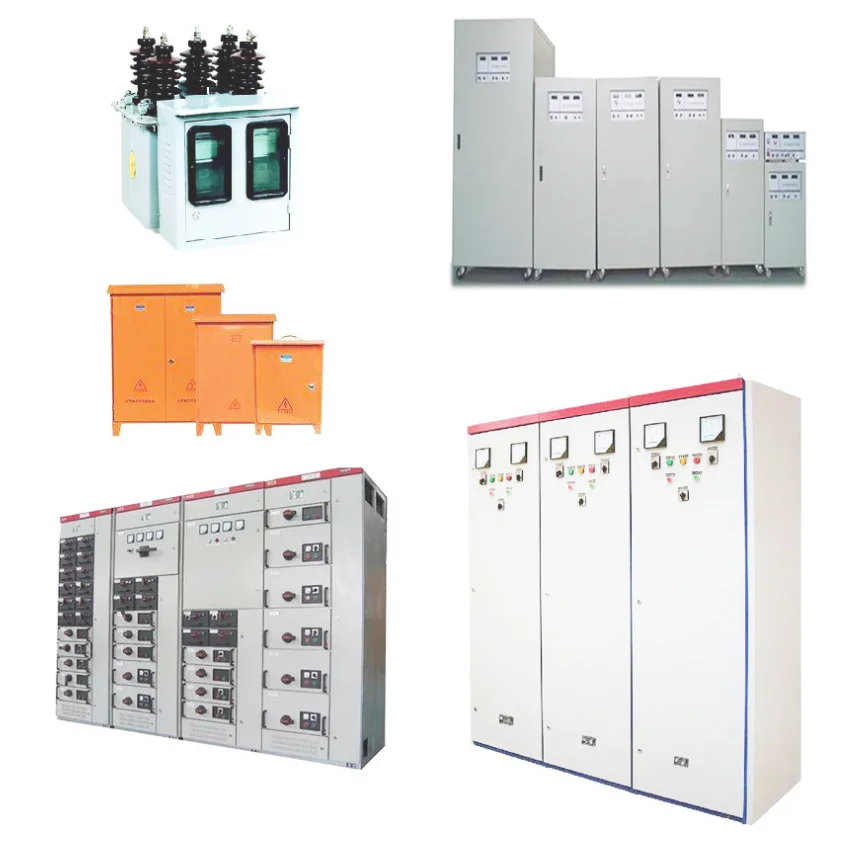

UKK distribution junction box
widely used on various electricty like above show for a ref .
Exhibition
Every year ,we attend professional exhibitions for Solar systems and Electric fairs. Which let us known to more customers and won us unanimous praise all over the world.
Certifications
Mindian has a strong independent innovation capability,has a number of core technologies,and obtained a number of patients,it has passed IS09001:2008, 14000, OHSAS18000 and other certifications.Among them, Solar grids,Dc combiner box, Dc cable, DC MCCB, DC MCB,DC Surge Protector, DC Fuse these products are leading in the industry in China and have passed CE CB NEMKO,SAA,VDE,CCC,CQC and Gold-sun etc.
Company Profile
Mindian Electric is a leading manufacturer of Solar energy and wind energy, located in the electrical center of China –Yueqing For more than 20 years, with our own up to 20,000 square meters production sites, employing over 200 peoples in its operations,Mindian have 3 subsidaries and more than 300 collaboration supporting material suppliers.
Mindian’s main products including: Solar distribution system(DC COMBINER, DC MCCB, DC MCB,DC Surge Protector, DC Fuse, SOLAR CABLE,solar CONNECTOR, DC OFF-GRID CONTROLLER etc); Power distribution systems for construction industry (such as ATS, MCB, MCCB, etc.).
Mindian’s main products including: Solar distribution system(DC COMBINER, DC MCCB, DC MCB,DC Surge Protector, DC Fuse, SOLAR CABLE,solar CONNECTOR, DC OFF-GRID CONTROLLER etc); Power distribution systems for construction industry (such as ATS, MCB, MCCB, etc.).
Completed the transition from the AC system to the DC system and enriched the company's product line.
Mindian has a strong independent innovation capability,has a number of core technologies,and obtained a number of patents,it has passed IS09001:2008, 14000, OHSAS18000 and other certifications.Among them, Solar grids,Dc combiner box, Dc cable, DC MCCB, DC MCB,DC Surge Protector, DC Fuse these products are leading in the industry in China and have passed CE CB NEMKO,SAA,VDE,CCC,CQC and Gold-sun etc.
Mindian Electric adheres to the spirit of : “Quality first, service by heart “ and always will following the business stage of “profession R&D and profession marketing”.
Mindian increases the strong reliability and high quality in various industries and applications to ensure the safe, efficient operation of their systems every time.
We are always look forward to be your nice partner.
Mindian has a strong independent innovation capability,has a number of core technologies,and obtained a number of patents,it has passed IS09001:2008, 14000, OHSAS18000 and other certifications.Among them, Solar grids,Dc combiner box, Dc cable, DC MCCB, DC MCB,DC Surge Protector, DC Fuse these products are leading in the industry in China and have passed CE CB NEMKO,SAA,VDE,CCC,CQC and Gold-sun etc.
Mindian Electric adheres to the spirit of : “Quality first, service by heart “ and always will following the business stage of “profession R&D and profession marketing”.
Mindian increases the strong reliability and high quality in various industries and applications to ensure the safe, efficient operation of their systems every time.
We are always look forward to be your nice partner.
Our Factory
Product packaging
We accept all customer required packings . (Welcome for OEM packing) and we will follow customer requirments of send goods via seafreight,airplane,or DHL,TNT...so on.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer for most items show in our website .
Q:Can you supply samples for checking ?
A: Yes, we can supply samples for our solar products and other products, pls contact for detailed required.
Q:How long is your delivery time?
A: Generally it is within 2days for small qty. or it is arround 15-20 days to a general order.
Q: What is your usual terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
Q: What is the standard of package of your goods?
A: Export standard package or special package according to customer requirement.
Q:How about inspection?
A: We have the whole inspection system from raw material to end products include Transient test, delay test,mechanical life test and so on.
Q:What is the service offered by company?
A: We have the professional engineer team which can design and develop the mould to arrive different customer requirements.
We also have the professional sales team to offer good service from pre-sale to after-sale.
If you have another questions, pls feel free to contact us.
A: We are manufacturer for most items show in our website .
Q:Can you supply samples for checking ?
A: Yes, we can supply samples for our solar products and other products, pls contact for detailed required.
Q:How long is your delivery time?
A: Generally it is within 2days for small qty. or it is arround 15-20 days to a general order.
Q: What is your usual terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
Q: What is the standard of package of your goods?
A: Export standard package or special package according to customer requirement.
Q:How about inspection?
A: We have the whole inspection system from raw material to end products include Transient test, delay test,mechanical life test and so on.
Q:What is the service offered by company?
A: We have the professional engineer team which can design and develop the mould to arrive different customer requirements.
We also have the professional sales team to offer good service from pre-sale to after-sale.
If you have another questions, pls feel free to contact us.
