Приспособление для мини-экскаватора YUCHAI
- Категории: Construction Machinery Attachments >>>
- Поставщик: Guangxi,Yuchai,Heavy,Industry,Company,Limited
Поделиться:
Описание и отзывы
Характеристики
Why Choose Us
YUCHAI
Founded in 1989, Guangxi Yuchai Heavy Industry Co., Ltd. is a chinese-foreign joint venture authorized and managed by Guangxi Yuchai Machinery Group Co., Ltd., and is the main export base of small excavators in China. It has been awarded "National High-tech Enterprise" and "Key High-tech Enterprise" title of National Torch Plan"
Today 31 years ago, China's first batch mini excavator WY1.3 was shipped to Europe from Yuchai.
After 31 years of experience, our products have been exported more than 100 countries and regions on five continents.
After 31 years of experience, our products have been exported more than 100 countries and regions on five continents.
The main products of our company are crawler type hydraulic excavators (0.8 tons to 31 tons), with two series: standard and zero tail, 9 platforms, and more than 20 models.
Yuchai Heavy Industry' products are known for their exquisite structure, reliable quality, high efficiency and energy saving. The performance indicators of the products have reached the international advanced level, and they have obtained more than 300 national patents. They have passed the CE certification of the European authority and the CU-TR certification of the Russian authority.
Yuchai Heavy Industry' products are known for their exquisite structure, reliable quality, high efficiency and energy saving. The performance indicators of the products have reached the international advanced level, and they have obtained more than 300 national patents. They have passed the CE certification of the European authority and the CU-TR certification of the Russian authority.
Products Description

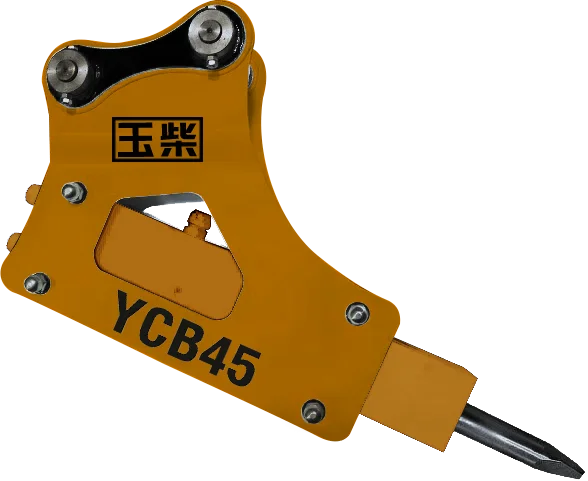

YCB45
Our Advantages
Product Paramenters
Model Number | YCB45 |
Suitable Excavator(ton) | 0.8—3 ton |
Drill rod diameter | 45 mm |
weight | 120 kg |
Total length | 1230 mm |
pressure | 110—140 kg/cm² |
flow | 25—40 L/min |
Percussion frequency | 550—1000 bpm |
Model Number | YCB53 |
Suitable Excavator(ton) | 2.5—4.5 ton |
Drill rod diameter | 53 mm |
weight | 170 kg |
Total length | 1270 mm |
pressure | 110—140 kg/cm² |
flow | 25—50 L/min |
Percussion frequency | 500—900 bpm |

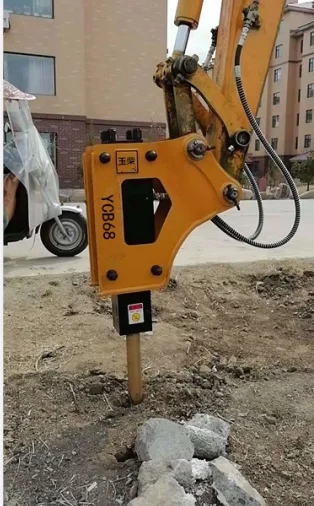

Model Number | YCB68 |
Suitable Excavator(ton) | 4—7 ton |
Drill rod diameter | 68 mm |
weight | 280 kg |
Total length | 1580 mm |
pressure | 110—160 kg/cm² |
flow | 40—70L/min |
Percussion frequency | 500—800 bpm |
Model Number | YCB75 |
Suitable Excavator(ton) | 6—9 ton |
Drill rod diameter | 75 mm |
weight | 350 kg |
Total length | 1790 mm |
pressure | 110—160 kg/cm² |
flow | 50—90L/min |
Percussion frequency | 500—700 bpm |
Model Number | YCB100 |
Suitable Excavator(ton) | 10—15 ton |
Drill rod diameter | 100 mm |
weight | 870 kg |
Total length | 2260 mm |
pressure | 150—170 kg/cm² |
flow | 80—120 L/min |
Percussion frequency | 400—700 bpm |
Model Number | YCB140 |
Suitable Excavator(ton) | 18—26 ton |
Drill rod diameter | 140 mm |
weight | 2000 kg |
Total length | 2810 mm |
pressure | 160—180 kg/cm² |
flow | 120—180 L/min |
Percussion frequency | 400—600 bpm |
Model Number | YCB155 |
Suitable Excavator(ton) | 26—36 ton |
Drill rod diameter | 155 mm |
weight | 2800 kg |
Total length | 3310 mm |
pressure | 160—180 kg/cm² |
flow | 180—240 L/min |
Percussion frequency | 250—400 bpm |
Customer Photos
Exhibition
Company Profile
