AL160 Multifunction Letter Bending Machine
Main Features
1.Independent double cutters, double slotting systems.
2.The planer blade is made of hard synthetic gold, lower cost but better cutting stability.
3.The mechanism of double-cutter alternate arc-beating can work for bending much smaller radius, as well as to make more complicated fonts.
4. Double benders change freely; switch simply, no further testing on material replacement.
5. Precision milling cutter can swing all around, identify angle automatically and process all sizes of aluminum profiles.
6. Double copper benders, designed for various aluminum profiles, beat smaller radius and extrude bigger radius at higher speed.
7.Automatic cutting depth adjustment
Technical Parameters
Model | HH-AL160 Letter Bending Machine |
Working Principle | High accuracy auto feeding, auto bending auto straightening, auto cutting |
Application Materials | Stainless Steel, Galvanized Sheet, Iron Sheet, Copper Metal, Aluminum Material, Such as Flat aluminum, edge aluminum, rectangle/triangle aluminum, Aluminum Profile, Channellume |
Arc bending Torque Peak | >100Nm |
Planer Slotted Torque Peak | >100Nm |
Length Accuracy | 0.1mm |
Feeding Torque | >45Nm |
Minimum Bending radius | ≥3mm |
Material Width | ≤160mm |
Material Thickness | 0.3-1.2mm |
Total Power | 2000W |
File format | Dxf , ai , plt |
Machine size | 1900*900*1600mm |
Weight | 500KG |
voltage | 220V |
Air pressure | 0.3-0.6Mpa |
Letters Making Steps

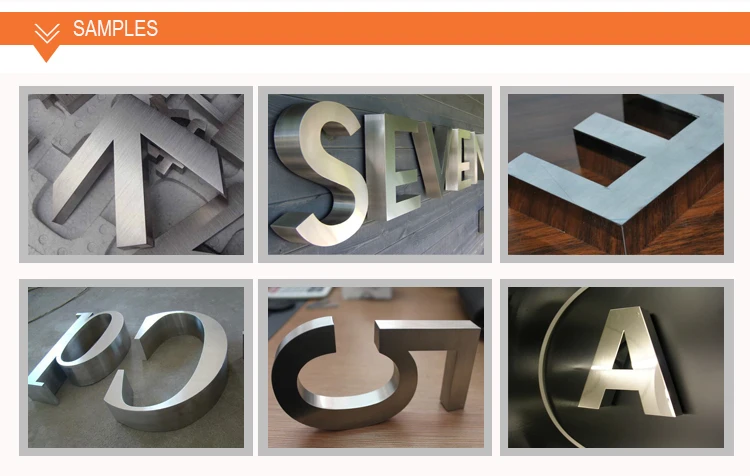

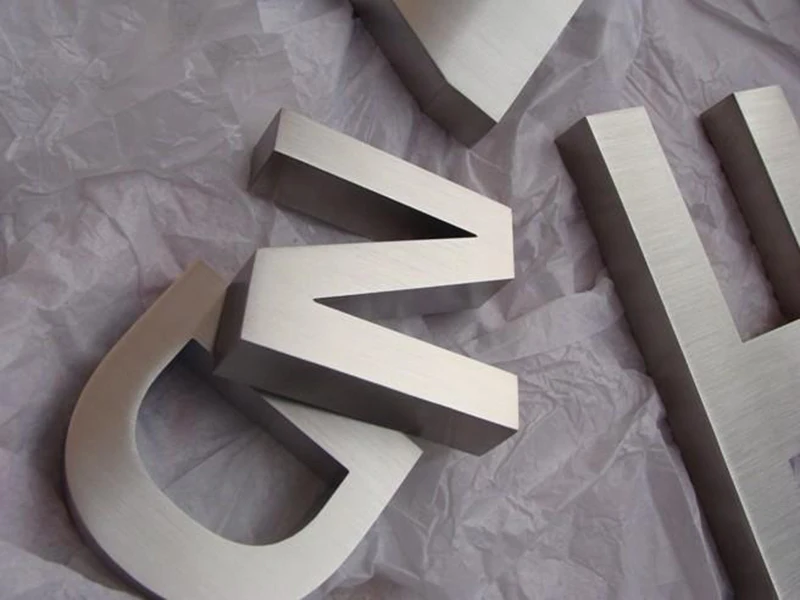

Applications
Rimless Letters,Aluminum Edge Letters,Resin Luminous Letters,Super Letters(Liquid Acrylic Letters),Aluminum Profile Letters,Aluminum Letters with Sponge, High Polymer Luminous Letters,Side Luminous Letters,LED Words and Various Aluminum Luminous Letters,SS Letters
Company and Certifcate
Our Service:Installation and Traning
A. Welcome customers to our factory for training. Our professional technicians will make direct and effective
face-to-face training.
B.Our engineer will do an on-site training service at customers' factory.
C.We provide detailed Videos for machine installation, Commissioning,Software Use and Operation Manual,then we will make training via whatsapp, wechat or email
face-to-face training.
B.Our engineer will do an on-site training service at customers' factory.
C.We provide detailed Videos for machine installation, Commissioning,Software Use and Operation Manual,then we will make training via whatsapp, wechat or email
We will ensure our machines running well in customers factory
Exhibitions Dispaly
FAQ
1.what's the package?
we use seaworthy packing,inside is a foam and PE film,outside is wooden case to protect it.
2.what's the warranty?
12months for all machines and 24months for motors.
3.How to install and run the machine?
we will send the install and video and user's manual with the machine, most customers can learn by themselves. we also provide romote machine or overseas training sevice.

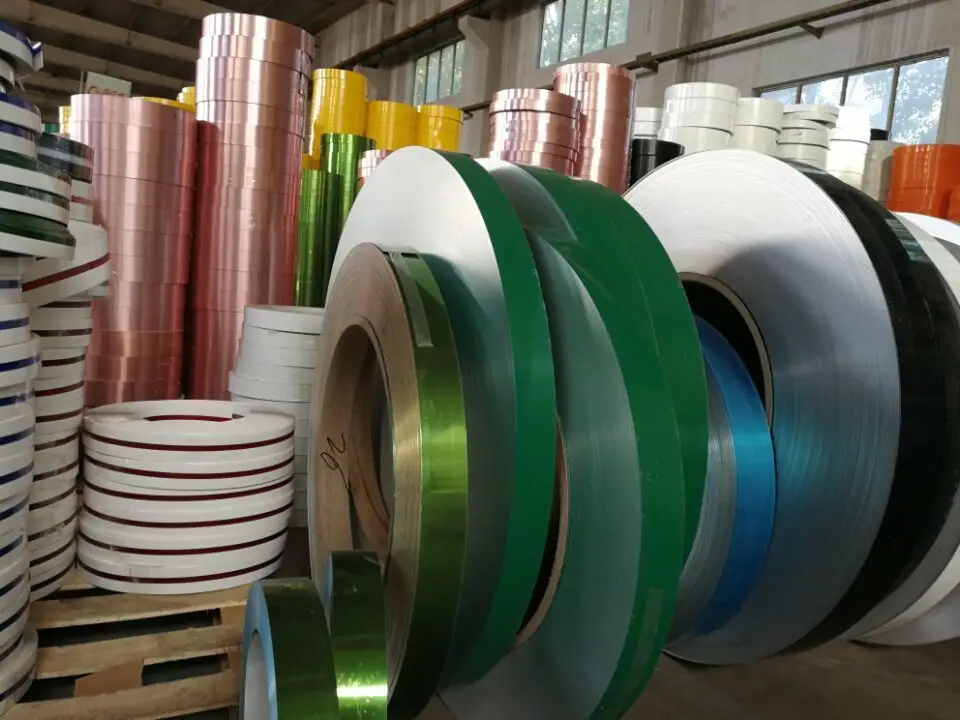

4.Do you have the any materials for sale?
Yes,we have all kinds of materials such as aluminum coil and stainless steel.
we use seaworthy packing,inside is a foam and PE film,outside is wooden case to protect it.
2.what's the warranty?
12months for all machines and 24months for motors.
3.How to install and run the machine?
we will send the install and video and user's manual with the machine, most customers can learn by themselves. we also provide romote machine or overseas training sevice.
4.Do you have the any materials for sale?
Yes,we have all kinds of materials such as aluminum coil and stainless steel.
