Плазменный резак со встроенным компрессором cut 120
US $560.00-$600.00
Ручная электрическая машина для резки труб стальная 400 мм в
- Категории: Metal Cutting Machinery >>>
- Поставщик: Henan,E-Work,Industrial,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Introduction:
This pipe cutting machine is small, easy to cut and easy to carry. The machine is equipped with four rotating wheels to make the work easier. The machine works without burrs, sparks, and it is safer. It has the functions of light weight, easy to carry and convenient on-site operation. You can use it to cut steel, plastic, copper, cast iron, stainless steel and multilayer pipes. There are two models of the machine, you can choose according to the diameter of the pipe.
Advantages and innovations:
1 Greatly improve and ease installation safety and fire safety;
2 Precision cutting, both sides of the pipe are flat after cutting, which is convenient for connection;
3 The cutting method is simple and fast, saving a lot of working time;
4 Provide a light work method, you can design a cutting plan according to the workplace (on-site);
5 High safety, no need to move the pipe by hand when working;
6 When cutting, it will not produce sparks and dust to the outside world;
7 Full-featured, can cut all kinds of built pipelines of the power system;

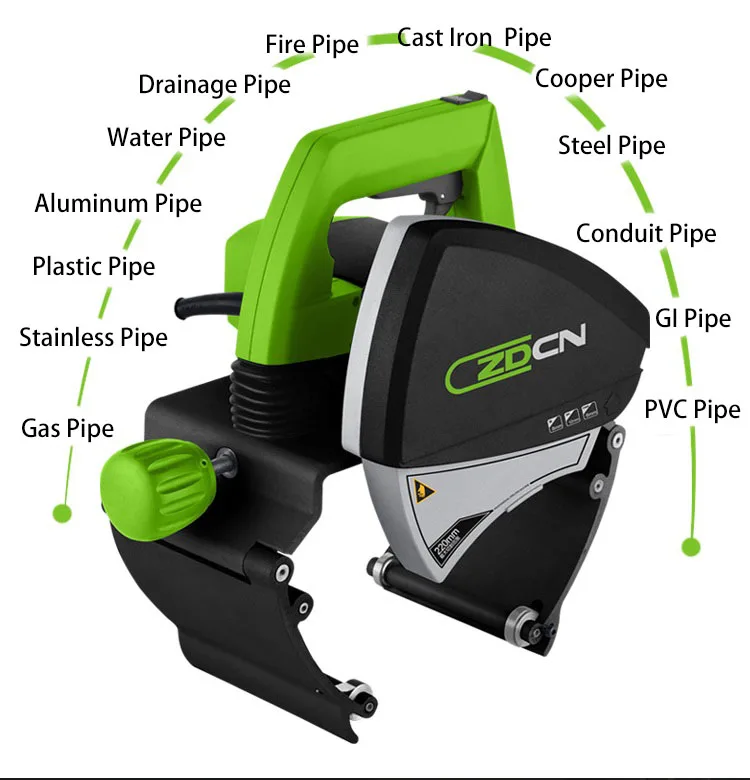

8 All cutting pipe materials, such as: steel, stainless steel, cast iron, copper, plastic, and multilayer pipes can all be cut;
9 No specific requirements for pipe diameter and working platform;
10 Good quality and low price, high cost performance.
2 Precision cutting, both sides of the pipe are flat after cutting, which is convenient for connection;
3 The cutting method is simple and fast, saving a lot of working time;
4 Provide a light work method, you can design a cutting plan according to the workplace (on-site);
5 High safety, no need to move the pipe by hand when working;
6 When cutting, it will not produce sparks and dust to the outside world;
7 Full-featured, can cut all kinds of built pipelines of the power system;
8 All cutting pipe materials, such as: steel, stainless steel, cast iron, copper, plastic, and multilayer pipes can all be cut;
9 No specific requirements for pipe diameter and working platform;
10 Good quality and low price, high cost performance.

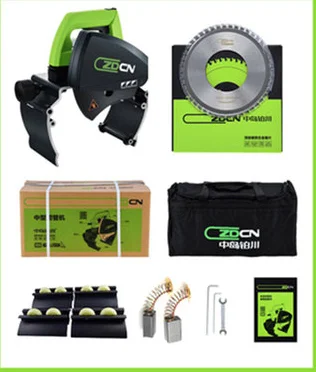

Pipe cutting machine * 1
Operation manual * 1
Wheel bracket* 4

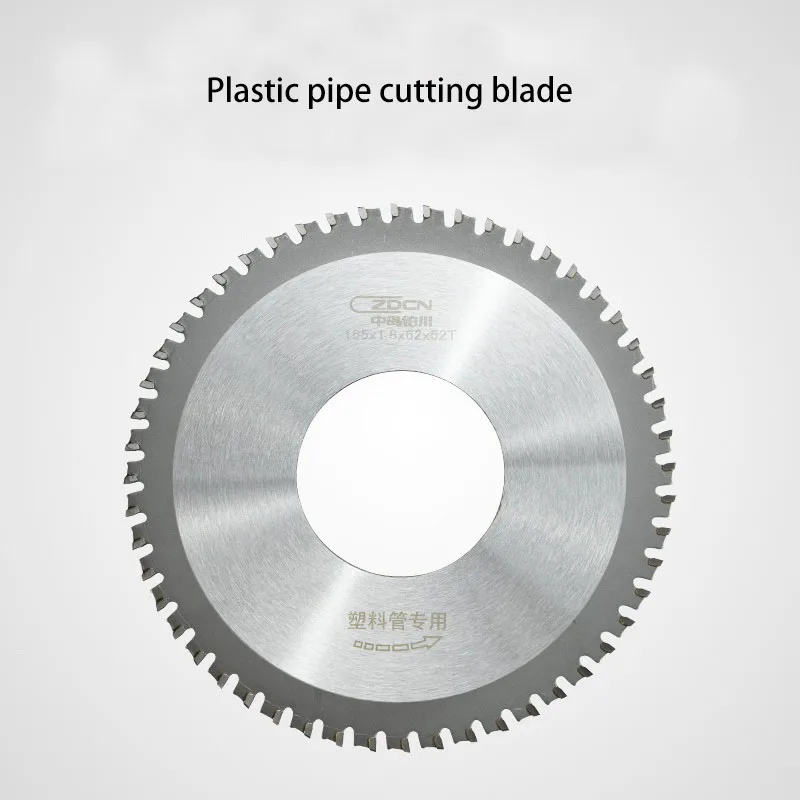

Saw blade* 1
Oxford bag * 1
Wrench * 1
Brush* 2
Carton * 1
Specification
Portable Electric Pipe Cutting Machine | ||||
Model | ZD220 | ZD400 | ||
Cutting Range | 15-220 mm diameter | 75-400 mm diameter | ||
Voltage | 220V 50Hz | 220V 50Hz | ||
Power | 1000W | 1750W | ||
No-load Speed | 3200 r/min | 2900 r/min | ||
Max steel pipe thickness | 8 mm | 10 mm | ||
Max stainless pipe thickness | 6 mm | 8 mm | ||
Max plastic pipe thickness | 12 mm | 35 mm | ||
Saw Blade Installation
Step 1
Loosen the screws on the protective cover and remove the protective cover.
Step 2
Press down the self-locking pin, loosen the saw blade with a wrench and take it off.
Step 3
Install the saw blade counterclockwise according to the saw tooth.
Step 4
Tighten the screws on the saw blade with a wrench and install the protective cover.
Product Details
Company Profile
Henan Ework Industrial Equipment Co., Ltd. is a professional company dedicated to the R&D, production and sales of piping machines and tools related to pipes.
In line with the business tenet of "piping solutions expert" and the mission of "make work easy and efficient", we have
independently developed and produced a series of products that customers love. Our product series mainly include pipe cutting machines, pipe beveling machines, pipe bending machines, pipe threading machines, HDPE pipe machines and related tools. These products are widely used for stainless pipe, steel pipe, galvanized pipe, mild steel and plastic pipes.
Our company not only has a professional and skilled workforce but also has established a complete and complete quality management system. We are committed to providing customers with world-class products and look forward to sincere and friendly cooperation with our customers to have a good business together.
In line with the business tenet of "piping solutions expert" and the mission of "make work easy and efficient", we have
independently developed and produced a series of products that customers love. Our product series mainly include pipe cutting machines, pipe beveling machines, pipe bending machines, pipe threading machines, HDPE pipe machines and related tools. These products are widely used for stainless pipe, steel pipe, galvanized pipe, mild steel and plastic pipes.
Our company not only has a professional and skilled workforce but also has established a complete and complete quality management system. We are committed to providing customers with world-class products and look forward to sincere and friendly cooperation with our customers to have a good business together.
Our Products
Our product series mainly include pipe cold cutters, pipe bevelers, pipe threaders, pipe scrapers, pipe squeezers, pipe welders, pipe benders, and pipe cutting beveling machines. These products are widely used for water pipelines, fire-fighting pipelines, gas pipelines, chemical pipelines, and petroleum pipelines. If you want to buy these products, please directly contact me. Follow items are the best selling products, please tap/click to view the details.
